Coolant Pump: Installation

WARNING: This page is about a different variant/trim than selected.

1. Lubricate the inside and the outside diameter of the grommet with clean engine coolant.
2. Install the grommet so it is flush with the rear of the coolant pump housing.
  Material: Motorcraft ® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)
Courtesy of FORD MOTOR COMPANY
NOTE: Verify the front cover dowel pins are aligned to the coolant pump and that the coolant pump is fully seated prior to installing the fasteners.

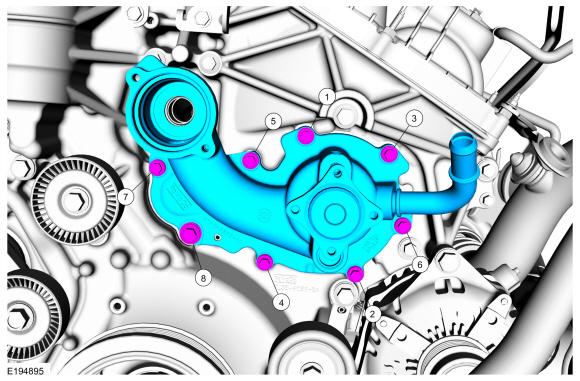

- Install the coolant pump and the fasteners.
  Torque:
  - Fasteners 1-7
  - Stage 1: 89 lb.in (10 Nm)
  - Stage 2: 45 °
- Torque:
  - Fastener 8: 18 lb.ft (24 Nm)
Courtesy of FORD MOTOR COMPANY

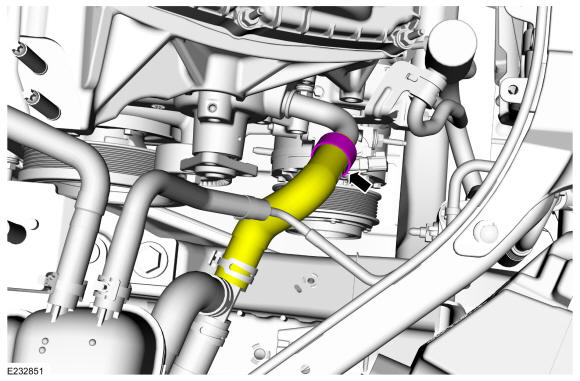

Connect the coolant hose and position the clamp.
Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

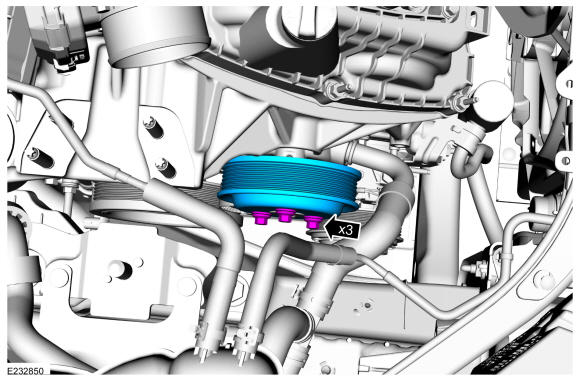

Install the coolant pump pulley and the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install the thermostat. Refer to: Thermostat .
Install the engine mount. Refer to: Engine Mount .
Install the accessory drive belt. Refer to: Accessory Drive Belt .
Fill and bleed the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
