Block Heater: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: Engine Cooling System Health and Safety Precautions .
Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
If equipped. Remove the retainers and the under body shield.

Courtesy of FORD MOTOR COMPANY
Remove the LH catalytic converter. Refer to: Catalytic Converter LH .
NOTE: Note the position of the component before removal.

NOTE: Make sure that the component is installed to the position noted before removal.

NOTE: If a new block heater is being installed do not use sealer on the threads of the block heater or block opening. Sealer is pre-applied to the block heater threads.

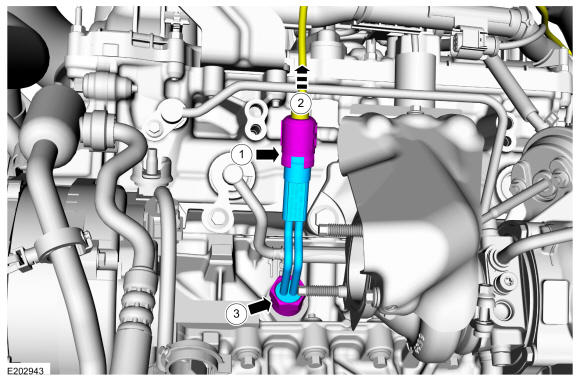

1. Release the electrical connector locking retainer.
2. Disconnect the electrical connector.
3. Remove the block heater.
  Material: Motorcraft ® Threadlock 262 / TA-26 (WSK-M2G351-A6)

  Torque: 41 lb.ft (55 Nm)
Courtesy of FORD MOTOR COMPANY
