Engine Cooling - Component Location
WARNING: This page is about a different variant/trim than selected.
NOTE:

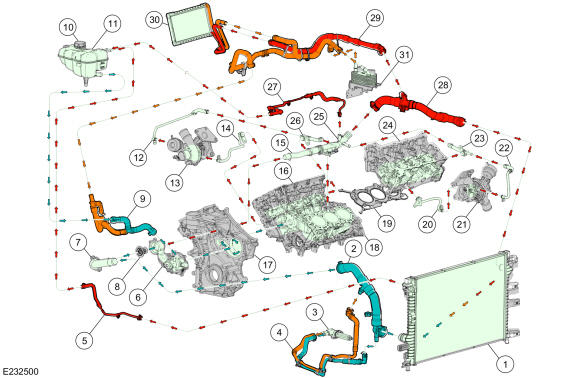

Coolant temperature will vary with ambient temperature and load. Temperatures displayed are for ambient temperature of 38 °C (100 °F). Red arrows indicate a temperature over 90 °C (194 °F), Orange arrows indicate a temperature of approximately 90 °C (194 °F), Blue arrows indicate a temperature below 90 °C (194 °F).
| Item | Description |
|---|---|
| 1 | Radiator |
| 2 | Lower radiator hose |
| 3 | Power Transfer Unit (PTU) cooler |
| 4 | Power Transfer Unit (PTU) coolant hose |
| 5 | Radiator-to-degas bottle hose |
| 6 | Coolant pump |
| 7 | Coolant inlet connector |
| 8 | Thermostat |
| 9 | Degas bottle hose |
| 10 | Pressure relief cap |
| 11 | Degas bottle |
| 12 | Turbocharger outlet tube RH |
| 13 | Turbocharger RH |
| 14 | Turbocharger inlet tube RH |
| 15 | Coolant outlet connector |
| 16 | Cylinder head RH |
| 17 | Engine front cover |
| 18 | Cylinder block |
| 19 | Cylinder head gasket LH |
| 20 | Turbocharger inlet tube LH |
| 21 | Turbocharger LH |
| 22 | Turbocharger outlet tube LH |
| 23 | Cylinder head to coolant outlet connector hose LH |
| 24 | Cylinder head LH |
| 25 | Coolant outlet connector |
| 26 | Cylinder head to coolant outlet connector hose RH |
| 27 | Coolant outlet connector-to-degas bottle hose |
| 28 | Upper radiator hose |
| 29 | Heater inlet hose |
| 30 | Heater core |
| 31 | Transmission oil cooler |
