Variable Camshaft Timing (VCT) Unit: Installation

Left hand units

1. NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For installation of the LH side the circle marks are Use d.

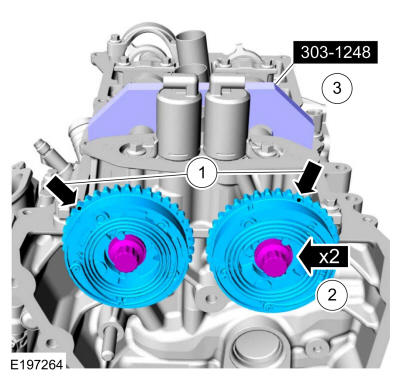

   1. Install the VCT units. The circle  timing marks on the VCT units will be at the 10 o'clock (intake) and 12:30 (exhaust) positions as displayed in the illustration below.
   2. Install the new VCT unit bolts.

      Torque:

      Stage 1: 30 lb. ft (40 Nm)

      Stage 2: Loosen: 360 °

      Stage 3: 37 lb. ft (50 Nm)

      Stage 4: 90 °

   3. Remove Special Service Tool: 303-1248 Camshaft holding tools.

   Courtesy of FORD MOTOR COMPANY

2. Install the LH timing chain. Refer to : Timing Chain .

   Right hand units

3. NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For installation of the RH side the triangle marks are Use d.

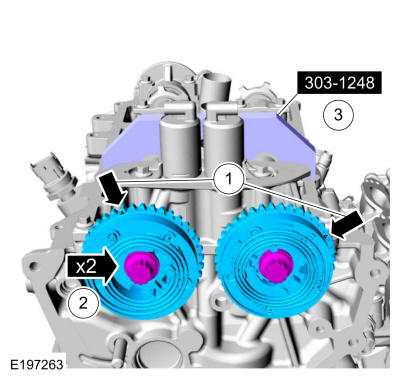

   1. Install the VCT units. The triangle  timing marks on the VCT units will be at the 2 o'clock (intake) and 11 o'clock (exhaust) positions as displayed in the illustration below.
   2. Install the new VCT unit bolts.

      Torque:

      Stage 1: 30 lb. ft (40 Nm)

      Stage 2: Loosen: 360 °

      Stage 3: 37 lb. ft (50 Nm)

      Stage 4: 90 °

   3. Remove Special Service Tool: 303-1248 Camshaft holding tools.

   Courtesy of FORD MOTOR COMPANY

4. Install the RH timing chain. Refer to : Timing Chain .
