Valve Cover RH: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
    • Remove the nut.

    • Remove the bolt.

    • Remove the engine appearance cover.

    • If the engine appearance cover stud bolt is loosened or removed, it must be installed/tightened into the intake manifold.

      Torque: 62 lb. in (7 Nm)

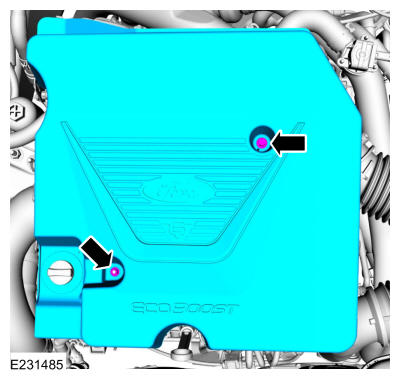

    GFD192695Courtesy of FORD MOTOR COMPANY
  2. Remove the RH charge air cooler intake pipe. Refer to : Charge Air Cooler (CAC) Intake Pipe .
    1. Disconnect the PCV tube quick release couplings and remove the tube. Refer to : Quick Release Coupling .
    2. Disconnect the throttle body electrical connector.

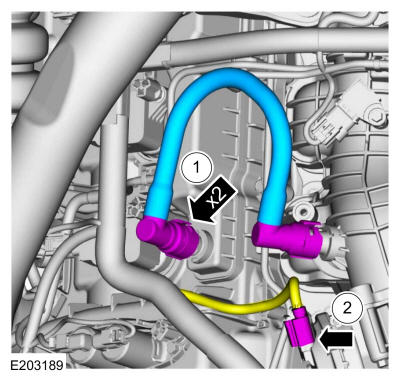

    GFD192708Courtesy of FORD MOTOR COMPANY

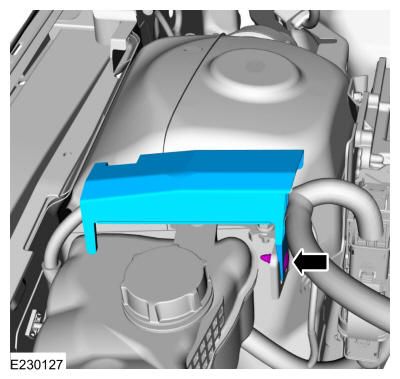

  4. If equipped, remove the retainer and the wiring harness cover.
    GFD191960Courtesy of FORD MOTOR COMPANY
  5. Disconnect the engine wiring harness electrical connectors and detach the wiring harness retainer.

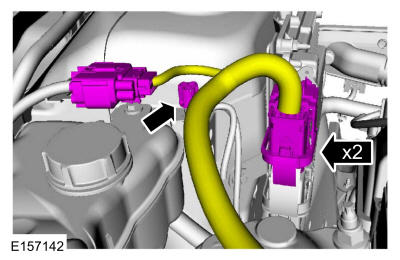

    GFD191523Courtesy of FORD MOTOR COMPANY
  6. Detach the wiring harness retainer from the engine mount.

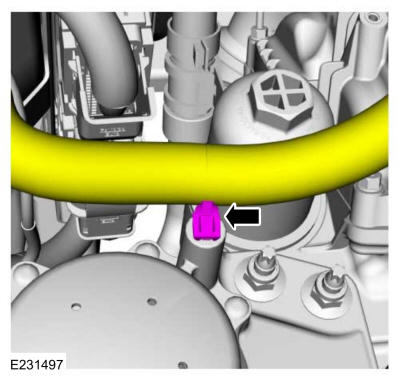

    GFD192803Courtesy of FORD MOTOR COMPANY

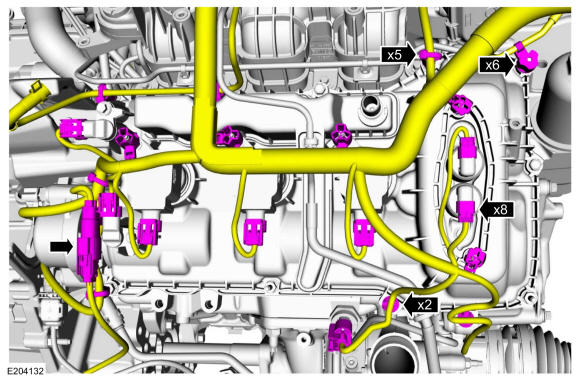

    • Disconnect the engine wiring harness electrical connector and retainers.

    • Detach the vacuum tube and coolant tube retainers.

    GFD192804Courtesy of FORD MOTOR COMPANY

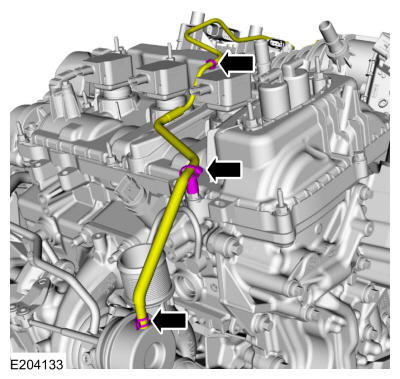

    • Disconnect the TC vacuum supply tube. Use the General Equipment: Hose Clamp Remover/Installer

    • Detach the vacuum tube retainers.

    GFD192805Courtesy of FORD MOTOR COMPANY
  9. Remove the RH coil-on-plugs. Refer to : Ignition Coil-On-Plug .
  10. Loosen the fasteners and remove the valve cover.

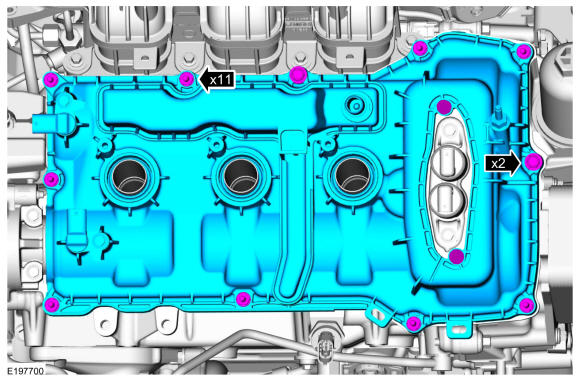

    GFD192806Courtesy of FORD MOTOR COMPANY
  11. Remove and discard the gasket.

    • Clean the valve cover gasket groove with soap and water or a suitable solvent.

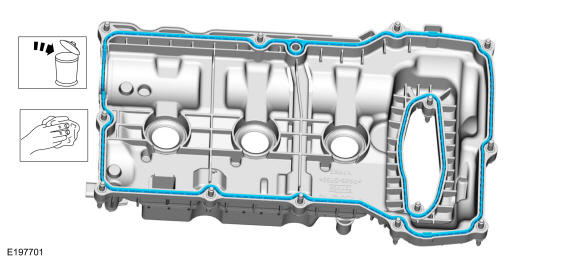

    GFD192807Courtesy of FORD MOTOR COMPANY
  12. Inspect the spark plug seals. Remove any damaged seals using the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

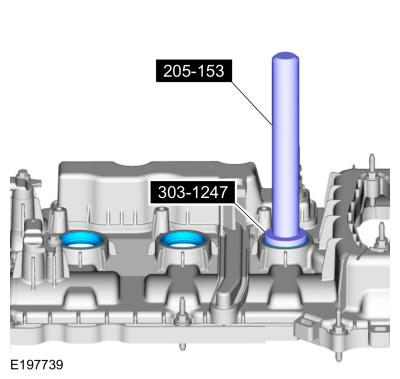

    GFD192808Courtesy of FORD MOTOR COMPANY
  13. NOTE: Do not Use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

    Clean the valve cover mating surface of the cylinder head and engine front cover. Refer to : RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

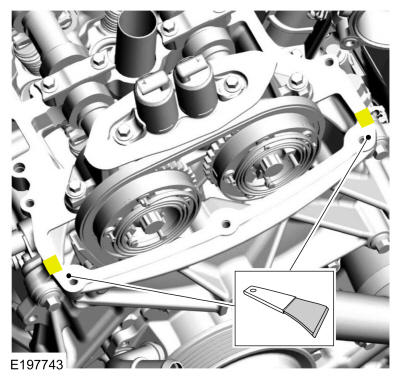

    GFD192809Courtesy of FORD MOTOR COMPANY
