Oil Pan: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

With the vehicle in NEUTRAL, position it on a hoist. Refer to : Jacking and Lifting - Overview .
Remove and discard the engine oil filter and drain the engine oil. Refer to : Engine Oil Draining and Filling .
Remove the accessory drive belt. Refer to : Accessory Drive Belt .

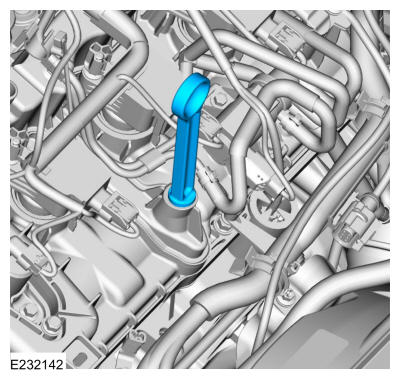

Remove the oil level indicator.

Courtesy of FORD MOTOR COMPANY

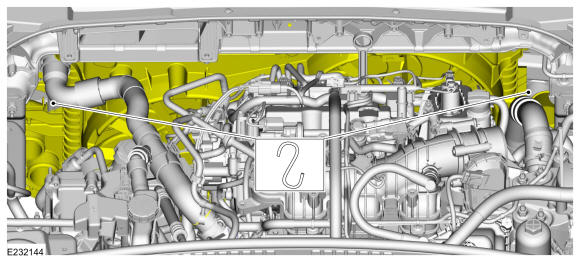

Support the cooling module.

Courtesy of FORD MOTOR COMPANY
Remove the retainers and the front underbody shield.

Courtesy of FORD MOTOR COMPANY

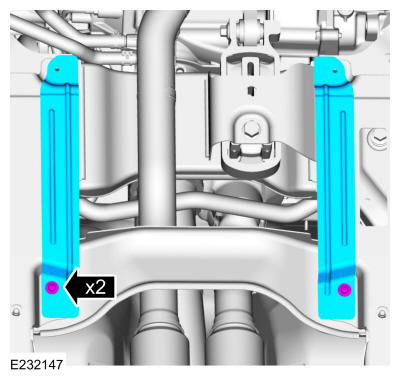

If equipped, remove the retainers and the front underbody straps.

Courtesy of FORD MOTOR COMPANY

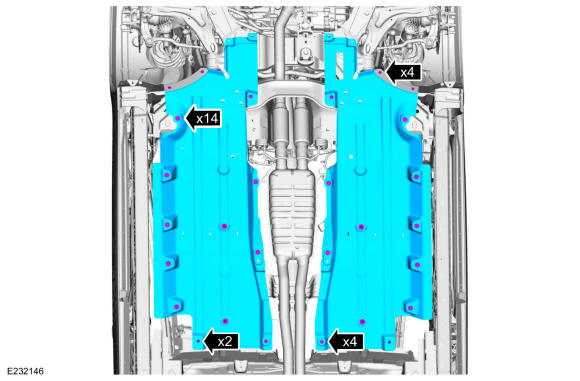

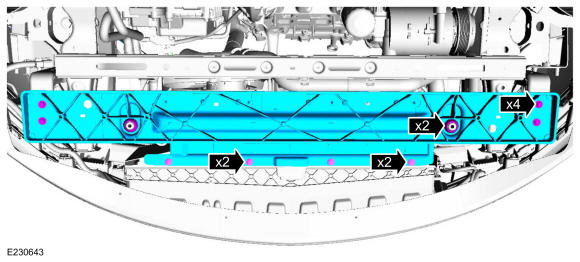

Remove the retainers and the underbody shields.

Courtesy of FORD MOTOR COMPANY
Remove the RH ride height sensor. Refer to : Front Suspension Height Sensor .
NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

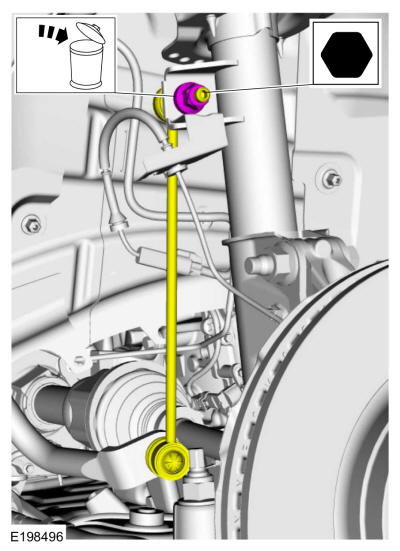

Remove the nut and position the RH sway bar link aside.

Courtesy of FORD MOTOR COMPANY

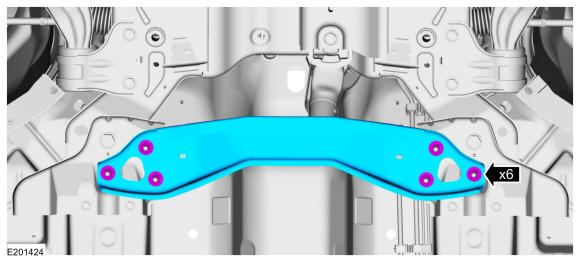

Remove the nuts and the subframe support bracket.

Courtesy of FORD MOTOR COMPANY

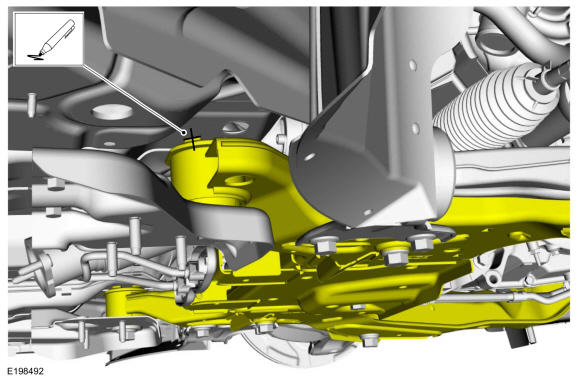

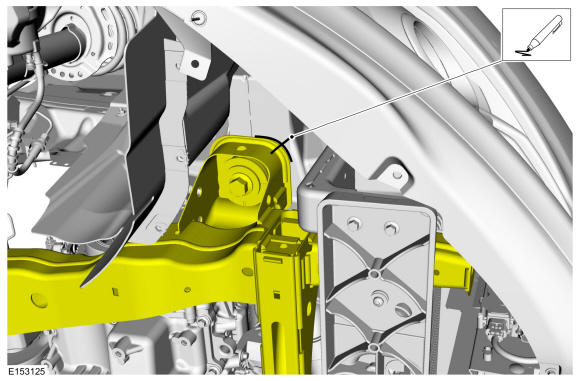

Mark the subframe location.

Courtesy of FORD MOTOR COMPANY
Mark the subframe location.

Courtesy of FORD MOTOR COMPANY

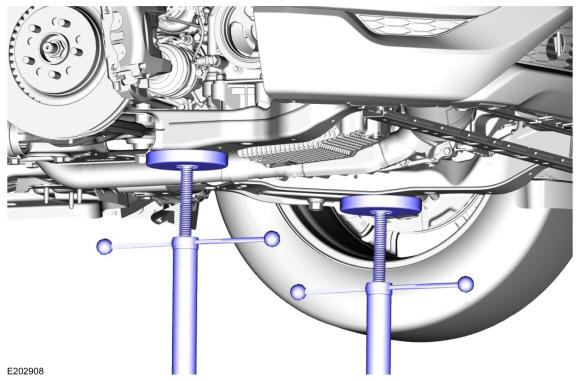

Position adjustable stands under the sides of the subframe. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure the cooling module is secure.

Remove the fasteners and the cooling module support panel.

Courtesy of FORD MOTOR COMPANY

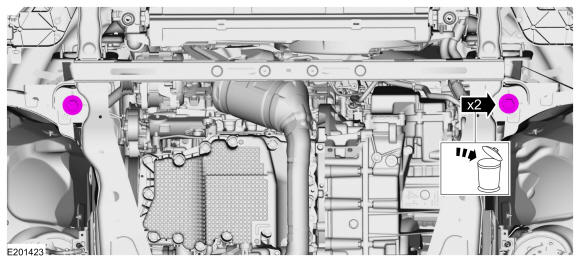

1. Remove and discard the subframe bolts.

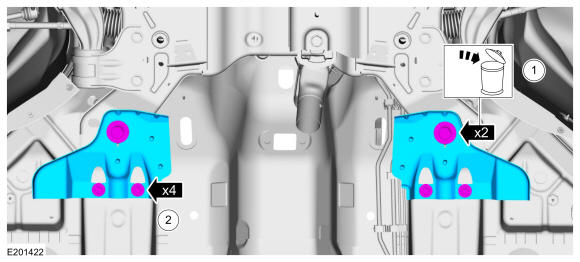

2. Remove the bolts and the subframe brackets.
Courtesy of FORD MOTOR COMPANY
Remove and discard the subframe bolts.

Courtesy of FORD MOTOR COMPANY

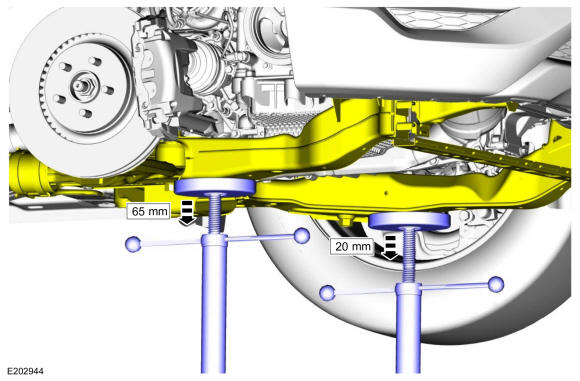

Using the adjustable stands lower the LH side of the subframe 20 mm (0. 75 in) and lower the RH 65 mm (2. 5 in). Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

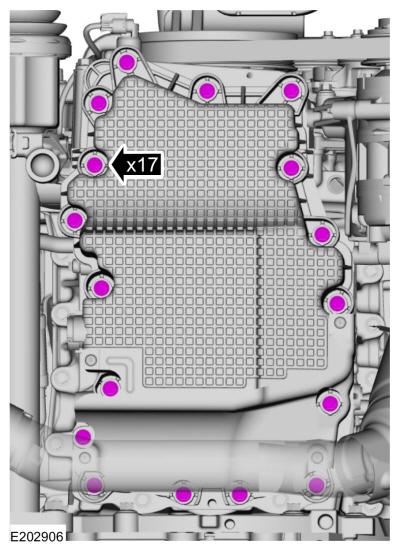

Remove the oil pan bolts.

Courtesy of FORD MOTOR COMPANY

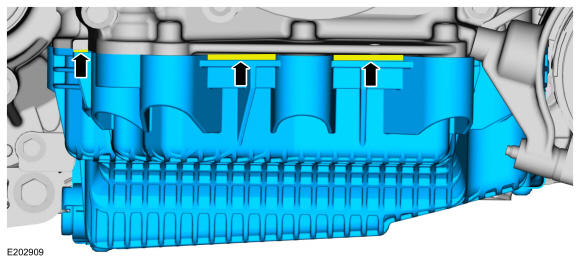

Using a large flat-bladed screwdriver and the indicated pry pads, release the sealer and separate the oil pan from the bottom of the engine. Use the General Equipment: Flat-Bladed Screwdriver

Courtesy of FORD MOTOR COMPANY
NOTE: Suspension components and jackstand removed from graphic for clarity.

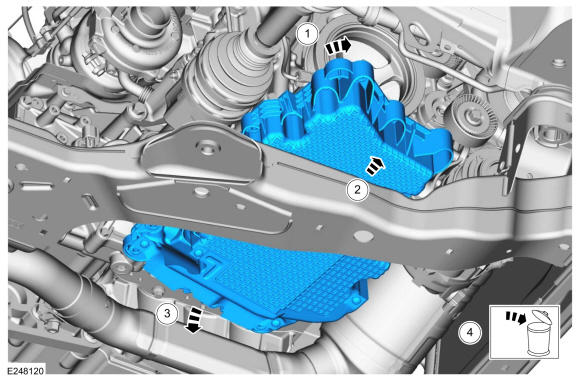

1. Rotate the front of the oil pan slightly toward the front of the vehicle.
2. Position the front of the oil pan to the RH side of the vehicle above the subframe.
3. Lower the rear of the oil pan to clear the exhaust and remove the oil pan.
4. NOTE: Do not reuse the oil pan.

  Discard the oil pan.
Courtesy of FORD MOTOR COMPANY

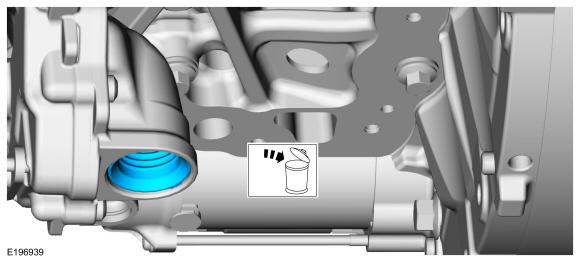

Remove and discard the oil pump seal.

Courtesy of FORD MOTOR COMPANY

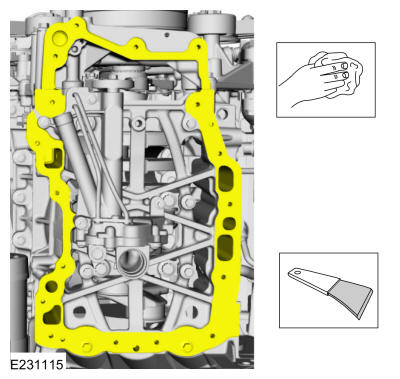

NOTE: Do not Use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.

Make sure that the oil pan sealing surfaces of the cylinder block and engine front cover are free of foreign material. Refer to : RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

Courtesy of FORD MOTOR COMPANY
