Engine Mount: Removal

WARNING: This page is about a different variant/trim than selected.

With the vehicle in NEUTRAL, position it on a hoist. Refer to : Jacking and Lifting - Overview .
Remove the degas bottle. Refer to : Degas Bottle .
Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY

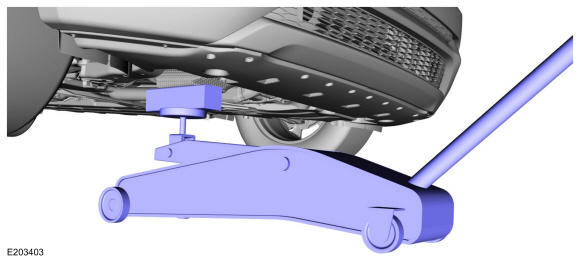

NOTE: Failure to position the wood block and floor jack as illustrated can result in damage to the oil pan.

Support the engine with a floor jack and a wooden block. Use the General Equipment: Wooden Block Use the General Equipment: Trolley Jack

Courtesy of FORD MOTOR COMPANY
- Remove the nut.
- Remove the bolt.
- Remove the engine appearance cover.
- If the engine appearance cover stud bolt is loosened or removed, it must be installed/tightened into the intake manifold.
  Torque: 62 lb. in (7 Nm)
Courtesy of FORD MOTOR COMPANY
Loosen the clamps and remove the upper CAC outlet pipe.

Courtesy of FORD MOTOR COMPANY

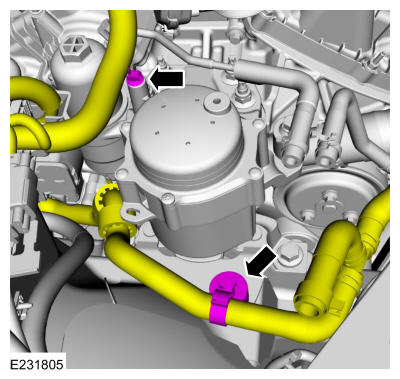

Detach the retainers and position the wiring harness and coolant hose aside.

Courtesy of FORD MOTOR COMPANY

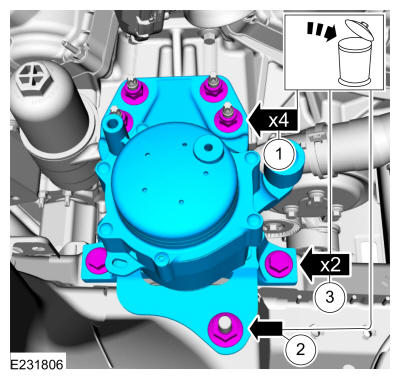

1. Remove and discard the engine mount-to-engine nuts.
2. Remove and discard the engine mount-to-frame nut.
3. Remove and discard the engine mount-to-frame bolts.
- Remove the engine mount.
Courtesy of FORD MOTOR COMPANY
