Engine Mount: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Hand tighten fasteners only at this time.
1. Position the engine mount.
2. Install the engine mount-to-engine nuts and hand tighten.
3. Install the engine mount-to-frame bolts and hand tighten.
4. Install the engine mount-to-frame nut and hand tighten.
Courtesy of FORD MOTOR COMPANY
Tighten the engine mount-to-engine nuts.
Torque: 59 lb. ft (80 Nm)

Courtesy of FORD MOTOR COMPANY

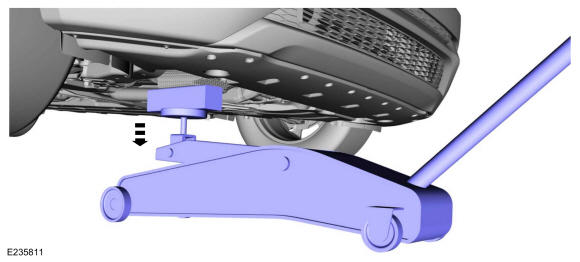

Lower and remove the floor jack and the wooden block. Use the General Equipment: Wooden Block Use the General Equipment: Trolley Jack

Courtesy of FORD MOTOR COMPANY
1. Tighten the engine mount-to-frame bolts.
  Torque: 81 lb. ft (110 Nm)
2. Tighten the engine mount-to-frame nut.
  Torque: 81 lb. ft (110 Nm)
Courtesy of FORD MOTOR COMPANY
Position the wiring harness and coolant hose and attach the retainers.

Courtesy of FORD MOTOR COMPANY
Install the upper CAC outlet pipe and tighten the clamps.
Torque: 48 lb. in (5. 4 Nm)

Courtesy of FORD MOTOR COMPANY
- Install the engine appearance cover.
- Install the bolt.
  Torque: 93 lb. in (10. 5 Nm)
- Install the nut.
  Torque: 42 lb. in (4. 8 Nm)
Courtesy of FORD MOTOR COMPANY
Install the underbody shield and the retainers.

Courtesy of FORD MOTOR COMPANY
Install the degas bottle. Refer to : Degas Bottle .
