Section 18 (Engine - 2.7L ECOBOOST (238KW/324PS)): Disassembly: Engine

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	205-153 (T80T-4000-W)Handle
Courtesy of FORD MOTOR COMPANY	303-1246 Engine Spreader Bar, TKIT-2006UF-FLM, TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1247 VCT Spark Plug Tube Seal Remover and Installer, TKIT-2006UF-FLM, TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1248 Camshaft holding tools, TKIT-2006UF-FLM, TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1634 Lift Eyes (2), TKIT-2014D-FL_ROW, TKIT-2014D-ROW3
Courtesy of FORD MOTOR COMPANY	303-409 (T92C-6700-CH) Remover, Crankshaft Seal TKIT-1992-FH/FMH/FLMH, TKIT-1993-LMH/MH
Floor Crane
Three Leg Puller
Mounting Stand
Plastic Scraper
Hose Clamp Remover/Installer
Flat-Bladed Screwdriver

Materials

1. Remove the bolts and the flexplate.

   Courtesy of FORD MOTOR COMPANY

2. Remove the crankshaft sensor ring.

   Courtesy of FORD MOTOR COMPANY

3. Inspect the crankshaft sensor ring for damage. If the crankshaft sensor ring has been dropped or has any visual damage, it must be discarded.

   Courtesy of FORD MOTOR COMPANY

4. 1. Disconnect the CKP sensor electrical connector.
   2. Remove the bolt and the CKP sensor.

   Courtesy of FORD MOTOR COMPANY

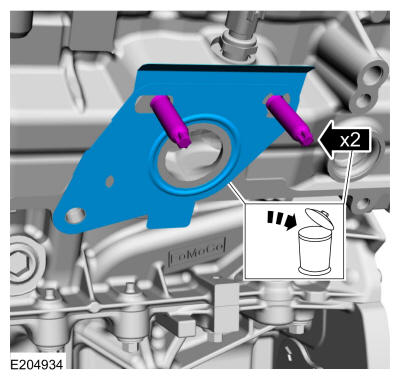

5. Remove the bolts and the crankshaft rear seal and retainer plate.
   • Discard the crankshaft rear seal and retainer plate.

   Courtesy of FORD MOTOR COMPANY

6. NOTE: Do not Use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

   Clean and inspect the mating surface. Refer to : RTV Sealing Surface Cleaning and Preparation .

   Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

   Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

   Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

   Courtesy of FORD MOTOR COMPANY

7. Using a floor crane, install the engine on a mounting stand. Remove Special Service Tool: 303-1246 Engine Spreader Bar., 303-1634 Lift Eyes (2). Use the General Equipment: Floor Crane Use the General Equipment: Mounting Stand

   Courtesy of FORD MOTOR COMPANY

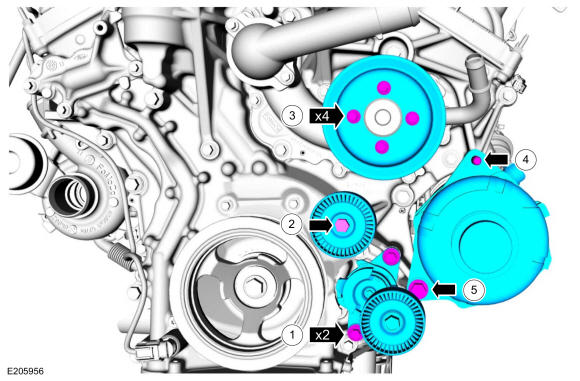

8. • Remove the bolts and the accessory drive belt tensioner.
   • Remove the bolt and the idler pulley.
   • Remove the bolts and the coolant pump pulley.
   • Remove the generator stud.
   • Remove the bolt and the generator.

   Courtesy of FORD MOTOR COMPANY

9. • Disconnect the oil pressure control solenoid electrical connector.
   • Remove the retainer and the oil pressure control solenoid.

   Courtesy of FORD MOTOR COMPANY

10. Detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

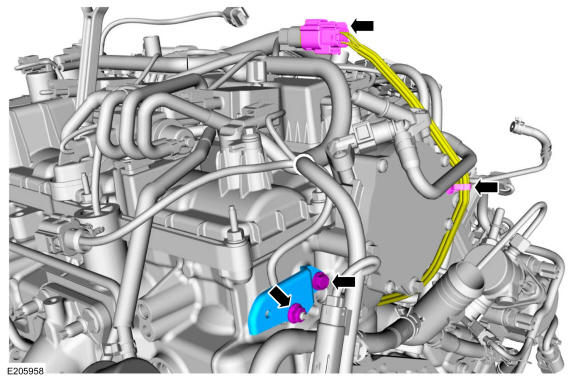

11. • Disconnect the KS electrical connector.
    • Detach the wiring harness retainer.
    • Remove the nut, the bolt and the bracket.

    Courtesy of FORD MOTOR COMPANY

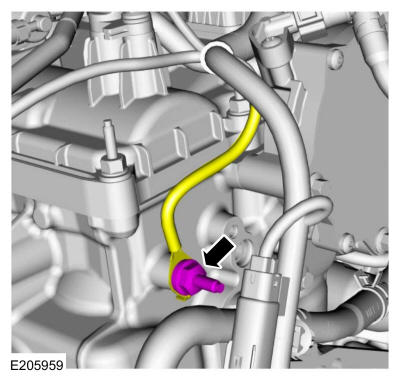

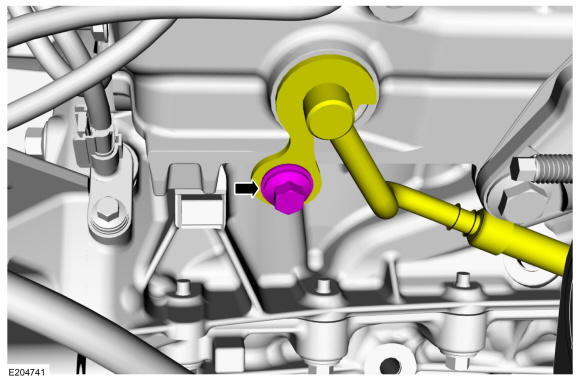

12. Remove the stud bolt and the ground wire.

    Courtesy of FORD MOTOR COMPANY

13. • Disconnect the high pressure fuel pump electrical connector.
    • Detach the wiring harness retainers.
    • Remove the stud bolt and the ground wire.

    Courtesy of FORD MOTOR COMPANY

14. • Disconnect the PCV tube quick release couplings and remove the tube. Refer to : Quick Release Coupling .
    1. Disconnect the throttle body electrical connector and detach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

15. • Disconnect the crankcase pressure sensor electrical connector.
    • Detach the PCV tube retainer.
    • Disconnect the PCV tube quick release coupling and remove the tube. Refer to : Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

16. Disconnect the EVAP tube quick release coupling and remove the tube. Refer to : Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

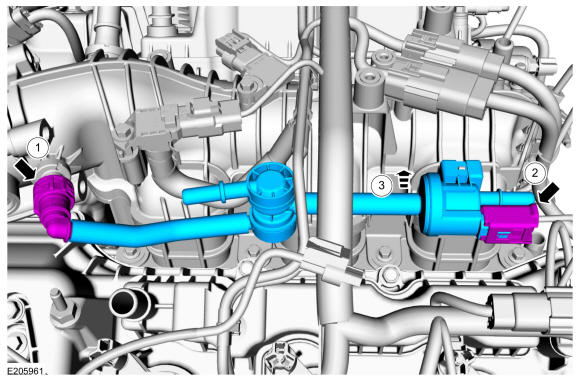

17. 1. Disconnect the EVAP tube quick release coupling. Refer to : Quick Release Coupling .
    2. Disconnect the EVAP purge valve electrical connector.
    3. Lift the EVAP purge valve off of the intake manifold mounting tab and remove the valve from the engine.

    Courtesy of FORD MOTOR COMPANY

18. Disconnect the engine wiring harness electrical connectors and retainers.

    Courtesy of FORD MOTOR COMPANY

19. 1. Remove the vacuum harness pressure sensor bolt.
    2. Disconnect the MAP sensor electrical connector.
    3. Detach the wiring harness and vacuum harness retainers.

    Courtesy of FORD MOTOR COMPANY

20. • Slide the insulator up to access the CHT electrical connector.
    • Disconnect the engine wiring harness electrical connectors and detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

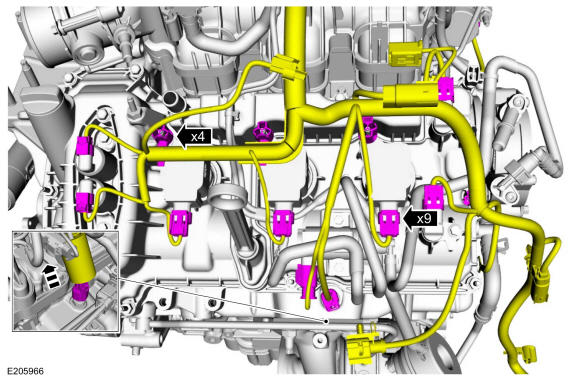

21. • Disconnect the engine wiring harness electrical connectors.
    • Detach the wiring harness retainers and remove the harness from the engine.

    Courtesy of FORD MOTOR COMPANY

22. Detach the vacuum hose retainers.
    • Release the clamp and disconnect the vacuum hose from the TC.

    Courtesy of FORD MOTOR COMPANY

23. 1. Release the clamp and disconnect the vacuum hose from the TC.
    2. Remove the vacuum control solenoid bolts.
    3. Disconnect the vacuum tube quick release coupling. Refer to : Quick Release Coupling .
    4. Detach the retainers and remove the vacuum tube assembly from the engine.

    Courtesy of FORD MOTOR COMPANY

24. NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

    Remove the bolts and the coil-on-plug assemblies.

    Courtesy of FORD MOTOR COMPANY

25. Remove the oil level indicator.

    Courtesy of FORD MOTOR COMPANY

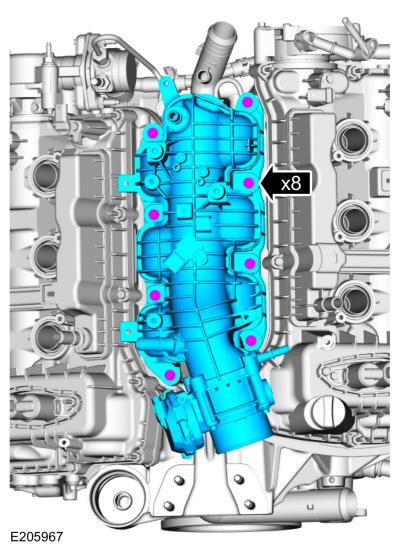

26. NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris if found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

    Loosen the bolts and remove the intake manifold.

    Courtesy of FORD MOTOR COMPANY

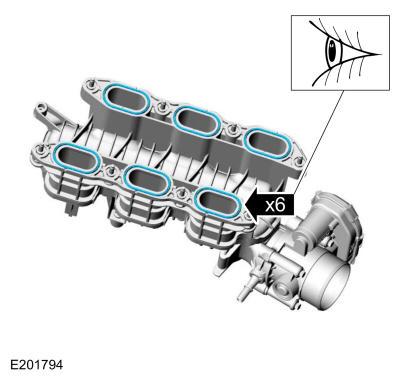

27. Inspect the gaskets and replace as necessary.

    Courtesy of FORD MOTOR COMPANY

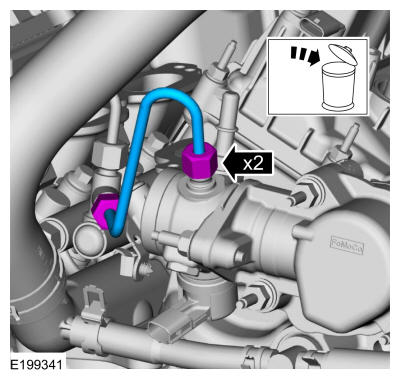

28. NOTE: To release the fuel pressure in the high-pressure fuel tube, wrap the high-pressure fuel tube flare nuts with a shop towel to absorb any residual fuel pressure during the loosening of high-pressure fuel tube flare nuts.
    • Loosen the high-pressure fuel pump-to-fuel rail high-pressure fuel tube flare nuts.
    • Remove and discard the high-pressure fuel tube.

    Courtesy of FORD MOTOR COMPANY

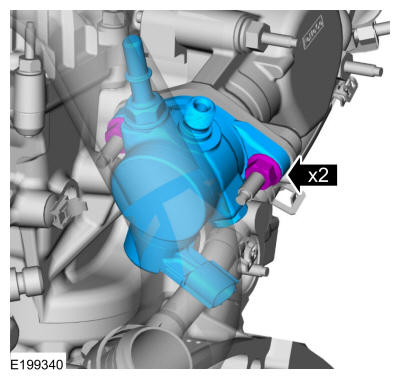

29. NOTE: Alternately loosen the high-pressure fuel pump nuts one revolution at a time.

    Remove the nuts and the high-pressure fuel pump.

    Courtesy of FORD MOTOR COMPANY

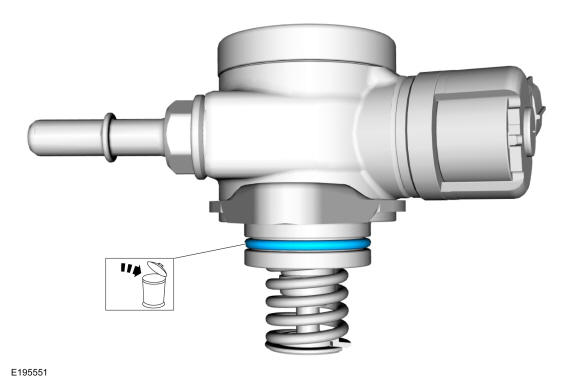

30. Remove and discard the high-pressure fuel pump O-ring seal.

    Courtesy of FORD MOTOR COMPANY

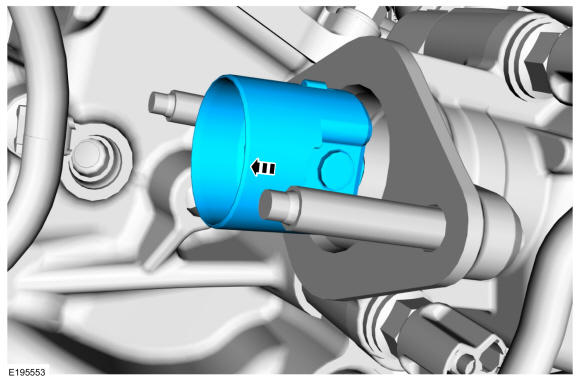

31. Remove the high-pressure fuel pump tappet.

    Courtesy of FORD MOTOR COMPANY

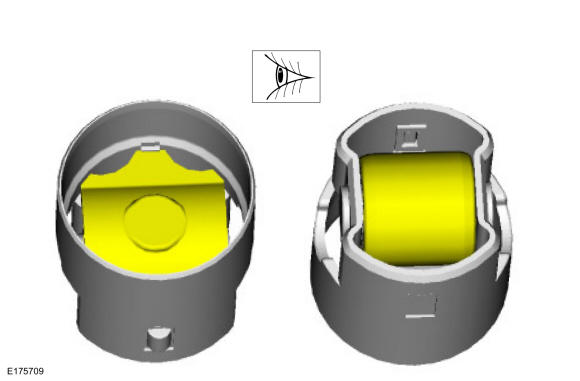

32. Inspect the high-pressure fuel pump roller tappet. If any flat spots or scoring are found, especially in the indicated areas, then inspect the high-pressure fuel pump and the high-pressure fuel pump roller tappet drive lobe. Install new components as necessary.

    Courtesy of FORD MOTOR COMPANY

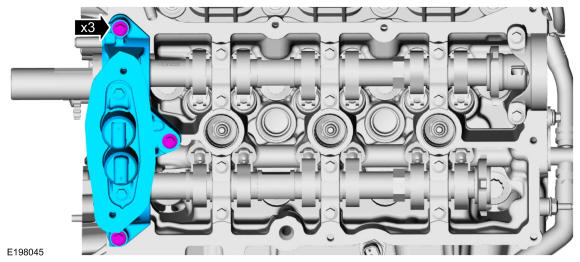

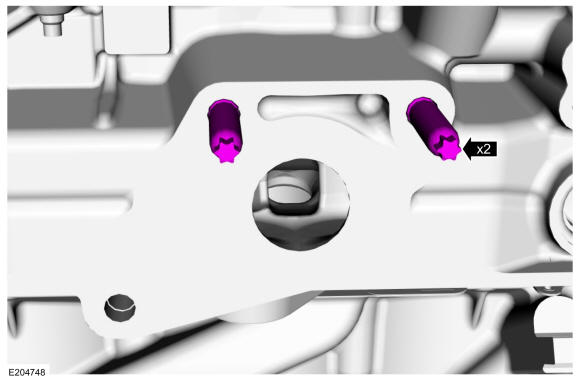

33. Remove the stud bolts and the high-pressure fuel pump drive unit.

    Courtesy of FORD MOTOR COMPANY

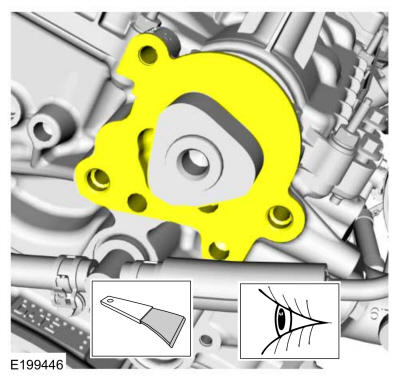

34. NOTE: Do not Use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

    Clean and inspect the mating surface. Refer to : RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    Courtesy of FORD MOTOR COMPANY

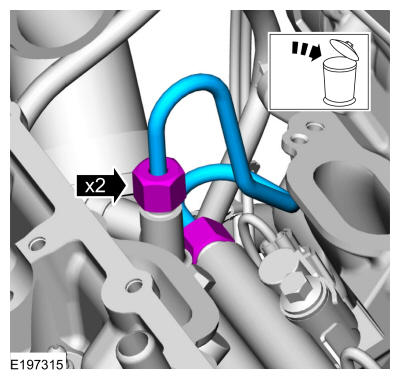

35. • Loosen the fuel rail-to-fuel rail high-pressure fuel tube flare nuts.
    • Remove and discard the high-pressure fuel tube.

    Courtesy of FORD MOTOR COMPANY

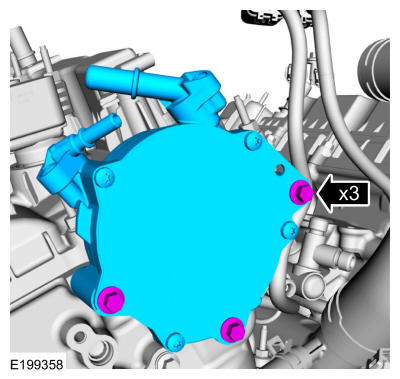

36. Remove the bolts and the brake vacuum pump.

    Courtesy of FORD MOTOR COMPANY

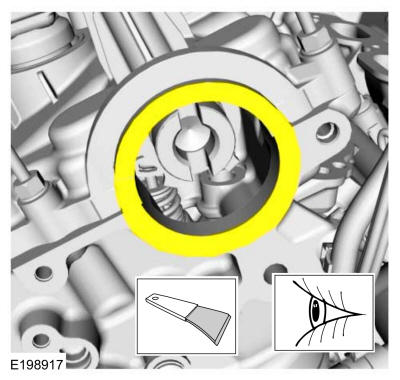

37. NOTE: Do not Use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

    Clean and inspect the mating surface. Refer to : RTV Sealing Surface Cleaning and Preparation .

    Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    Courtesy of FORD MOTOR COMPANY

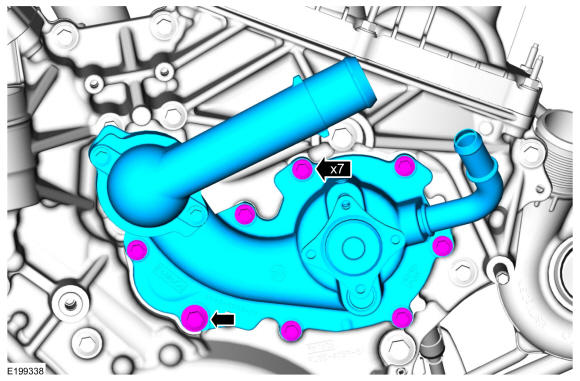

38. Remove the bolts and the coolant pump.

    Courtesy of FORD MOTOR COMPANY

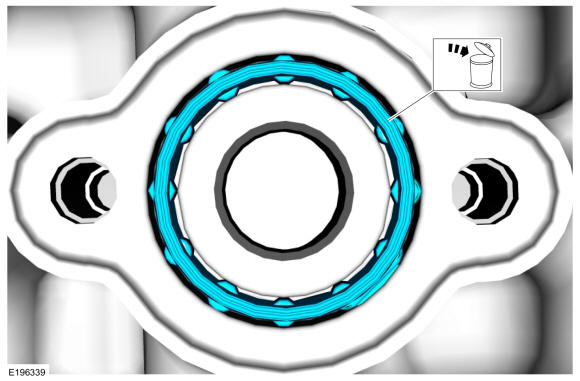

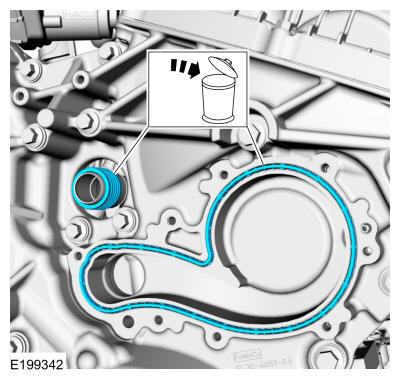

39. Remove and discard the coolant pump gasket and seal.

    Courtesy of FORD MOTOR COMPANY

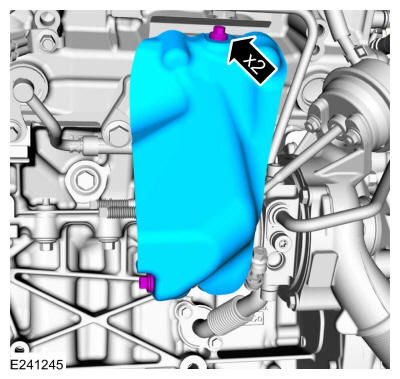

40. Remove the bolts and the TC heat shield.

    Courtesy of FORD MOTOR COMPANY

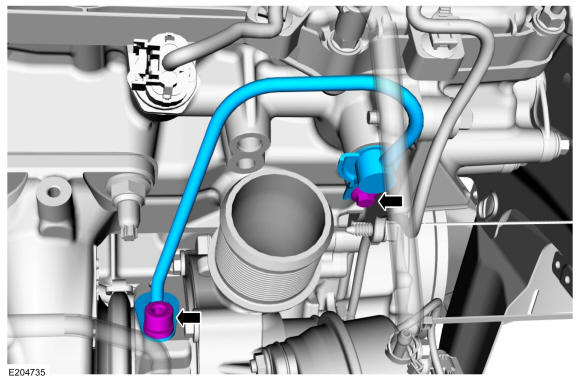

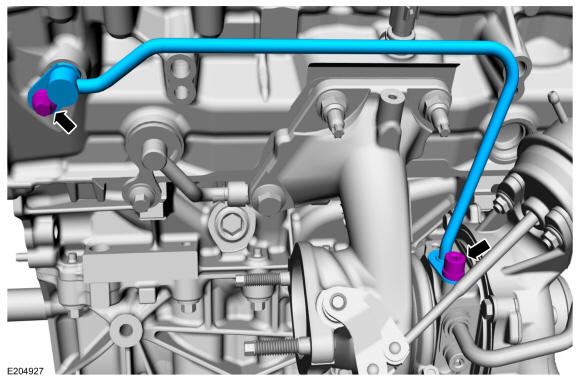

41. Remove the bolts and the TC oil supply tube.

    Courtesy of FORD MOTOR COMPANY

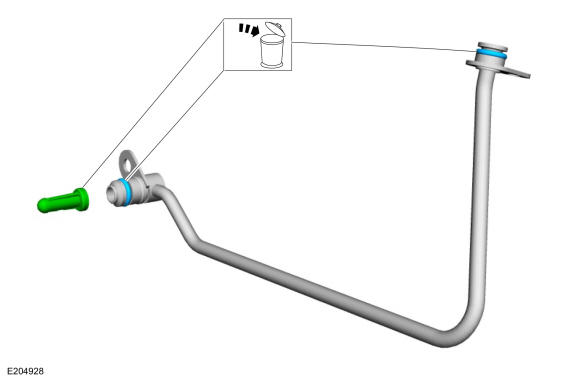

42. Remove and discard the TC oil supply tube oil filter and the O-ring seals.

    Courtesy of FORD MOTOR COMPANY

43. Remove the stud bolts, the bolt and the TC oil return tube.

    Courtesy of FORD MOTOR COMPANY

44. Remove and discard the TC oil return tube O-ring seal.

    Courtesy of FORD MOTOR COMPANY

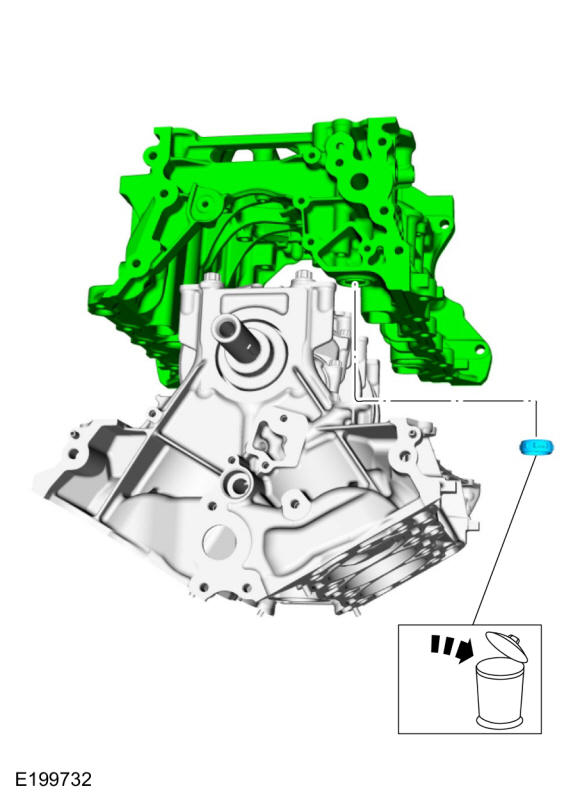

45. Remove and discard the TC oil return tube-to-engine block gasket.

    Courtesy of FORD MOTOR COMPANY

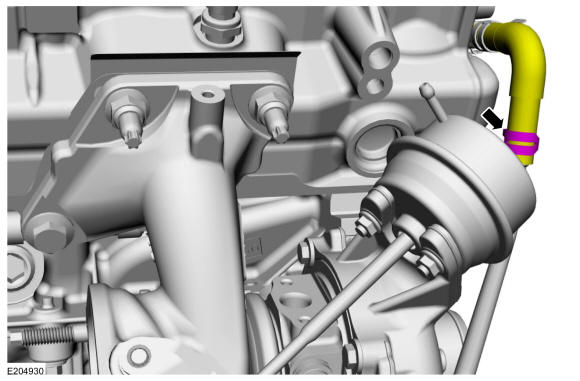

46. Release the clamp and disconnect the TC coolant return hose. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

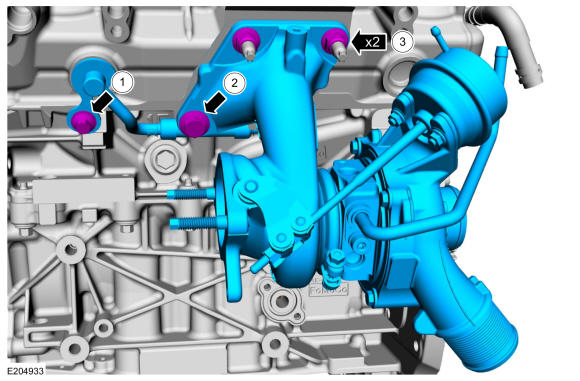

47. NOTE: Remove the TC coolant supply tube from the engine block while removing the TC.
    • Remove the TC coolant supply tube bolt.
    • Remove the TC bolt.
    • Remove the nuts and the TC.

    Courtesy of FORD MOTOR COMPANY

48. Remove and discard the TC coolant supply tube O-ring seal.

    Courtesy of FORD MOTOR COMPANY

49. • Remove and discard the TC gasket.
    • Remove and discard the TC mounting studs.

    Courtesy of FORD MOTOR COMPANY

50. Remove the bolts and the TC oil supply tube.

    Courtesy of FORD MOTOR COMPANY

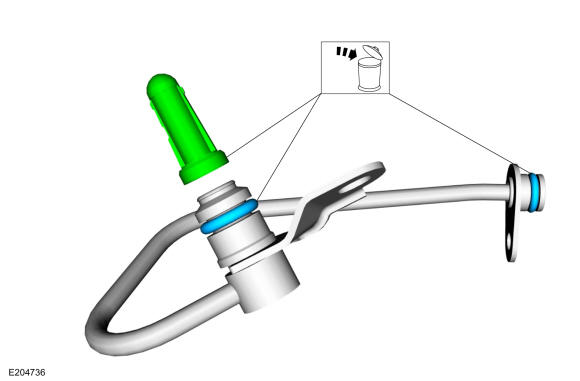

51. Remove and discard the TC oil supply tube O-ring seals and the TC oil supply tube oil filter.

    Courtesy of FORD MOTOR COMPANY

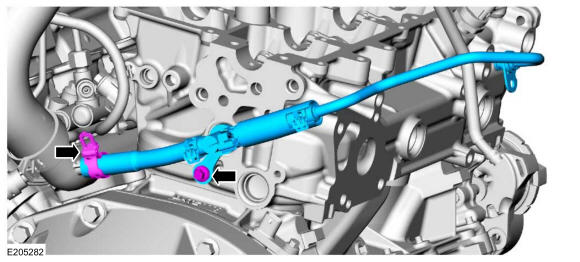

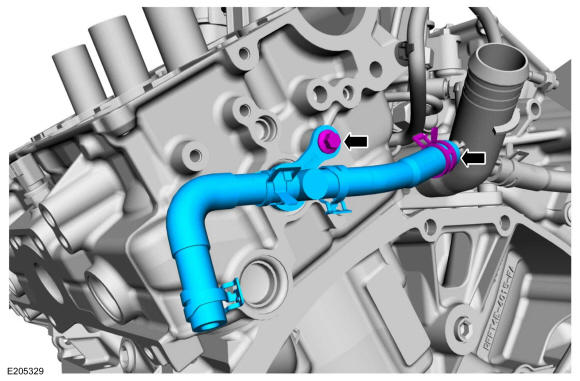

52. Remove the bolt and disconnect the TC coolant return tube.

    Courtesy of FORD MOTOR COMPANY

53. Remove and discard the TC coolant return tube O-ring seal.

    Courtesy of FORD MOTOR COMPANY

54. NOTE: AWD displayed FWD is similar.

    Remove the bolts and the TC oil return tube.

    Courtesy of FORD MOTOR COMPANY

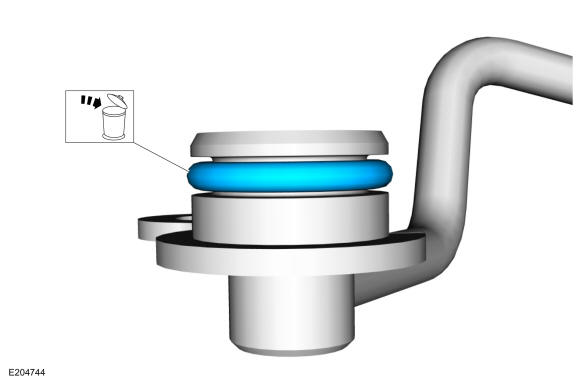

55. Remove and discard the TC oil return tube O-ring seal.

    Courtesy of FORD MOTOR COMPANY

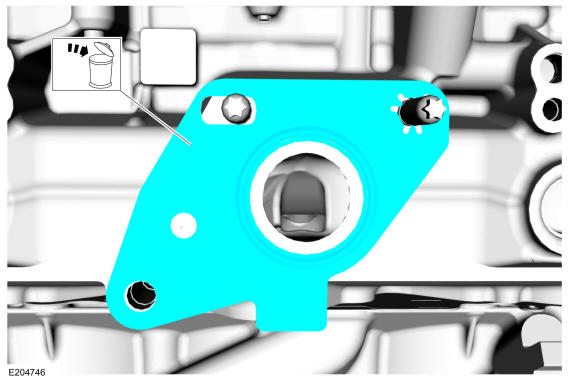

56. Remove and discard the TC oil return tube-to-engine block gasket.

    Courtesy of FORD MOTOR COMPANY

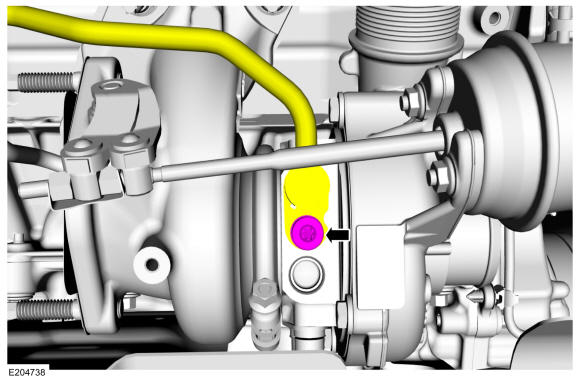

57. Remove the TC coolant supply tube bolt.

    Courtesy of FORD MOTOR COMPANY

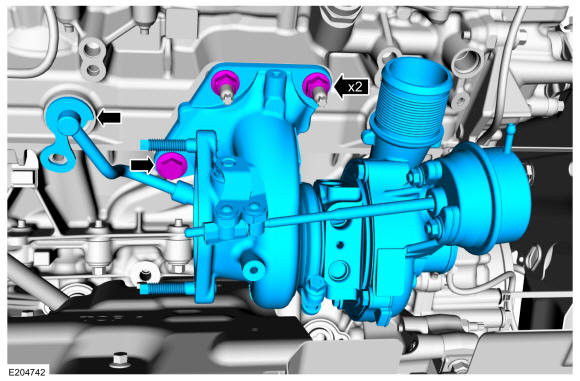

58. NOTE: Remove the TC coolant supply tube from the engine block while removing the TC.

    Remove the retainers and the TC.

    Courtesy of FORD MOTOR COMPANY

59. Remove and discard the TC coolant supply tube O-ring seal.

    Courtesy of FORD MOTOR COMPANY

60. Remove and discard the TC gasket.

    Courtesy of FORD MOTOR COMPANY

61. Remove and discard the TC mounting studs.

    Courtesy of FORD MOTOR COMPANY

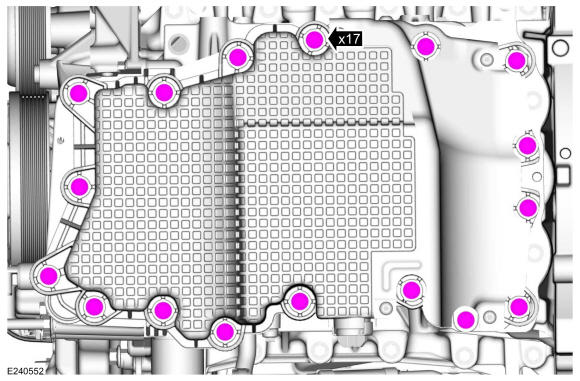

62. Remove the oil pan bolts.

    Courtesy of FORD MOTOR COMPANY

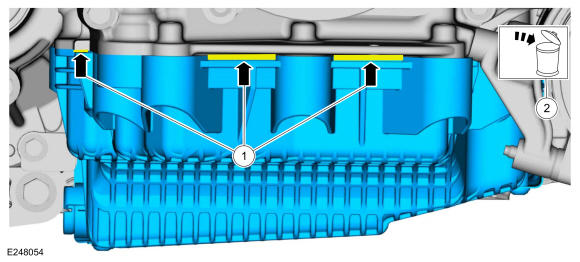

63. 1. Using a large flat-bladed screwdriver and the indicated pry pads, release the sealer and separate the oil pan from the bottom of the engine.
    2. NOTE: Do not reuse the oil pan.

       Remove and discard the oil pan.

    Courtesy of FORD MOTOR COMPANY

64. Remove and discard the oil pump seal.

    Courtesy of FORD MOTOR COMPANY

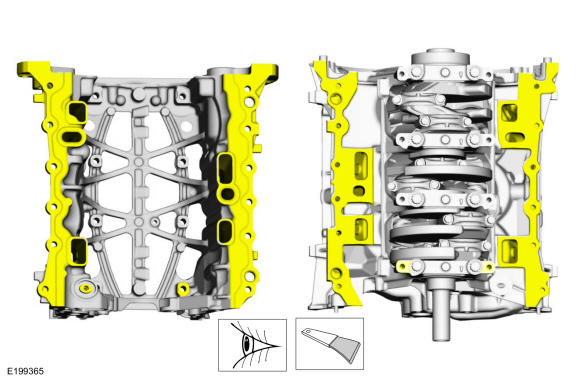

65. NOTE: Do not Use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.

    Make sure that the oil pan sealing surfaces of the cylinder block and engine front cover are free of foreign material. Refer to : RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    Courtesy of FORD MOTOR COMPANY

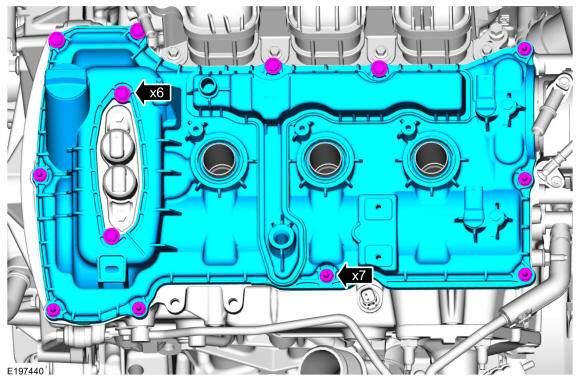

66. Loosen the fasteners and remove the valve cover.

    Courtesy of FORD MOTOR COMPANY

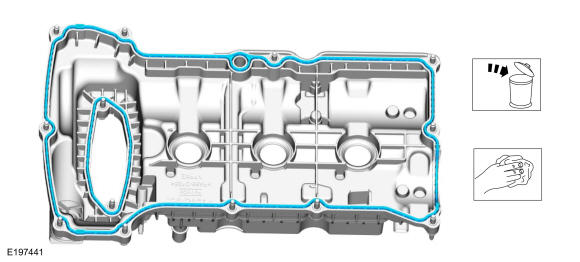

67. Remove and discard the gasket.
    • Clean the valve cover gasket groove with soap and water or a suitable solvent.

    Courtesy of FORD MOTOR COMPANY

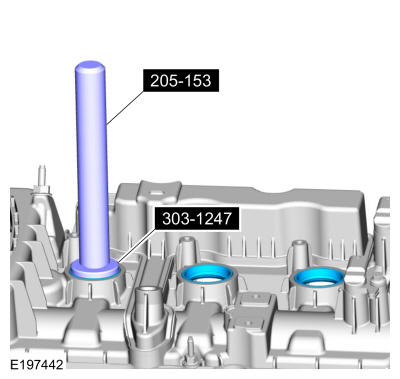

68. Inspect the spark plug seals. Remove any damaged seals using the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

    Courtesy of FORD MOTOR COMPANY

69. NOTE: Do not Use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

    Clean the valve cover mating surface of the cylinder head and engine front cover. Refer to : RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Courtesy of FORD MOTOR COMPANY

70. Loosen the fasteners and remove the valve cover.

    Courtesy of FORD MOTOR COMPANY

71. Remove and discard the gasket.
    • Clean the valve cover gasket groove with soap and water or a suitable solvent.

    Courtesy of FORD MOTOR COMPANY

72. Inspect the spark plug seals. Remove any damaged seals using the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

    Courtesy of FORD MOTOR COMPANY

73. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

    Clean the valve cover mating surface of the cylinder head and engine front cover. Refer to : RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Courtesy of FORD MOTOR COMPANY

74. Remove the crankshaft pulley bolt.

    Courtesy of FORD MOTOR COMPANY

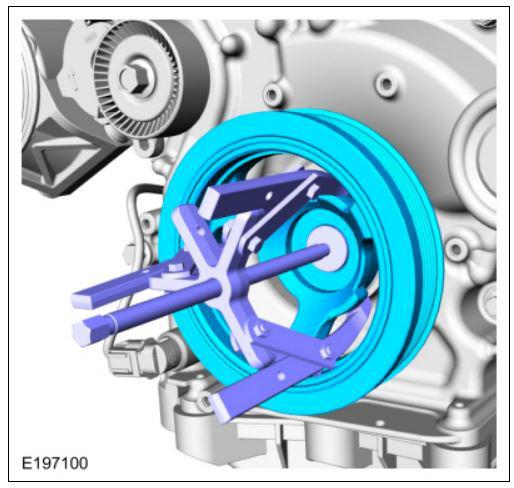

75. Using the 3 Leg Puller and a step plate, remove the crankshaft pulley. Use the General Equipment: Three Leg Puller

    Courtesy of FORD MOTOR COMPANY

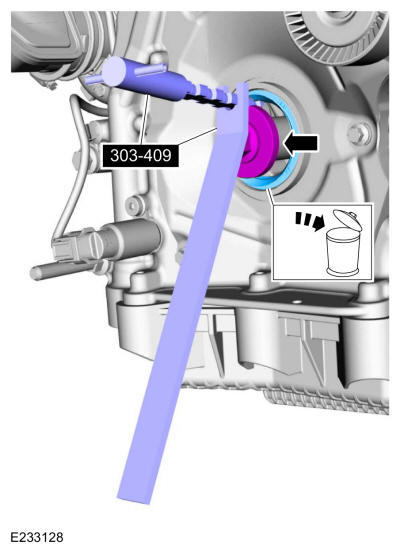

76. NOTE: Use care not to damage the engine front cover or the crankshaft when removing the seal.
    1. Install the crankshaft pulley bolt.
    2. Using the special tool, remove and discard the crankshaft front oil seal. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.
    3. NOTE: Retain the original crankshaft pulley bolt for turning the crankshaft while the pulley is removed.

       Remove the crankshaft pulley bolt.

    Courtesy of FORD MOTOR COMPANY

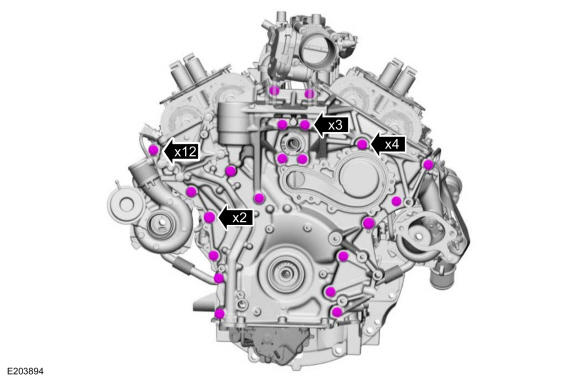

77. NOTE: There are 4 different types of fasteners, note location of each fastener for assembly.

    Remove the engine front cover fasteners.

    Courtesy of FORD MOTOR COMPANY

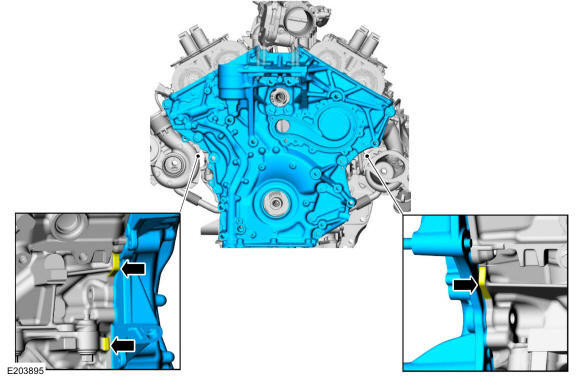

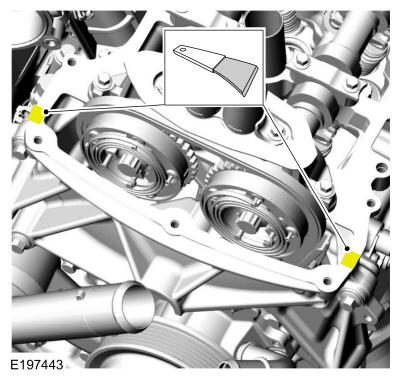

78. Using a large flat-bladed screwdriver and the indicated pry pads, release the sealer and remove the engine front cover. Use the General Equipment: Flat-Bladed Screwdriver

    Courtesy of FORD MOTOR COMPANY

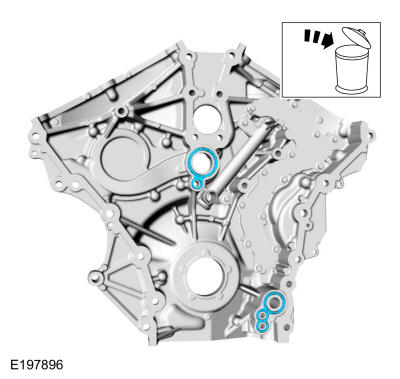

79. Remove and discard the engine front cover gaskets.

    Courtesy of FORD MOTOR COMPANY

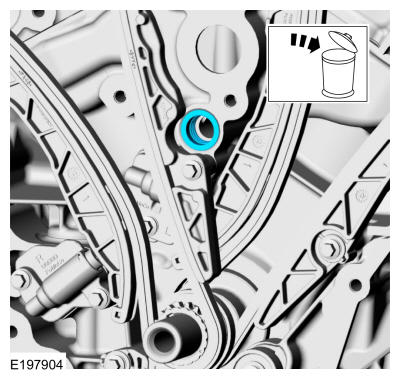

80. Remove and discard the oil gallery seal (6G068).

    Courtesy of FORD MOTOR COMPANY

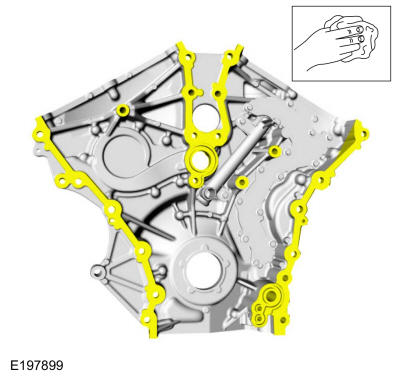

81. NOTE: Only Use a 3M™ Roloc ® Bristle Disk (2-in white, part number 07528) to clean the engine front cover. Do not Use metal scrapers, wire brushes or any other power abrasive disk to clean front cover.
    • Clean the engine front cover using a 3M™ Roloc ® Bristle Disk (2-in white, part number 07528) in a suitable tool turning at the recommended speed of 15, 000 RPM. Refer to : RTV Sealing Surface Cleaning and Preparation .
    • Thoroughly wash the engine front cover to remove any foreign material, including any abrasive particles created during the cleaning process.

      Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

      Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

      Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    Courtesy of FORD MOTOR COMPANY

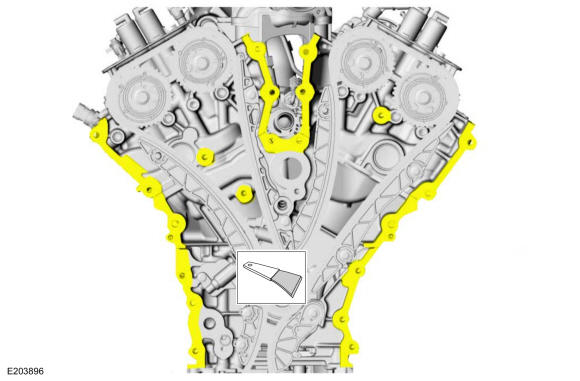

82. NOTE: Place clean, lint-free shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages may cause engine failure.
    NOTE: Do not Use wire brushes, power abrasive discs or 3M™ Roloc ® Bristle Disk (2-in white part number 07528) to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. They also cause contamination that will cause premature engine failure. Remove all traces of the gasket.

    Make sure that the mating faces of the engine block are clean and free of foreign material. Refer to : RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    Courtesy of FORD MOTOR COMPANY

83. NOTE: Rotate the crankshaft utilizing only the original crankshaft pulley bolt. Failure to follow this direction may cause damage to the crankshaft and result in engine failure.

    Install the original crankshaft pulley bolt.

    Courtesy of FORD MOTOR COMPANY

84. NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For removal and installation of the RH side the triangle marks are used.
    1. Rotate the crankshaft clockwise.
    2. Position the crankshaft sprocket keyway at the 11 o'clock position.
    3. Verify the triangle  timing marks on the VCT units are at the 2 o'clock (intake) and 11 o'clock (exhaust) positions. If the circle  timing marks are at these positions the crankshaft must be turned clockwise one revolution (360 degrees).

    Courtesy of FORD MOTOR COMPANY

85. Remove the bolts and the RH timing chain tensioner.

    Courtesy of FORD MOTOR COMPANY

86. Remove the RH timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

87. Remove the bolts and the RH timing chain guide.

    Courtesy of FORD MOTOR COMPANY

88. Remove the RH timing chain.

    Courtesy of FORD MOTOR COMPANY

89. NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For removal and installation of the LH side the circle marks are used.
    1. Rotate the crankshaft clockwise one revolution (360 degrees).
    2. Position the crankshaft sprocket keyway at the 11 o'clock position.
    3. The circle  timing marks on the VCT units will be at the 10 o'clock (intake) and 12:30 (exhaust) positions.

    Courtesy of FORD MOTOR COMPANY

90. Remove the original crankshaft pulley bolt.

    Courtesy of FORD MOTOR COMPANY

91. Remove the timing chain sprocket.

    Courtesy of FORD MOTOR COMPANY

92. 1. Rotate the oil pump drive chain tensioner counterclockwise.
    2. Insert a small hex wrench or pin into the holes of the tensioner to secure the end of the spring.

    Courtesy of FORD MOTOR COMPANY

93. Remove the bolt and oil pump drive chain tensioner.

    Courtesy of FORD MOTOR COMPANY

94. Remove the bolts and oil pump drive chain guide.

    Courtesy of FORD MOTOR COMPANY

95. Remove the oil pump drive chain.

    Courtesy of FORD MOTOR COMPANY

96. Remove the bolts and the LH timing chain tensioner.

    Courtesy of FORD MOTOR COMPANY

97. Remove the LH timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

98. Remove the bolts and the LH timing chain guide.

    Courtesy of FORD MOTOR COMPANY

99. Remove the LH timing chain.

    Courtesy of FORD MOTOR COMPANY

100. Remove the timing chain sprocket.

     Courtesy of FORD MOTOR COMPANY

101. Remove the bolts and the oil pump.

     Courtesy of FORD MOTOR COMPANY

102. 1. Install Special Service Tool: 303-1248 Camshaft holding tools.
     2. Remove and discard the VCT unit bolts.
     3. Remove the VCT units.

     Courtesy of FORD MOTOR COMPANY

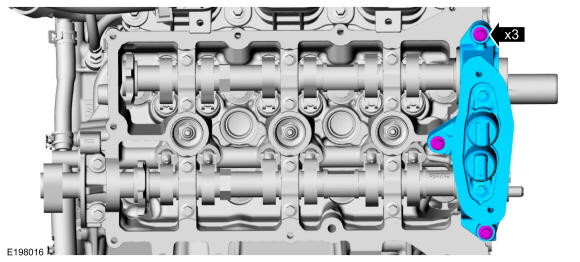

103. NOTE: The front camshaft bearing mega cap must be removed first and then the remaining camshaft bearing caps. Failure to follow this direction may result in damage to the engine.

     Remove the bolts and the front camshaft bearing mega cap.

     Courtesy of FORD MOTOR COMPANY

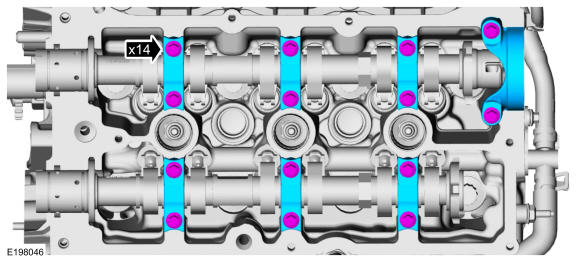

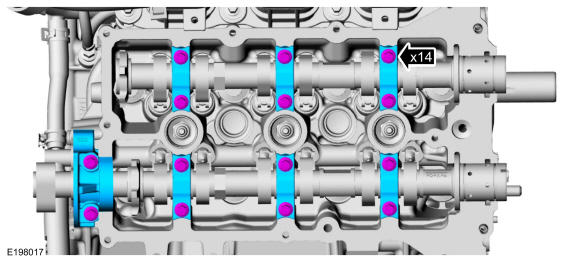

104. Remove the bolts and the camshaft bearing caps.

     Courtesy of FORD MOTOR COMPANY

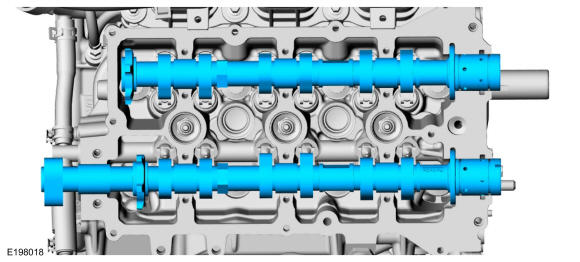

105. Remove the intake and exhaust camshafts.

     Courtesy of FORD MOTOR COMPANY

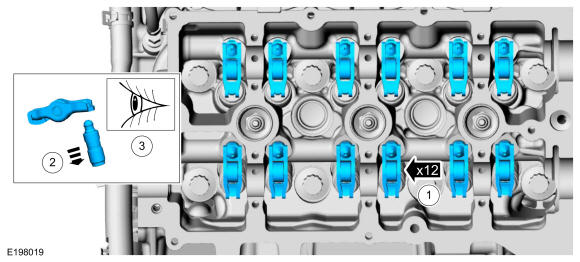

106. 1. Remove the camshaft roller follower and hydraulic lash adjuster assemblies.
     2. Separate the hydraulic lash adjusters from the spring clips on the camshaft roller followers.
     3. Inspect the hydraulic lash adjuster and roller follower for damage. If any damage is found, inspect the camshaft lobes and valves for damage. Replace damaged components as necessary.

     Courtesy of FORD MOTOR COMPANY

107. 1. Release the clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
     2. NOTE: Do not pry the cylinder head to coolant outlet connector behind the bracket. If necessary, Use gripping pliers to pull the cylinder head to coolant outlet connector from the cylinder head.

        Remove the bolt and the cylinder head to coolant outlet connector hose assembly.

     Courtesy of FORD MOTOR COMPANY

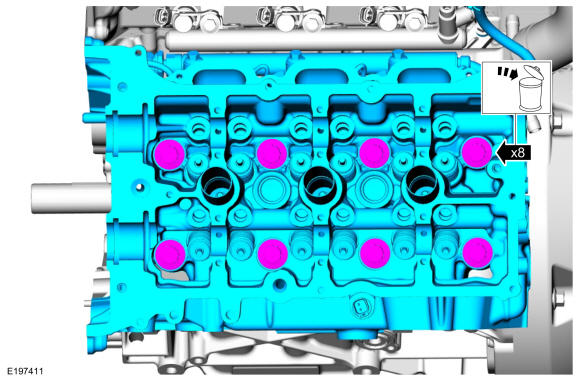

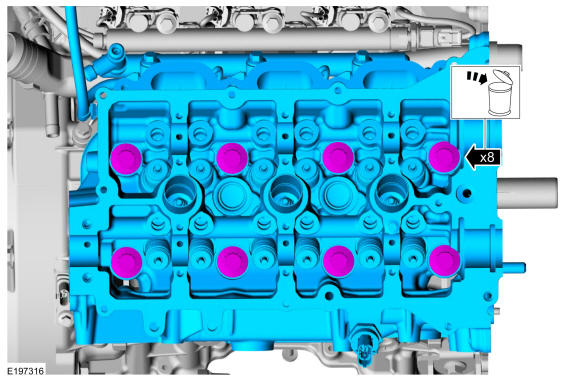

108. • Remove and discard the cylinder head bolts.
     • Remove the cylinder head.

     Courtesy of FORD MOTOR COMPANY

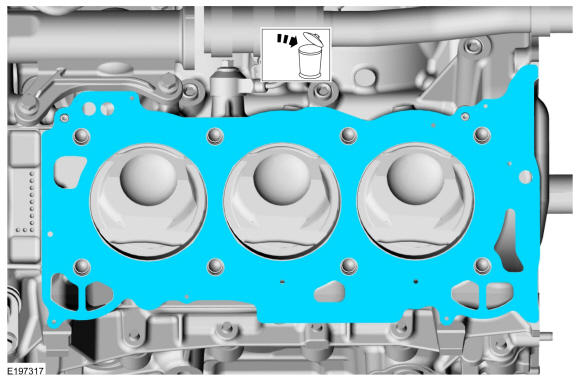

109. Remove and discard the cylinder head gasket.

     Courtesy of FORD MOTOR COMPANY

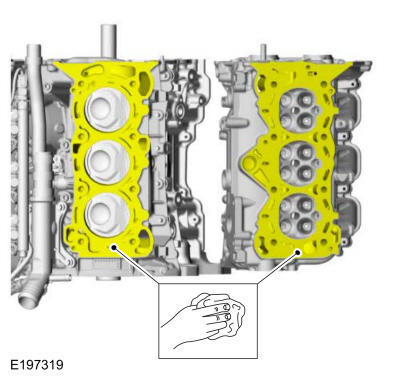

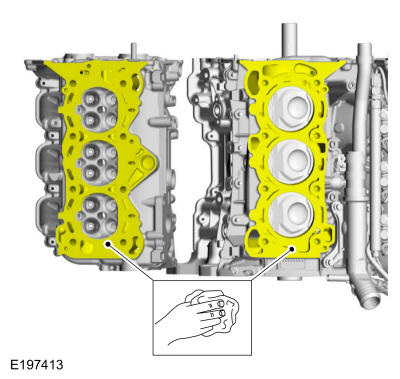

110. • Clean and inspect the cylinder head-to-cylinder block mating surfaces of both the cylinder head and the cylinder block.
     • Refer to: Cylinder Head Distortion .
     • Refer to: Cylinder Block Distortion .

     Courtesy of FORD MOTOR COMPANY

111. 1. Install Special Service Tool: 303-1248 Camshaft holding tools.
     2. Remove and discard the VCT unit bolts.
     3. Remove the VCT units.

     Courtesy of FORD MOTOR COMPANY

112. NOTE: The front camshaft bearing mega cap must be removed first and then the remaining camshaft bearing caps. Failure to follow this direction may result in damage to the engine.

     Remove the bolts and the front camshaft bearing mega cap.

     Courtesy of FORD MOTOR COMPANY

113. Remove the bolts and the camshaft bearing caps.

     Courtesy of FORD MOTOR COMPANY

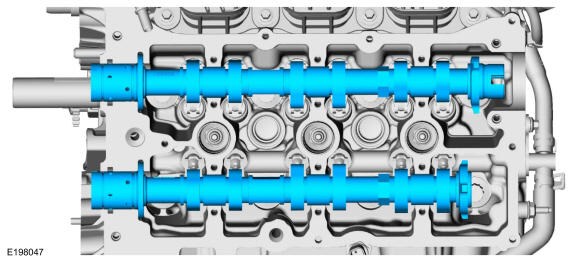

114. Remove the intake and exhaust camshafts.

     Courtesy of FORD MOTOR COMPANY

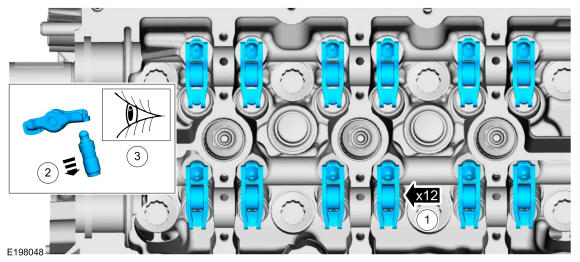

115. 1. Remove the camshaft roller follower and hydraulic lash adjuster assemblies.
     2. Separate the hydraulic lash adjusters from the spring clips on the camshaft roller followers.
     3. Inspect the hydraulic lash adjuster and roller follower for damage. If any damage is found, inspect the camshaft lobes and valves for damage. Replace damaged components as necessary.

     Courtesy of FORD MOTOR COMPANY

116. 1. Release the clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
     2. NOTE: Do not pry the cylinder head to coolant outlet connector behind the bracket. If necessary, Use gripping pliers to pull the cylinder head to coolant outlet connector from the cylinder head.

        Remove the bolt and the cylinder head to coolant outlet connector hose assembly.

     Courtesy of FORD MOTOR COMPANY

117. • Remove and discard the cylinder head bolts.
     • Remove the cylinder head.

     Courtesy of FORD MOTOR COMPANY

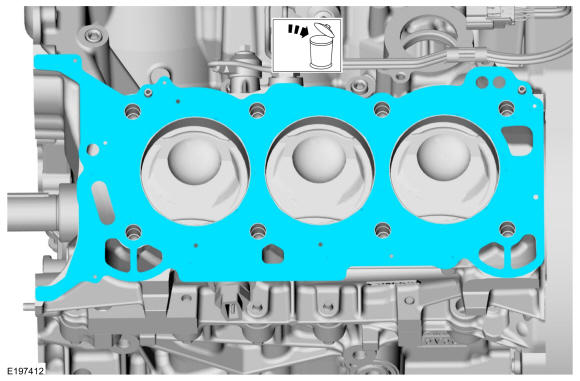

118. Remove and discard the cylinder head gasket.

     Courtesy of FORD MOTOR COMPANY

119. • Clean and inspect the cylinder head-to-cylinder block mating surfaces of both the cylinder head and the cylinder block.
     • Refer to: Cylinder Head Distortion .
     • Refer to: Cylinder Block Distortion .

     Courtesy of FORD MOTOR COMPANY

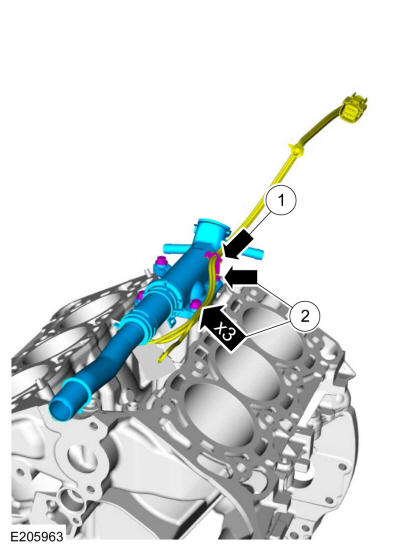

120. 1. Detach the wiring harness retainer from the stud bolt.
     2. Remove the stud bolt, the nuts and the coolant outlet connector pipe.

     Courtesy of FORD MOTOR COMPANY

121. 1. Disconnect the ECT sensor electrical connector.
     2. Remove the bolts and the KS assembly.

     Courtesy of FORD MOTOR COMPANY

122. NOTE: Do not reuse the ECT sensor, install a new sensor.

     Remove and discard the ECT sensor.

     Courtesy of FORD MOTOR COMPANY

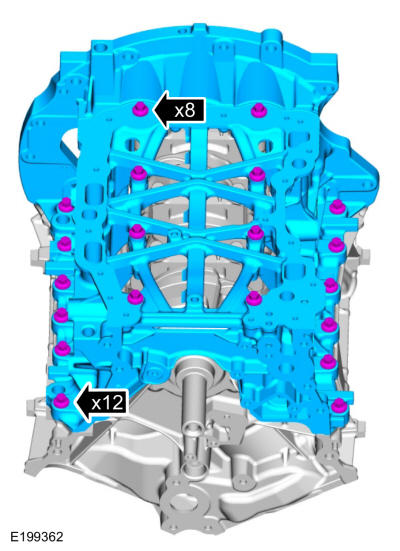

123. Remove the engine block skirt stiffener bolts.

     Courtesy of FORD MOTOR COMPANY

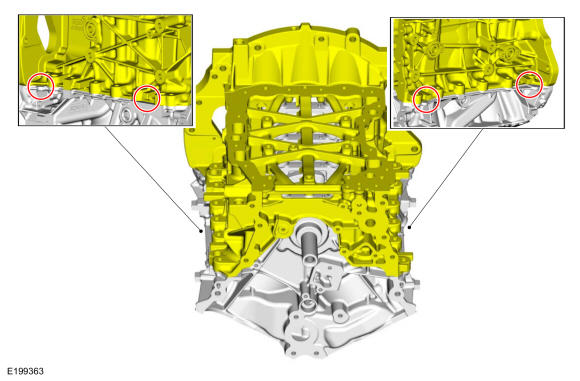

124. Using a suitable pry bar at the 4 pry pad locations, release the engine block skirt stiffener-to-engine block seal.

     Courtesy of FORD MOTOR COMPANY

125. • Remove the engine block skirt stiffener.
     • Remove and discard the oil seal.

     Courtesy of FORD MOTOR COMPANY

126. NOTE: Do not Use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

     Clean and inspect the mating surfaces. Refer to : RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

     Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

     Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

     Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

     Courtesy of FORD MOTOR COMPANY

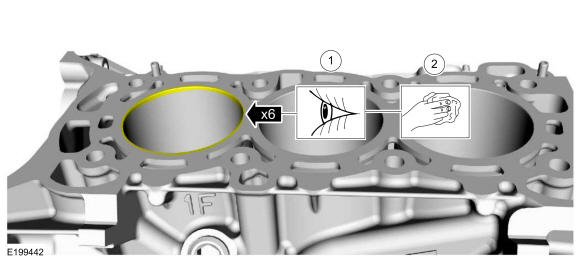

127. • Before removing the pistons, inspect the top of the cylinder bores.
     • If necessary, remove the ridge or carbon deposits from each cylinder using an abrasive pad.

     Courtesy of FORD MOTOR COMPANY

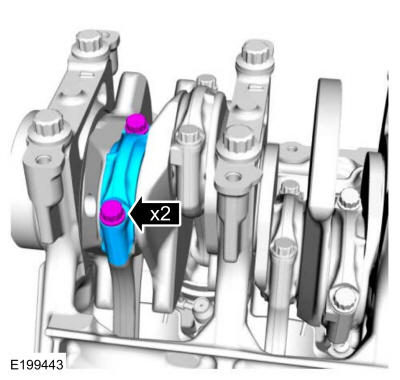

128. Remove the bolts and the rod cap.
     • Discard the bolts.

     Courtesy of FORD MOTOR COMPANY

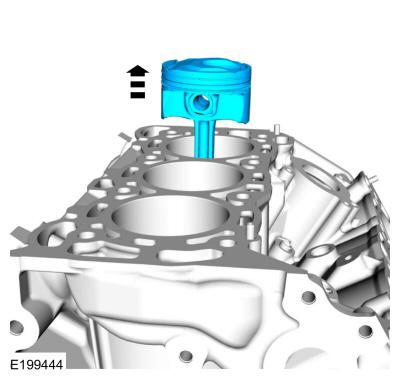

129. NOTE: Position the cylinder bank for the piston serviced in a vertical position. Do not scratch the cylinder walls or crankshaft journals with the connecting rod or engine damage may occur.
     • Remove the piston through the top of the cylinder block
     • Repeat the steps for each of the remaining pistons.

     Courtesy of FORD MOTOR COMPANY

130. • Remove the connecting rod bearings.
     • Disassemble and inspect the pistons. Refer to : Piston . Refer to: Piston Inspection .

     Courtesy of FORD MOTOR COMPANY

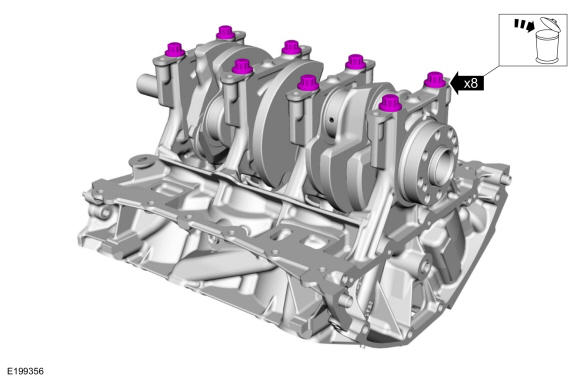

131. Remove and discard the main bearing cap bolts.

     Courtesy of FORD MOTOR COMPANY

132. 1. Remove the main bearing caps.
     2. Remove the lower thrust washer.
     3. Remove the lower main bearings.

     Courtesy of FORD MOTOR COMPANY

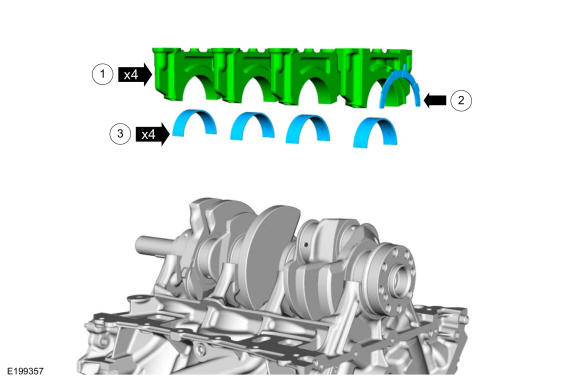

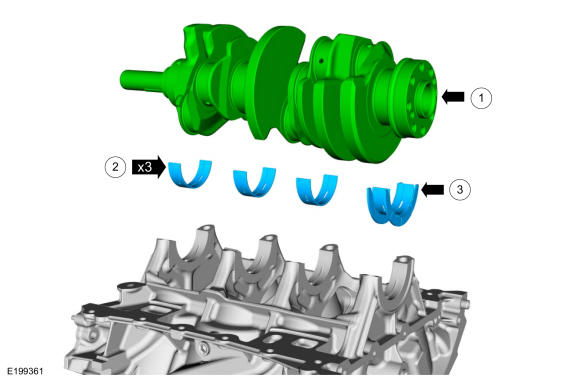

133. 1. Remove the crankshaft.
     2. Remove the lower main bearings.
     3. Remove the lower thrust bearing.

     Courtesy of FORD MOTOR COMPANY

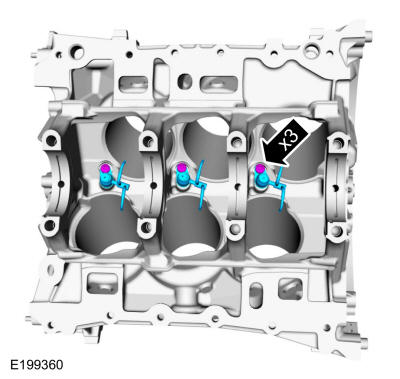

134. Remove the bolts and the piston cooling jets from the cylinder block.

     Courtesy of FORD MOTOR COMPANY
