Cylinder Head: Assembly

WARNING: This page is about a different variant/trim than selected.

All cylinder heads

  1. NOTE: Do not lubricate the new lower Teflon ® fuel injector seals.

    1. Install the Arbor on the fuel injector tips. Use Special Service Tool: 310-207 Installer, Fuel Injector Seal Assembly.
    2. NOTE: Once the Teflon ® seal is installed on the Teflon ® Seal Guide, it should immediately be installed onto the fuel injector to avoid excessive expansion of the Teflon ® seal.
      NOTE: Make sure that new lower fuel injector Teflon ® seals are installed.

      Install the new Teflon ® seals onto the Arbor, using the Pusher Tool (part of the Fuel Injector Seal Installer), slide the Teflon ® seals along the Arbor.

    3. Using the Pusher Tool, slide the Teflon ® seals off of the Teflon ® Seal Guide and into the groove on the fuel injectors. Use Special Service Tool: 310-207 Installer, Fuel Injector Seal Assembly.

    GFD192992Courtesy of FORD MOTOR COMPANY
  2. NOTE: Make sure the Teflon ® seal is fully seated in the groove on the fuel injector before sizing the Teflon ® seal.

    1. Some Teflon ® seal massaging with your fingers before the Teflon ® seal sizer tool is installed will aid in installing the Teflon ® seal sizer tool.
    2. Position the Teflon ® seal sizer tool with the larger opening towards the Teflon ® seal. Push while turning the Teflon ® seal sizer tool 180 degrees. Use Special Service Tool: 303-1567 Sizer, Teflon Seal.
    3. Once the Teflon ® seal sizer tool is installed, check and make sure the Teflon ® seal is in the sizing portion of the Teflon ® seal sizer tool.
    4. After one minute, turn the Teflon ® seal sizer tool back 180 degrees and remove.

    GFD191766Courtesy of FORD MOTOR COMPANY
  3. NOTE: Make sure that new fuel injector support rings and new fuel injector O-ring seals are installed.

    1. NOTE: The new the fuel injector support rings must be installed in the correct orientation with the larger surface facing up against the fuel injector O-ring seals. Improperly installed support rings may cause the fuel system to leak.

      Install the new the fuel injector support rings.

    2. NOTE: Use fuel injector O-ring seals that are made of special fuel-resistant material. The Use of ordinary O-ring seals may cause the fuel system to leak. Do not re Use the old O-ring seals.
      NOTE: Do not lubricate the new lower Teflon ® fuel injector seals.

      Install the new fuel injector O-rings and lubricate with clean engine oil.

      Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

    3. Inspect the inlet stopper, if it is damaged or comes off discard the inlet stopper. The inlet stopper is not necessary for proper function. Ensure that any debris from the inlet stopper are removed. If the inlet stopper is intact and undamaged do not remove the inlet stopper from the fuel injector.

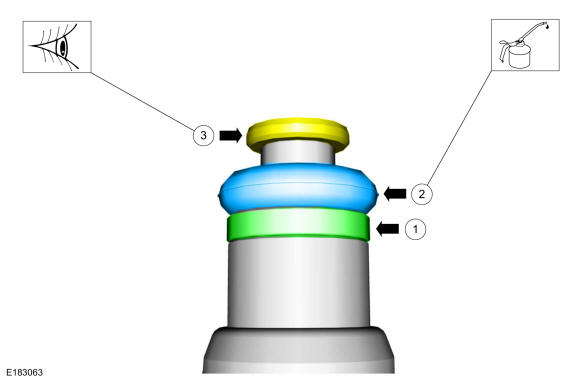

    GFD192993Courtesy of FORD MOTOR COMPANY
  4. NOTE: Make sure that new fuel injector clips are installed.

    Install the new the fuel injector clips.

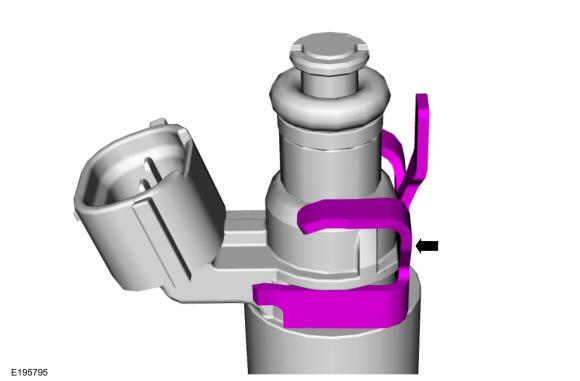

    GFD192994Courtesy of FORD MOTOR COMPANY
  5. NOTE: The FRP sensor must be replaced if it is removed from the fuel rail.
    NOTE: The anti-rotation finger of the fuel injector clip must slip into the groove of the fuel rail cup.

    LH displayed, RH similar. Install the fuel injectors to the fuel rail.

    GFD192995Courtesy of FORD MOTOR COMPANY
  6. NOTE: LH displayed, RH similar.

    Connect the fuel injector electrical connectors.

    GFD192985Courtesy of FORD MOTOR COMPANY
  7. NOTE: Do not lubricate the new lower Teflon ® fuel injector seals.
    NOTE: LH displayed, RH similar.

    Install the LH fuel rail, push down on the LH fuel rail above the injectors, then install and tighten the LH fuel rail bolts.

    Torque: 18 lb. ft (24 Nm)

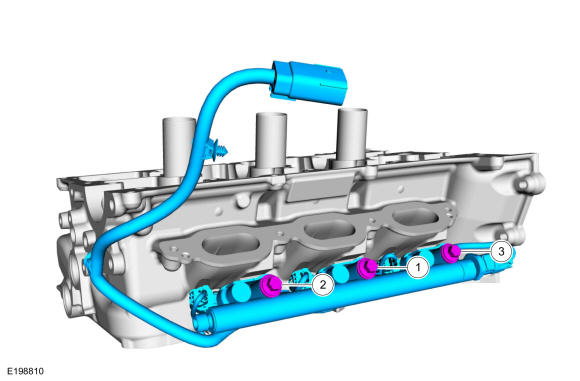

    GFD192996Courtesy of FORD MOTOR COMPANY
  8. NOTE: LH displayed, RH similar.

    Attach the wiring harness retainer.

    GFD192983Courtesy of FORD MOTOR COMPANY
  9. NOTE: Lubricate the new valve stem seal with clean engine oil.

    Install the new valve stem seal.

    Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

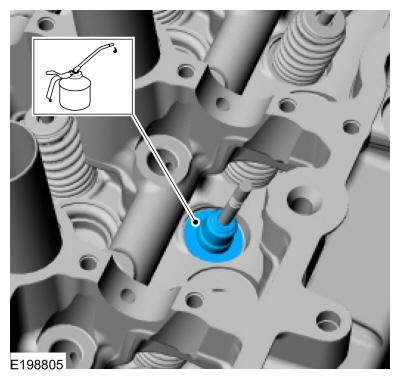

    GFD192997Courtesy of FORD MOTOR COMPANY
  10. NOTE: Lubricate the valve stem with clean engine oil.

    Install the valve into the cylinder head.

    Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

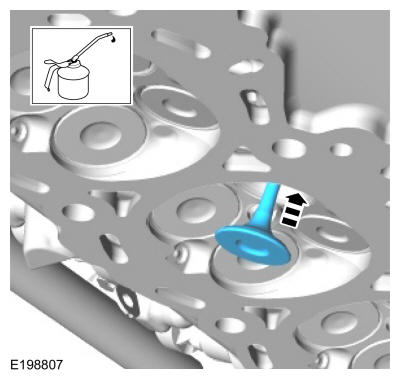

    GFD192998Courtesy of FORD MOTOR COMPANY
    • Using the special tools, install the spring, retainer and keys. Use Special Service Tool: 303-300 (T87C-6565-A) Set, Valve Spring Compressor., 303-350 (T89P-6565-A) Compressor, Valve Spring., 303-1249 Valve Spring Compressor., 303-1418 Compressor, Valve Spring.

    • Repeat the previous steps for each of the remaining valves.

    GFD192980Courtesy of FORD MOTOR COMPANY

    RH cylinder heads

  11. NOTE: If the EOP sensor is to be reused, apply thread sealant.

    Install the EOP sensor.

    Material: Motorcraft ® Thread Sealant with PTFE / TA-24-B (WSK-M2G350-A2)

    Torque: 24 lb. ft (33 Nm)

    GFD192979Courtesy of FORD MOTOR COMPANY

    LH cylinder heads

  12. NOTE: Do not reuse the CHT sensor, install a new sensor.

    Install a new CHT sensor.

    Torque: 106 lb. in (12 Nm)

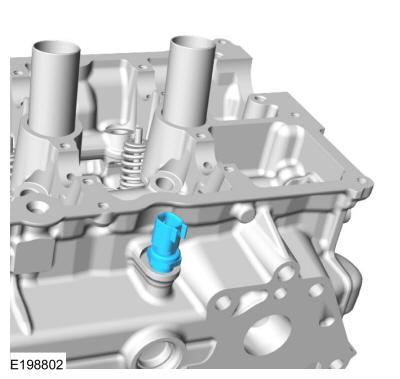

    GFD192999Courtesy of FORD MOTOR COMPANY
