System Operation
WARNING: This page is about a different variant/trim than selected.

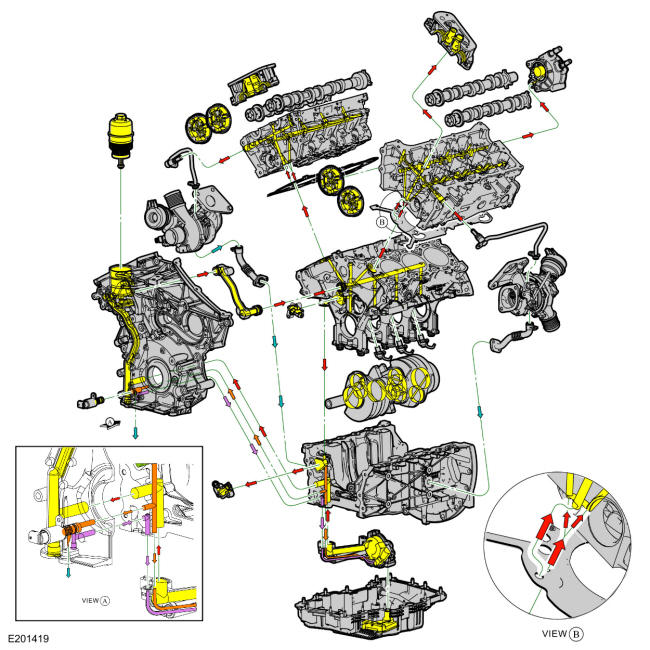

Oil Flow
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| Yellow |
High pressure oil |
| Orange |
Constant high pressure feedback (55 psi) |
| Purple |
Low pressure (25 psi) control |
| Blue |
Oil return low pressure |
