Engine - Overview: Overview
WARNING: This page is about a different variant/trim than selected.
The 2. 7L Gasoline Turbocharged Direct Injection (GTDI) (4V) is a V-6 engine with the following features:
- Dual overhead camshafts
- Four valves per cylinder
- Gasoline Turbocharged Direct Injection (GTDI)
- Composite intake manifold
- Aluminum cylinder heads
- Compacted graphite iron cylinder block
- Twin independent variable cam timing (Ti-VCT)
- An electronic ignition system with 6 ignition coils
- Variable displacement oil pump
Engine Identification
For quick identification, refer to the safety certification decal.
The decal is located on the LH front door lock face panel.

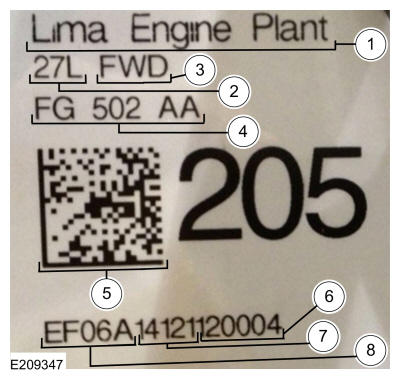

Engine Code Information Label
The engine code information label, located on the rear of the vacuum pump and on the LH valve cover, contains the following:
| Item | Description |
|---|---|
| 1 | Engine Plant |
| 2 | Engine Displacement |
| 3 | Drive Type |
| 4 | Engine Part Number |
| 5 | 2D Data Matrix |
| 6 | Serial number |
| 7 | Engine build date YYDDD (DDD=Julian Date [001-365]) |
| 8 | Supplier Code |

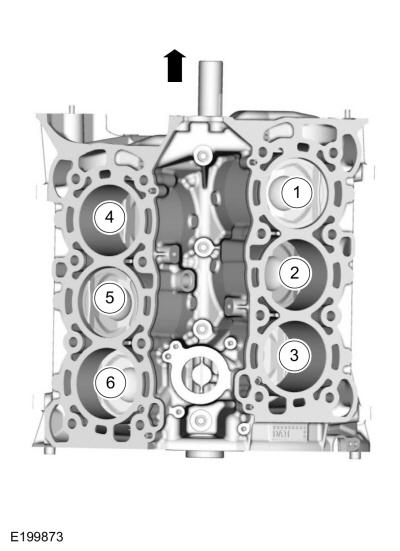

Engine Cylinder Identification
