Turbocharger Bypass Valve: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

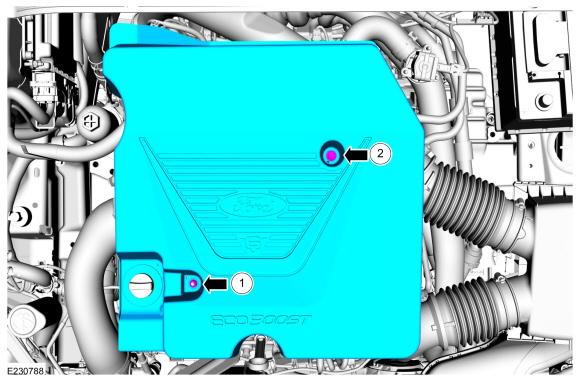

1. Remove the nut.
  Torque: 42 lb.in (4.8 Nm)
2. Remove the bolt.
  Torque: 93 lb.in (10.5 Nm)
3. If the engine appearance cover stud bolt is loosened or removed, it must be installed/tightened into the valve cover.
  Torque: 62 lb.in (7 Nm)
Courtesy of FORD MOTOR COMPANY

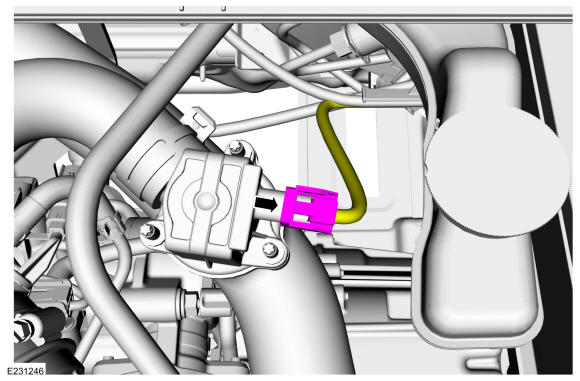

Disconnect the turbocharger bypass valve electrical connector, and remove harness from mounting stud.

Courtesy of FORD MOTOR COMPANY

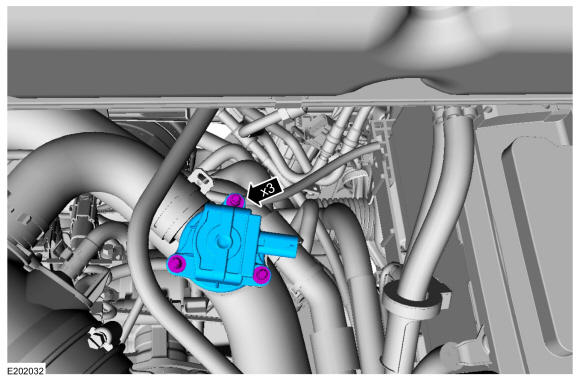

Remove the retainers and the turbocharger bypass valve.
Torque: 62 lb.in (7 Nm)
