Oil Pressure Control Solenoid: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

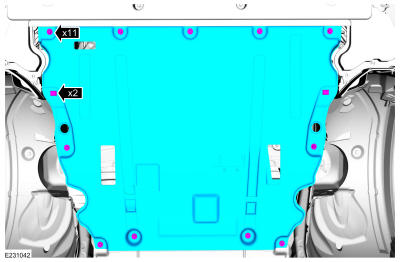

  2. Remove the retainers and the underbody splash shield.
    GFD193983Courtesy of FORD MOTOR COMPANY

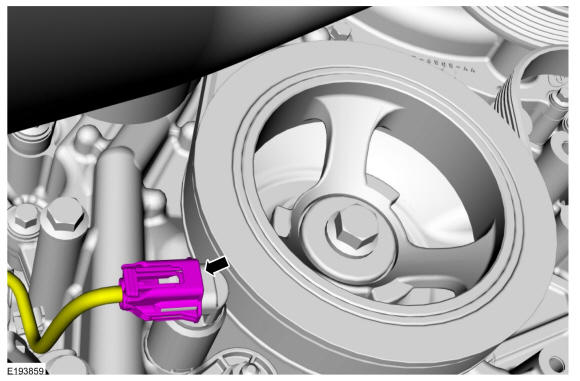

  3. Disconnect the oil pressure control solenoid electrical connector.
    GFD193984Courtesy of FORD MOTOR COMPANY

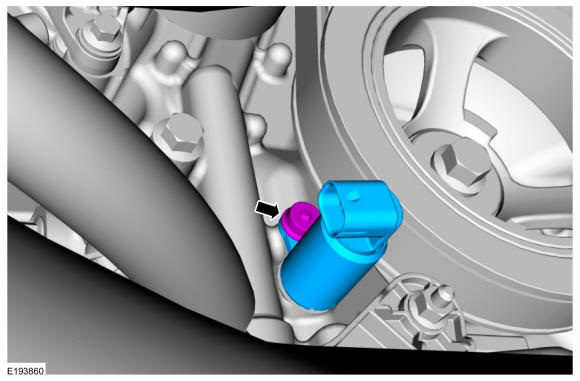

  4. Remove the retainer and the oil pressure control solenoid.

    Torque: 97 lb.in (11 Nm)

    GFD193985Courtesy of FORD MOTOR COMPANY
