Manifold Absolute Pressure (MAP) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

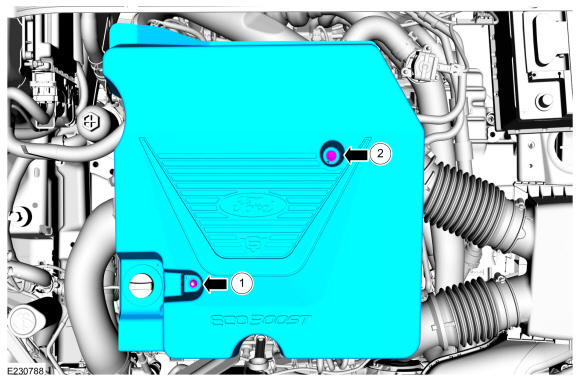

- Remove the nut.
  Torque: 42 lb.in (4.8 Nm)
- Remove the bolt and remove the engine appearance cover.
  Torque: 97 lb.in (11 Nm)
Courtesy of FORD MOTOR COMPANY

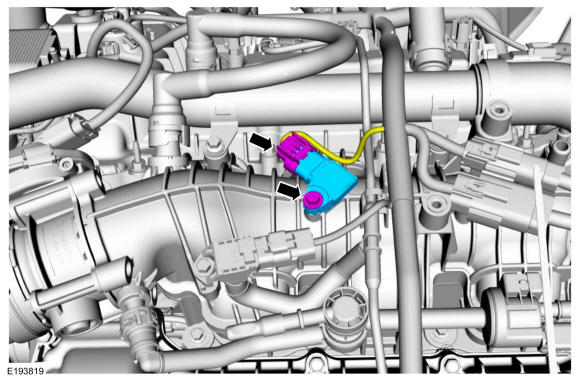

Disconnect the electrical connector, remove the retainers and the MAP sensor.
Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY
