Heated Oxygen Sensor (HO2S): Installation
WARNING: This page is about a different variant/trim than selected.

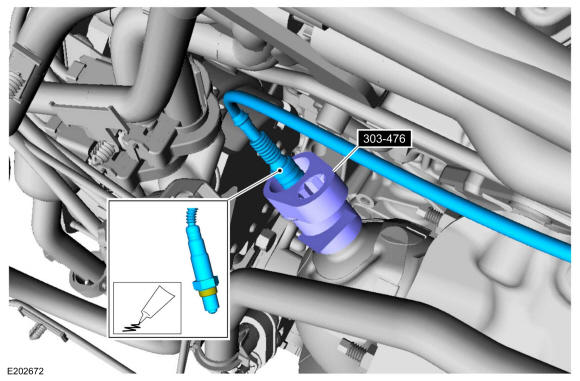

Left hand Heated oxygen sensor
- Apply anti-seize to thread of sensor, using special tool install the HO2S.
Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
Material: Motorcraft ® High Temperature Nickel Anti-Seize Lubricant / XL-2
Torque: 35 lb.ft (48 Nm)
- To install, reverse the removal procedure.

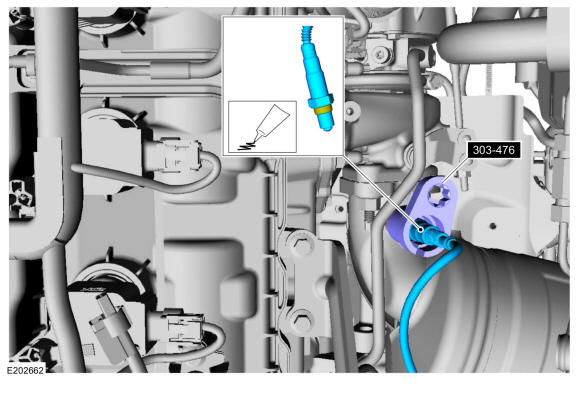

Right hand Heated oxygen sensor
- Apply anti-seize to thread of sensor, using special tool install the HO2S.
Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
Material: Motorcraft ® High Temperature Nickel Anti-Seize Lubricant / XL-2
Torque: 35 lb.ft (48 Nm)
- To install, reverse the removal procedure.
