Fuel Rail Pressure (FRP) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the LH fuel rail. Refer to: Fuel Rail .

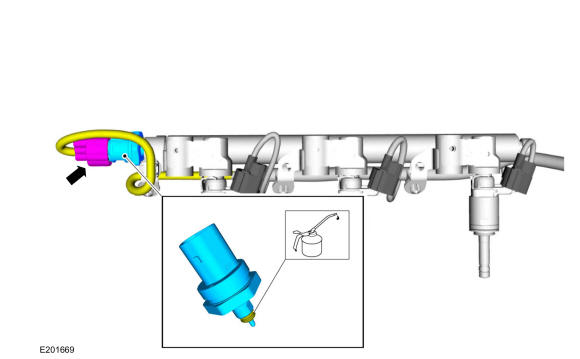

- Disconnect the electrical connector, remove the FRP sensor.
Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)
Torque:
Stage 1: 44 lb.in (5 Nm)
Stage 2: 19 °
