Cylinder Head Temperature (CHT) Sensor: Removal

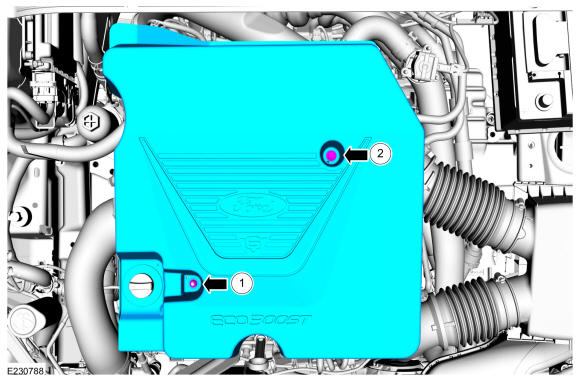

1. Remove the nut.

   Torque: 42 lb.in (4.8 Nm)

2. Remove the bolt.

   Torque: 93 lb.in (10.5 Nm)

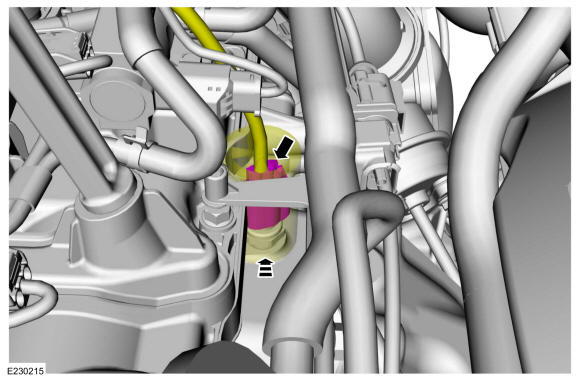

3. If the engine appearance cover stud bolt is loosened or removed, it must be installed/tightened into the valve cover.

   Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

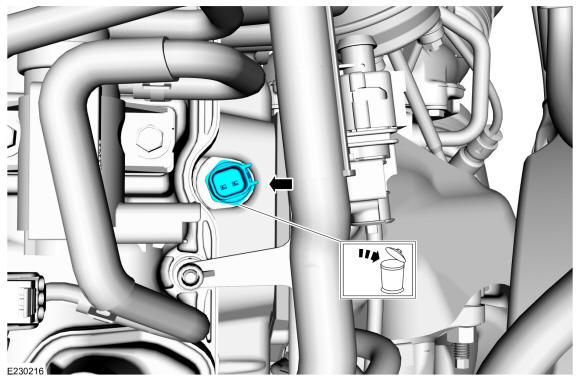

Remove and discard the CHT sensor.

Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
