Crankshaft Position (CKP) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the nut.
  Torque: 42 lb.in (4.8 Nm)
2. Remove the bolt.
  Torque: 93 lb.in (10.5 Nm)
3. If the engine appearance cover stud bolt is loosened or removed, it must be installed/tightened into the valve cover.
  Torque: 62 lb.in (7 Nm)
Courtesy of FORD MOTOR COMPANY
Remove the RH air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe RH .
Remove the RH CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .

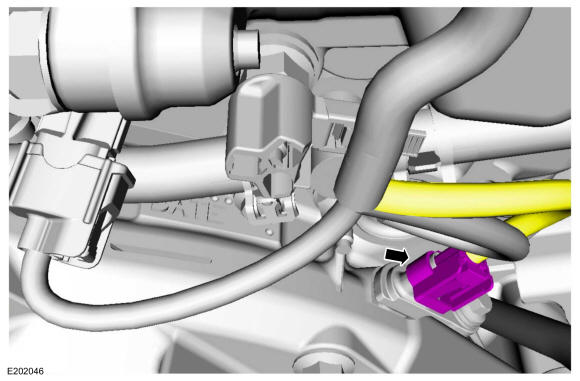

Disconnect the CKP electrical connector sensor.

Courtesy of FORD MOTOR COMPANY

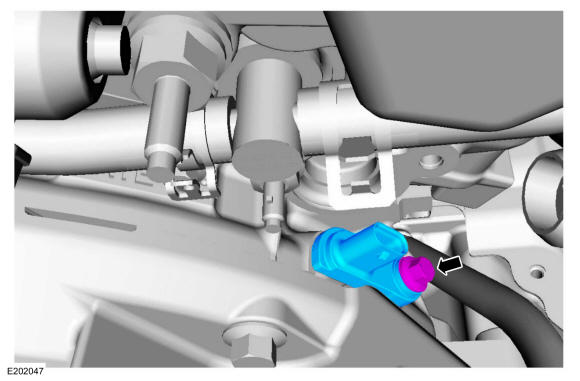

Remove the bolt and the CKP sensor.
Torque: 89 lb.in (10 Nm)
