High-Pressure Fuel Pump: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Only rotate the crankshaft Clockwise (CW) or damage to the engine may occur.

NOTE: The drive lobe for the high-pressure fuel pump must be at BDC (bottom dead center) for the high-pressure fuel pump installation.

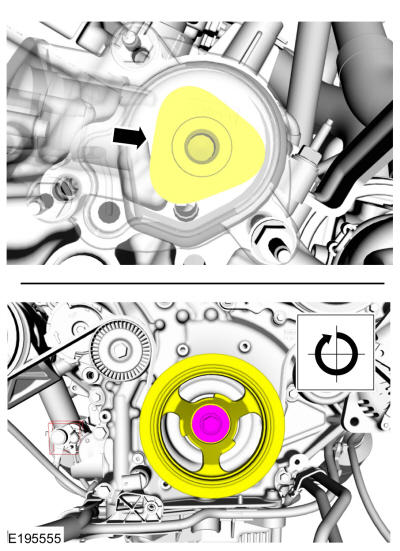

Using the crankshaft pulley bolt, turn the crankshaft until the high-pressure fuel pump drive lobe is at BDC.

Courtesy of FORD MOTOR COMPANY

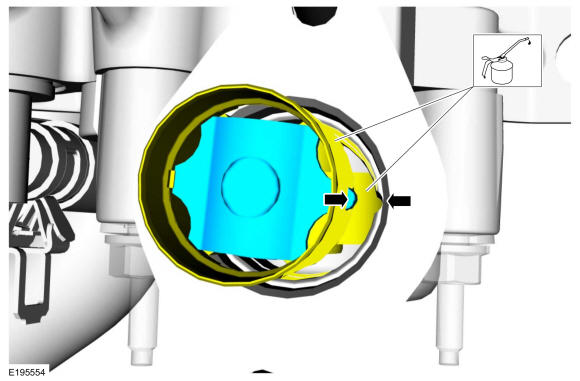

NOTE: Align the notch on the high-pressure fuel pump tappet and with the groove in the high-pressure fuel pump drive unit bore.

Apply clean engine oil to the high-pressure fuel pump drive unit bore, the drive lobe and the roller tappet. Install the high-pressure fuel pump tappet.

Courtesy of FORD MOTOR COMPANY

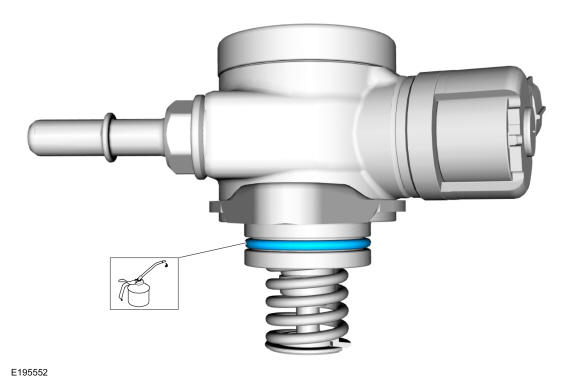

NOTE: Apply clean engine oil to the high-pressure fuel pump O-ring seals.

Install a new high-pressure fuel pump O-ring seal and lubricate with clean engine oil.

Courtesy of FORD MOTOR COMPANY

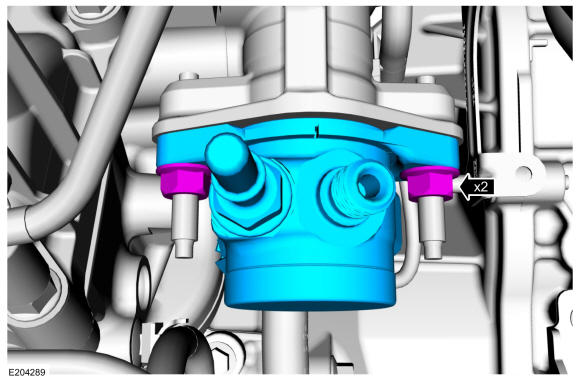

Install the high-pressure fuel pump, then install and finger tighten the high-pressure fuel pump nuts. Alternately tighten each of the high-pressure fuel pump nuts one complete revolution until seated. Then tighten the fuel high-pressure fuel pump nuts in the following 2 stages.
Torque:

Stage 1: 177 lb.in (20 Nm)

Stage 2: 45 °

Courtesy of FORD MOTOR COMPANY

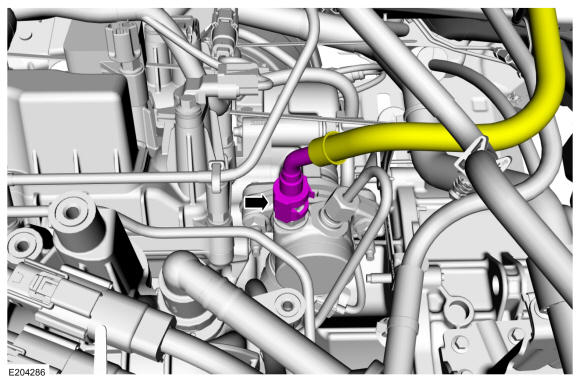

Connect the high-pressure fuel pump fuel feed tube quick release coupling. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY
NOTE: Calculate the correct torque wrench setting for the following torque using the Torque Wrench Adapter Formulas displayed below.

NOTE: Make sure that a new high-pressure fuel pump-to-fuel rail high-pressure fuel tube is installed.

Install the high-pressure fuel pump-to-fuel rail high-pressure fuel tube and tighten the flare nuts finger tight, then tighten the flare nuts in the following 3 stages.

Torque:

Stage 1: 62 lb.in (7 Nm)

Stage 2: 89 lb.in (10 Nm)

Stage 3: 25 °

Courtesy of FORD MOTOR COMPANY

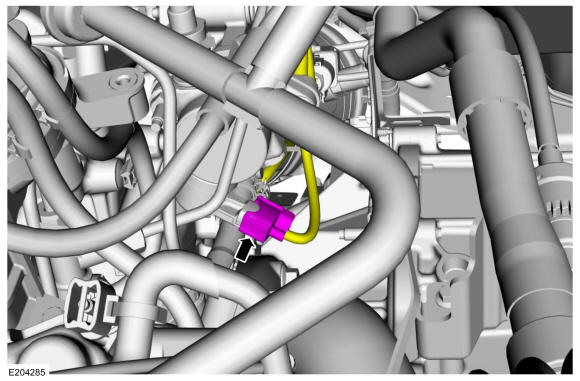

Connect the high-pressure fuel pump electrical connector.

Courtesy of FORD MOTOR COMPANY
1. Install the CAC intake pipe RH. Install and tighten the bolt.
  Torque: 71 lb.in (8 Nm)
2. Connect the bypass valve electrical connector.
Courtesy of FORD MOTOR COMPANY
Attach the coolant hose to the starter motor bracket.

Courtesy of FORD MOTOR COMPANY
1. Install the EVAP canister purge valve tube. Connect the EVAP canister purge valve quick release coupling. Refer to: Quick Release Coupling .
2. Attach the retainer.
Courtesy of FORD MOTOR COMPANY
Tighten the CAC intake upper pipe RH clamp.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
Tighten the CAC intake lower pipe RH clamp.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the battery. Refer to: Battery Disconnect and Connect .
Pressurize the fuel system. Refer to: Fuel System Pressure Release .
