High-Pressure Fuel Pump Drive Unit: Installation
WARNING: This page is about a different variant/trim than selected.
NOTE:
Make sure that the mating faces are clean and free of foreign material.

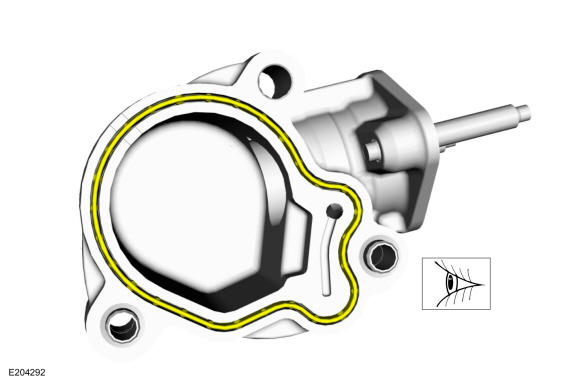

- Inspect and replace the high-pressure fuel pump drive unit gasket as needed.
-
NOTE: The high-pressure fuel pump drive unit must be installed within 10 minutes of applying the sealer and the studbolts must be installed and tightened.

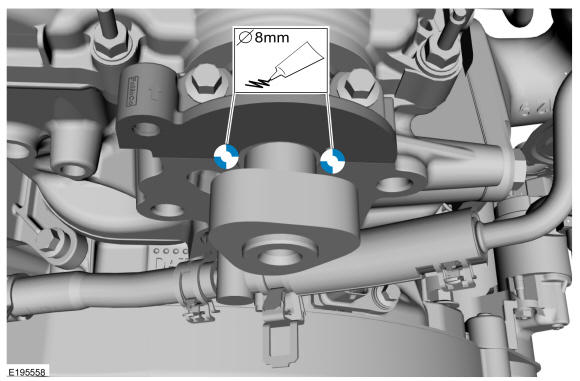

Apply 8 mm dots of sealant to the camshaft bearing cap and cylinder head seam as displayed.
Material: Motorcraft ® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

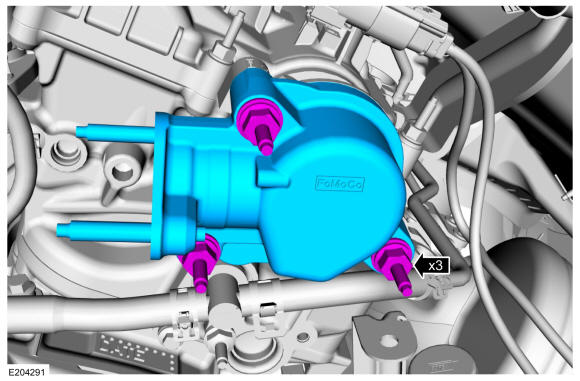

- Install the high-pressure fuel pump drive unit, then install and tighten the high-pressure fuel pump drive unit studbolts in the following 2 stages.
Torque:
Stage 1: 177 lb.in (20 Nm)
Stage 2: 45 °

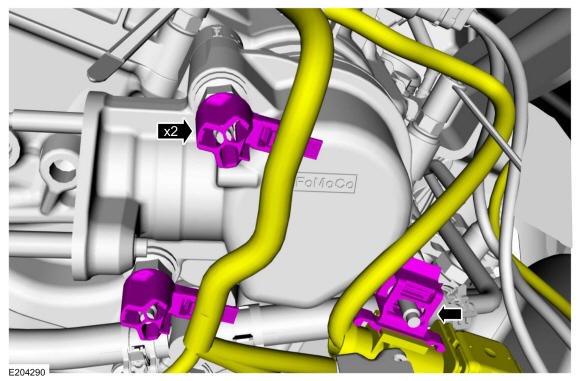

- Attach the wiring harness retainers to the high-pressure fuel pump drive unit studbolts.
- Install the high-pressure fuel pump. Refer to: High-Pressure Fuel Pump .
