Fuel Rail: Installation

WARNING: This page is about a different variant/trim than selected.

Both fuel rails

  1. NOTE: Do not lubricate the new lower Teflon ® fuel injector seal.

    1. Install the Arbor on the fuel injector tip. Use Special Service Tool: 310-207 Installer, Fuel Injector Seal Assembly.
    2. NOTE: Once the Teflon ® seal is installed on the Teflon ® Seal Guide, it should immediately be installed onto the fuel injector to avoid excessive expansion of the Teflon ® seal.
      NOTE: Make sure that new lower fuel injector Teflon ® seals are installed.

      Install the new Teflon ® seal onto the Arbor, using the Pusher Tool (part of the Fuel Injector Seal Installer), slide the Teflon ® seal along the Arbor.

    3. Using the Pusher Tool, slide the Teflon ® seal off of the Teflon ® Seal Guide and into the groove on the fuel injector.

      Use Special Service Tool: 310-207 Installer, Fuel Injector Seal Assembly.

    GFD192992Courtesy of FORD MOTOR COMPANY
  2. NOTE: Make sure the Teflon ® seal is fully seated in the groove on the fuel injector before sizing the Teflon ® seal.

    1. Some Teflon ® seal massaging with your fingers before the Teflon ® seal sizer tool is installed will aid in installing the Teflon ® seal sizer tool.
    2. Position the Teflon ® seal sizer tool with the larger opening towards the Teflon ® seal. Push while turning the Teflon ® seal sizer tool 180 degrees.

      Use Special Service Tool: 303-1567 Sizer, Teflon Seal.

    3. Once the Teflon ® seal sizer tool is installed, check and make sure the Teflon ® seal is in the sizing portion of the Teflon ® seal sizer tool.
    4. After one minute, turn the Teflon ® seal sizer tool back 180 degrees and remove.

    GFD191766Courtesy of FORD MOTOR COMPANY

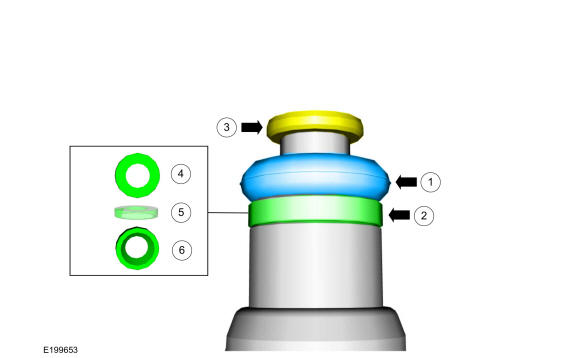

  3. NOTE: Make sure that new fuel injector support rings and new fuel injector O-ring seals are installed.

    1. NOTE: Use fuel injector O-ring seals that are made of special fuel-resistant material. The use of ordinary O-ring seals may cause the fuel system to leak. Do not reuse the old O-ring seals.
      NOTE: Do not lubricate the new lower Teflon ® fuel injector seals.

      Install the new fuel injector O-ring seals and lubricate with clean engine oil.

    2. NOTE: The new the fuel injector support rings must be installed in the correct orientation with the wide surface area facing up against the fuel injector O-ring seals. Improperly installed support rings may cause the fuel system to leak.

      Install the new the fuel injector support rings.

    3. Inspect the inlet stopper, if it is damaged or comes off then discard the inlet stopper. The inlet stopper is not needed for proper function. Ensure that any debris from the inlet stopper are removed. If the inlet stopper is intact and undamaged do not remove the inlet stopper from the fuel injector.
    4. The upper side of the support ring has the wide surface area.
    5. Fuel injector support ring.
    6. The lower side of the support ring has the narrow surface area.

    GFD193443Courtesy of FORD MOTOR COMPANY

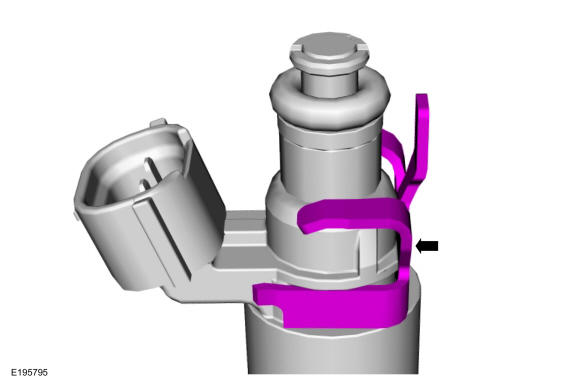

  4. NOTE: Make sure that new fuel injector clips are installed.

    Install the new the fuel injector clips.

    GFD193444Courtesy of FORD MOTOR COMPANY

    Right fuel rail

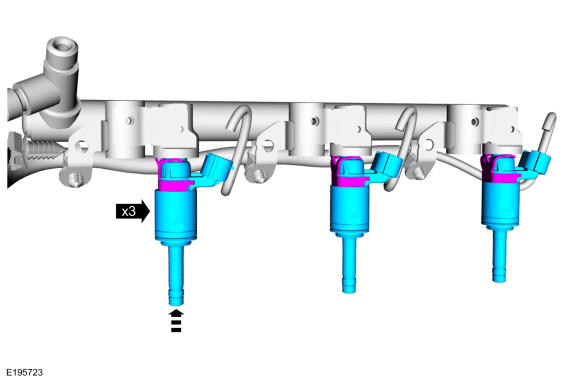

  5. NOTE: The anti-rotation finger of the fuel injector clip must slip into the groove of the fuel rail cup.

    Install the fuel injectors to the fuel rail.

    GFD193445Courtesy of FORD MOTOR COMPANY

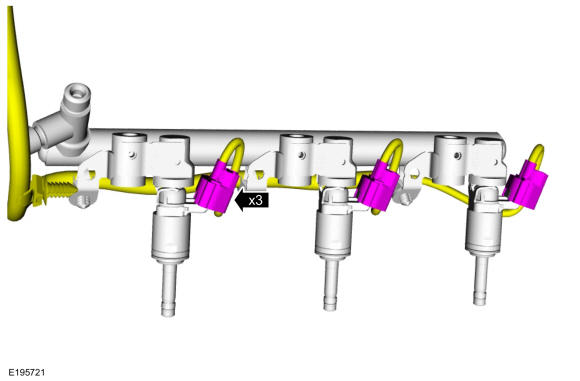

  6. Connect the fuel injector electrical connectors.
    GFD193439Courtesy of FORD MOTOR COMPANY
  7. NOTE: Do not lubricate the new lower Teflon ® fuel injector seals.

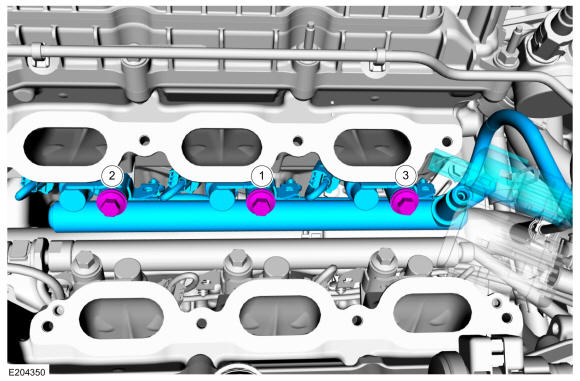

    Install the fuel rail, push down on the fuel rail above the injectors, then install and tighten the fuel rail bolts in the sequence displayed.

    Torque: 18 lb.ft (24 Nm)

    Fig 1: Right Fuel Rail Bolts Tightening Sequence
    GFD193446Courtesy of FORD MOTOR COMPANY

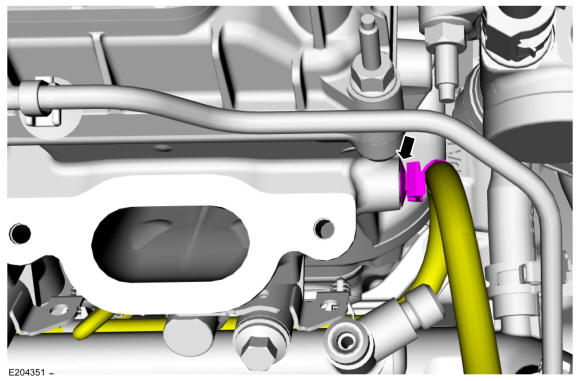

  8. Attach the wiring harness retainer.
    GFD193437Courtesy of FORD MOTOR COMPANY
  9. NOTE: Calculate the correct torque wrench setting for the following torque using the Torque Wrench Adapter Formula below.
    G00468730
    NOTE: Make sure that a new high-pressure fuel pump-to-fuel rail high-pressure fuel tube is installed.

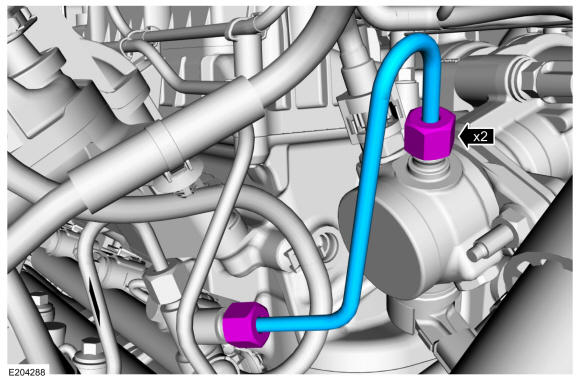

    Install the high-pressure fuel pump-to-fuel rail high-pressure fuel tube and tighten the flare nuts finger tight, then tighten the flare nuts in the following 3 stages.

    Torque:

    Stage 1: 62 lb.in (7 Nm)

    Stage 2: 89 lb.in (10 Nm)

    Stage 3: 25 °

    GFD193447Courtesy of FORD MOTOR COMPANY

    Left fuel rail

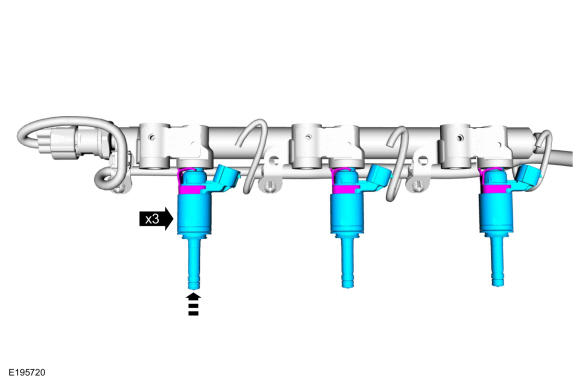

  10. NOTE: The anti-rotation finger of the fuel injector clip must slip into the groove of the fuel rail cup.

    • Install the fuel injectors to the fuel rail.
      • NOTE: The FRP sensor must be replaced if it is removed from the fuel rail.
    • Refer to: Fuel Rail Pressure (Frp) Sensor .

    GFD192995Courtesy of FORD MOTOR COMPANY

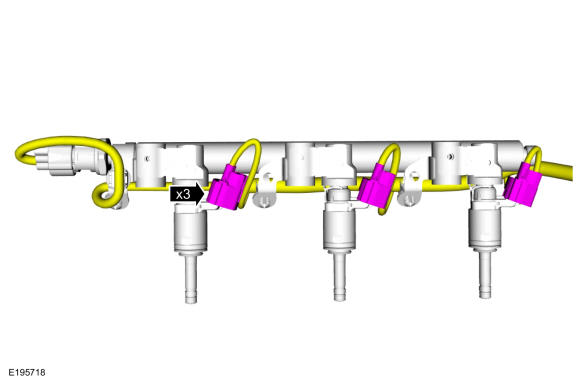

  11. Connect the fuel injector electrical connectors.
    GFD192985Courtesy of FORD MOTOR COMPANY
  12. NOTE: Do not lubricate the new lower Teflon ® fuel injector seals.

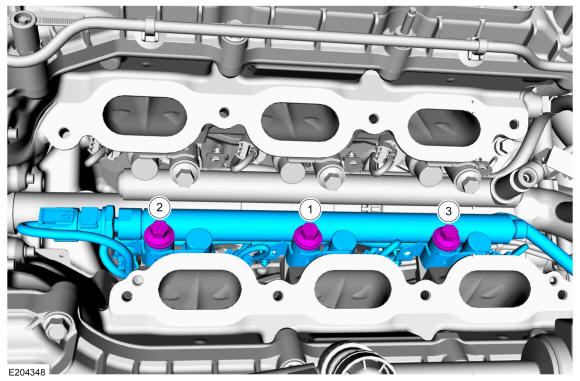

    Install the fuel rail, push down on the fuel rail above the injectors, then install and tighten the fuel rail bolts in the sequence displayed.

    Torque: 18 lb.ft (24 Nm)

    Fig 2: Left Fuel Rail Bolts Tightening Sequence
    GFD193448Courtesy of FORD MOTOR COMPANY

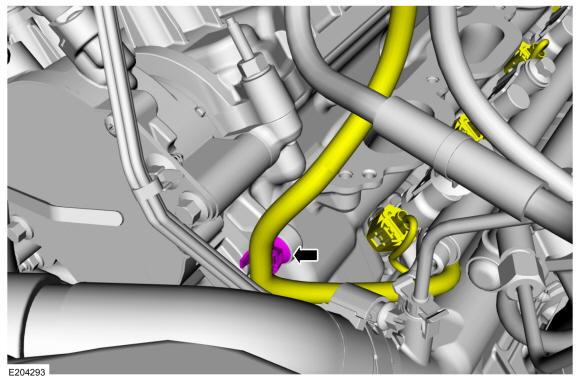

  13. Attach the wiring harness retainer.
    GFD193434Courtesy of FORD MOTOR COMPANY

    Both fuel rails

  14. NOTE: Make sure that a new fuel rail-to-fuel rail high-pressure fuel tube is installed.
    NOTE: Calculate the correct torque wrench setting for the following torque using the Torque Wrench Adapter Formulas displayed below.
    G00468730

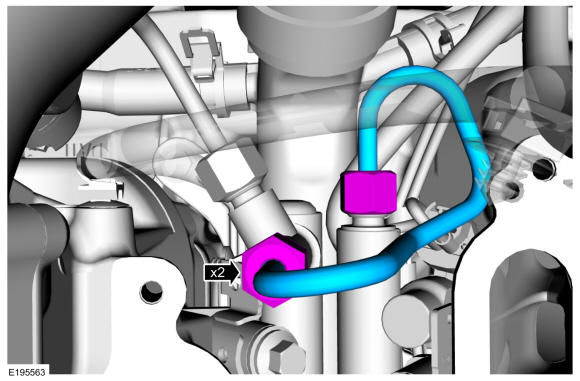

    Install the fuel rail-to-fuel rail high-pressure fuel tube and tighten the flare nuts finger tight, then tighten the flare nuts in the following 3 stages.

    Torque:

    Stage 1: 62 lb.in (7 Nm)

    Stage 2: 89 lb.in (10 Nm)

    Stage 3: 25 °

    GFD193449Courtesy of FORD MOTOR COMPANY

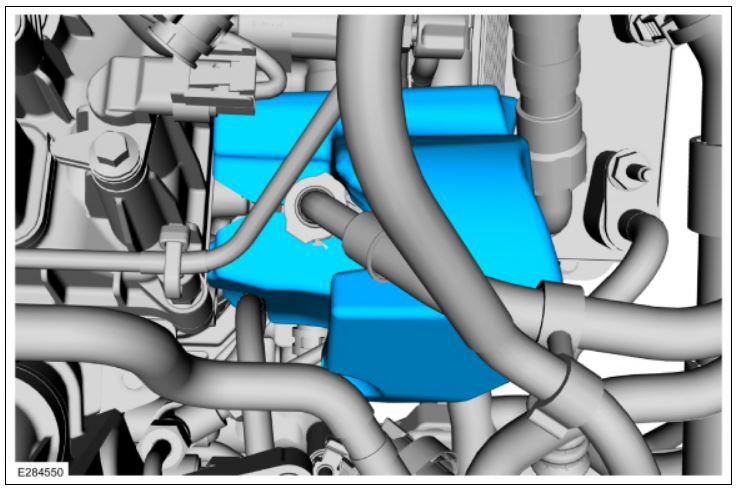

  15. NOTE: When removing or installing the high-pressure fuel pump noise insulator, spreading the openings will reduce the risk of damage.

    Install the high-pressure fuel pump noise insulator.

    GFD193432Courtesy of FORD MOTOR COMPANY

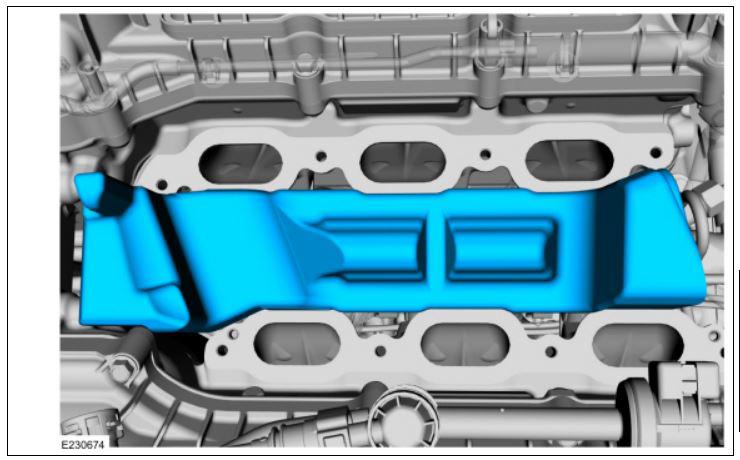

  16. Install the fuel injector noise insulator.
    G00578786Courtesy of FORD MOTOR COMPANY

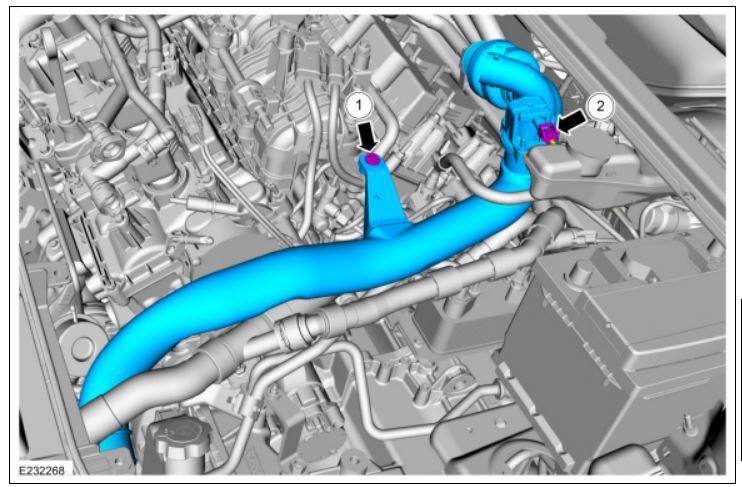

    1. Install the CAC intake pipe RH. Install and tighten the bolt.

      Torque: 71 lb.in (8 Nm)

    2. Connect the bypass valve electrical connector.
    G00578785Courtesy of FORD MOTOR COMPANY
  18. Attach the coolant hose to the starter motor bracket.
    G00578784Courtesy of FORD MOTOR COMPANY

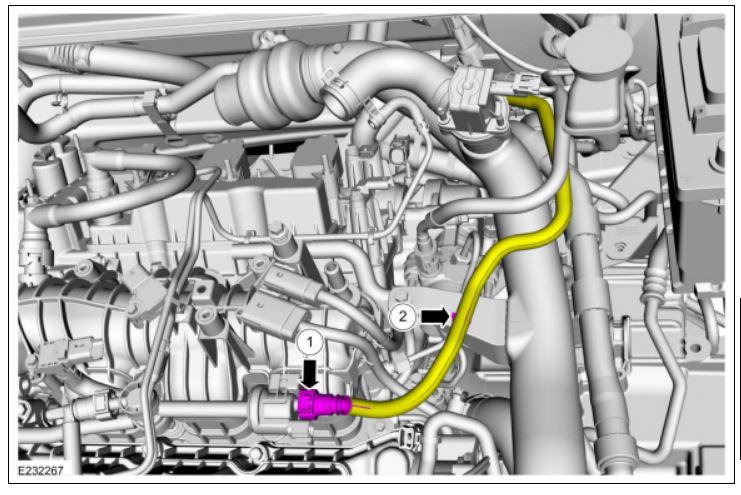

    1. Install the EVAP canister purge valve tube. Connect the EVAP canister purge valve quick release coupling. Refer to: Quick Release Coupling .
    2. Attach the retainer.
    G00578783Courtesy of FORD MOTOR COMPANY
  20. Tighten the CAC intake upper pipe RH clamp.

    Torque: 44 lb.in (5 Nm)

    G00578782Courtesy of FORD MOTOR COMPANY

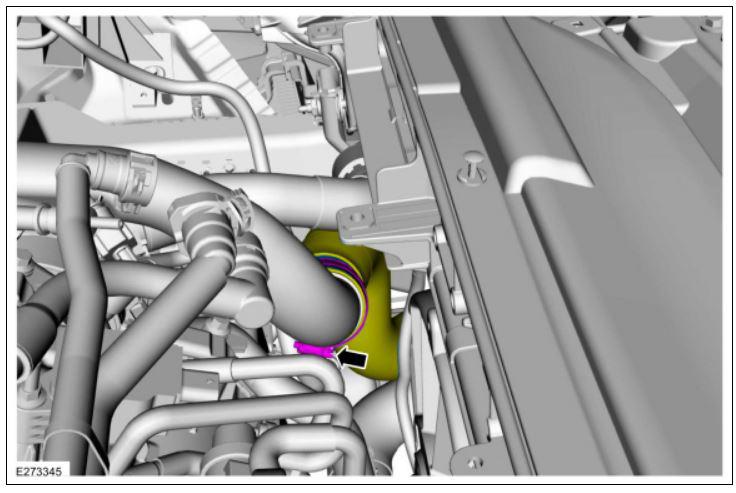

  21. Tighten the CAC intake lower pipe RH clamp.

    Torque: 44 lb.in (5 Nm)

    G00578781Courtesy of FORD MOTOR COMPANY
  22. Install the intake manifold. Refer to: Intake Manifold .
  23. Connect the battery. Refer to: Battery Disconnect and Connect .
  24. Install the air cleaner. Refer to: Air Cleaner .
  25. Pressurize the fuel system. Refer to: Fuel System Pressure Release .
