All-Wheel Drive (AWD) Module: Installation

WARNING: This page is about a different variant/trim than selected.

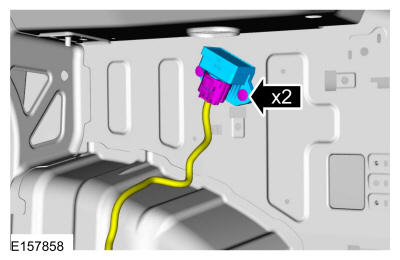

    • Install the AWD module and the push pin fasteners.
    • Connect the AWD module electrical connector.
    GFD195377Courtesy of FORD MOTOR COMPANY

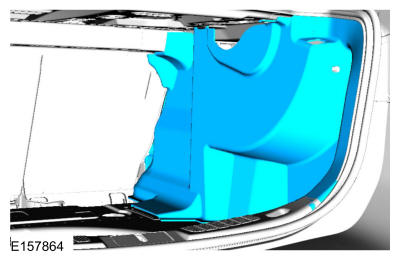

  2. Install the loadspace trim panel.
    GFD195376Courtesy of FORD MOTOR COMPANY
