Ignition Coil-On-Plug: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs.

NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

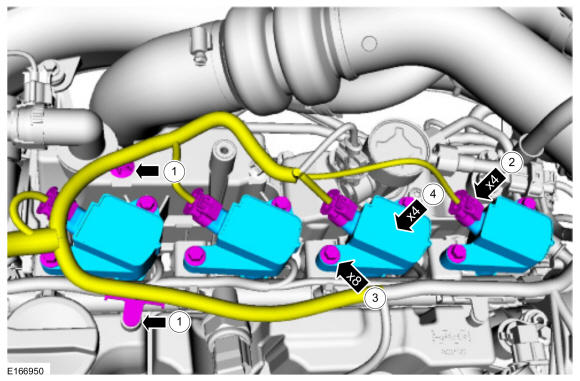

1. Detach the wiring harness retainers.
2. NOTE: If equipped with a sliding cover over the locking tab, then slide the cover back to gain access to the tab.

  Depress the locking tab on the ignition coil-on-plug electrical connector, and disconnect the electrical connector from the ignition coil-on-plug.
3. Remove the ignition coil-on-plug retainers.
  Torque: 89 lb.in (10 Nm)
4. Remove the ignition coil-on-plugs.
Courtesy of FORD MOTOR COMPANY
Inspect the coil-on-plug assemblies and replace any coil-on-plug assemblies with cracks, rips, or tears.

Courtesy of FORD MOTOR COMPANY
