Throttle Body: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
    1. Remove the Throttle Body (TB) inlet pipe mounting bolt.
    2. Loosen the Throttle Body (TB) inlet pipe clamp and then position the Throttle Body (TB) inlet pipe aside.

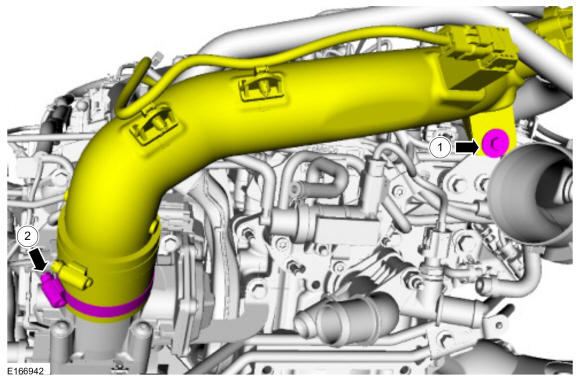

    GFD193373Courtesy of FORD MOTOR COMPANY
    • NOTE: When disconnecting the Throttle Body (TB) electrical connector disengage the red locking tab on the Throttle Body (TB) electrical connector by sliding it to the rear of the Throttle Body (TB) electrical connector, away from the Throttle Body (TB). Squeeze the Throttle Body (TB) electrical connector while removing.

      Disconnect the Throttle Body (TB) electrical connector.

    • Remove the Throttle Body (TB) retaining bolts and then remove the Throttle Body (TB).

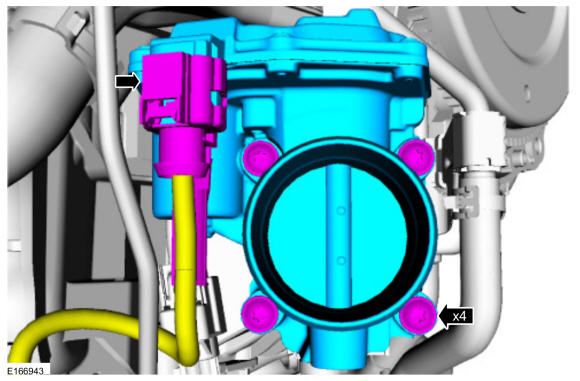

    GFD193374Courtesy of FORD MOTOR COMPANY
