Fuel Charging and Controls - Component Location
WARNING: This page is about a different variant/trim than selected.
1.5L EcoBoost
 Courtesy of FORD MOTOR COMPANY
|

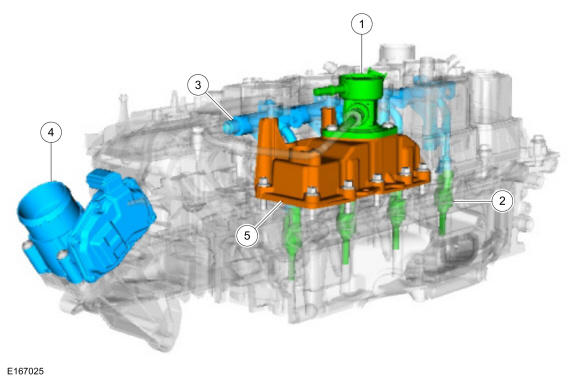

| Item |
Description |
| 1 |
High-pressure fuel pump |
| 2 |
Fuel injector |
| 3 |
Fuel rail |
| 4 |
Throttle Body (TB) |
| 5 |
High-pressure fuel pump mounting bracket |

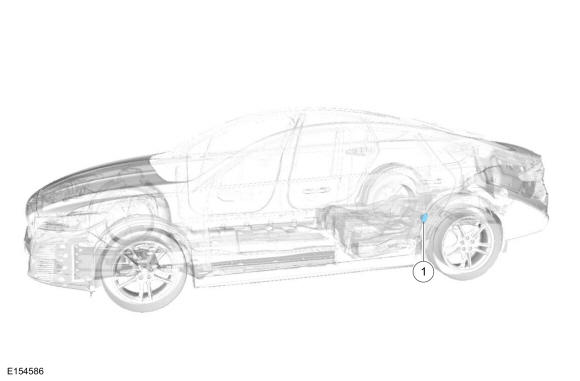

FPDM
 Courtesy of FORD MOTOR COMPANY
|
