Fuel System Pressure Check
WARNING: This page is about a different variant/trim than selected.
Special Tool(s) / General Equipment
| 310-D009 (D95L-7211-A) Fuel Pressure Test Kit |
|
|---|---|
Check
WARNING:
Before beginning any service procedure in this article, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
- Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .
- Release the fuel system pressure. Refer to: Fuel System Pressure Release .
- Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
- Remove the engine cover.
- Disconnect the fuel jumper tube-to-high pressure fuel pump quick release coupling. Refer to: Quick Release Coupling .

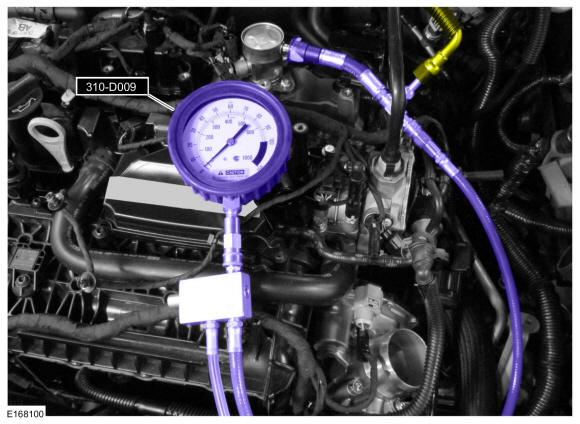

- Install the Fuel Pressure Test Kit between the fuel jumper tube and the fuel tube.
Use Special Service Tool: 310-D009 (D95L-7211-A) Fuel Pressure Test Kit.
-
NOTE: The FPDM electrical connector was previously disconnected to release the fuel system pressure and must be reconnected to test the fuel system pressure.
Reconnect the FPDM electrical connector.
- Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
-
NOTE: Carry out a Key ON Engine OFF (KOEO) visual inspection for fuel leaks prior to completing the fuel system pressure test.NOTE: After completion of the fuel system pressure test, open the drain valve on the Fuel Pressure Test Kit and release any residual fuel into a suitable container prior to removing the tool.
Test the fuel system pressure to make sure it is within the specified range. For additional information, refer to SPECIFICATIONS .
