Valve Cover: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.

Remove the ignition coil-on-plugs. Refer to: Ignition Coil-On-Plug .
Remove the oil level indicator.

Courtesy of FORD MOTOR COMPANY
Disconnect the crankcase vent tube. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY
Position out the boot and disconnect the CHT sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
Detach the wire harness retainer.

Courtesy of FORD MOTOR COMPANY
Disconnect the CMP sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
Disconnect the electrical connector and detach the wire harness retainer.

Courtesy of FORD MOTOR COMPANY
Disconnect the VCT solenoid electrical connector.

Courtesy of FORD MOTOR COMPANY
Detach the wire harness retainer.

Courtesy of FORD MOTOR COMPANY
Detach the wire harness retainer.

Courtesy of FORD MOTOR COMPANY
Remove the nuts and position aside the bracket.

Courtesy of FORD MOTOR COMPANY

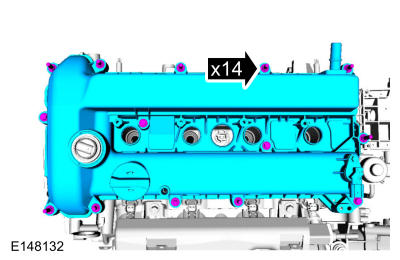

Loosen the fasteners and remove the valve cover.

Courtesy of FORD MOTOR COMPANY
NOTE: The VCT solenoid seal should only be replaced if it is damaged.

If necessary, using the special tools, remove the VCT seals.

Use Special Service Tools: 303-1247 VCT Spark Plug Tube Seal Remover and Installer, 205-153 (T80T-4000-W) Handle.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not Use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.

Clean the sealing surfaces.

Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B
