Valve Cover: Installation

WARNING: This page is about a different variant/trim than selected.
  1. NOTE: Installation of a new VCT seal is required if a damaged seal was removed during disassembly of the engine.

    If removed, using the special tools, install the VCT seals.

    Use Special Service Tools: 303-1247 VCT Spark Plug Tube Seal Remover and Installer, 205-153 (T80T-4000-W) Handle.

    GFD192121Courtesy of FORD MOTOR COMPANY
  2. Inspect and if necessary, install new valve cover gaskets.
    GFD192122Courtesy of FORD MOTOR COMPANY
  3. NOTE: The valve cover must be secured within 10 minutes of silicone gasket application. If the valve cover is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned with metal surface prep.

    Apply a 6 mm bead of silicone sealant.

    Material: Motorcraft ® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

    GFD192123Courtesy of FORD MOTOR COMPANY
  4. Install the valve cover and tighten the fasteners in sequence displayed below.

    Torque: 89 lb.in (10 Nm)

    Fig 1: Valve Cover Tightening Sequence
    GFD192124Courtesy of FORD MOTOR COMPANY
  5. Position the bracket and install the nuts.

    Torque: 80 lb.in (9 Nm)

    GFD192118Courtesy of FORD MOTOR COMPANY
  6. Attach the wire harness retainer.
    GFD192117Courtesy of FORD MOTOR COMPANY
  7. Attach the wire harness retainer.

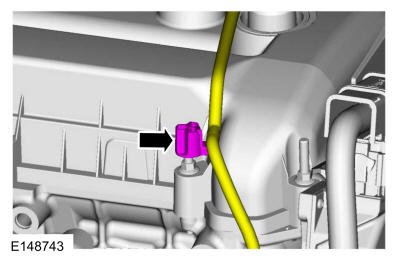

    GFD192116Courtesy of FORD MOTOR COMPANY
  8. Connect the VCT solenoid electrical connector.
    GFD192115Courtesy of FORD MOTOR COMPANY
  9. Attach the wire harness retainer and connect the electrical connector.
    GFD192114Courtesy of FORD MOTOR COMPANY
  10. Connect the CMP sensor electrical connector.

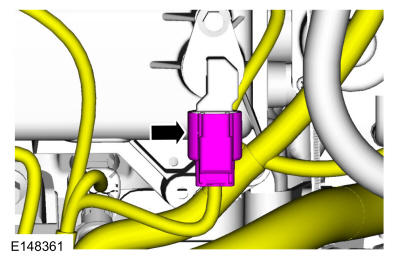

    GFD192113Courtesy of FORD MOTOR COMPANY
  11. Attach the wire harness retainer.
    GFD192112Courtesy of FORD MOTOR COMPANY
  12. Connect the CHT sensor electrical connector and position back the boot.
    GFD192111Courtesy of FORD MOTOR COMPANY
  13. Connect the crankcase vent tube. Refer to: Quick Release Coupling .
    GFD192110Courtesy of FORD MOTOR COMPANY
  14. Install the oil level indicator.
    GFD192109Courtesy of FORD MOTOR COMPANY
  15. Install the ignition coil-on-plugs. Refer to: Ignition Coil-On-Plug .
