Oil Pump: Installation

WARNING: This page is about a different variant/trim than selected.

Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.
NOTE: Clean the oil pump and cylinder block mating surfaces with Motorcraft ® Metal Surface Prep.

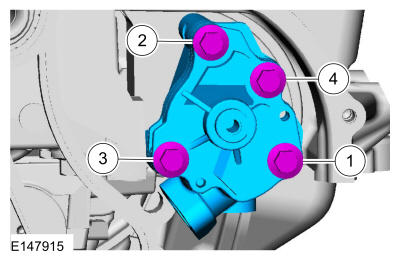

Install the oil pump and the bolts. Tighten in sequence displayed in 2 stages.

Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

Torque:

Stage 1: 89 lb.in (10 Nm)

Stage 2: 177 lb.in (20 Nm)

Fig 1: Oil Pump Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY

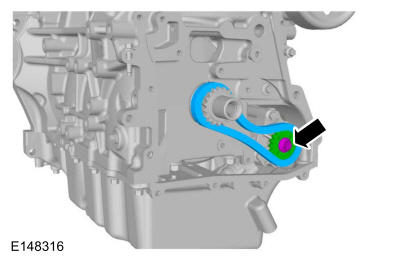

- Install the oil pump drive gear and the bolt.
  Torque: 18 lb.ft (25 Nm)
- Install the chain onto the oil pump drive gear.
Courtesy of FORD MOTOR COMPANY

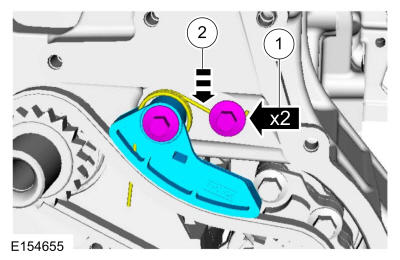

1. Install the oil chain tensioner and the bolts.
  Torque: 89 lb.in (10 Nm)
2. Push the tensioner spring down and position the spring under the shoulder bolt.
Courtesy of FORD MOTOR COMPANY
Install a new gasket.

Courtesy of FORD MOTOR COMPANY

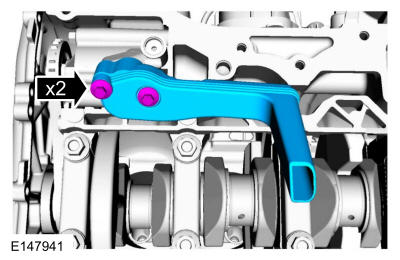

Install the oil pump screen and pickup tube and the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If the oil pan is not secured within 10 minutes of sealant application, the sealant must be removed and the sealing area cleaned with metal surface prep. Allow to dry until there is no sign of wetness, or 10 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

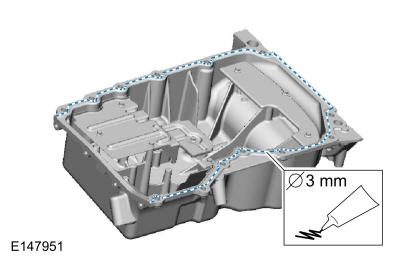

Apply a 3 mm bead of silicone sealant.

Material: Motorcraft ® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY
NOTE: Only tighten the bolts finger tight at this stage.

Install the oil pan and the bolts.

Courtesy of FORD MOTOR COMPANY

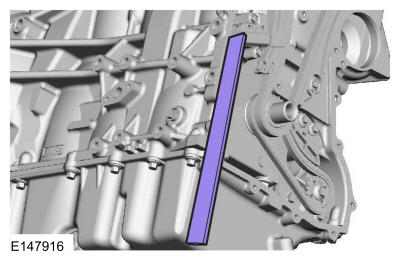

Using a straight edge, align the front surface of the oil pan flush with the front surface of the engine block.
Use the General Equipment: Round-Ended Steel Rule

Courtesy of FORD MOTOR COMPANY

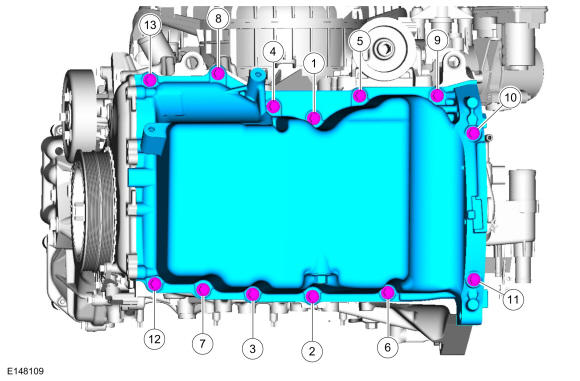

Tighten the oil pan bolts in sequence displayed.
Torque: 177 lb.in (20 Nm)

Fig 2: Oil Pan Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the transmission bolts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Install the engine bolt.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Position the A/C compressor and install the bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Install the A/C compressor nut and the stud.
Torque:

1: 80 lb.in (9 Nm)

2: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Position the bracket and install the nut.
Torque: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the A/C compressor electrical connector.

Courtesy of FORD MOTOR COMPANY
Attach the wire harness retainer and connect the A/C compressor electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: Failure to position the wood block and floor jack as illustrated can result in damage to the oil pan.

Using a trolley jack and wooden block, support the engine.

Install the General Equipment: Wooden Block

Install the General Equipment: Trolley Jack

Courtesy of FORD MOTOR COMPANY

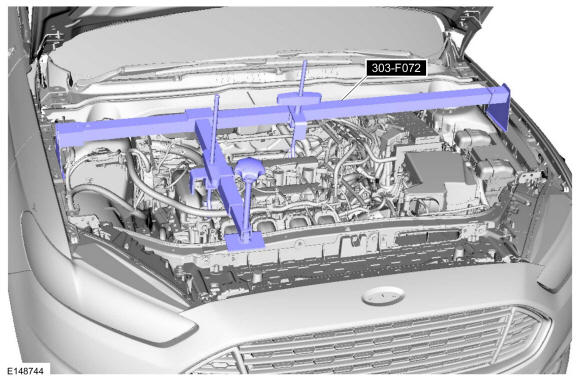

Remove the engine support bar.
Remove Special Service Tool: 303-F072 Support Bar, Engine.

Courtesy of FORD MOTOR COMPANY
Install the timing cover. Refer to: Timing Cover .
Fill the engine with clean engine oil.
Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
