Oil Pan: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the air cleaner. Refer to: Air Cleaner .
  3. Remove the oil level indicator.
    GFD192056Courtesy of FORD MOTOR COMPANY
  4. Disconnect the HO2S and CMS (catalyst monitor sensor) electrical connectors, detach the wire harness retainers.
    GFD192057Courtesy of FORD MOTOR COMPANY
  5. Remove the bolts and the exhaust manifold heat shield.
    GFD192058Courtesy of FORD MOTOR COMPANY
  6. NOTE: To prevent damage to the transmission, do not loosen the transmission-to-engine bolts more than 5 mm (0.19 in).

    Loosen the transmission-to-engine bolts.

    GFD192059Courtesy of FORD MOTOR COMPANY
  7. Detach the wire harness retainers.
    GFD192060Courtesy of FORD MOTOR COMPANY
  8. NOTE: To prevent damage to the transmission, do not loosen the transmission-to-engine bolts more than 5 mm (0.19 in).

    Loosen the transmission-to-engine bolts and the stud bolt.

    GFD192061Courtesy of FORD MOTOR COMPANY
  9. Remove the retainers and the engine undershield.
    GFD192050Courtesy of FORD MOTOR COMPANY
  10. Remove the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .
  11. Disconnect the A/C compressor electrical connector and detach the wire harness retainer.
    GFD191454Courtesy of FORD MOTOR COMPANY
  12. Disconnect the A/C compressor electrical connector.
    GFD192062Courtesy of FORD MOTOR COMPANY

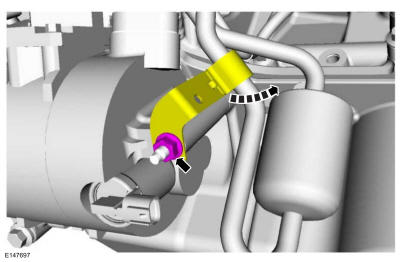

  13. Remove the nut and position aside the bracket.
    GFD191456Courtesy of FORD MOTOR COMPANY

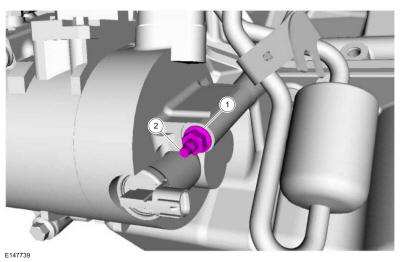

  14. Remove the A/C compressor nut and the stud.
    GFD191457Courtesy of FORD MOTOR COMPANY

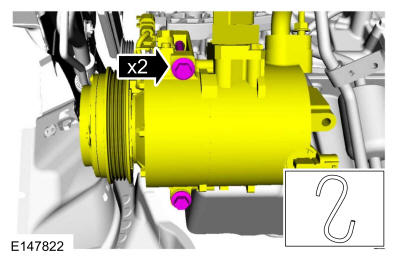

  15. Remove the bolts and position aside the A/C compressor.
    GFD191458Courtesy of FORD MOTOR COMPANY
  16. Remove the retainers and the shield.
    GFD192063Courtesy of FORD MOTOR COMPANY

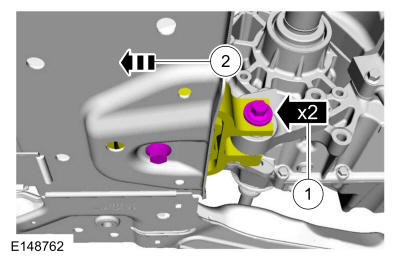

    1. Remove the roll restrictor bolts.
    2. Position aside the roll restrictor.
    GFD192064Courtesy of FORD MOTOR COMPANY
  18. Remove the engine bolt.
    GFD192065Courtesy of FORD MOTOR COMPANY
  19. Remove the transmission bolts.
    GFD192066Courtesy of FORD MOTOR COMPANY
  20. NOTE: To prevent damage to the transmission, do not loosen the transmission-to-engine bolts more than 5 mm (0.19 in).

    Loosen the transmission-to-engine bolts.

    GFD192067Courtesy of FORD MOTOR COMPANY

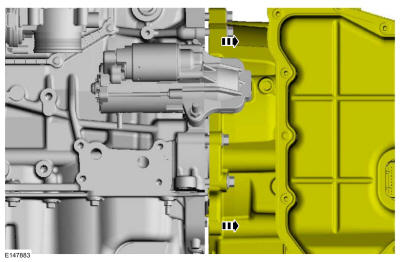

  21. Separate the engine from the transmission.
    GFD191464Courtesy of FORD MOTOR COMPANY
    • Remove the oil drain bolt and the drain the engine oil.

      Use the General Equipment: Oil Drain Equipment

    • Install the oil drain bolt.

      Torque: 21 lb.ft (28 Nm)

    GFD191567Courtesy of FORD MOTOR COMPANY
  23. Remove the engine front cover-to-oil pan bolts.
    GFD192068Courtesy of FORD MOTOR COMPANY

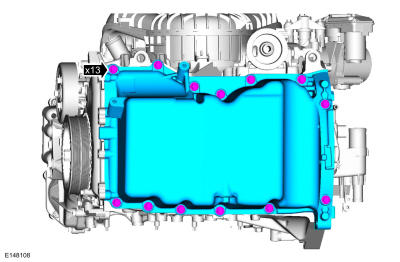

  24. Remove the bolts and the oil pan.
    GFD192069Courtesy of FORD MOTOR COMPANY
  25. NOTE: Do not Use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.

    Clean all mating surfaces. Refer to: RTV Sealing Surface Cleaning and Preparation .

    Use the General Equipment: Plastic Scraper

    Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B
