Oil Pan: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: If the oil pan is not secured within 10 minutes of sealant application, the sealant must be removed and the sealing area cleaned with metal surface prep. Allow to dry until there is no sign of wetness, or 10 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

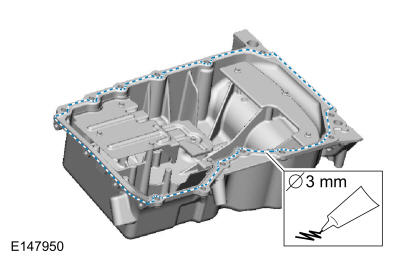

Apply a 3 mm bead of silicone sealant.

Material: Motorcraft ® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY
NOTE: Only tighten the bolts finger tight at this stage.

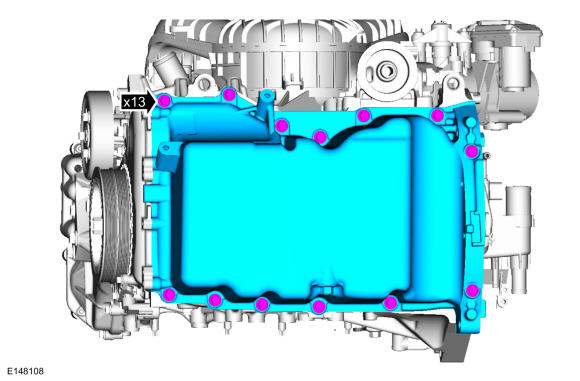

Install the oil pan and the bolts finger tight.

Courtesy of FORD MOTOR COMPANY
NOTE: The engine front cover-to-oil pan bolts must be tightened first to align the front surface of the oil pan flush with the front surface of the engine block.

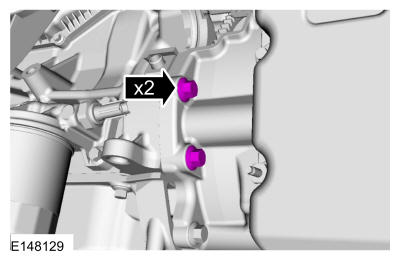

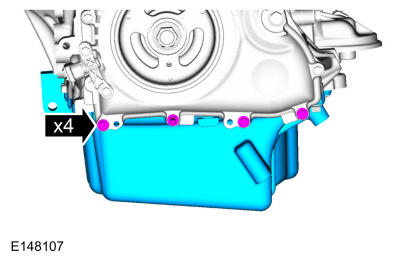

Install the engine front cover-to-oil pan bolts.

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Tighten the oil pan bolts in sequence displayed below.
Torque: 177 lb.in (20 Nm)

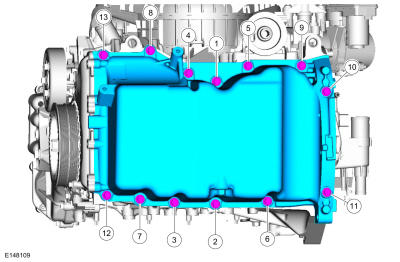

Fig 1: Oil Pan Tightening Sequence
Courtesy of FORD MOTOR COMPANY

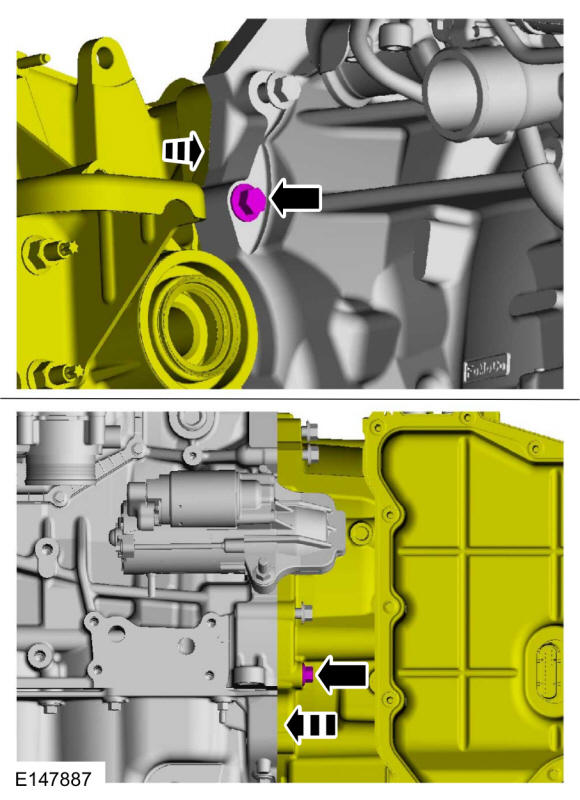

Alternate tightening the LH bellhousing-to-engine and RH engine-to-bellhousing bolts to slide the transaxle and engine together.

Courtesy of FORD MOTOR COMPANY

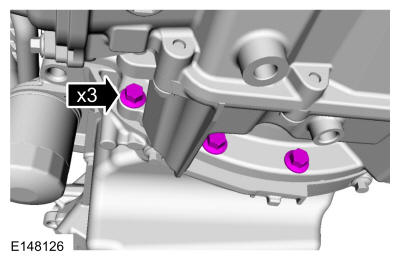

Tighten the transmission-to-engine bolts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

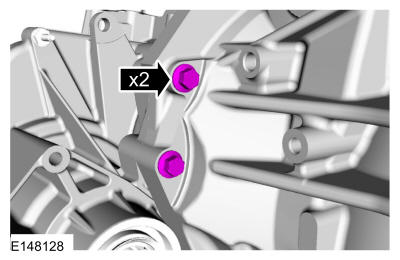

Install the transmission bolts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

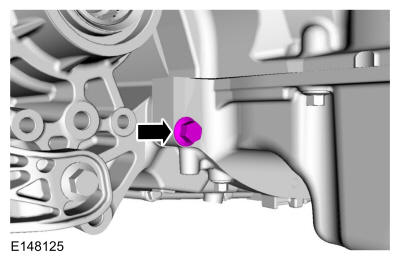

Install the engine bolt.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

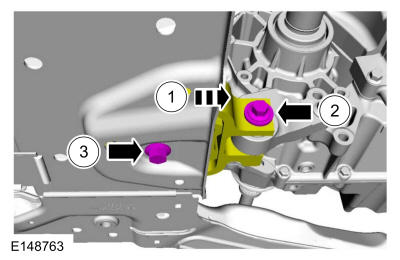

1. Position the roll restrictor.
2. Install the roll restrictor-to-subframe bolt.
  Torque: 111 lb.ft (150 Nm)
3. Install the roll restrictor-to-tranmission bolt.
  Torque: 85 lb.ft (115 Nm)
Courtesy of FORD MOTOR COMPANY

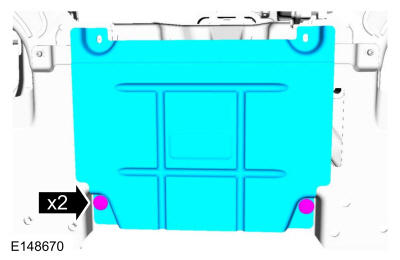

Install the shield and the retainers.

Courtesy of FORD MOTOR COMPANY

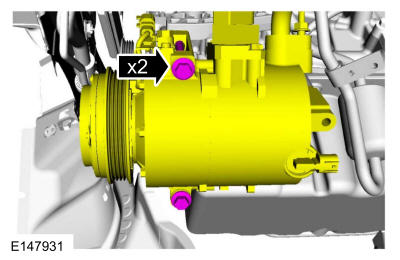

Position the A/C compressor and install the bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

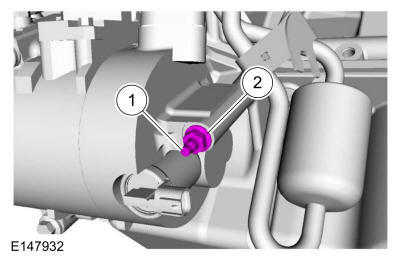

Install the A/C compressor stud and the nut.
Torque:

1: 80 lb.in (9 Nm)

2: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

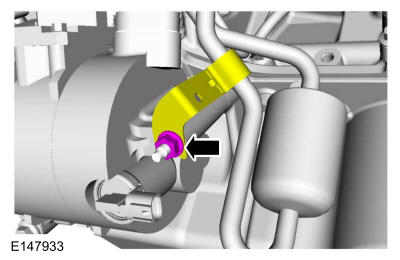

Position the bracket and install the nut.
Torque: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY

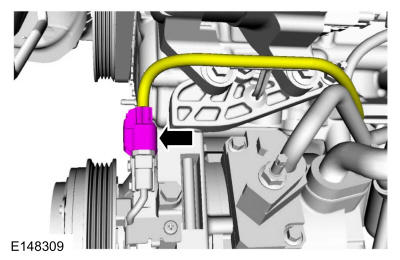

Connect the A/C compressor electrical connector.

Courtesy of FORD MOTOR COMPANY

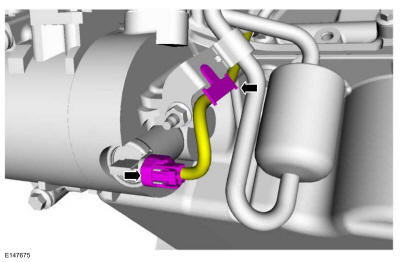

Attach the wire harness retainer and connect the A/C compressor electrical connector.

Courtesy of FORD MOTOR COMPANY
Install the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .
Install the engine undershield and the retainers.

Courtesy of FORD MOTOR COMPANY
Tighten the transmission-to-engine stud bolt and the bolts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

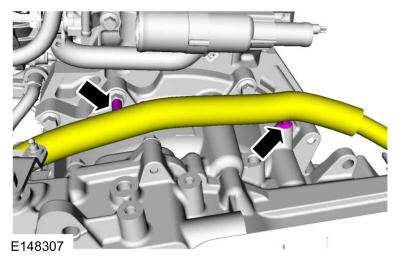

Attach the wire harness retainers.

Courtesy of FORD MOTOR COMPANY

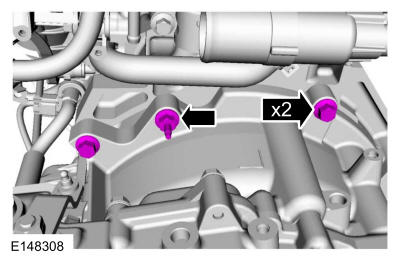

Tighten the transmission-to-engine bolts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

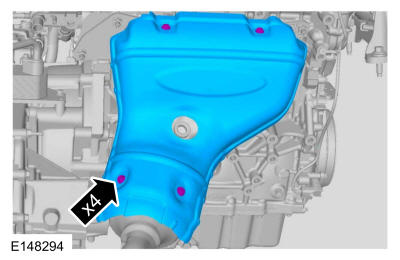

Install the exhaust manifold heat shield and the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

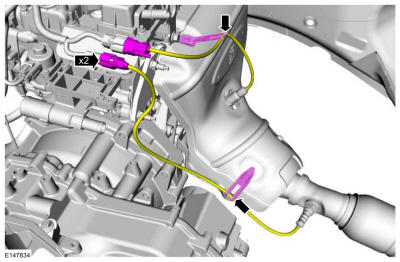

Attach the wire harness retainers, connect the CMS and HO2S electrical connectors.

Courtesy of FORD MOTOR COMPANY
Install the air cleaner. Refer to: Air Cleaner .

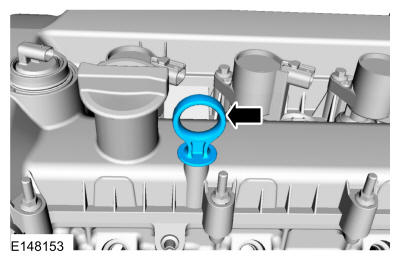

Install the oil level indicator.

Courtesy of FORD MOTOR COMPANY
Fill the engine with clean engine oil.
Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
