Intake Manifold: Removal
WARNING: This page is about a different variant/trim than selected.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

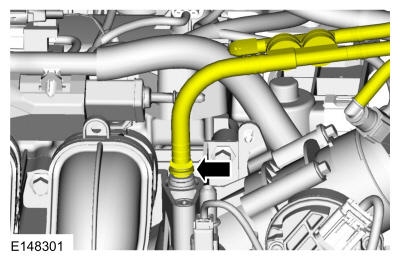

- Disconnect the brake booster tube from the intake manifold.

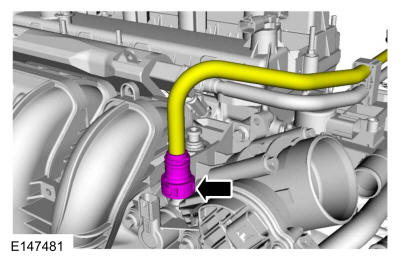

- Disconnect the fuel vapor tube. Refer to: Quick Release Coupling
.

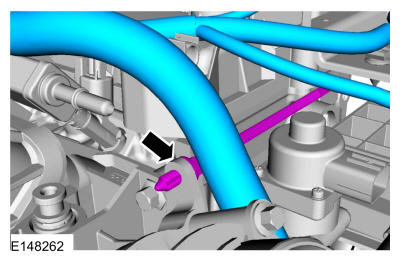

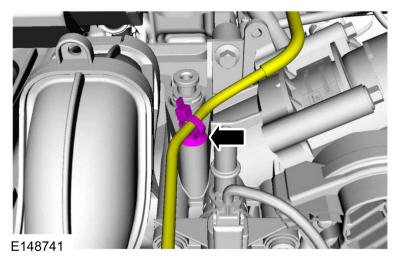

- Detach the engine vent hose retainer.

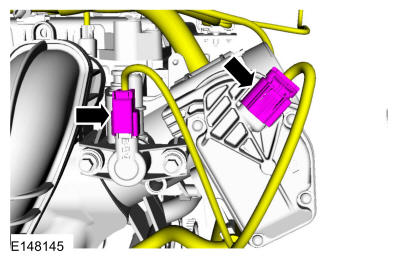

- Disconnect the EVAP canister purge valve and TB (throttle body) electrical connectors.
- Disconnect the MAP sensor electrical connector and detach the wire harness retainers.

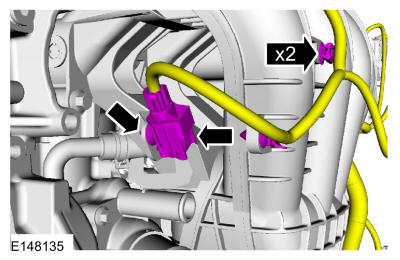

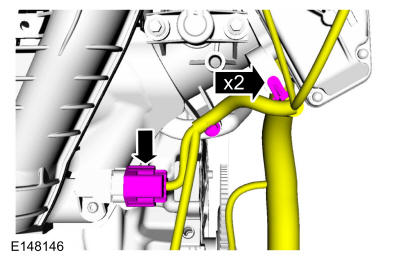

- Disconnect the electrical connector and detach the wire harness retainers.
- Detach the wire harness retainer.

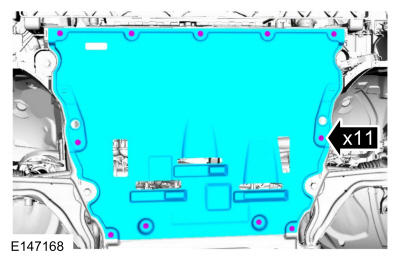

- Remove the retainers and the engine undershield.

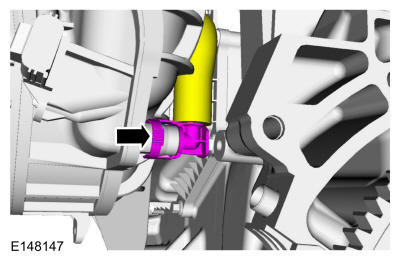

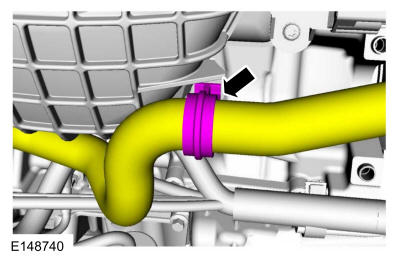

- Detach the coolant hose retainer.

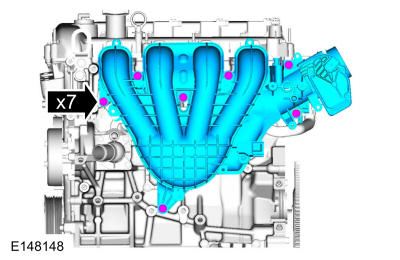

- Remove the bolts and position out the intake manifold.
- Squeeze the 2 crankcase vent oil separator tube tabs and disconnect the tube from the intake manifold.
