Removal And Installation: Flexplate: Installation

WARNING: This page is about a different variant/trim than selected.

- Install the flexplate and the new bolts. Tighten in sequence displayed below in 3 stages.
  Torque:

  Stage 1: 37 lb.ft (50 Nm)

  Stage 2: 59 lb.ft (80 Nm)

  Stage 3: 83 lb.ft (112 Nm)
- Remove Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.

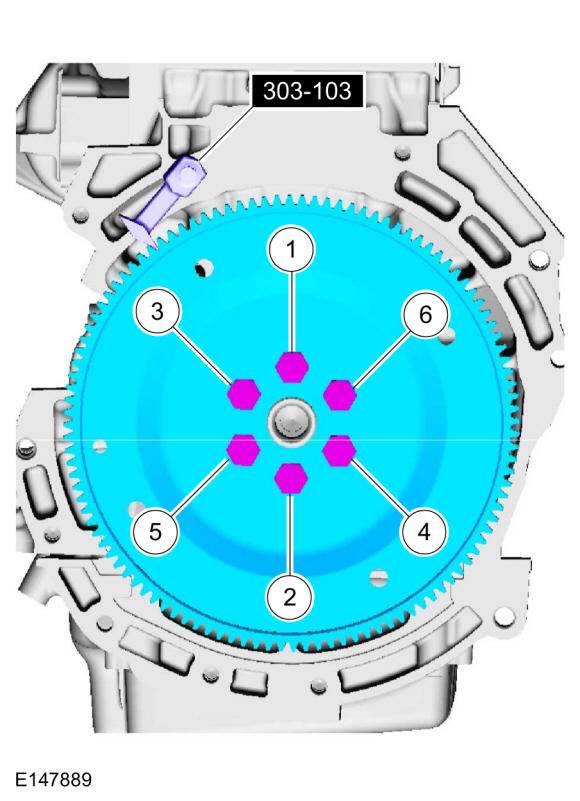

Fig 1: Flexplate Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the transmission. Refer to: Transmission .
After completing the repairs, preform the Misfire Monitor Neutral Profile Correction procedure.
