Engine Mount: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the retainers and the engine undershield.
- Detach the wire harness retainer.

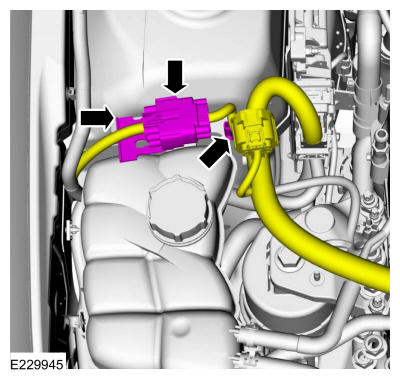

- Disconnect the electrical connector and detach the wire harness retainers.
- Remove the bolt and position the degas bottle aside. Detach the coolant hose retainer.
Torque: 44 lb.in (5 Nm)

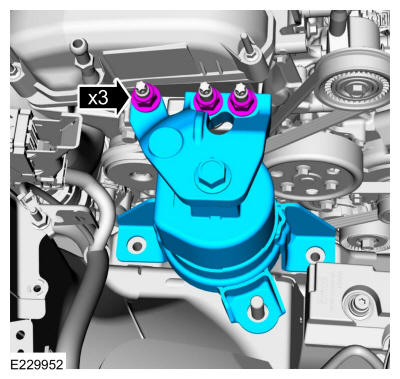

- Remove the engine mount bolts and the nut.
Torque: 66 lb.ft (90 Nm)
-
NOTE: Failure to position the wood block and floor jack as illustrated can result in damage to the oil pan.
Using a trolley jack and wooden block, support the engine.
Use the General Equipment: Trolley Jack
Use the General Equipment: Wooden Block

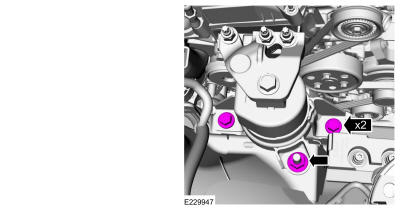

- Remove the engine mount nuts and the engine mount.
Torque: 66 lb.ft (90 Nm)
