Cylinder Head: Installation

WARNING: This page is about a different variant/trim than selected.
  1. NOTE: Do not Use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.

    Clean the cylinder head-to-cylinder block mating surface of both the cylinder head and the cylinder block.

    Use the General Equipment: Plastic Scraper

    Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

  2. Check the cylinder head distortion. Refer to: Cylinder Head Distortion .
  3. Check the cylinder block distortion. Refer to: Cylinder Block Distortion .
  4. Clean the cylinder head bolt holes in the cylinder block. Make sure all coolant, oil or other foreign material is removed.
  5. Apply a 6 mm bead of silicone sealant.

    Material: Motorcraft ® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

    GFD192030Courtesy of FORD MOTOR COMPANY
  6. Install a new cylinder head gasket.
    GFD192031Courtesy of FORD MOTOR COMPANY
  7. NOTE: The cylinder head bolts are torque-to-yield and must not be re Use d. New cylinder head bolts must be installed.

    Install the cylinder head and the bolts. Tighten in sequence displayed in 5 stages.

    Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

    Torque:

    Stage 1: 62 lb.in (7 Nm)

    Stage 2: 133 lb.in (15 Nm)

    Stage 3: 33 lb.ft (45 Nm)

    Stage 4: 90 °

    Stage 5: 90 °

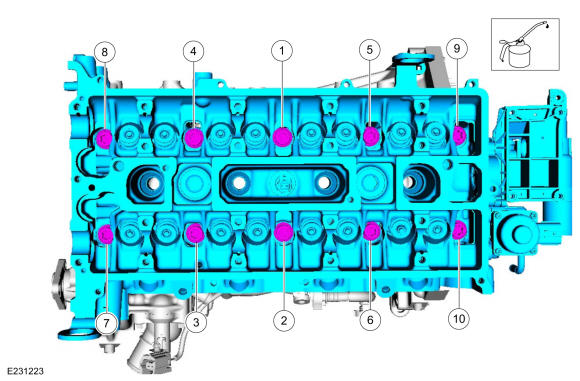

    Fig 1: Cylinder Head Tightening Sequence
    GFD192032Courtesy of FORD MOTOR COMPANY
  8. Connect the coolant hose.

    Use the General Equipment: Hose Clamp Remover/Installer

    GFD192027Courtesy of FORD MOTOR COMPANY
  9. Connect the EGR valve coolant hose.

    Use the General Equipment: Hose Clamp Remover/Installer

    GFD192026Courtesy of FORD MOTOR COMPANY
  10. Connect the coolant hoses.

    Use the General Equipment: Hose Clamp Remover/Installer

    GFD192025Courtesy of FORD MOTOR COMPANY
  11. Position the coolant hose clip.
    GFD192033Courtesy of FORD MOTOR COMPANY
  12. Connect the EGR electrical connector.
    GFD192023Courtesy of FORD MOTOR COMPANY
  13. Install the EGR tube.

    Torque: 41 lb.ft (55 Nm)

    GFD192022Courtesy of FORD MOTOR COMPANY

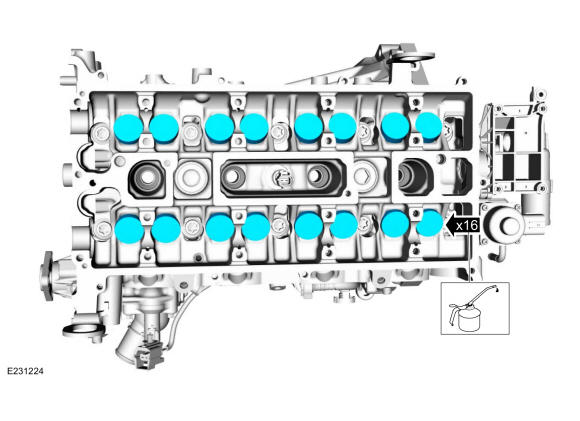

  14. Lubricate with clean engine oil and install the valve tappets.

    Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

    GFD192034Courtesy of FORD MOTOR COMPANY
  15. Install the following items:

    1. Install the camshafts. Refer to: Camshafts .
    2. Install the fuel injectors. Refer to: Fuel Injectors .
    3. Install the intake manifold. Refer to: Intake Manifold .
    4. Install the air cleaner. Refer to: Air Cleaner .

  16. Install the new exhaust manifold studs.

    Torque: 150 lb.in (17 Nm)

    GFD192035Courtesy of FORD MOTOR COMPANY
  17. Install the new exhaust manifold gasket.
    GFD192036Courtesy of FORD MOTOR COMPANY

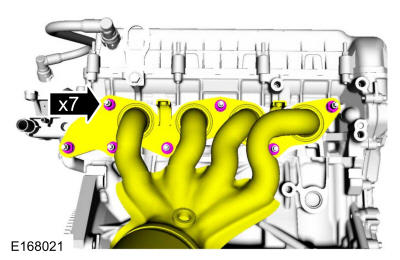

  18. Position the exhaust manifold and install the nuts.

    Torque: 41 lb.ft (55 Nm)

    GFD192037Courtesy of FORD MOTOR COMPANY
  19. Install the bolts for the exhaust manifold.

    Torque: 18 lb.ft (25 Nm)

    GFD192017Courtesy of FORD MOTOR COMPANY
  20. Install a new exhaust system gasket.
    GFD192038Courtesy of FORD MOTOR COMPANY
    1. Position the exhaust system.
    2. Install the new nuts.

      Torque: 35 lb.ft (48 Nm)

    GFD192039Courtesy of FORD MOTOR COMPANY
  21. NOTE: Do not excessively bend or twist the exhaust flexible pipe. Failure to follow these instructions may cause damage to the flexible pipe.

    Remove the exhaust flexible pipe support.

    GFD192014Courtesy of FORD MOTOR COMPANY
  22. Install the exhaust manifold bracket bolts.

    Torque: 18 lb.ft (25 Nm)

    GFD192013Courtesy of FORD MOTOR COMPANY
  23. Install the underbody shield and the retainers.
    GFD192012Courtesy of FORD MOTOR COMPANY
  24. Install the exhaust manifold heat shield and the bolts.

    Torque: 89 lb.in (10 Nm)

    GFD192011Courtesy of FORD MOTOR COMPANY
  25. Attach the wire harness retainers, connect the HO2S and CMS electrical connectors.
    GFD192010Courtesy of FORD MOTOR COMPANY
  26. Tighten the oil filter three-fourths turn after the oil filter gasket makes contact with the oil filter adapter.

    Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

    GFD192040Courtesy of FORD MOTOR COMPANY
  27. Fill the engine with clean engine oil.

    Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

  28. Fill and bleed the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
