Crankshaft Rear Seal: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the flexplate. Refer to: Flexplate .

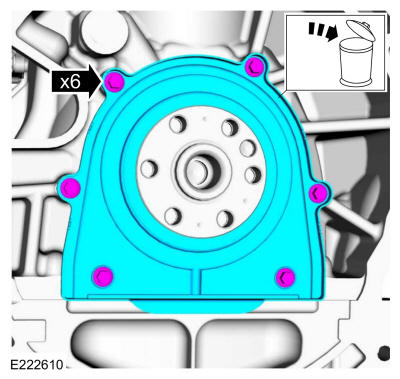

- Remove the bolts and the crankshaft rear seal, discard the crankshaft rear seal.
-

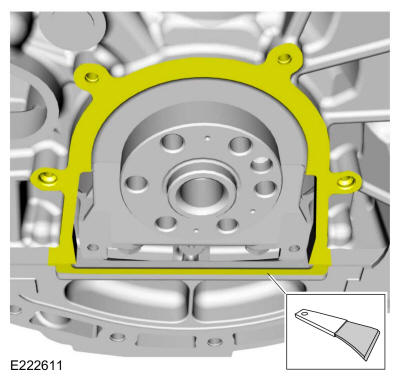

NOTE: Do not Use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.
Clean and inspect the oil pan and cylinder block mating surfaces. Refer to: RTV Sealing Surface Cleaning and Preparation .
Use the General Equipment: Plastic Scraper
Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A
Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B
Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B
