Rear Halfshaft Seal: Installation
WARNING: This page is about a different variant/trim than selected.

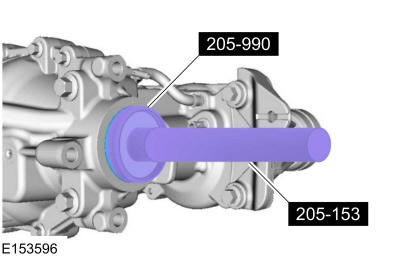

- Using the special tools, install the rear halfshaft seal. Use Special Service Tool:
205-153 (T80T-4000-W) Handle, 205-990 Installer, Axle Seal.
- Install the rear halfshaft. Refer to: Rear Halfshaft .
- If empty, fill the rear axle with 0.55L (1.15 pt) of rear axle lubricant. If fluid level is low, fill to 3-5 mm (0.118-0.196 in) below the bottom of the filler hole and install the filler plug.
Material: Motorcraft ® SAE 80W-90 Premium Rear Axle Lubricant / XY-80W90-QL (WSP-M2C197-A)
Torque: 21 lb.ft (29 Nm)
