Axle Assembly: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the rear halfshafts. Refer to: Rear Halfshaft .

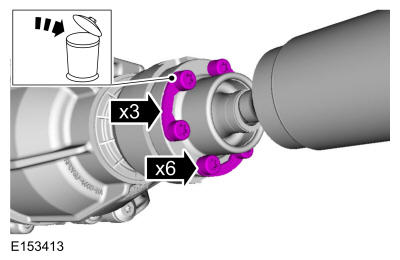

Remove and discard the driveshaft to rear differential flange bolts and washer assemblies.
Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Do not remove driveshaft from the pinion flange by pulling on the driveshaft tube. Damage to the CV joint can result.

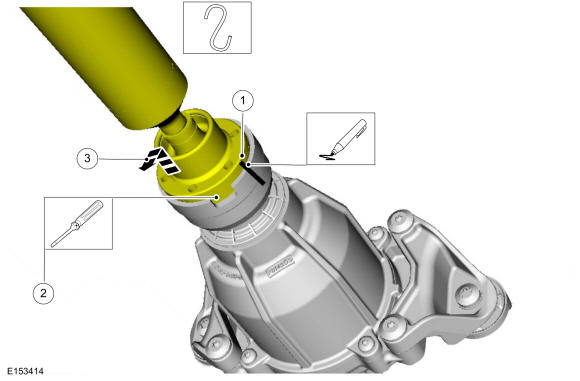

Disconnect the driveshaft.
1. Index-mark the driveshaft CV joint coupling and RDU (Rear Drive Unit) flange.
2. Separate the driveshaft CV joint coupling from the RDU flange.
3. Position and support the driveshaft aside.
Courtesy of FORD MOTOR COMPANY

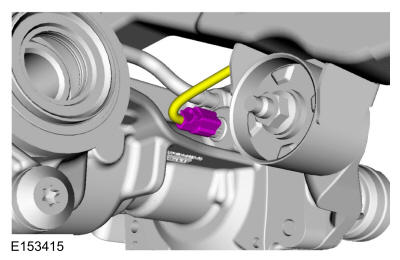

Disconnect the ATC connector.

Courtesy of FORD MOTOR COMPANY

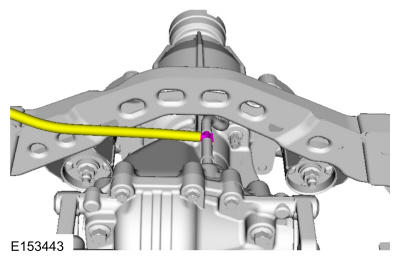

Disconnect the RDU vent tube.

Courtesy of FORD MOTOR COMPANY

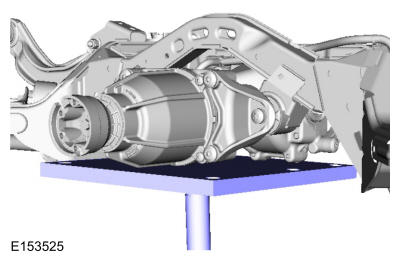

Position and secure a transmission jack under the RDU.
Use the General Equipment: Transmission Jack

Courtesy of FORD MOTOR COMPANY

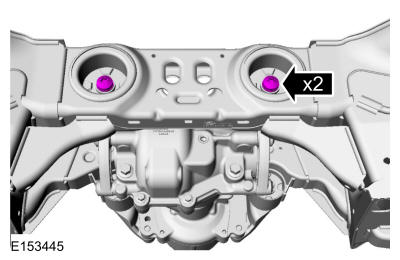

Remove the rear RDU mounting bolts.
Torque: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY

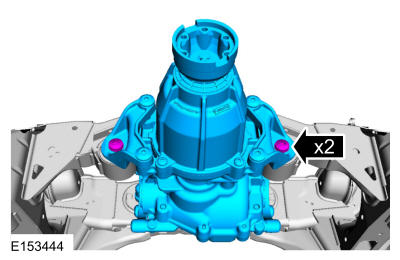

Remove the front RDU mounting bolts and using the transmission jack, remove the RDU.
Use the General Equipment: Transmission Jack

Torque: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY

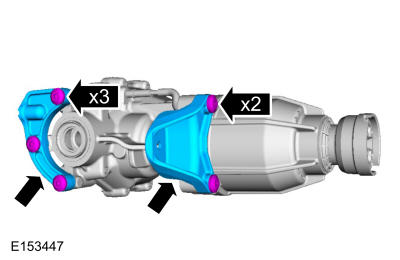

If installing a new RDU. Remove the RDU mounting bracket bolts and mounting brackets.
Torque: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY

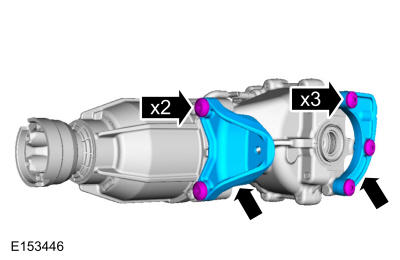

If installing a new RDU. Remove the RDU mounting bracket bolts and mounting brackets.
Torque: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY
