Active Torque Coupling Clutch: Installation
WARNING: This page is about a different variant/trim than selected.

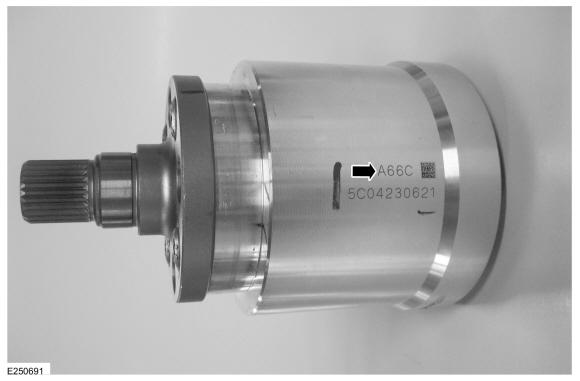

- Record the etched 4-digit calibration code from the new RDU clutch coupler.

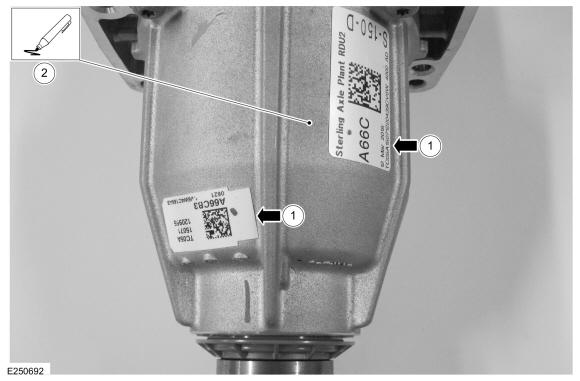

- If the new 4-digit calibration code from the RDU clutch coupler does not match the 4-digit calibration code on the RDU clutch coupler housing, strike out the existing 4-digit calibration code on the RDU clutch coupler housing and write the new 4-digit calibration code with permanent felt tip marker.
- To install, reverse the removal procedure.
