Fuel Charging and Controls - Component Location

WARNING: This page is about a different variant/trim than selected.

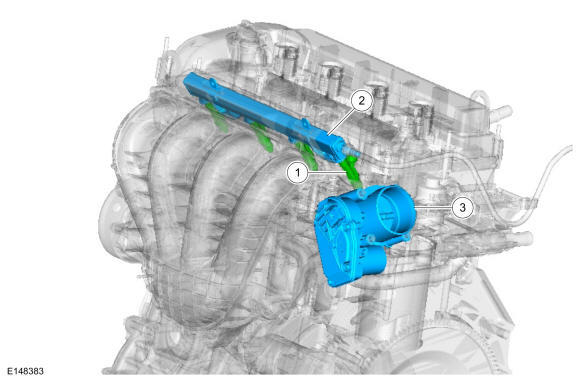

GFD193418Courtesy of FORD MOTOR COMPANY
Item Description
1 Fuel injector
2 Fuel rail
3 Throttle Body (TB)

Component Location - FPDM

GFD193378Courtesy of FORD MOTOR COMPANY
Item Description
1 FPDM
