Starting System

Fig 1: Starting System Wiring Diagram (1 Of 3)
GFDW80045Courtesy of FORD MOTOR COMPANY
Fig 2: Starting System Wiring Diagram (2 Of 3)
GFDW80047Courtesy of FORD MOTOR COMPANY

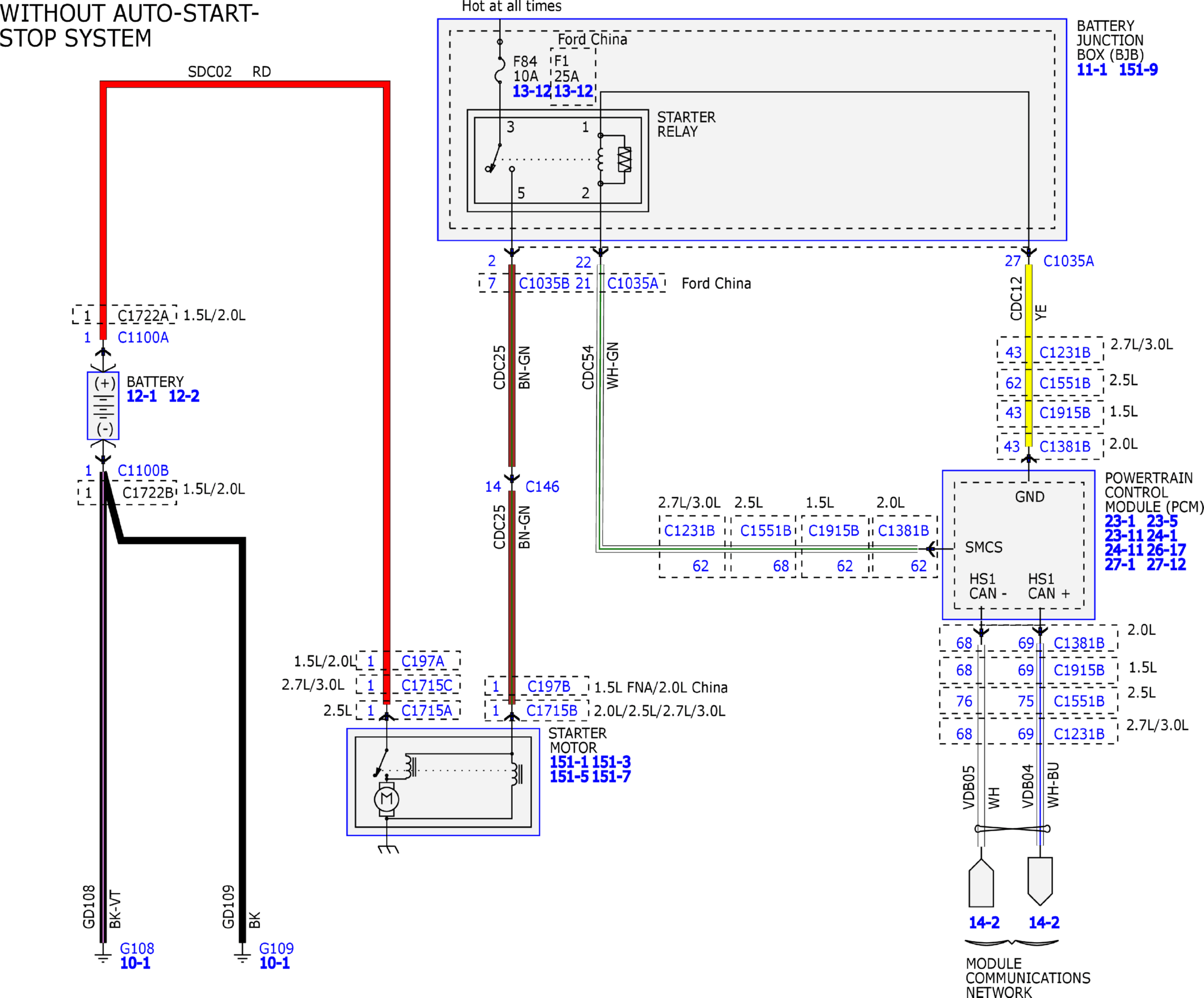

Fig 3: Starting System Wiring Diagram (3 Of 3)
GFDW80048Courtesy of FORD MOTOR COMPANY
