Remote Keyless Entry And Alarm

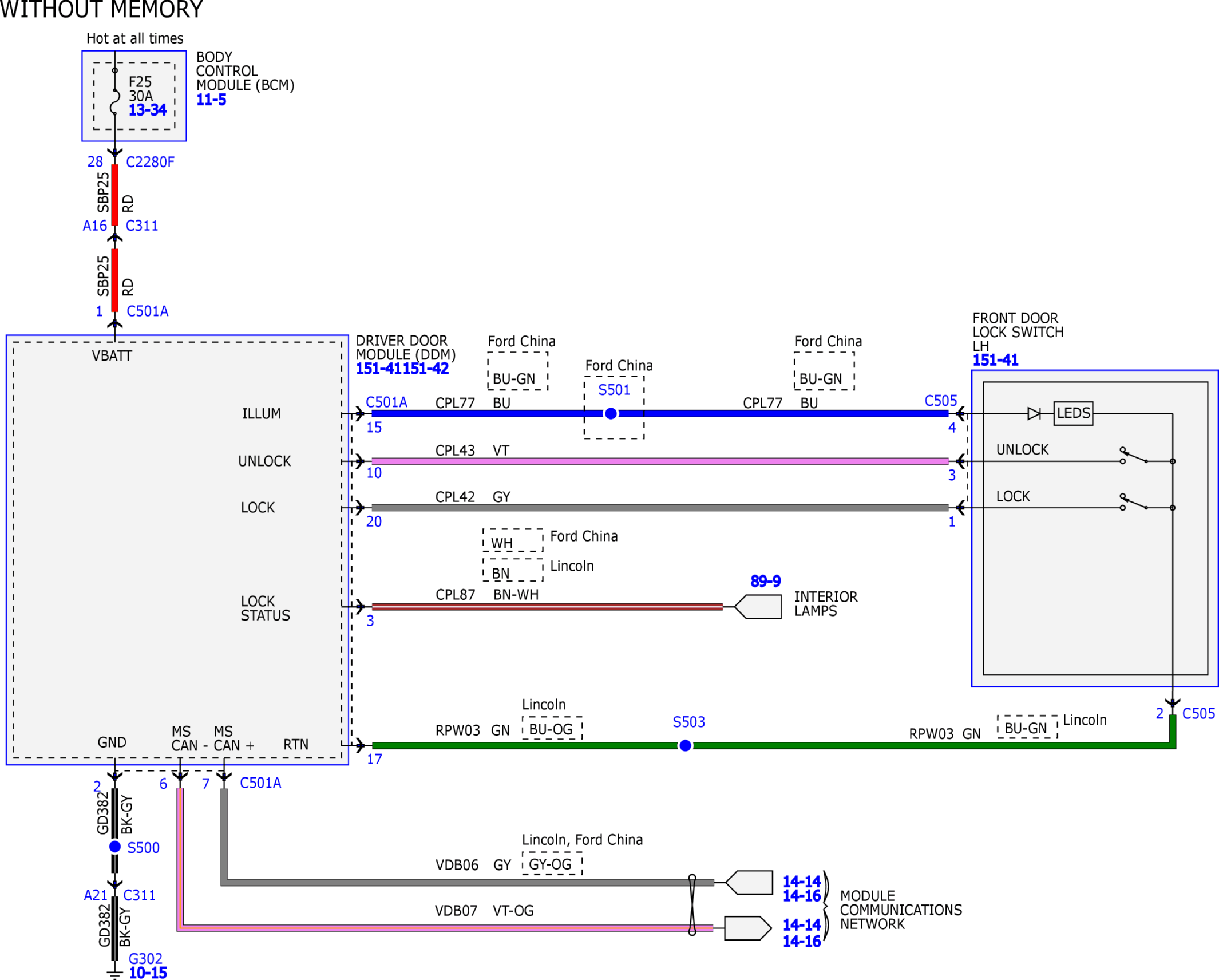

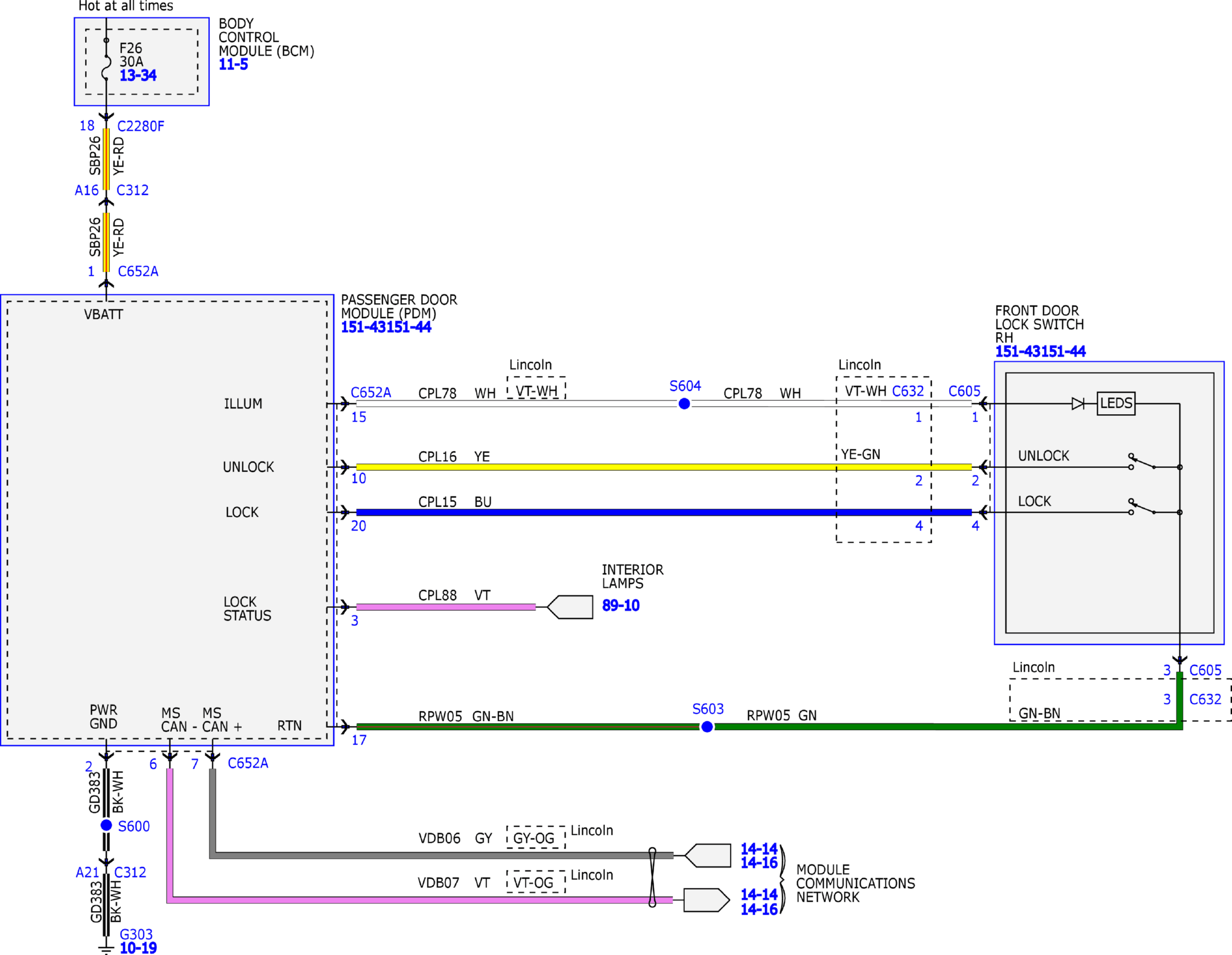

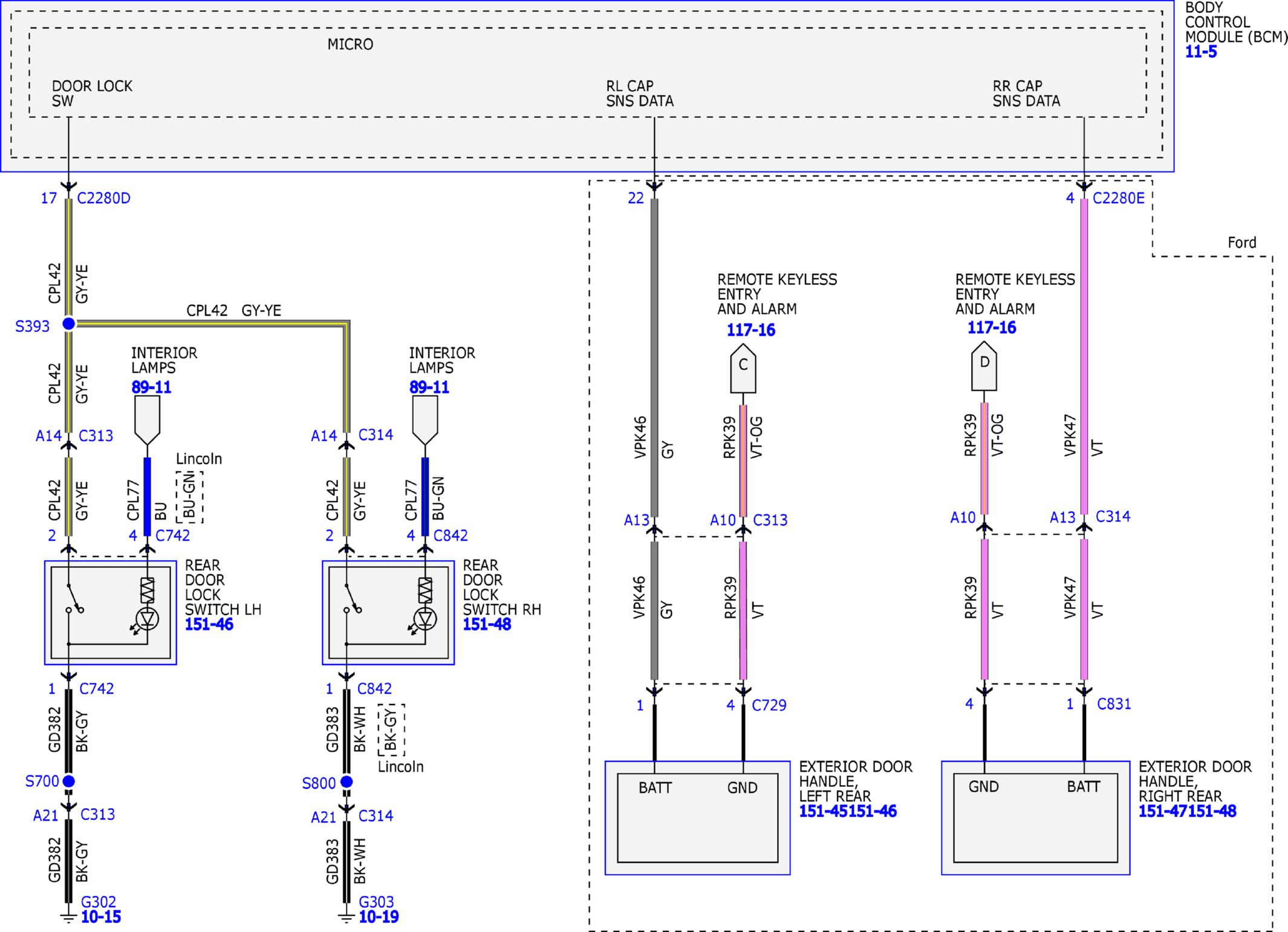

Fig 1: Remote Keyless Entry and Alarm Wiring Diagram (1 Of 18)

Courtesy of FORD MOTOR COMPANY

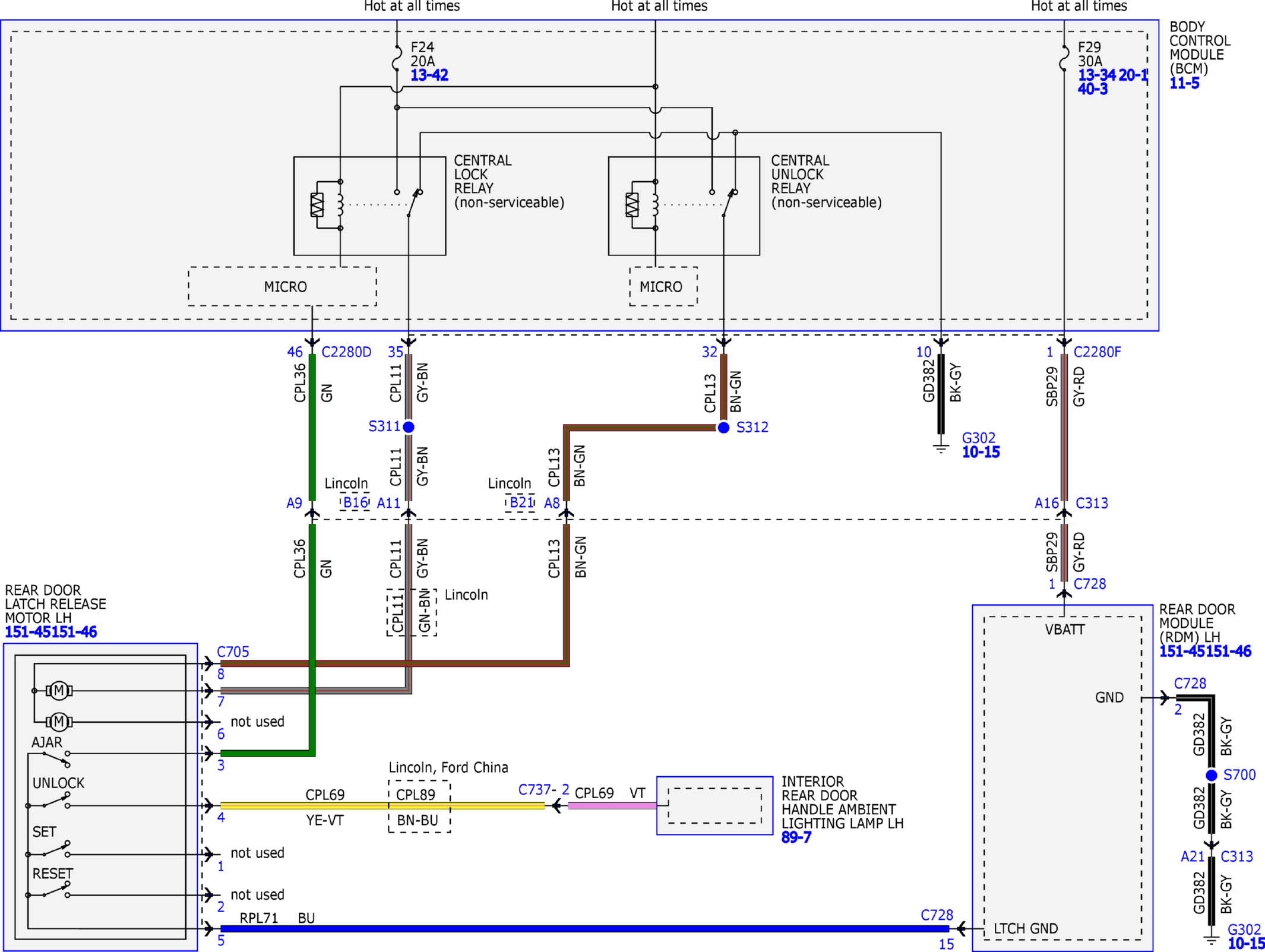

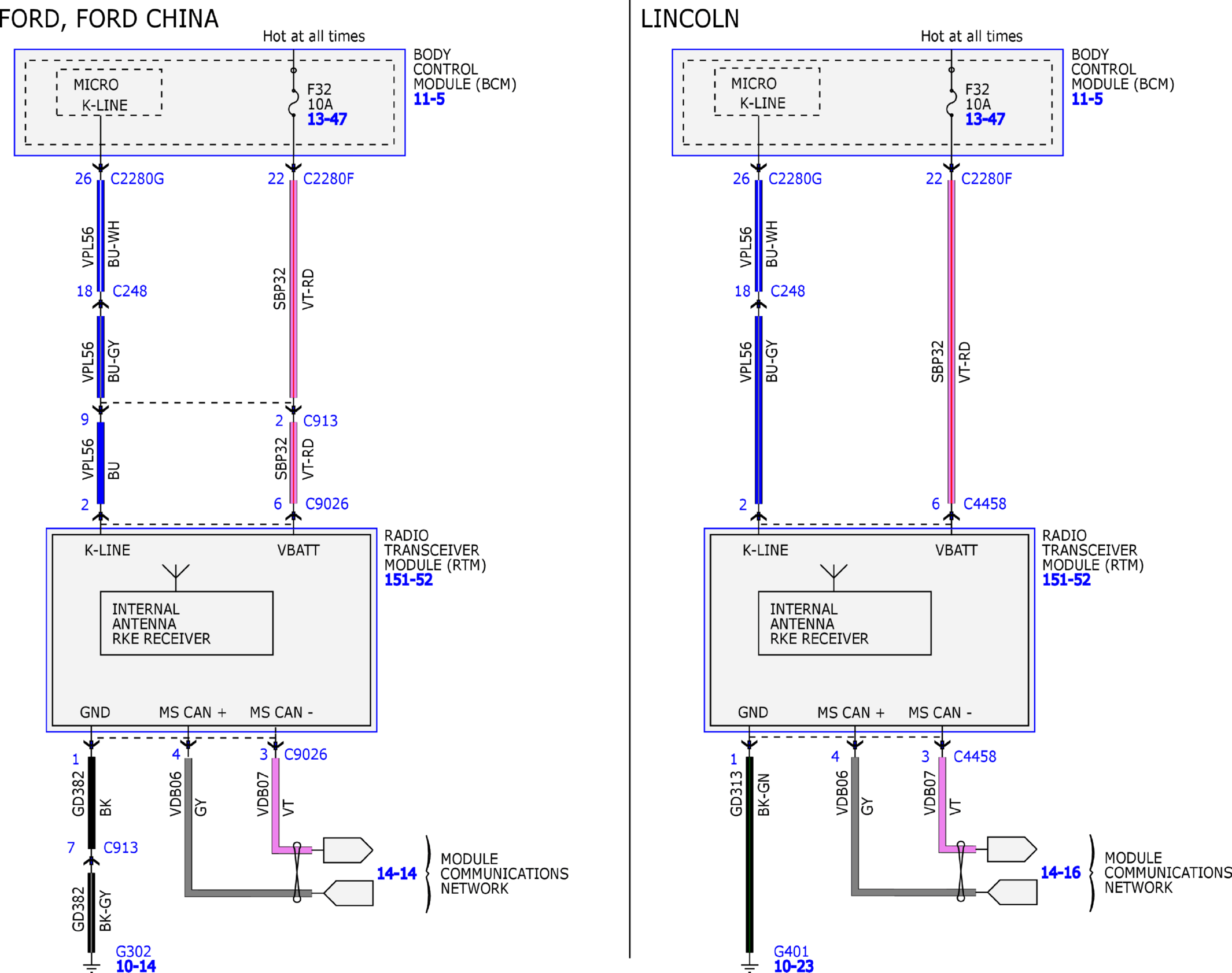

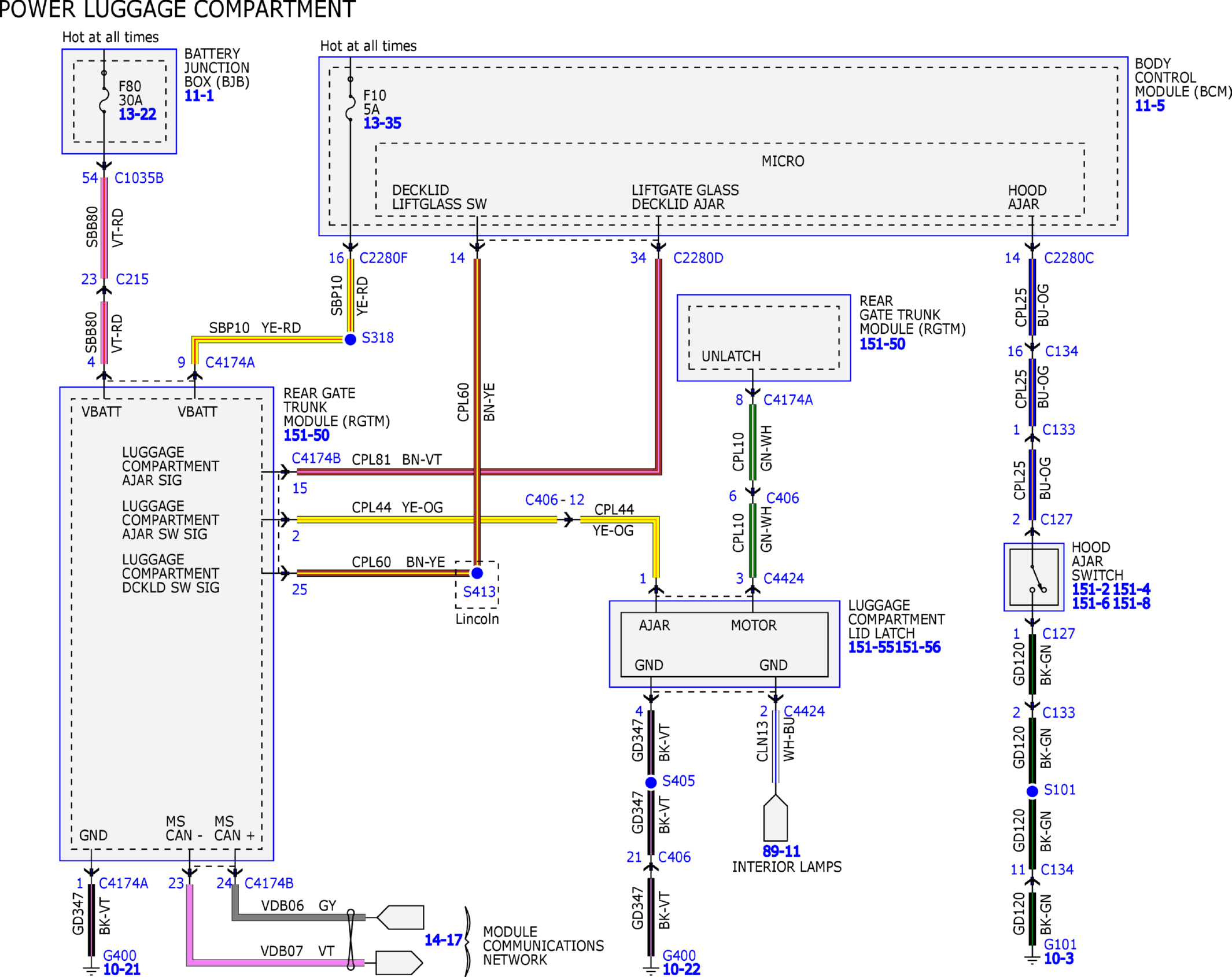

Fig 2: Remote Keyless Entry and Alarm Wiring Diagram (2 Of 18)

Courtesy of FORD MOTOR COMPANY

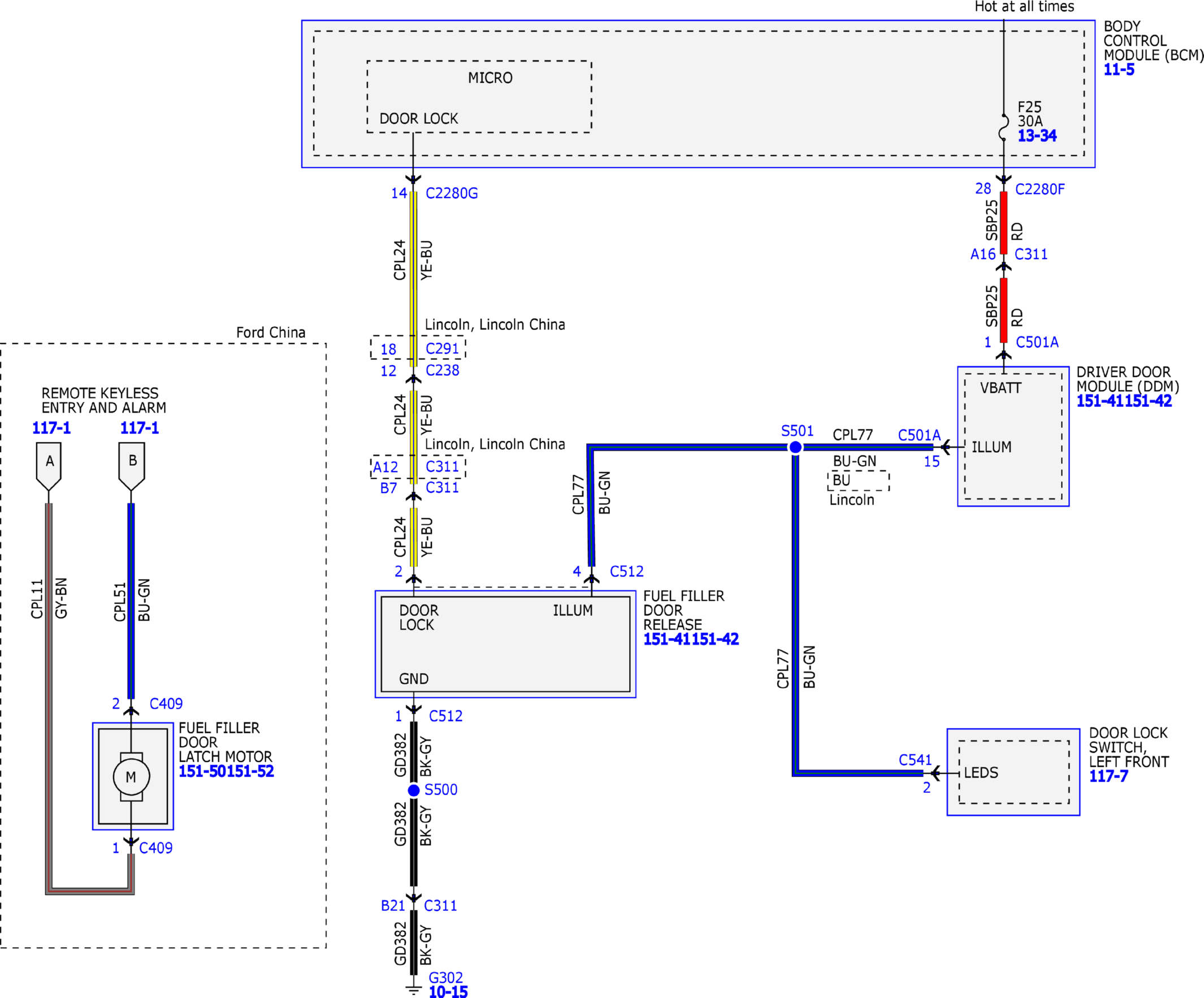

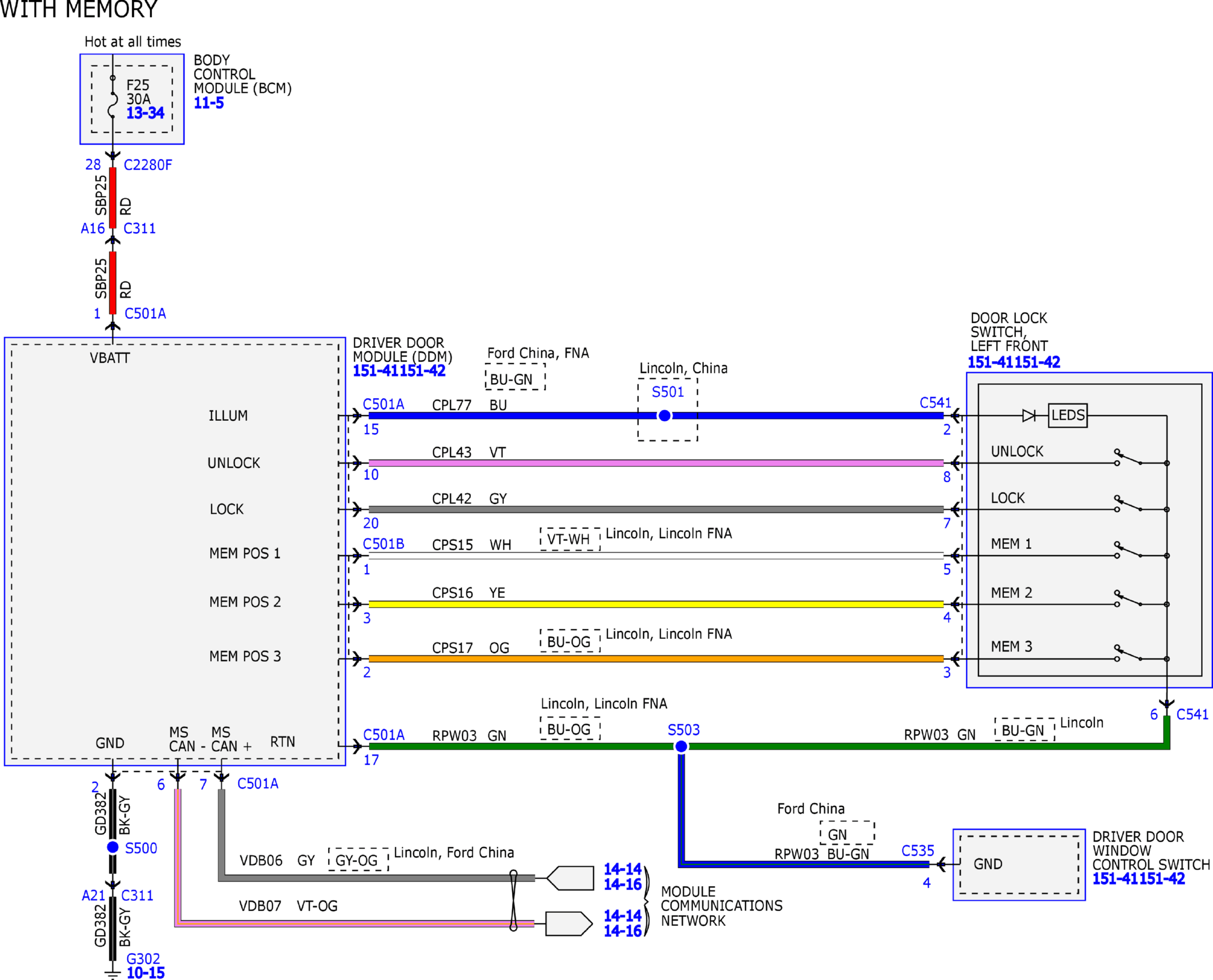

Fig 3: Remote Keyless Entry and Alarm Wiring Diagram (3 Of 18)

Courtesy of FORD MOTOR COMPANY

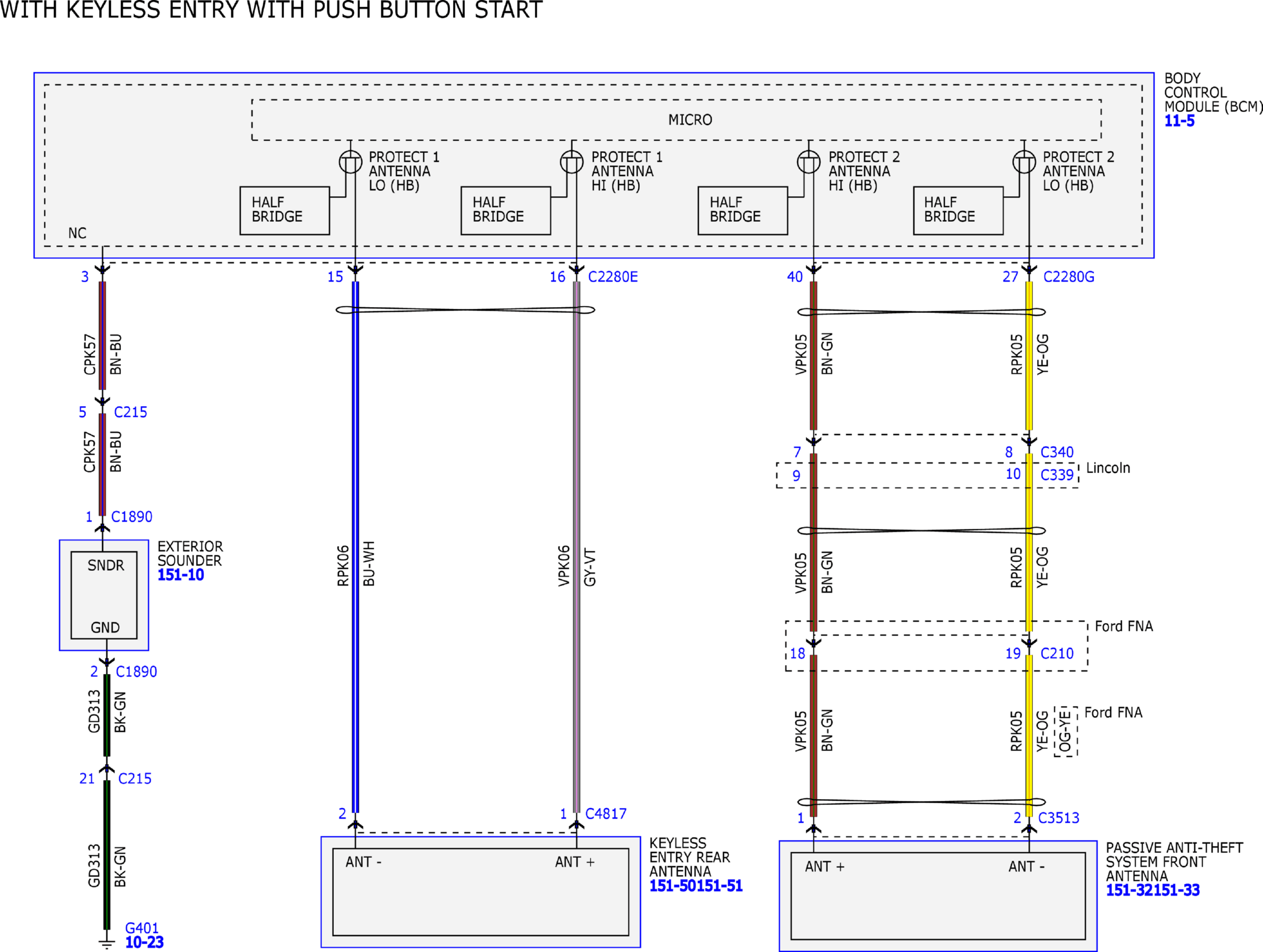

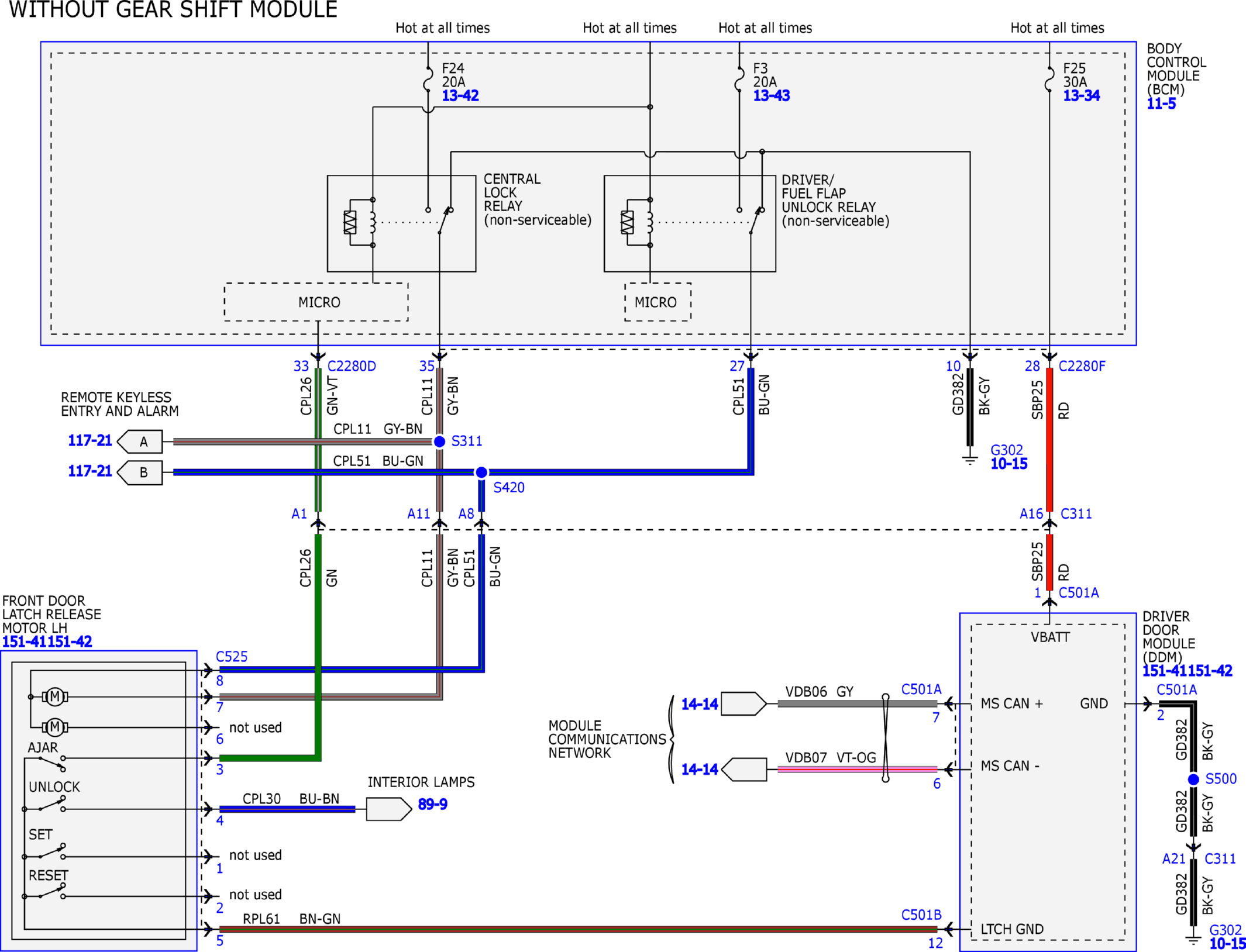

Fig 4: Remote Keyless Entry and Alarm Wiring Diagram (4 Of 18)

Courtesy of FORD MOTOR COMPANY

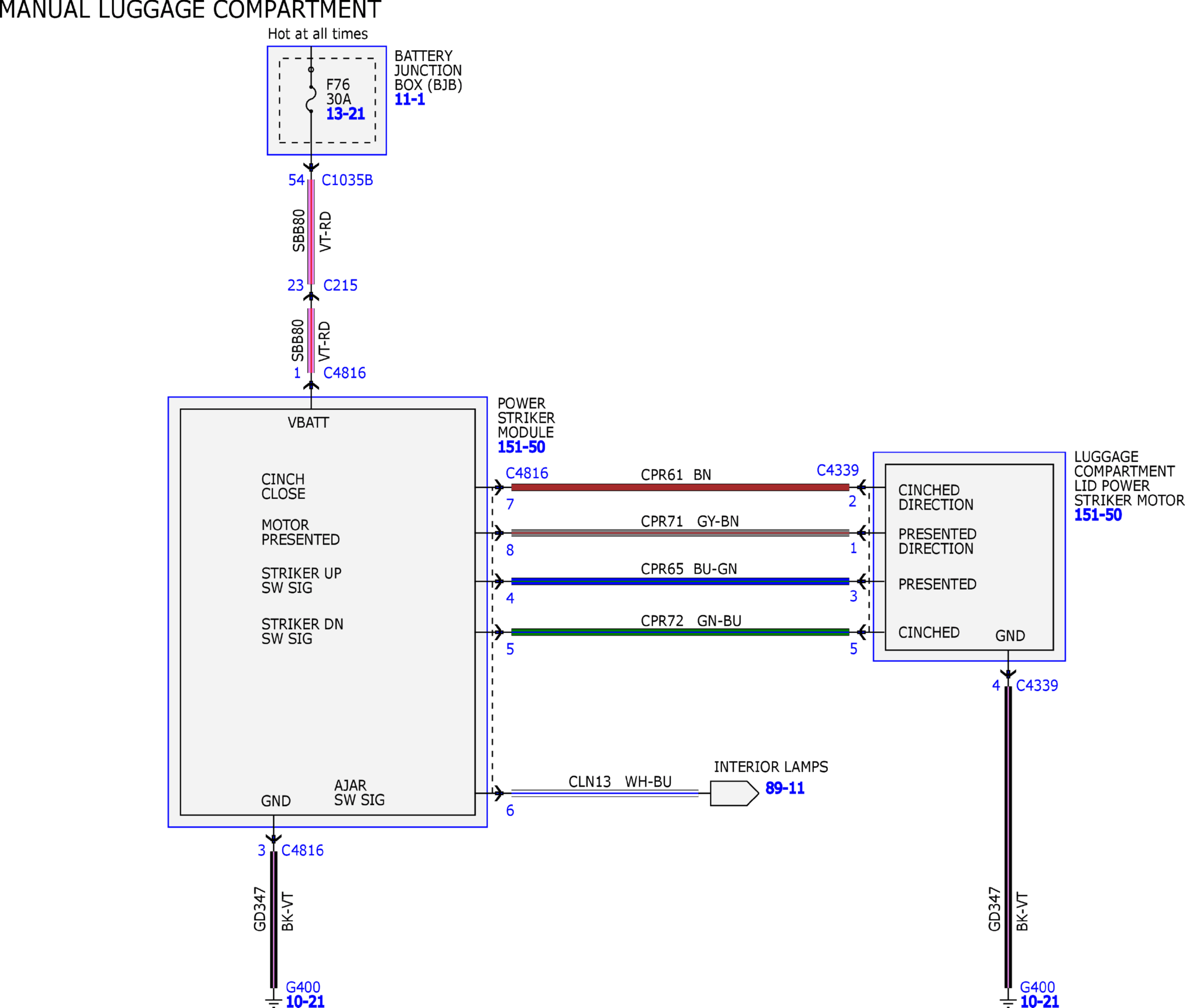

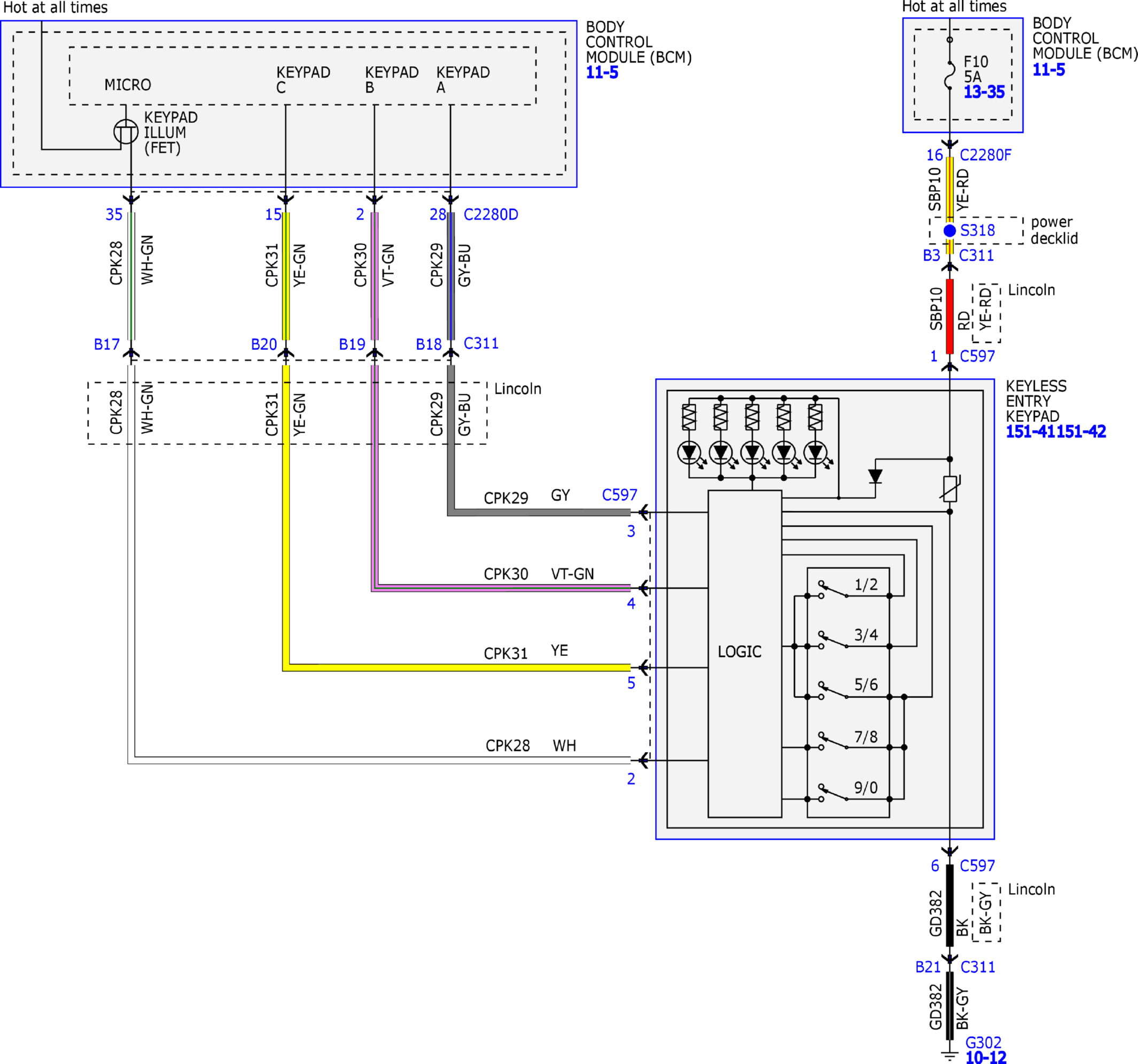

Fig 5: Remote Keyless Entry and Alarm Wiring Diagram (5 Of 18)

Courtesy of FORD MOTOR COMPANY

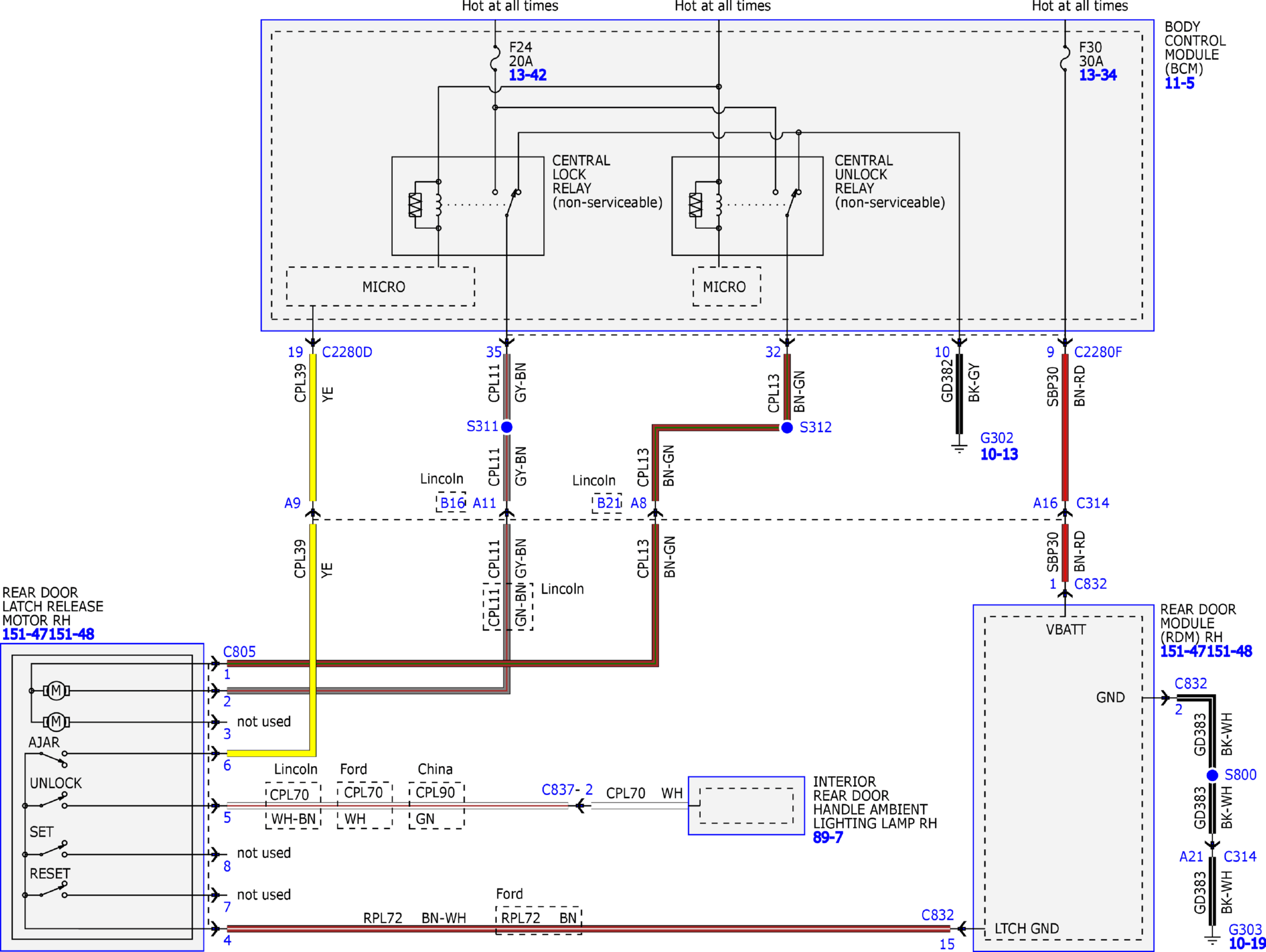

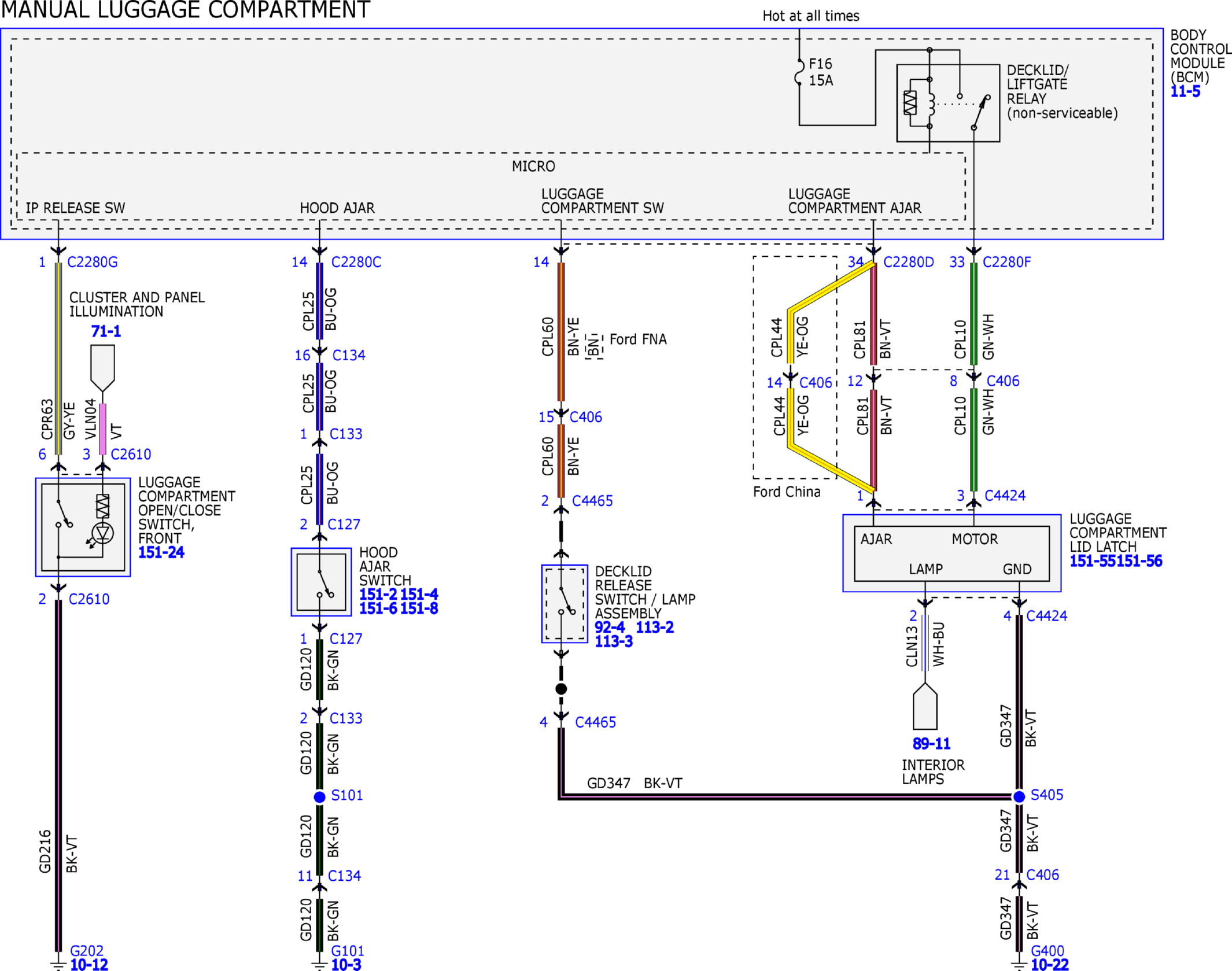

Fig 6: Remote Keyless Entry and Alarm Wiring Diagram (6 Of 18)

Courtesy of FORD MOTOR COMPANY

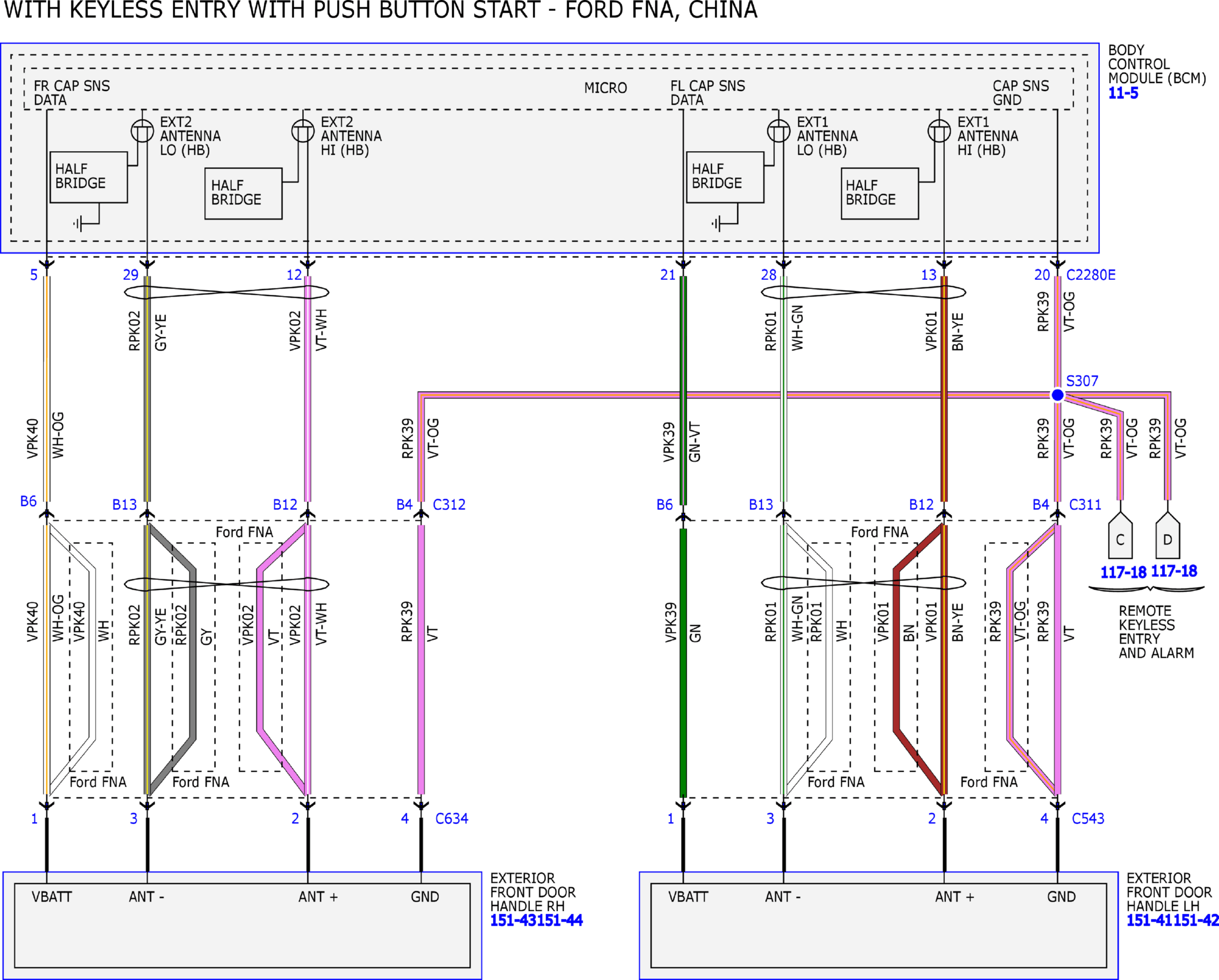

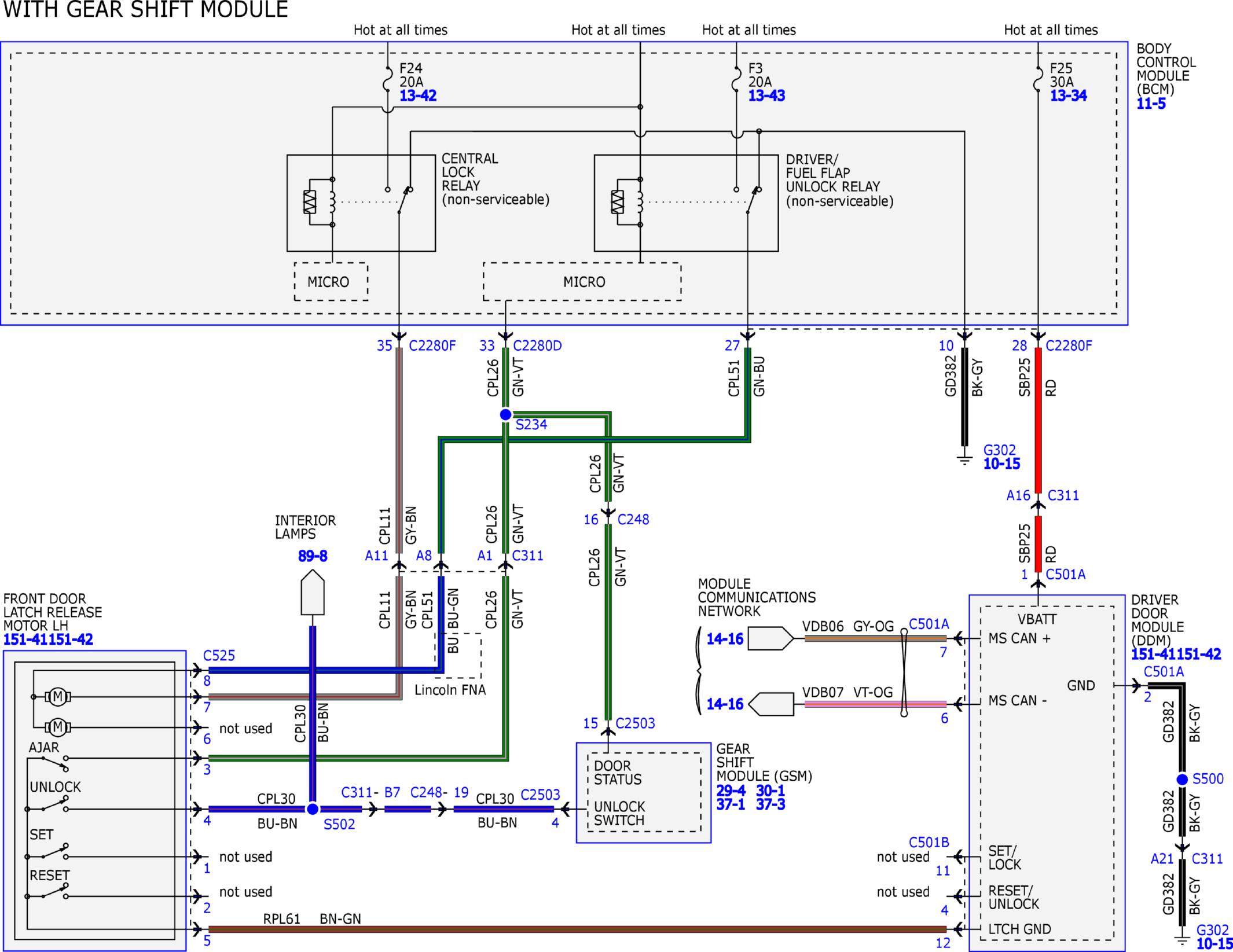

Fig 7: Remote Keyless Entry and Alarm Wiring Diagram (7 Of 18)

Courtesy of FORD MOTOR COMPANY

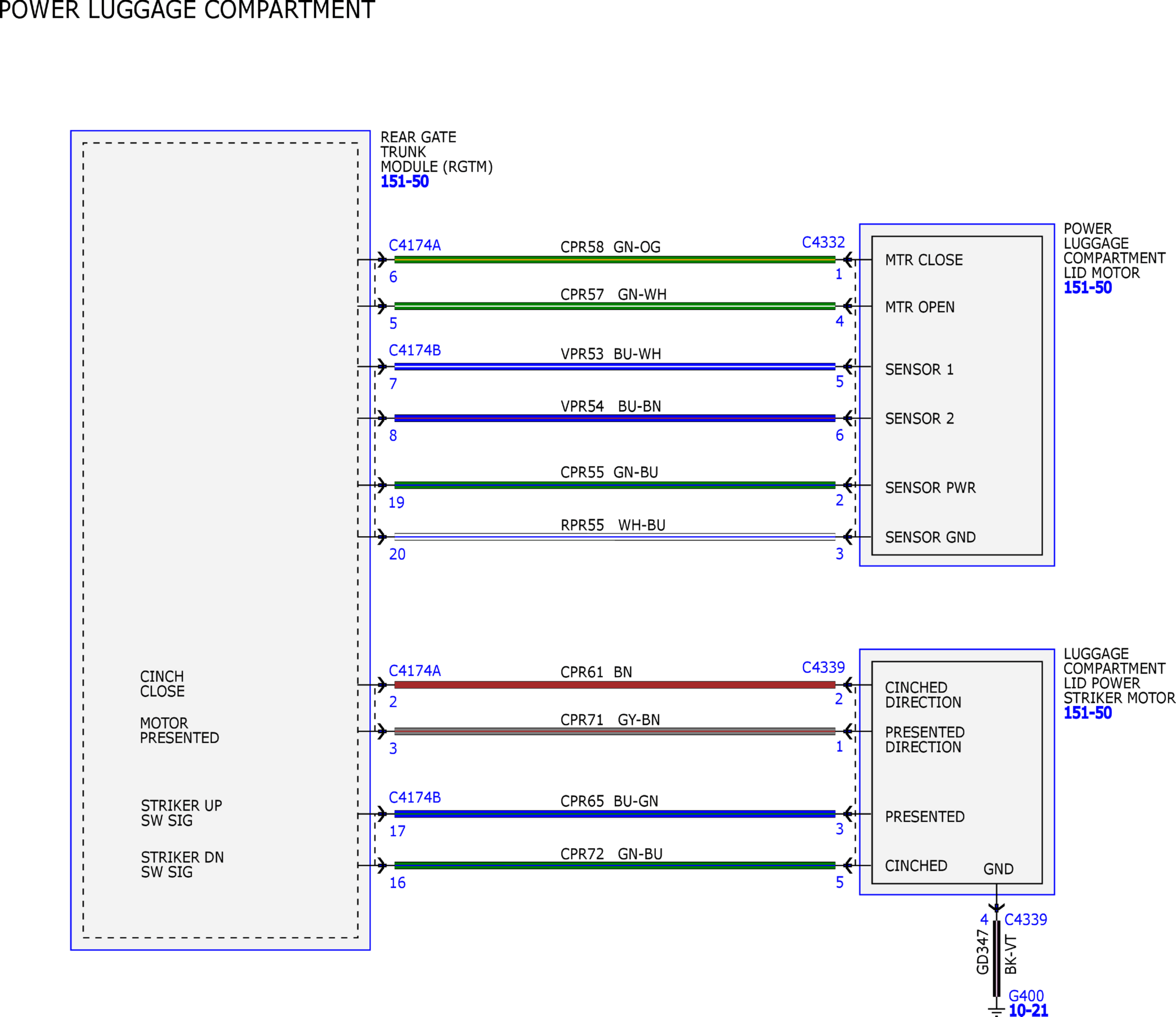

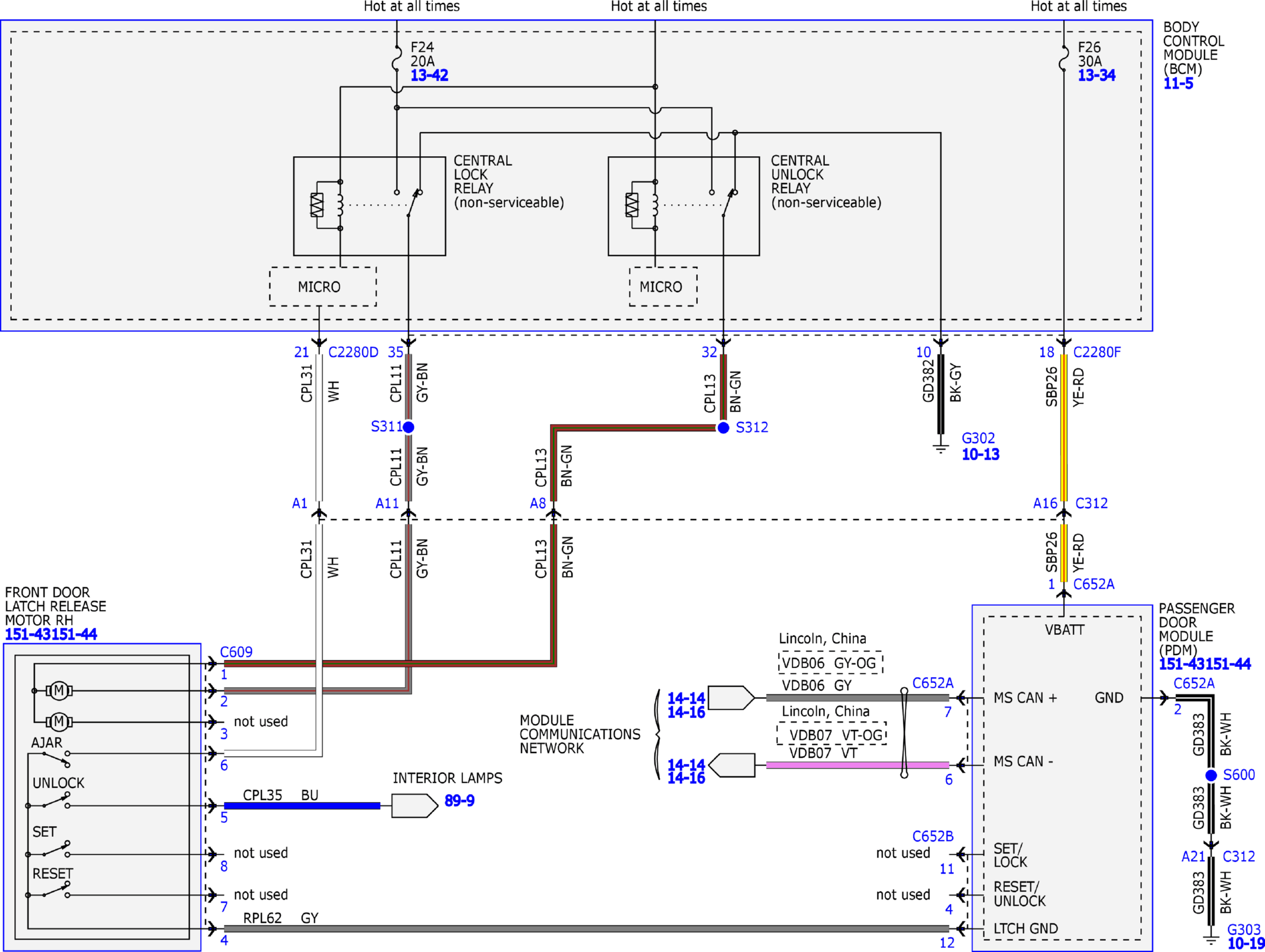

Fig 8: Remote Keyless Entry and Alarm Wiring Diagram (8 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 9: Remote Keyless Entry and Alarm Wiring Diagram (9 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 10: Remote Keyless Entry and Alarm Wiring Diagram (10 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 11: Remote Keyless Entry and Alarm Wiring Diagram (11 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 12: Remote Keyless Entry and Alarm Wiring Diagram (12 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 13: Remote Keyless Entry and Alarm Wiring Diagram (13 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 14: Remote Keyless Entry and Alarm Wiring Diagram (14 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 15: Remote Keyless Entry and Alarm Wiring Diagram (15 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 16: Remote Keyless Entry and Alarm Wiring Diagram (16 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 17: Remote Keyless Entry and Alarm Wiring Diagram (17 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 18: Remote Keyless Entry and Alarm Wiring Diagram (18 Of 18)

Courtesy of FORD MOTOR COMPANY
