Power Distribution

Fig 1: Power Distribution Wiring Diagram (1 Of 58)

GFDW79935

Courtesy of FORD MOTOR COMPANY

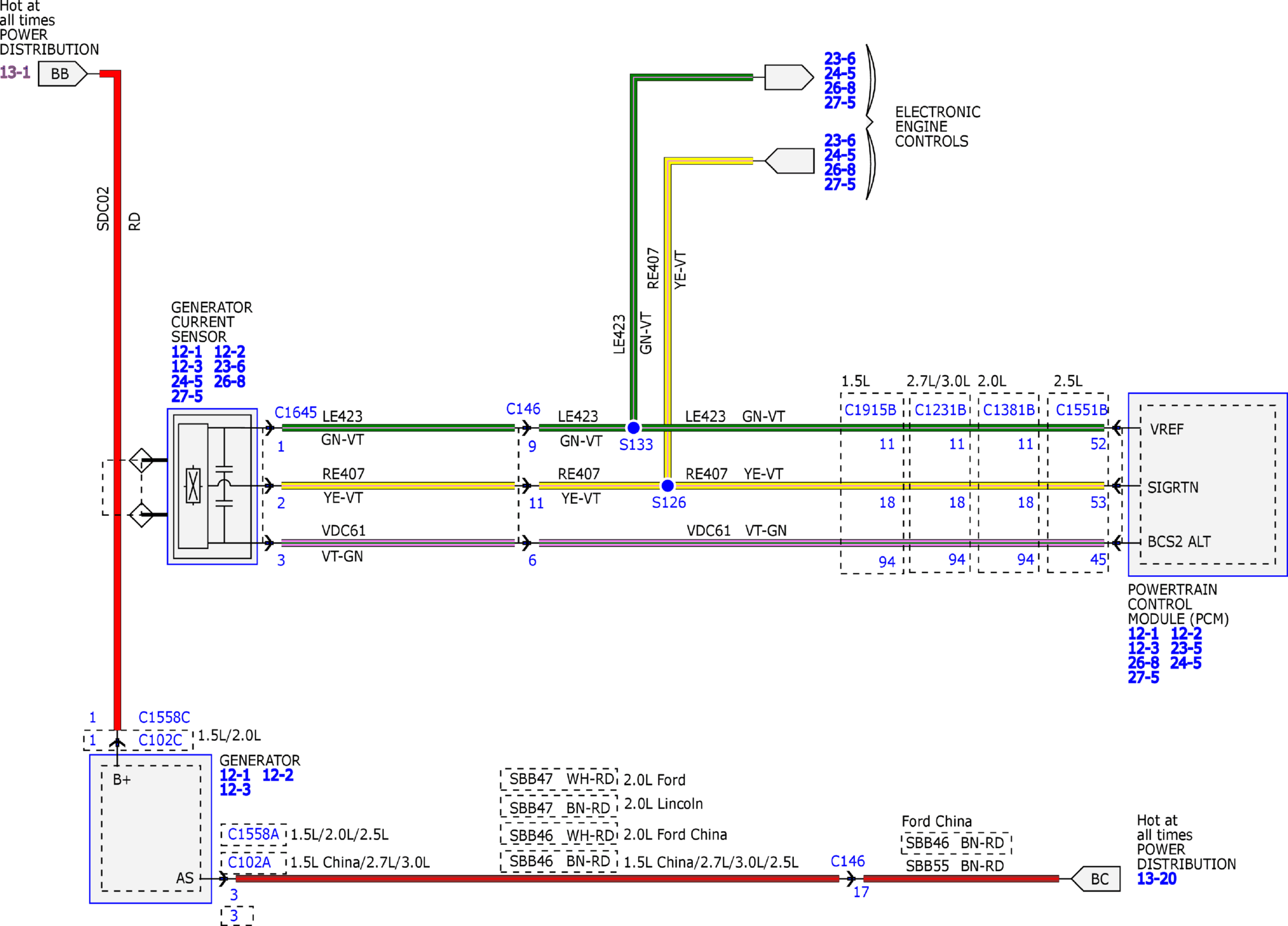

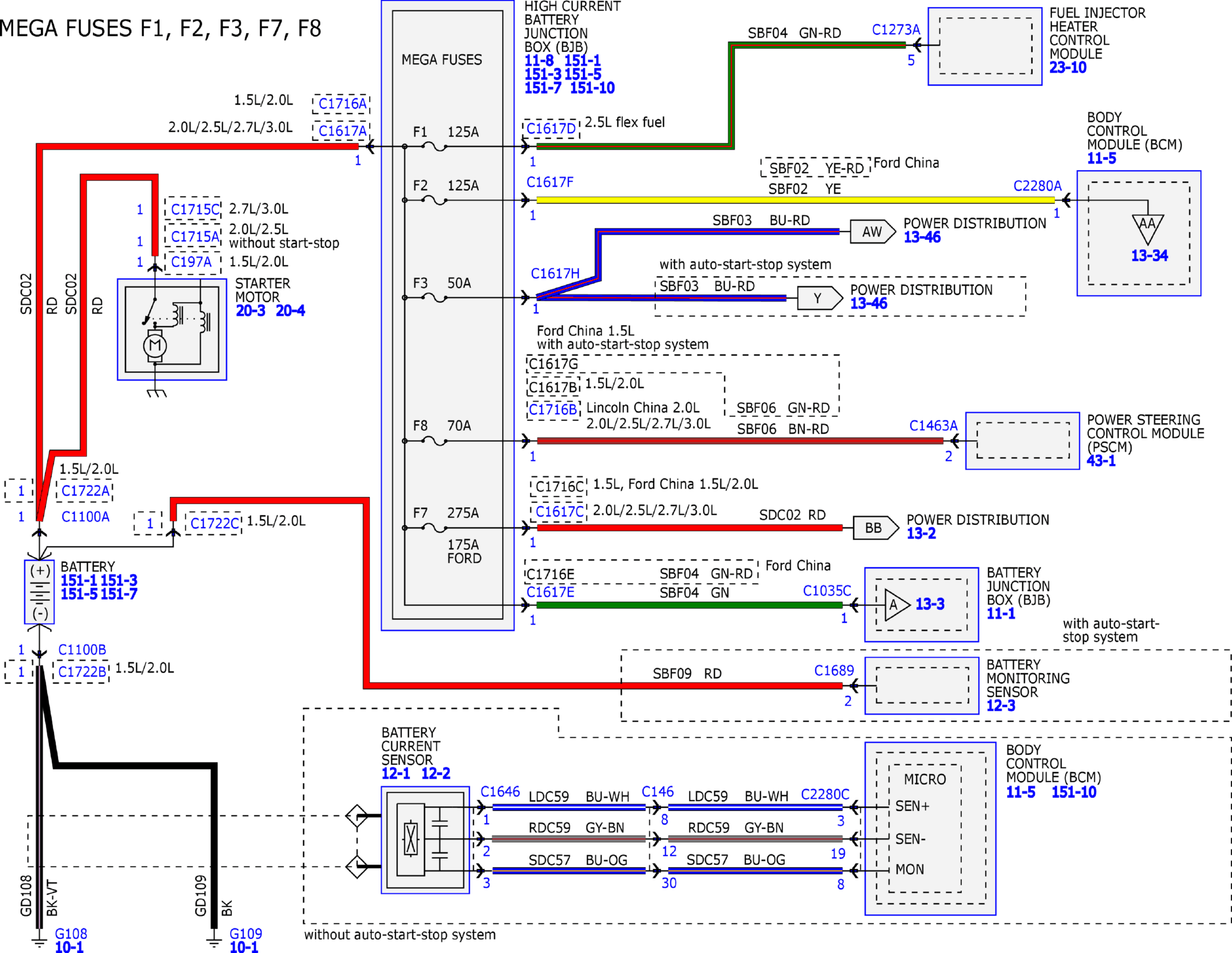

Fig 2: Power Distribution Wiring Diagram (2 Of 58)

GFDW79936

Courtesy of FORD MOTOR COMPANY

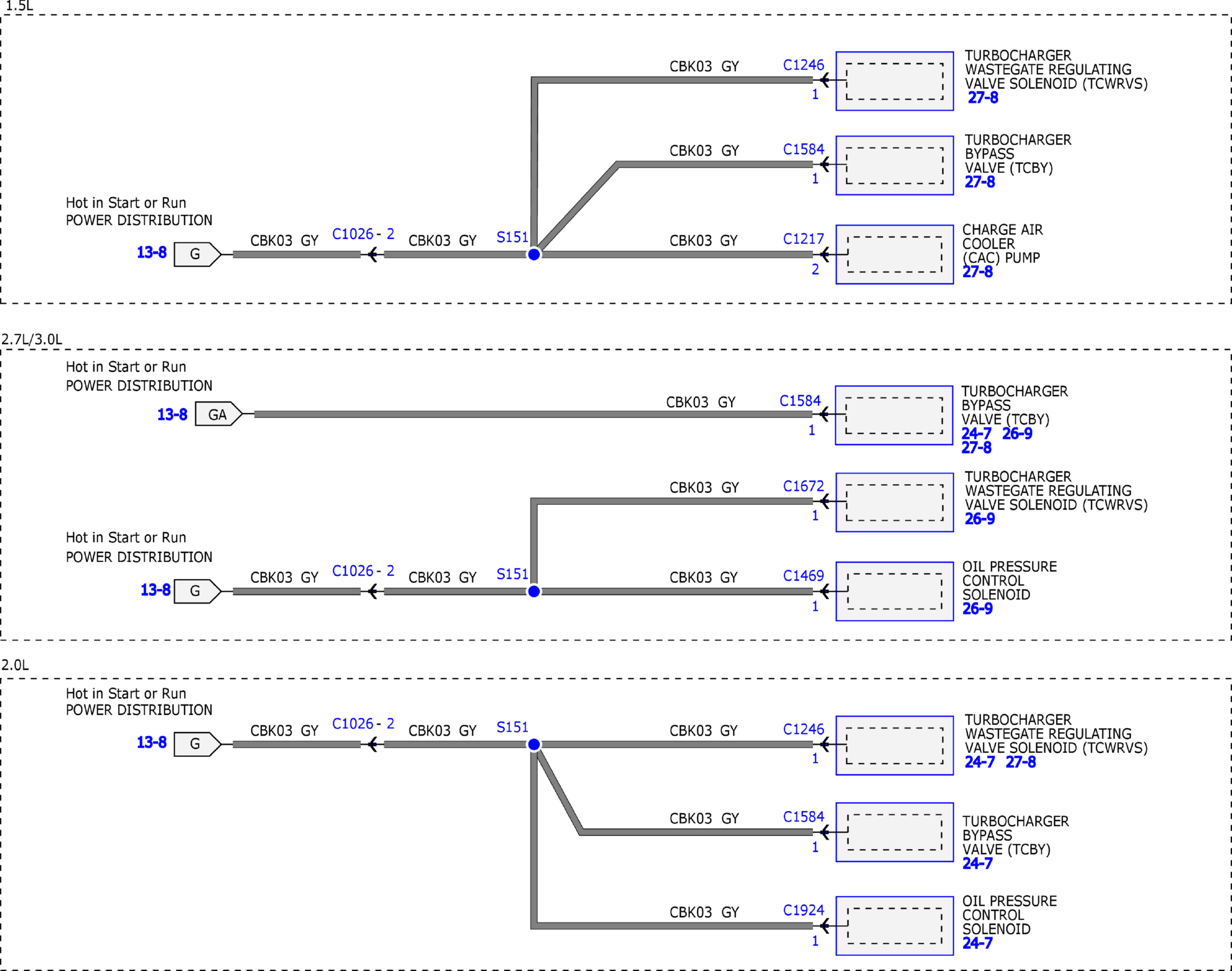

Fig 3: Power Distribution Wiring Diagram (3 Of 58)

GFDW79937

Courtesy of FORD MOTOR COMPANY

Fig 4: Power Distribution Wiring Diagram (4 Of 58)

GFDW79938

Courtesy of FORD MOTOR COMPANY

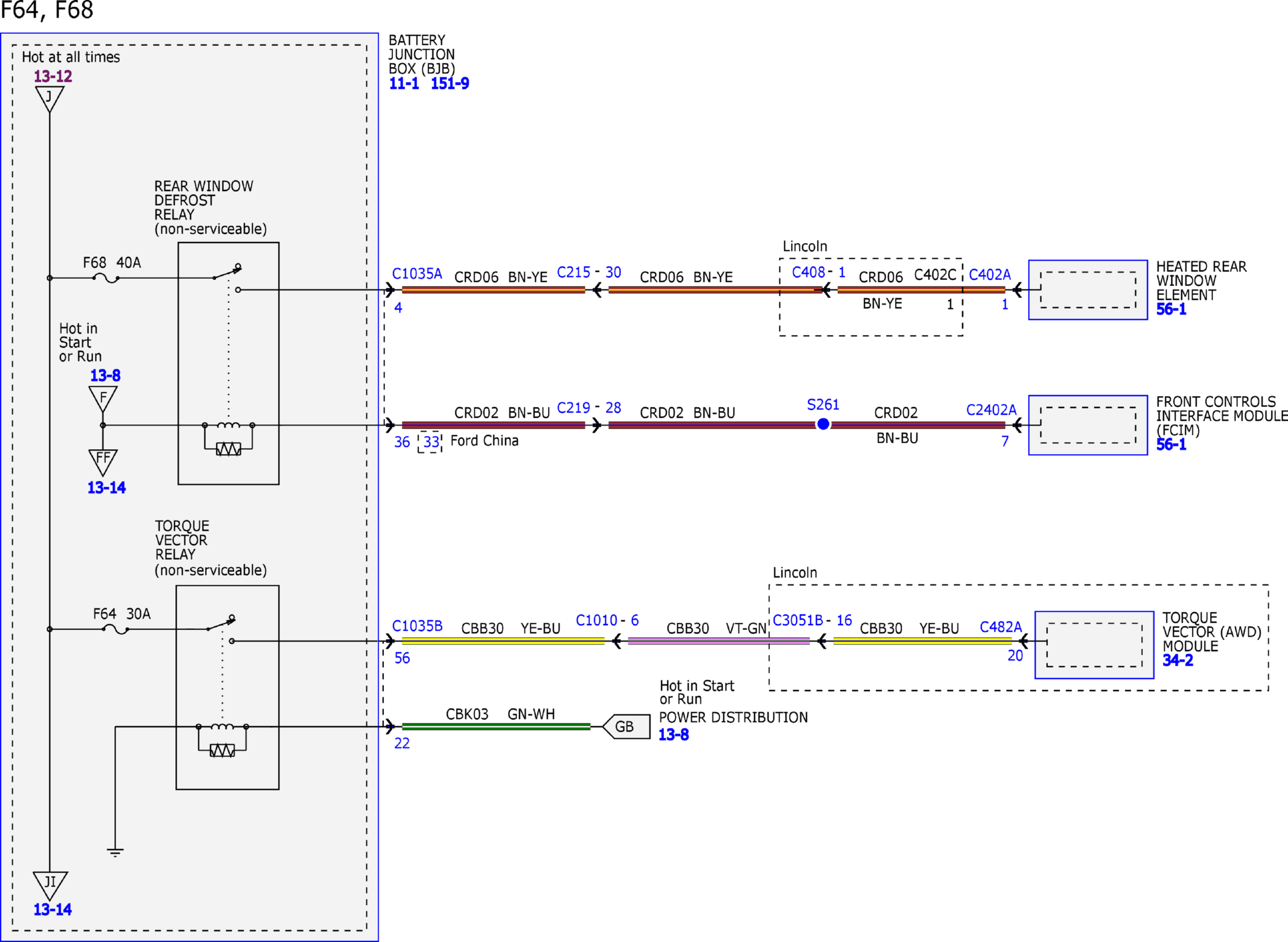

Fig 5: Power Distribution Wiring Diagram (5 Of 58)

GFDW79939

Courtesy of FORD MOTOR COMPANY

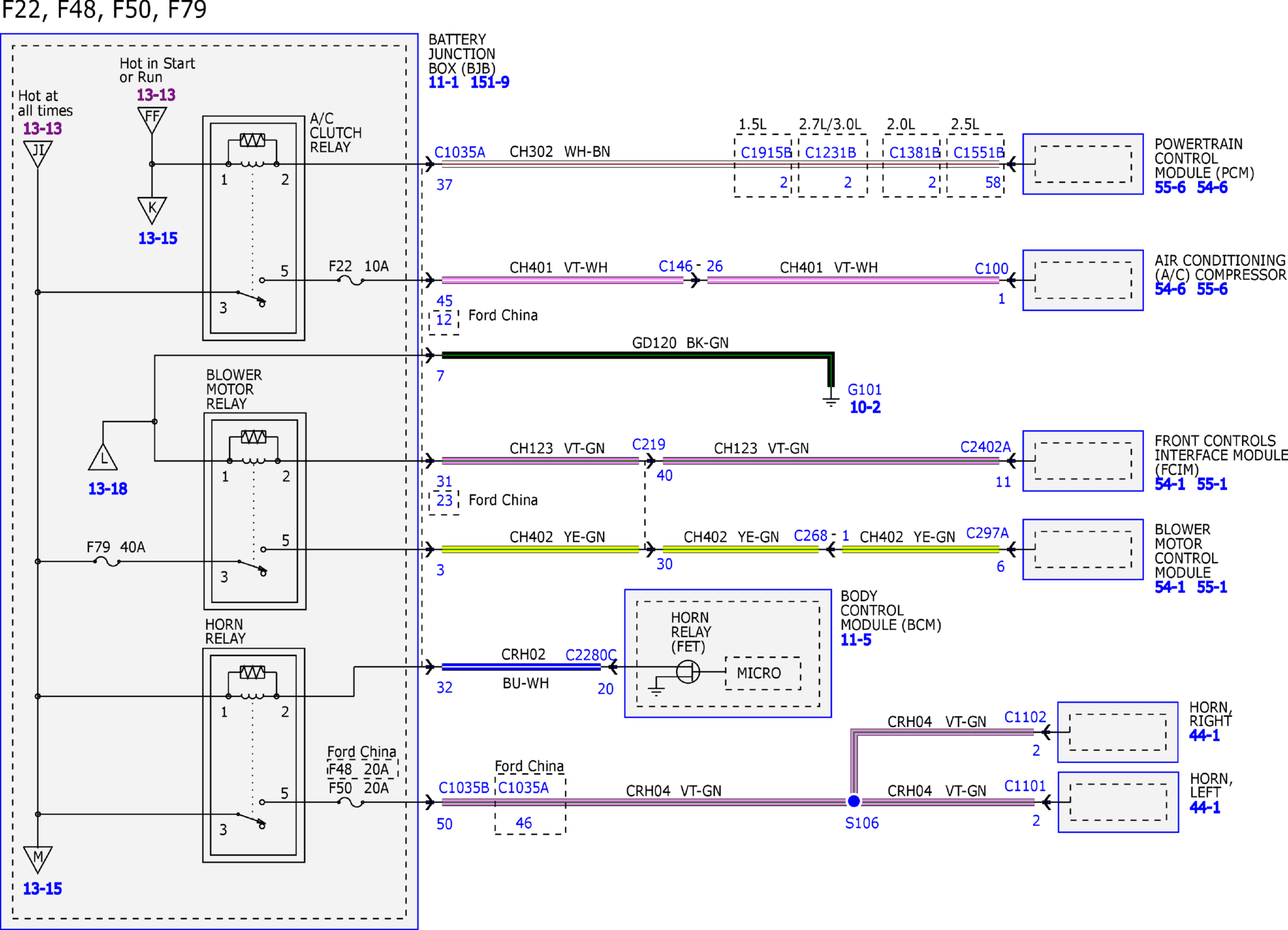

Fig 6: Power Distribution Wiring Diagram (6 Of 58)

GFDW79940

Courtesy of FORD MOTOR COMPANY

Fig 7: Power Distribution Wiring Diagram (7 Of 58)

GFDW79941

Courtesy of FORD MOTOR COMPANY

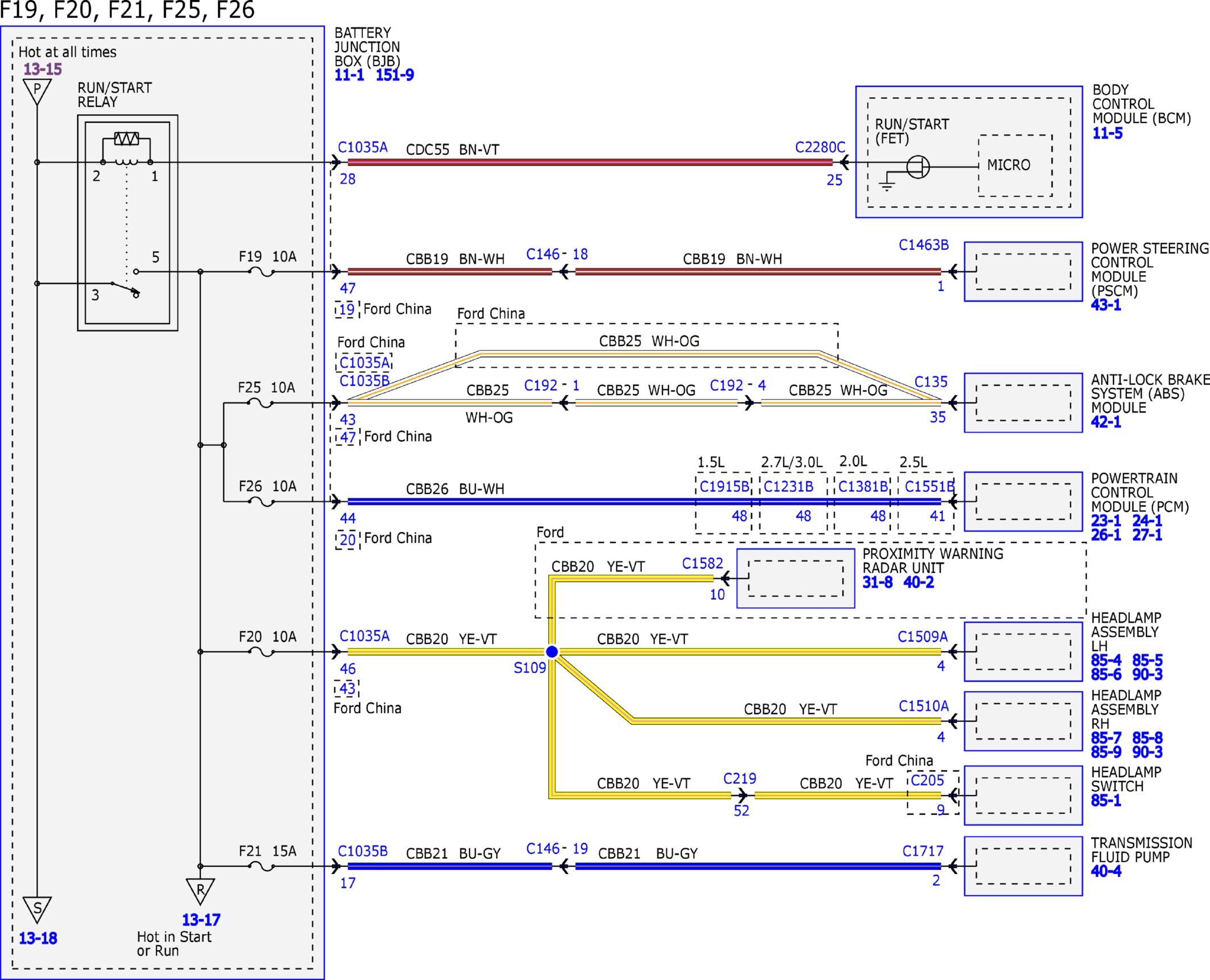

Fig 8: Power Distribution Wiring Diagram (8 Of 58)

GFDW79942

Courtesy of FORD MOTOR COMPANY

Fig 9: Power Distribution Wiring Diagram (9 Of 58)

GFDW79943

Courtesy of FORD MOTOR COMPANY

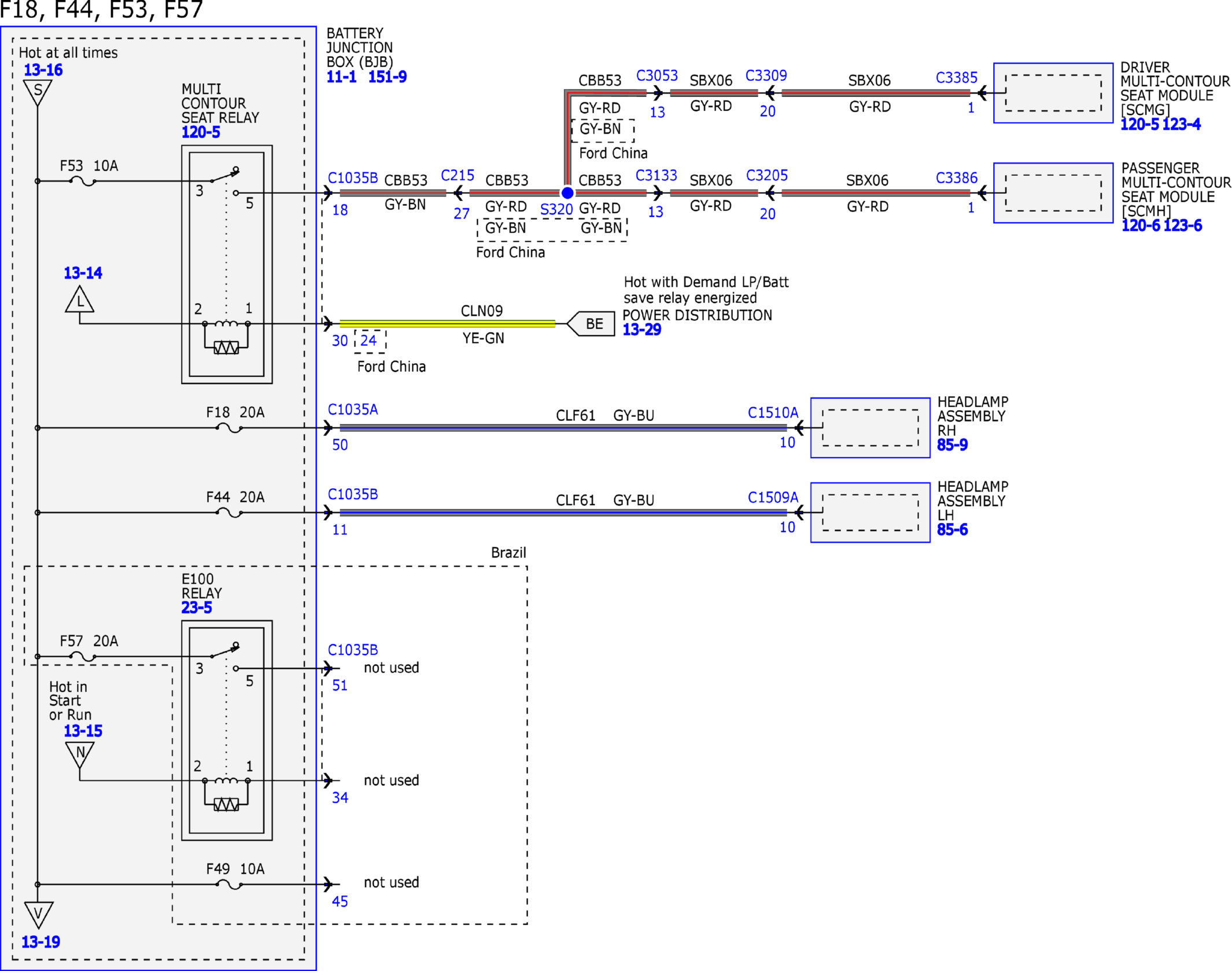

Fig 10: Power Distribution Wiring Diagram (10 Of 58)

GFDW79944

Courtesy of FORD MOTOR COMPANY

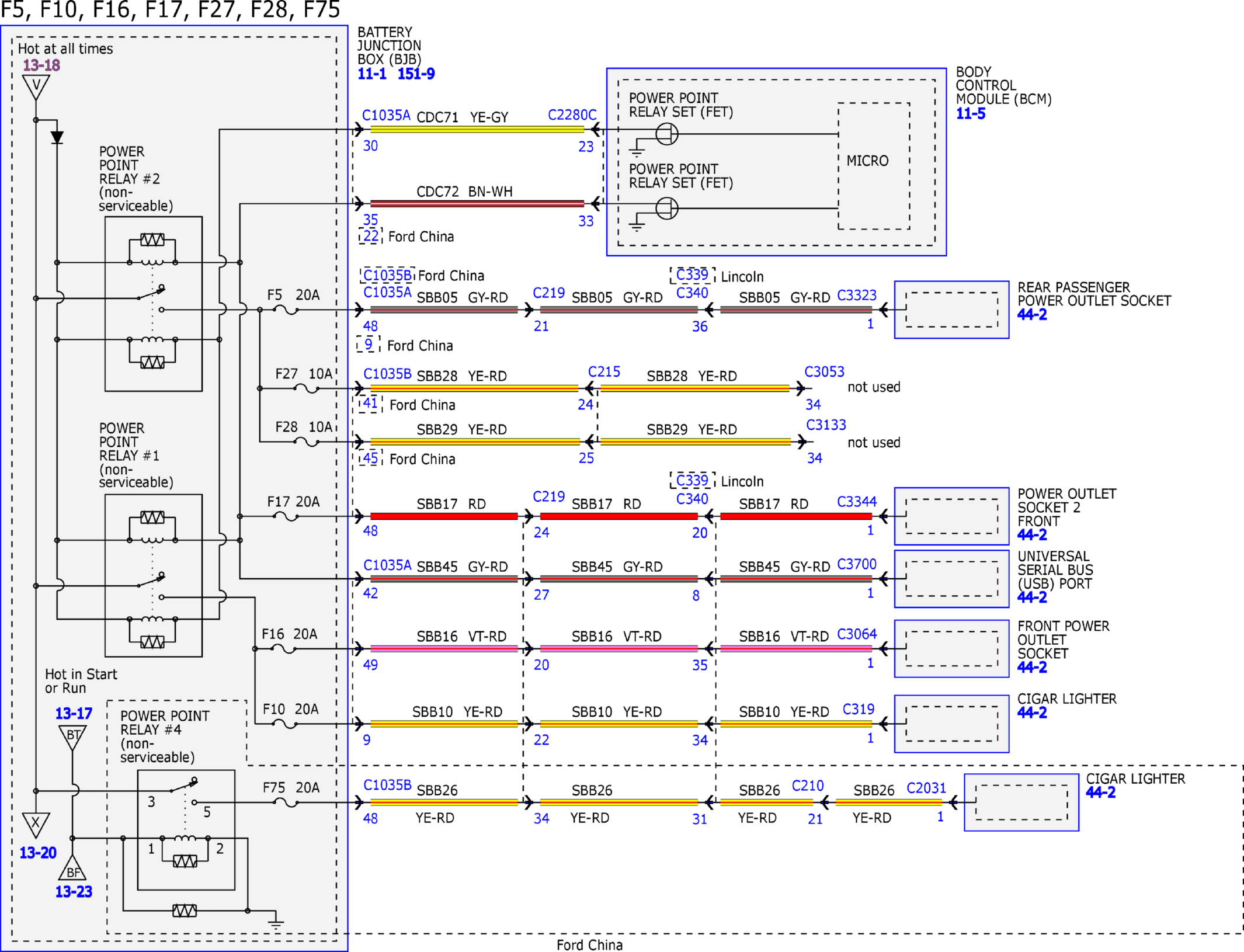

Fig 11: Power Distribution Wiring Diagram (11 Of 58)

GFDW79945

Courtesy of FORD MOTOR COMPANY

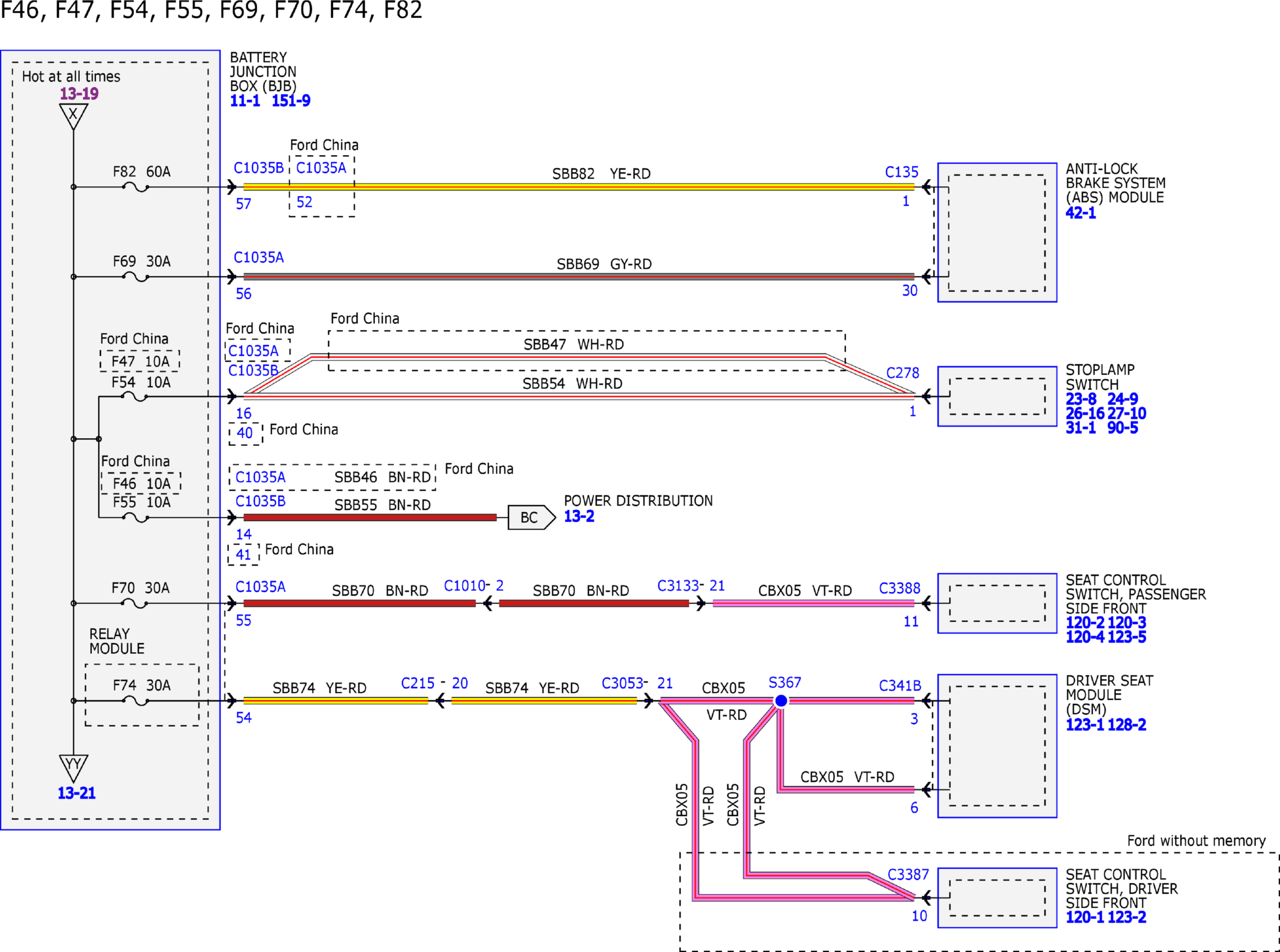

Fig 12: Power Distribution Wiring Diagram (12 Of 58)

GFDW79946

Courtesy of FORD MOTOR COMPANY

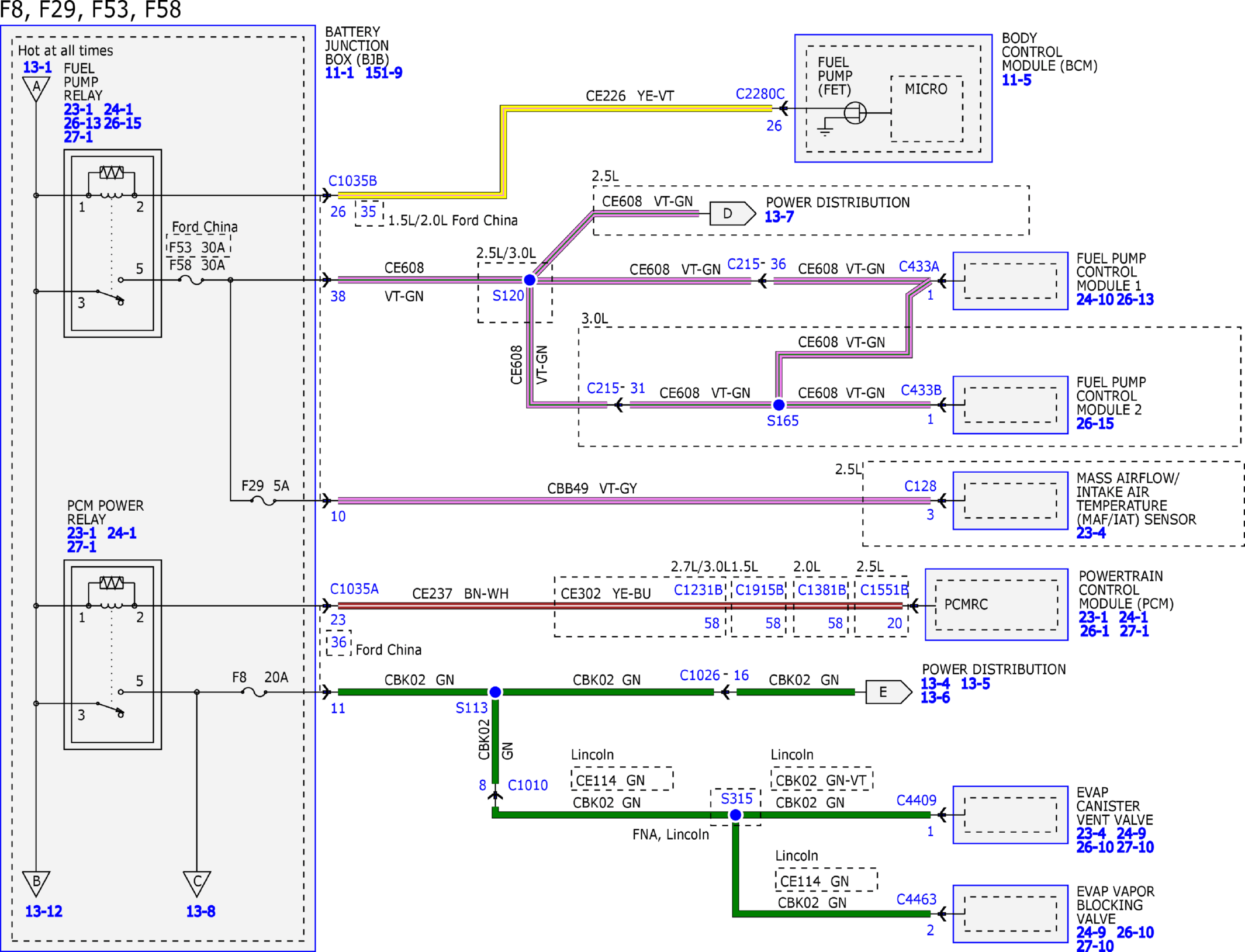

Fig 13: Power Distribution Wiring Diagram (13 Of 58)

GFDW79947

Courtesy of FORD MOTOR COMPANY

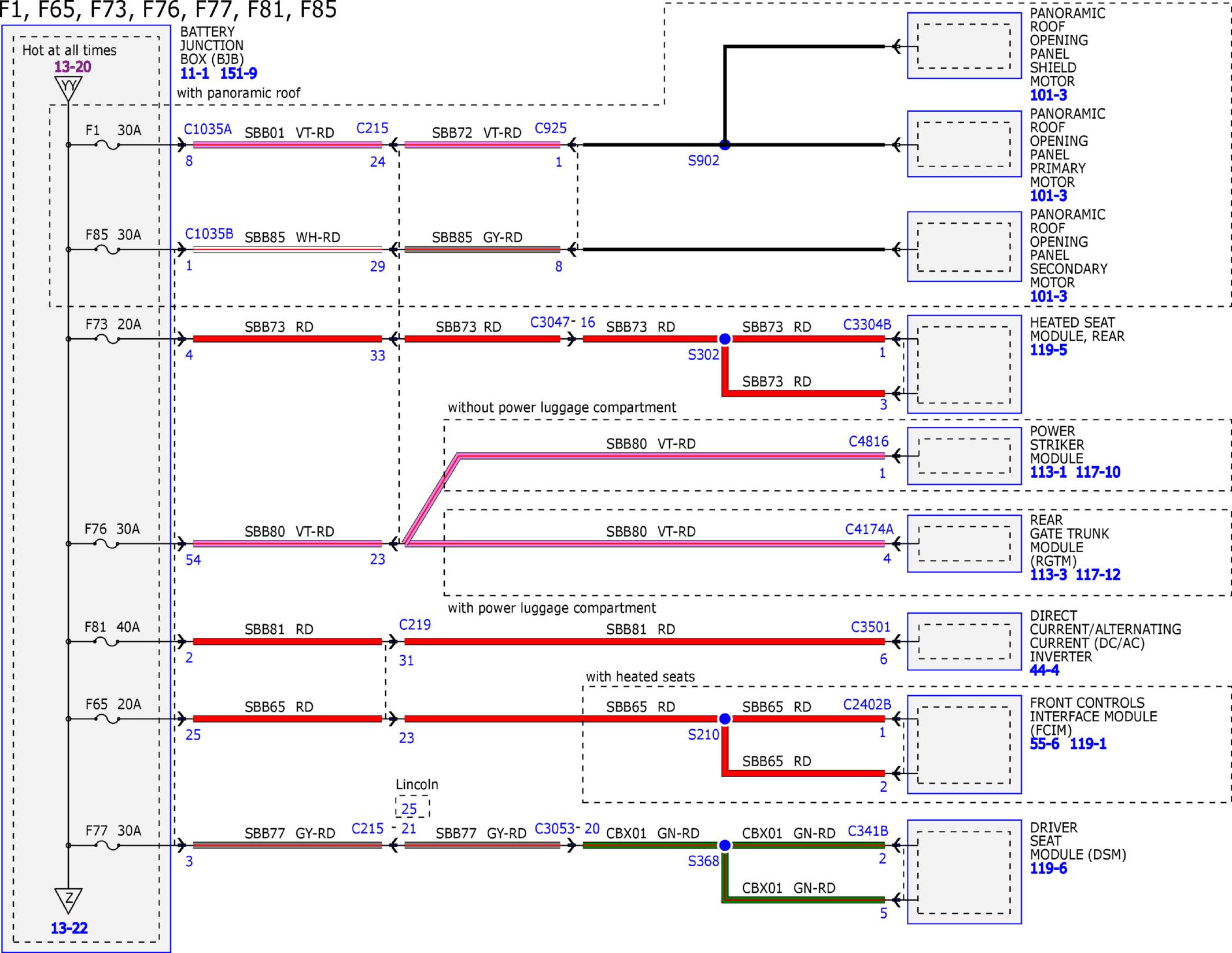

Fig 14: Power Distribution Wiring Diagram (14 Of 58)

GFDW79948

Courtesy of FORD MOTOR COMPANY

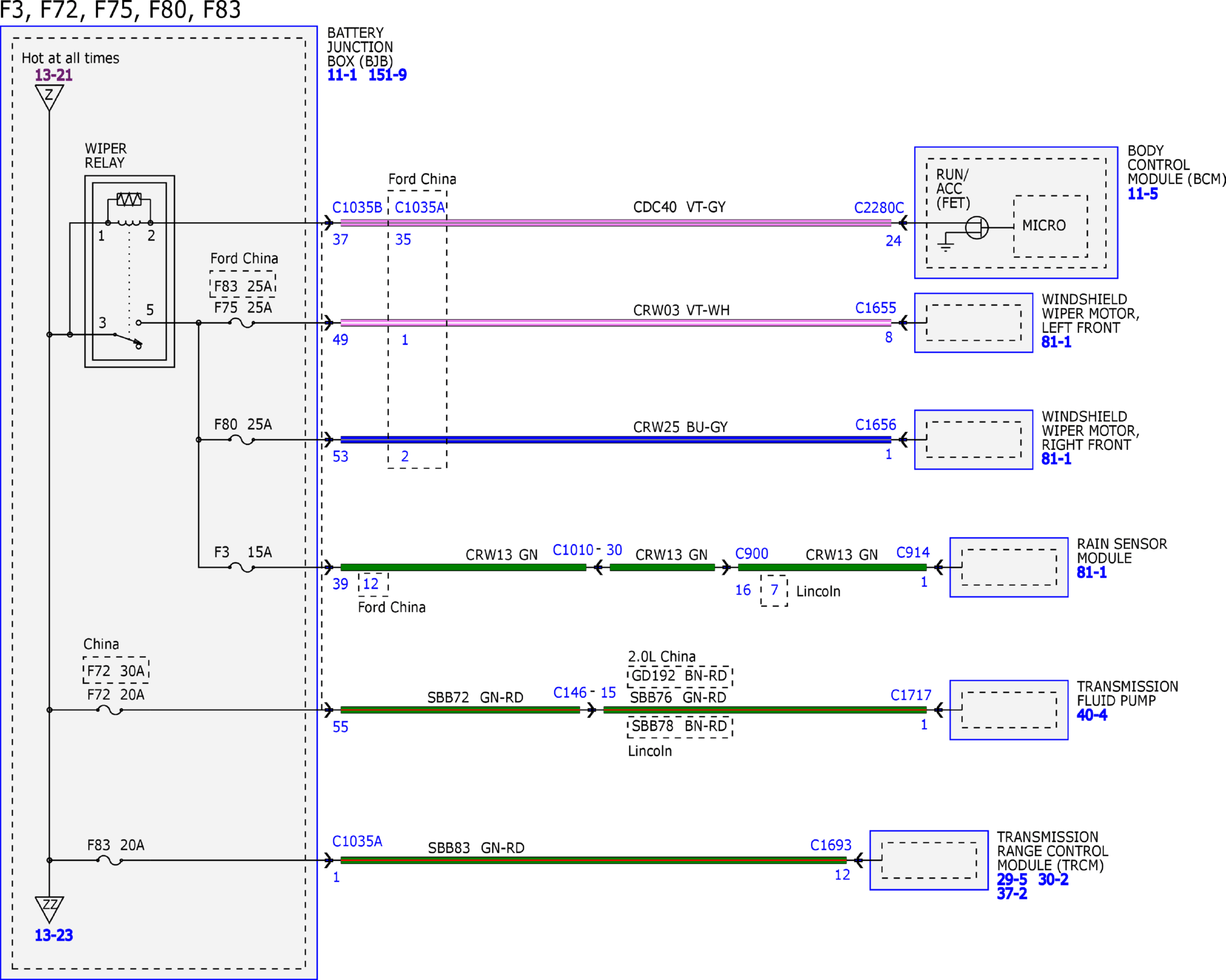

Fig 15: Power Distribution Wiring Diagram (15 Of 58)

GFDW79949

Courtesy of FORD MOTOR COMPANY

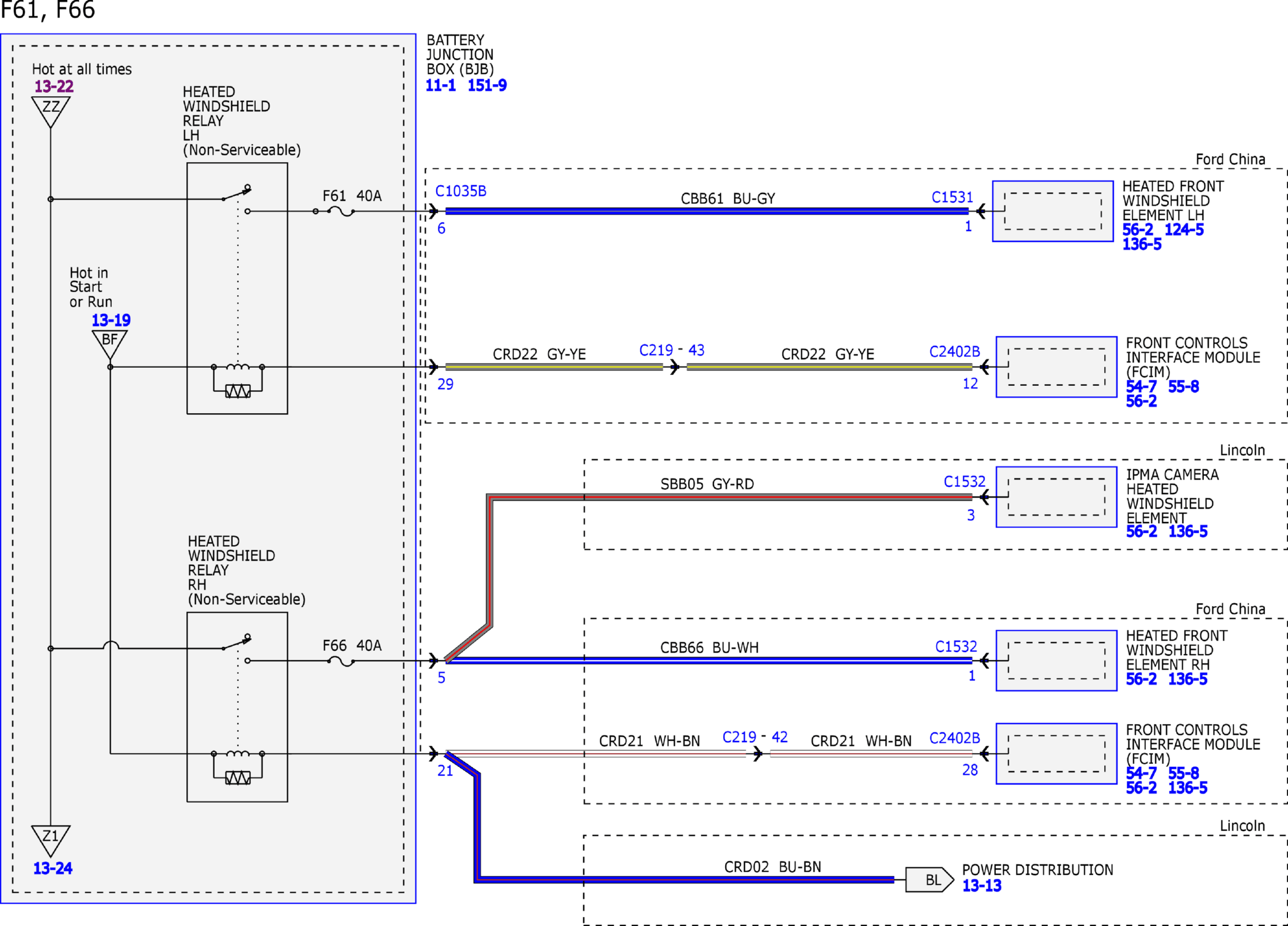

Fig 16: Power Distribution Wiring Diagram (16 Of 58)

GFDW79950

Courtesy of FORD MOTOR COMPANY

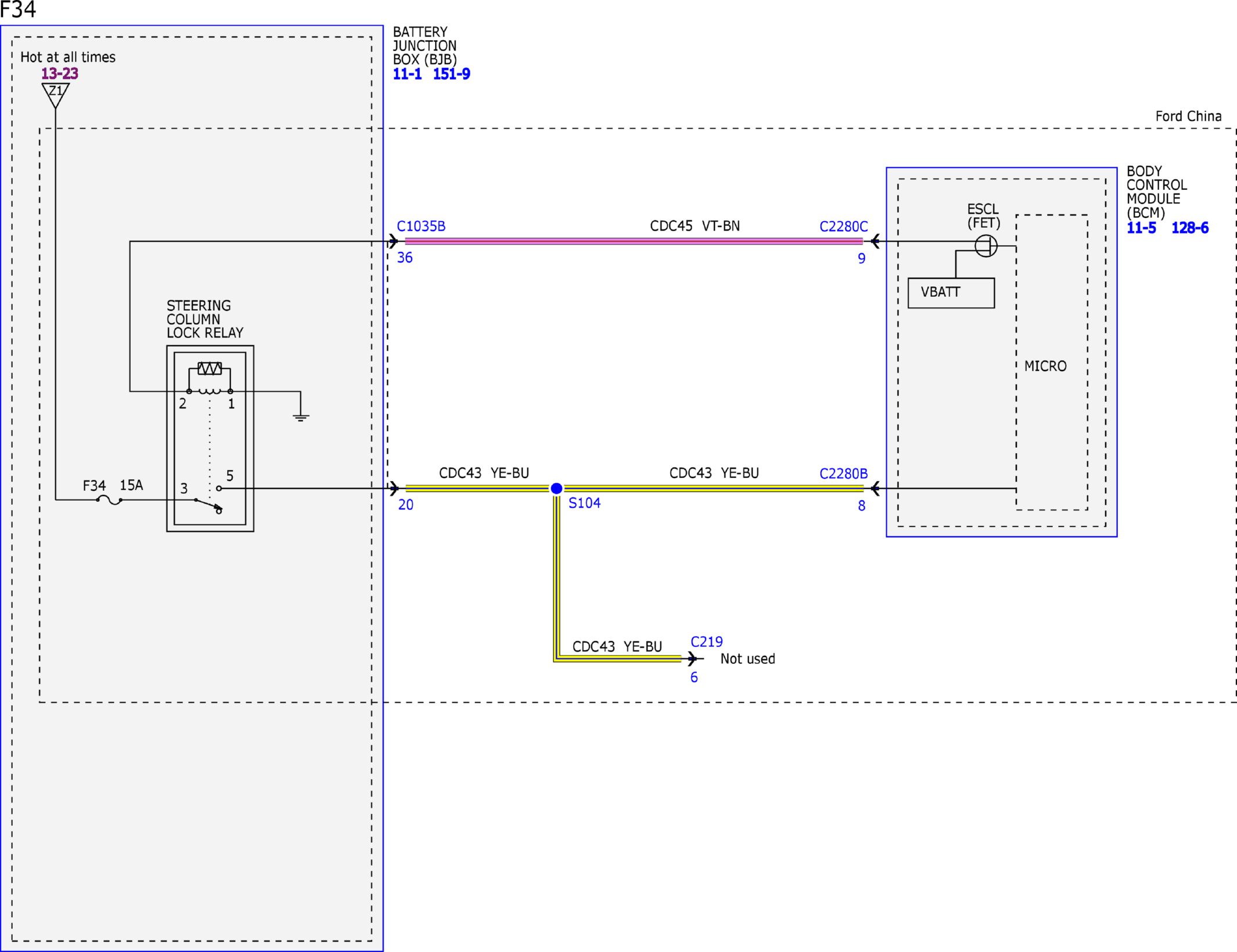

Fig 17: Power Distribution Wiring Diagram (17 Of 58)

GFDW79951

Courtesy of FORD MOTOR COMPANY

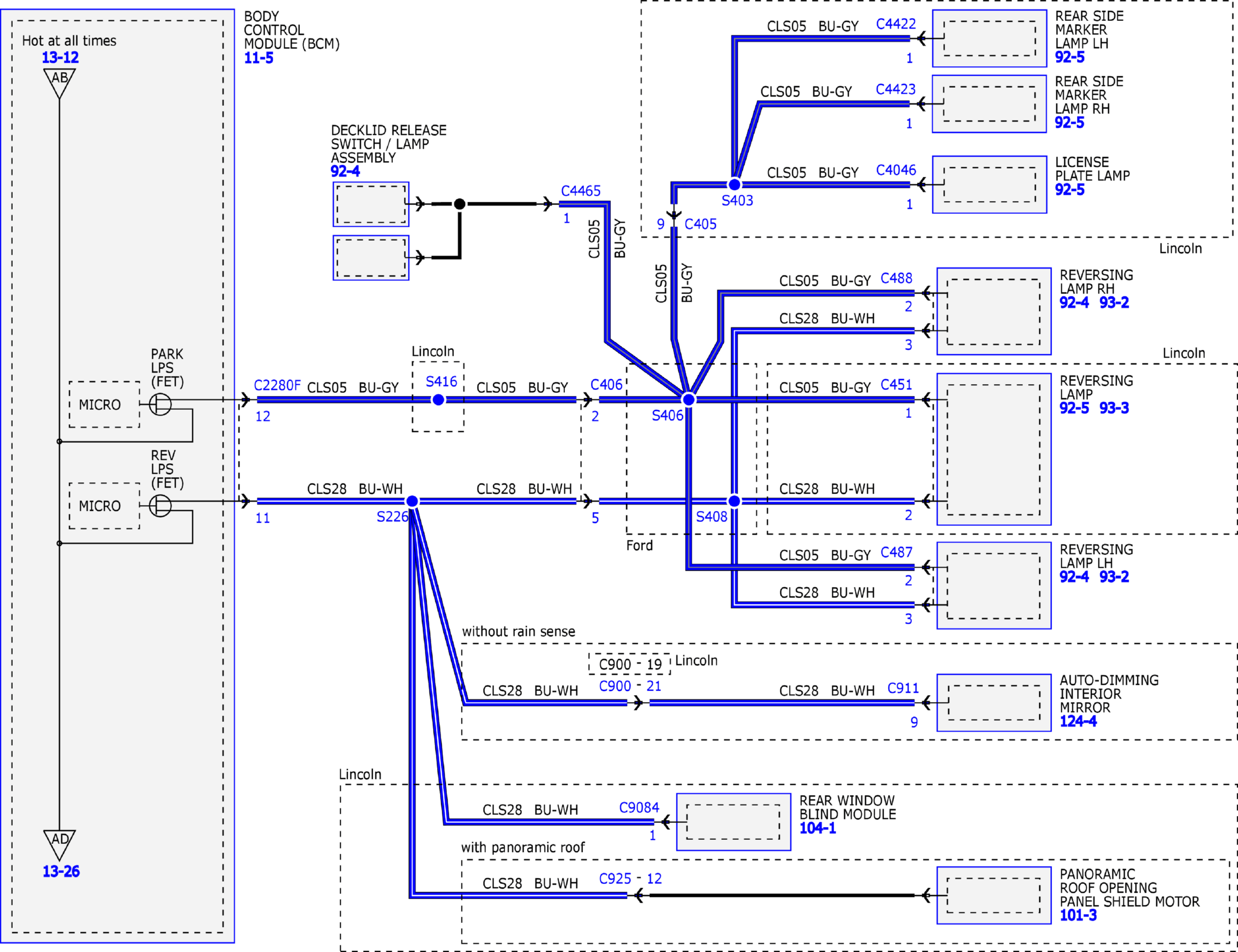

Fig 18: Power Distribution Wiring Diagram (18 Of 58)

GFDW79952

Courtesy of FORD MOTOR COMPANY

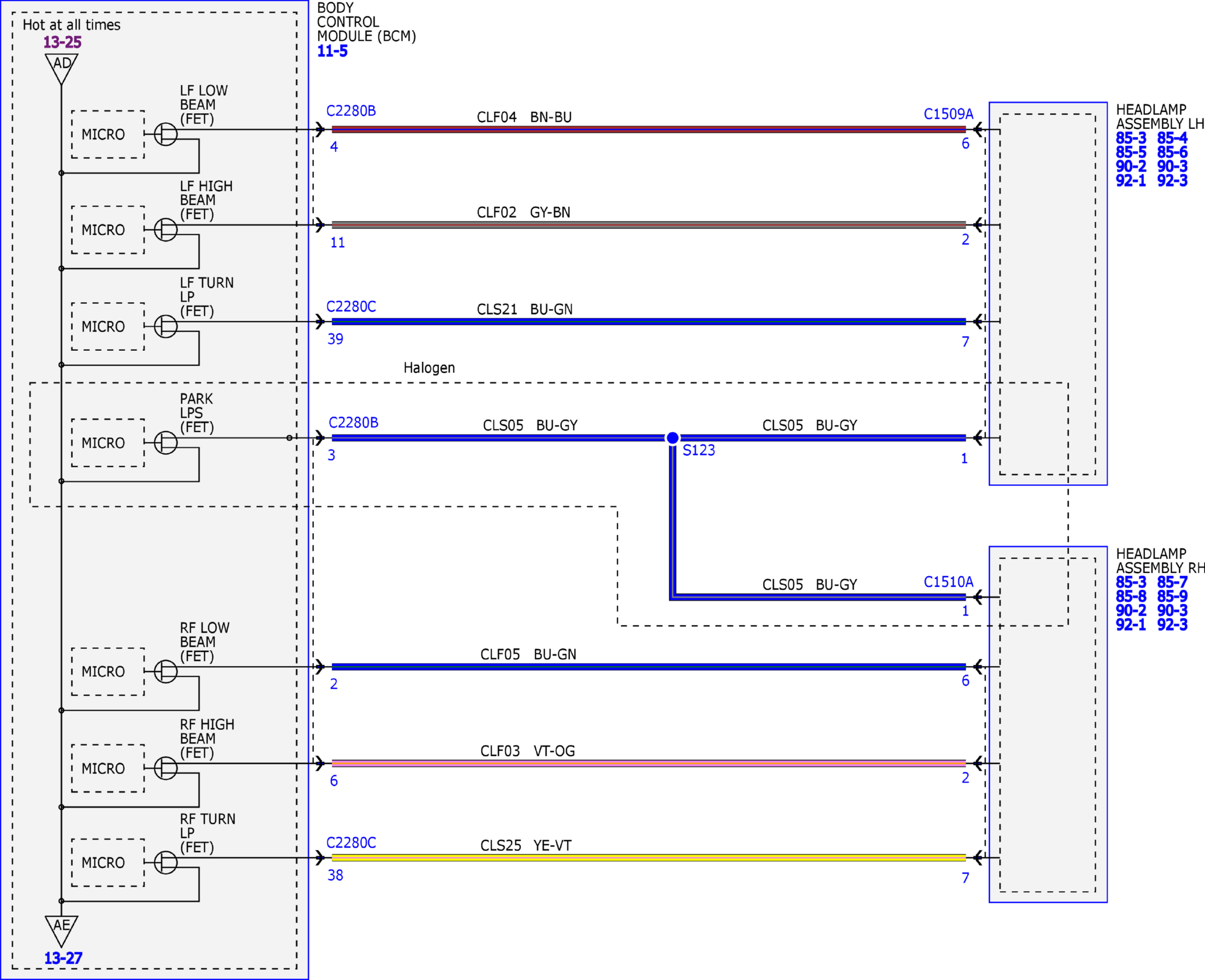

Fig 19: Power Distribution Wiring Diagram (19 Of 58)

GFDW79953

Courtesy of FORD MOTOR COMPANY

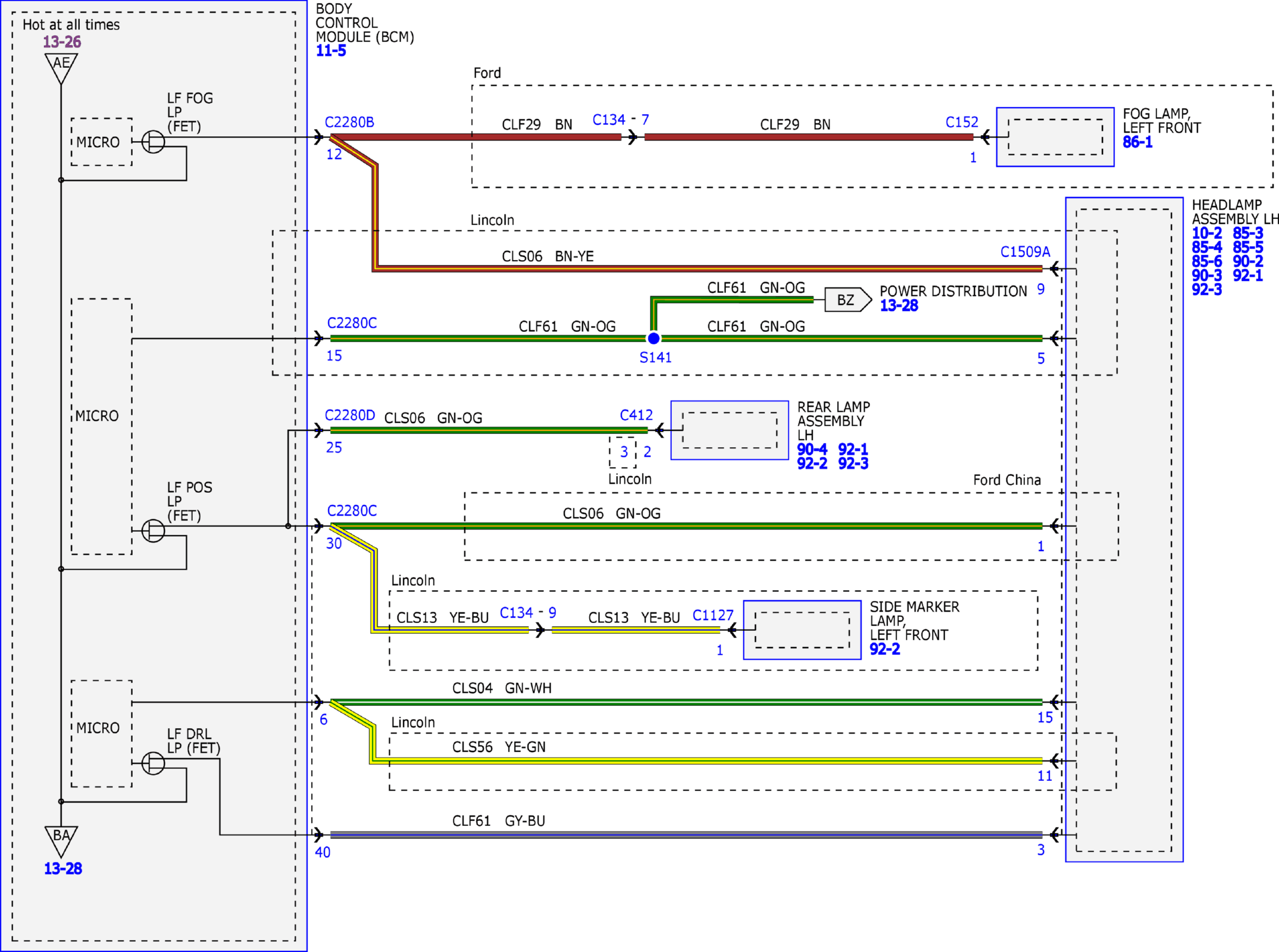

Fig 20: Power Distribution Wiring Diagram (20 Of 58)

GFDW79954

Courtesy of FORD MOTOR COMPANY

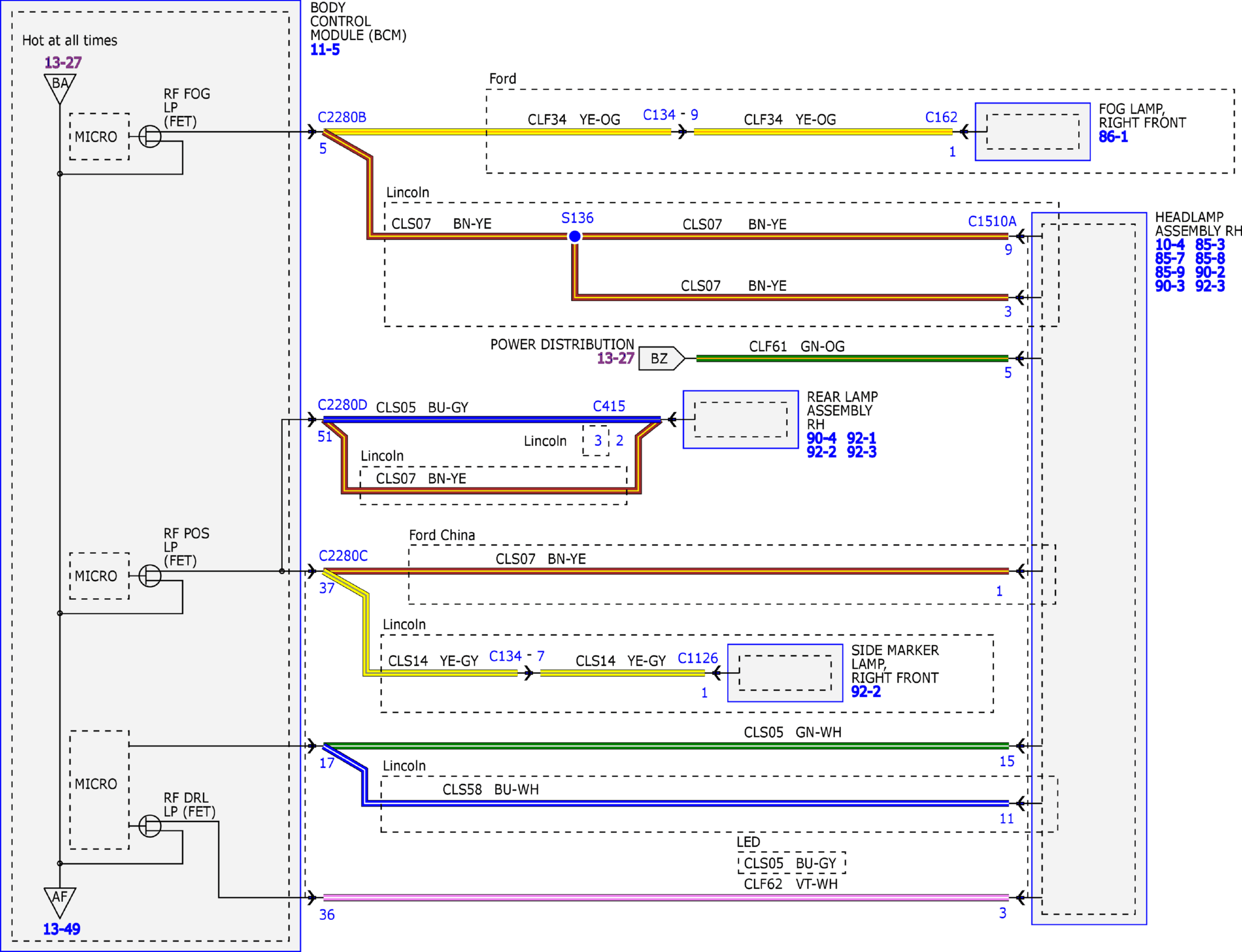

Fig 21: Power Distribution Wiring Diagram (21 Of 58)

GFDW79955

Courtesy of FORD MOTOR COMPANY

Fig 22: Power Distribution Wiring Diagram (22 Of 58)

GFDW79956

Courtesy of FORD MOTOR COMPANY

Fig 23: Power Distribution Wiring Diagram (23 Of 58)

GFDW79957

Courtesy of FORD MOTOR COMPANY

Fig 24: Power Distribution Wiring Diagram (24 Of 58)

GFDW79958

Courtesy of FORD MOTOR COMPANY

Fig 25: Power Distribution Wiring Diagram (25 Of 58)

GFDW79959

Courtesy of FORD MOTOR COMPANY

Fig 26: Power Distribution Wiring Diagram (26 Of 58)

GFDW79960

Courtesy of FORD MOTOR COMPANY

Fig 27: Power Distribution Wiring Diagram (28 Of 58)

GFDW79962

Courtesy of FORD MOTOR COMPANY

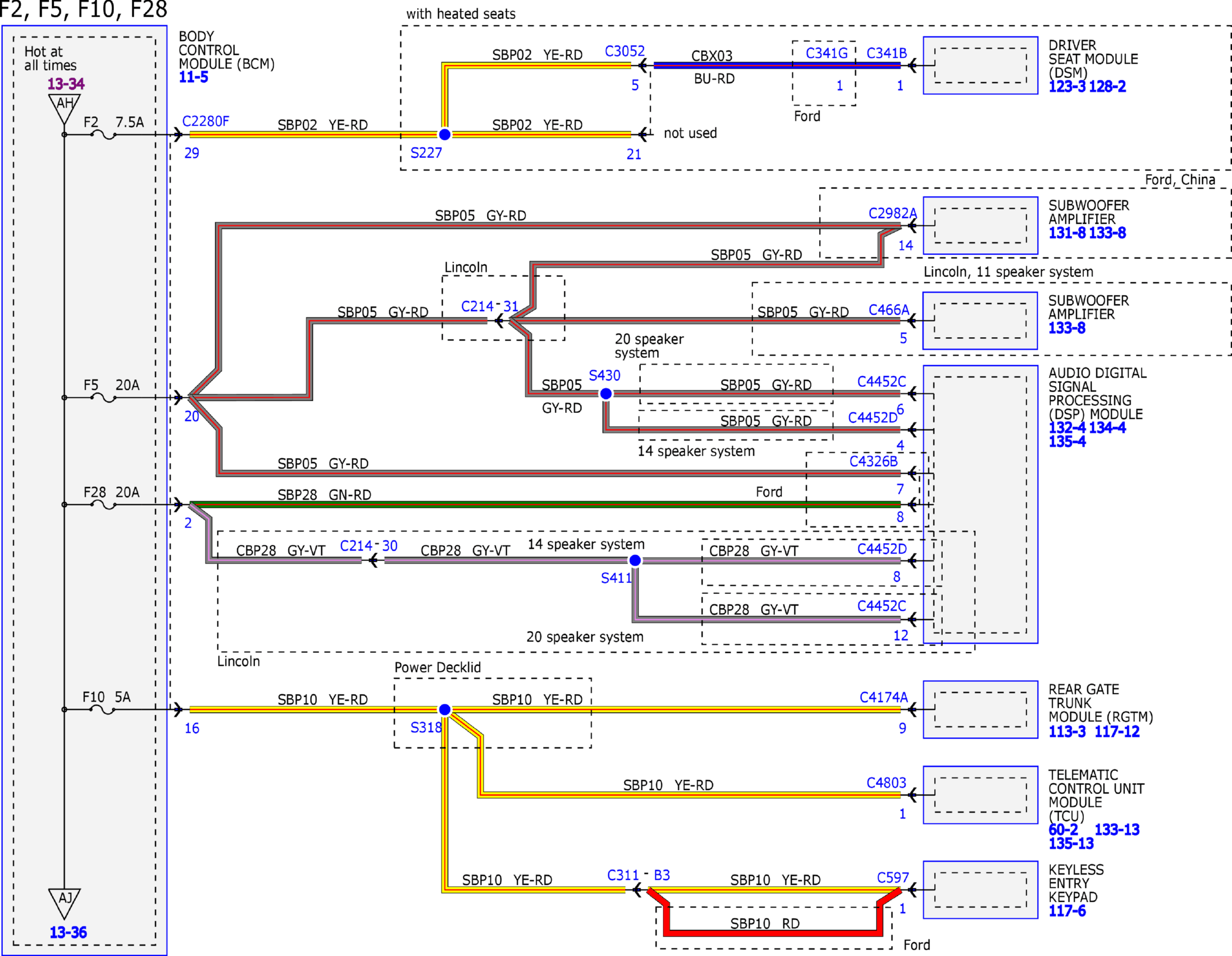

Fig 28: Power Distribution Wiring Diagram (29 Of 58)

GFDW79963

Courtesy of FORD MOTOR COMPANY

Fig 29: Power Distribution Wiring Diagram (30 Of 58)

GFDW79964

Courtesy of FORD MOTOR COMPANY

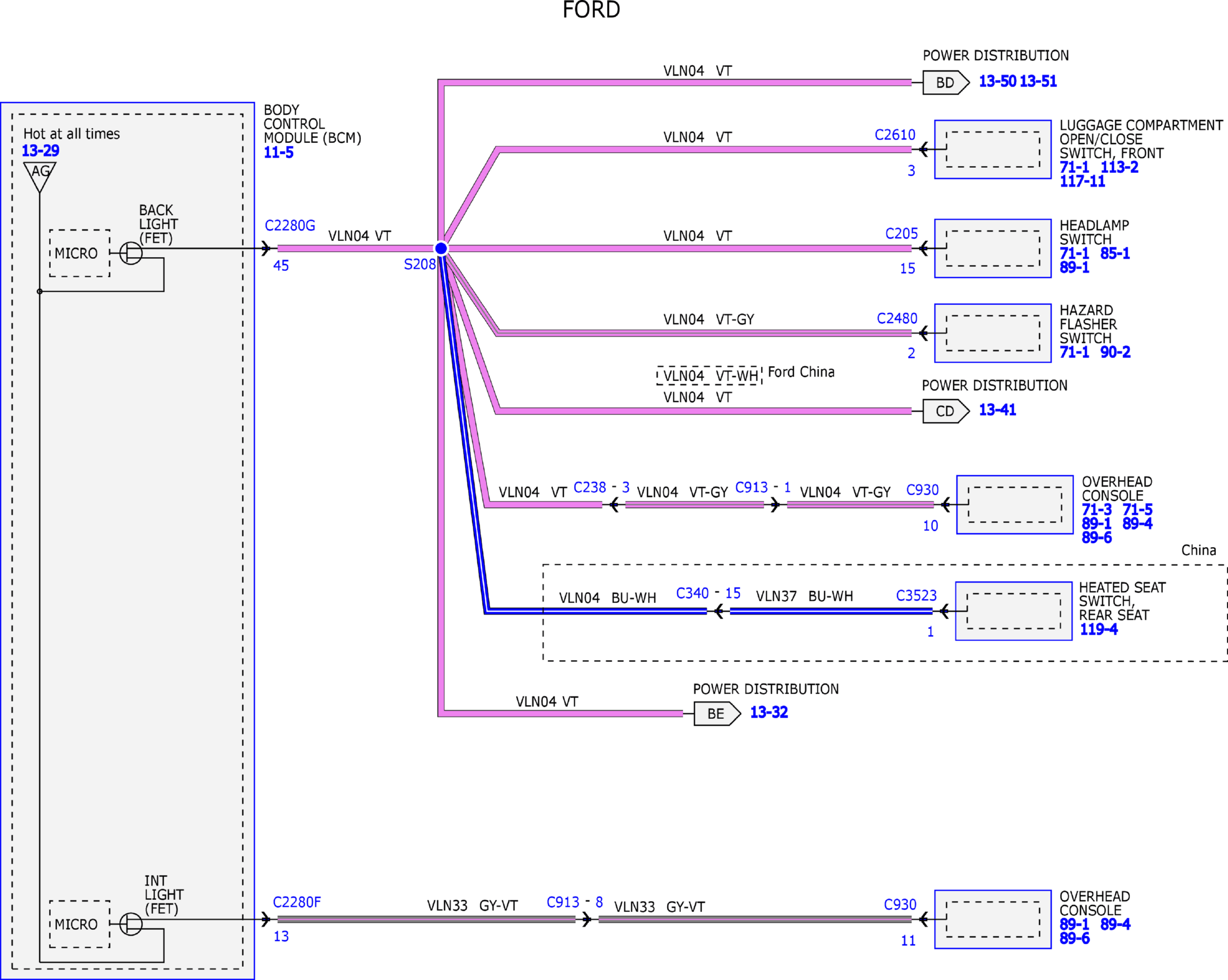

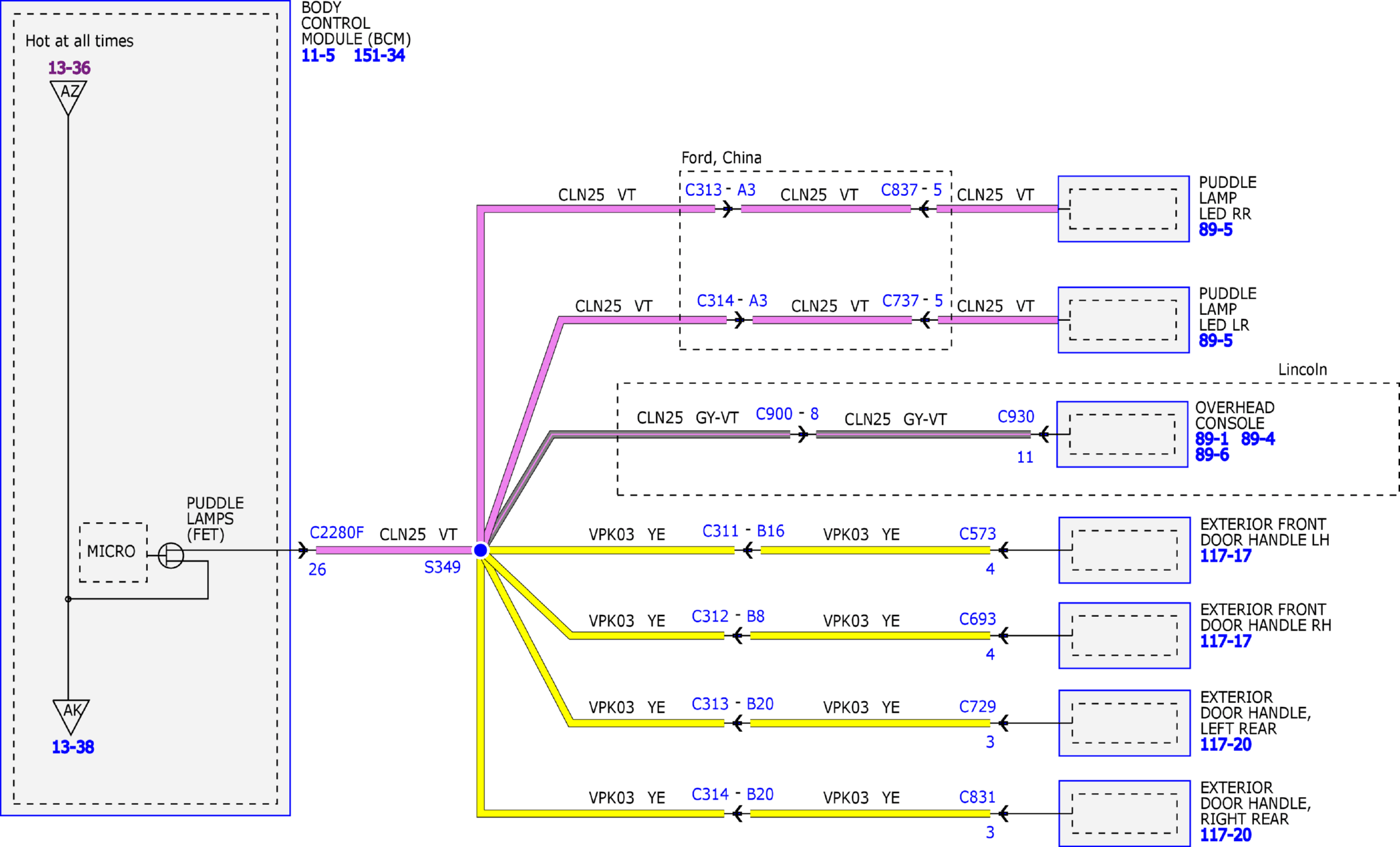

Fig 30: Power Distribution Wiring Diagram (31 Of 58)

GFDW79965

Courtesy of FORD MOTOR COMPANY

Fig 31: Power Distribution Wiring Diagram (32 Of 58)

GFDW79966

Courtesy of FORD MOTOR COMPANY

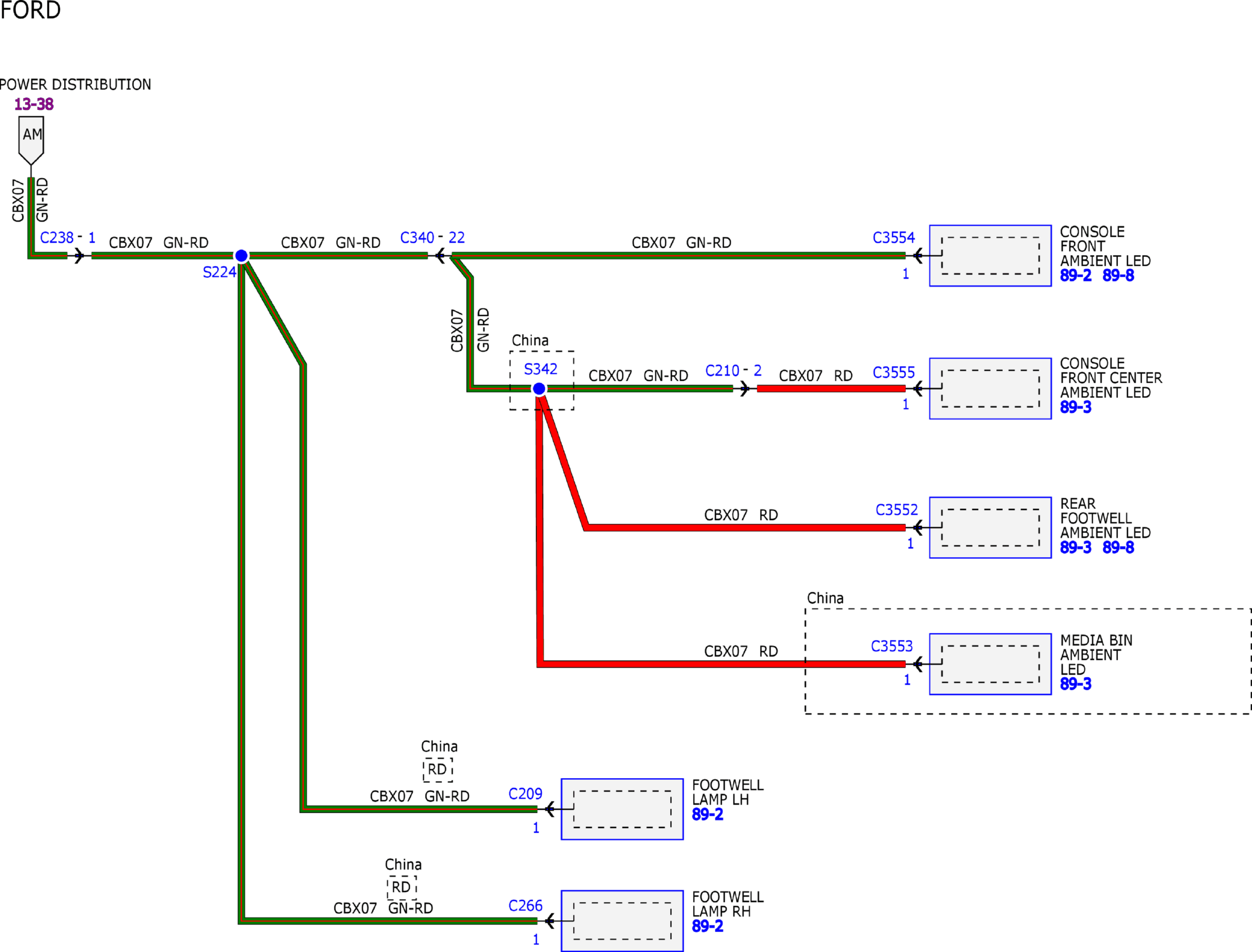

Fig 32: Power Distribution Wiring Diagram (33 Of 58)

GFDW79967

Courtesy of FORD MOTOR COMPANY

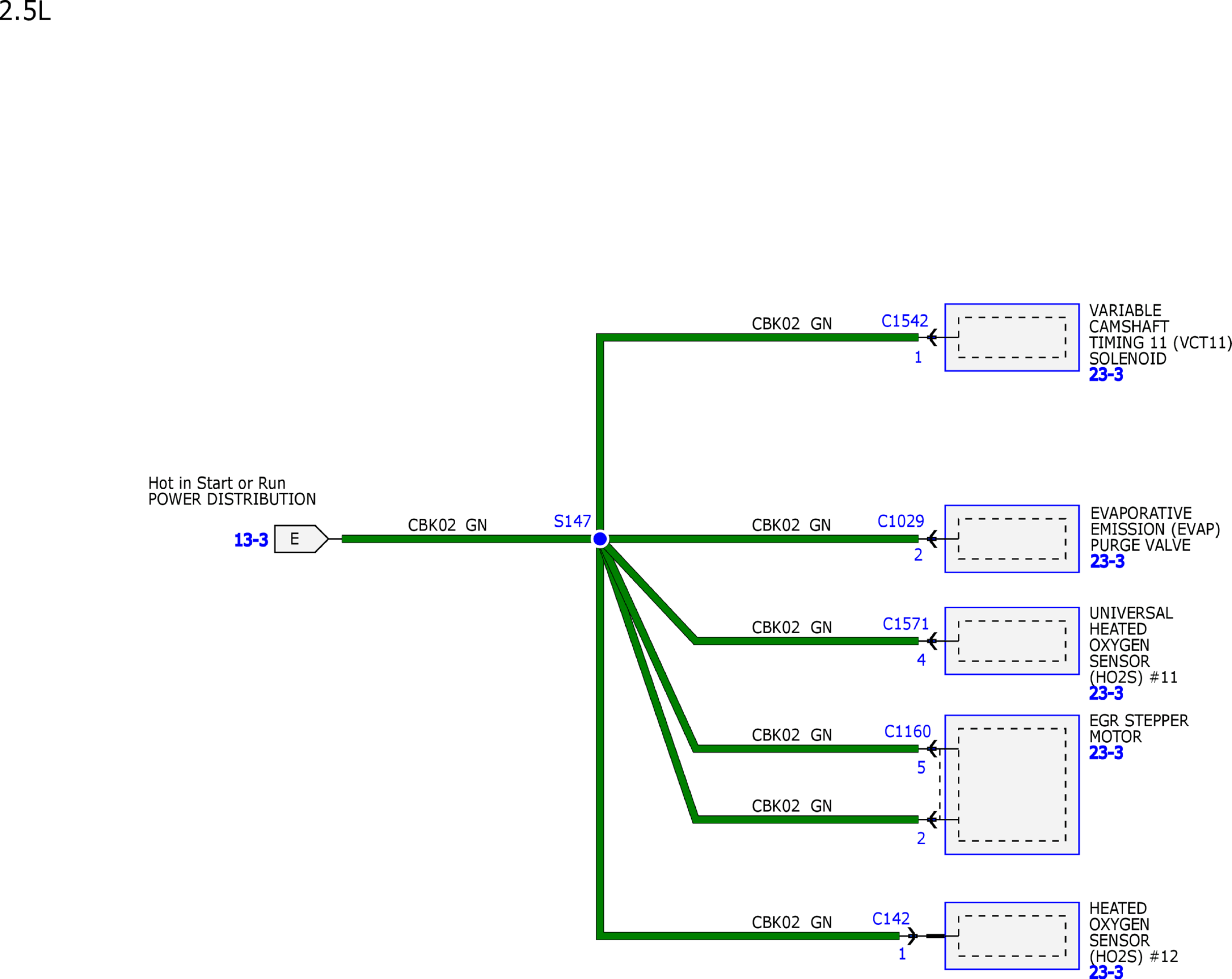

Fig 33: Power Distribution Wiring Diagram (35 Of 58)

GFDW79969

Courtesy of FORD MOTOR COMPANY

Fig 34: Power Distribution Wiring Diagram (36 Of 58)

GFDW79970

Courtesy of FORD MOTOR COMPANY

Fig 35: Power Distribution Wiring Diagram (37 Of 58)

GFDW79971

Courtesy of FORD MOTOR COMPANY

Fig 36: Power Distribution Wiring Diagram (38 Of 58)

GFDW79972

Courtesy of FORD MOTOR COMPANY

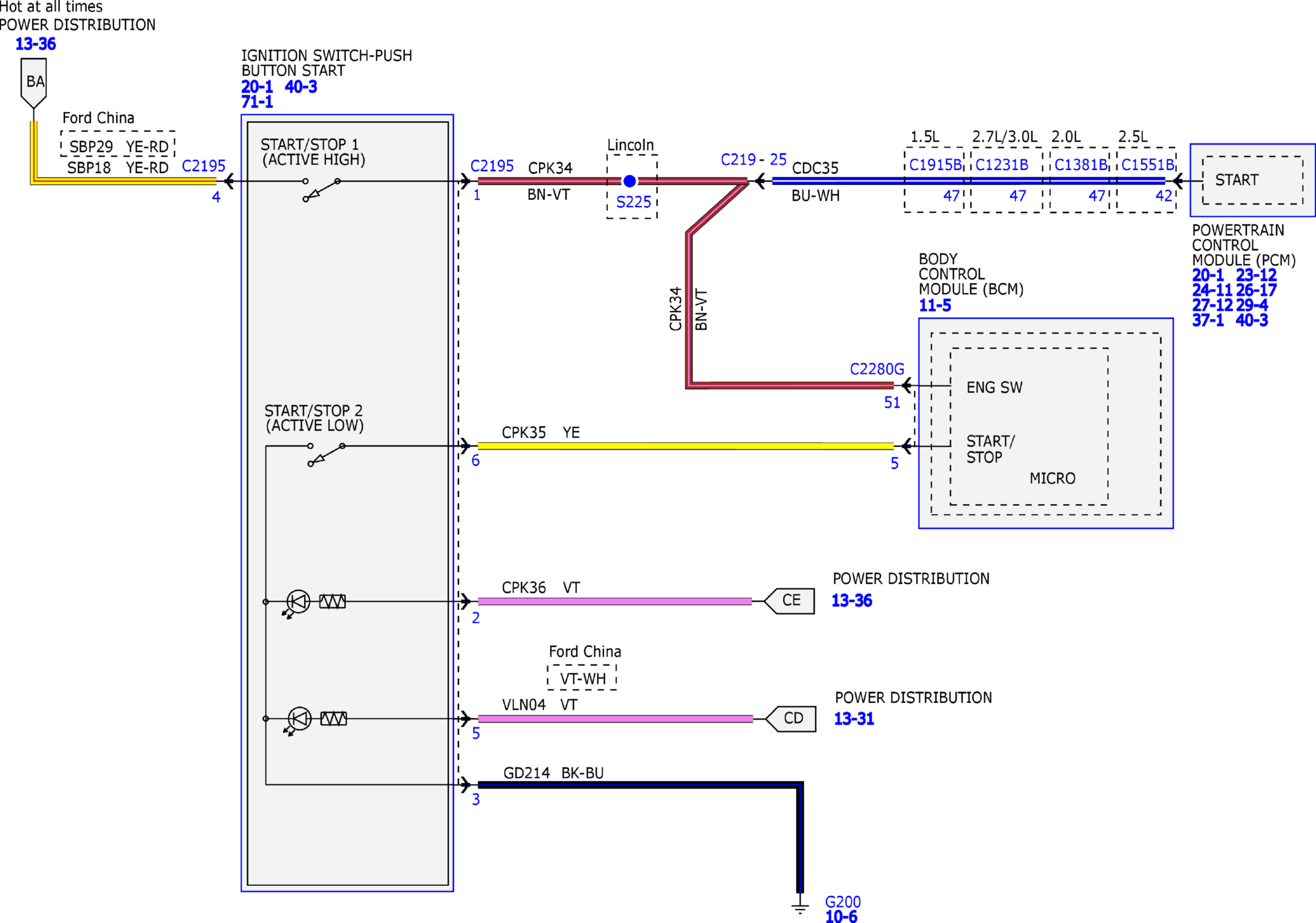

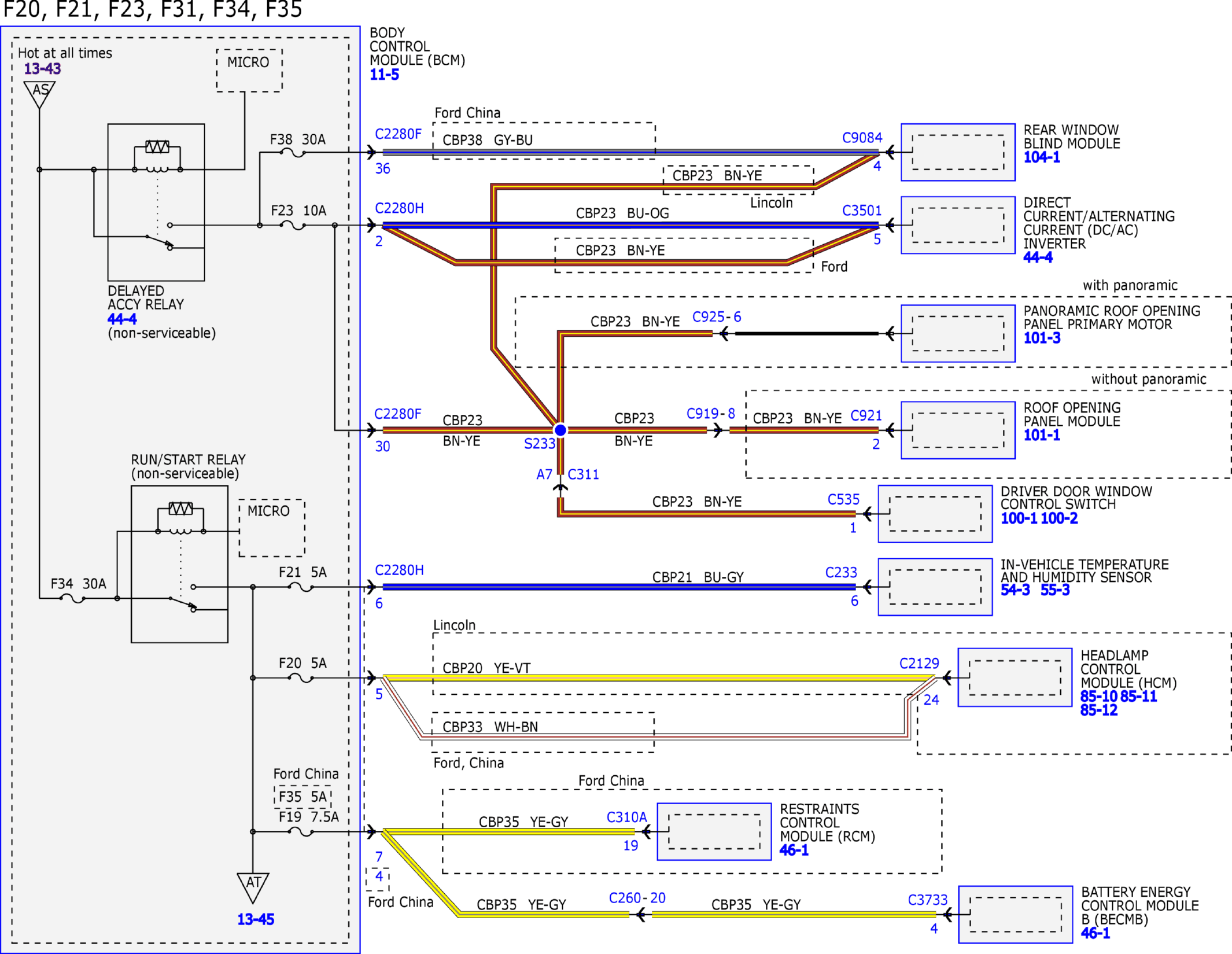

Fig 37: Power Distribution Wiring Diagram (39 Of 58)

GFDW79973

Courtesy of FORD MOTOR COMPANY

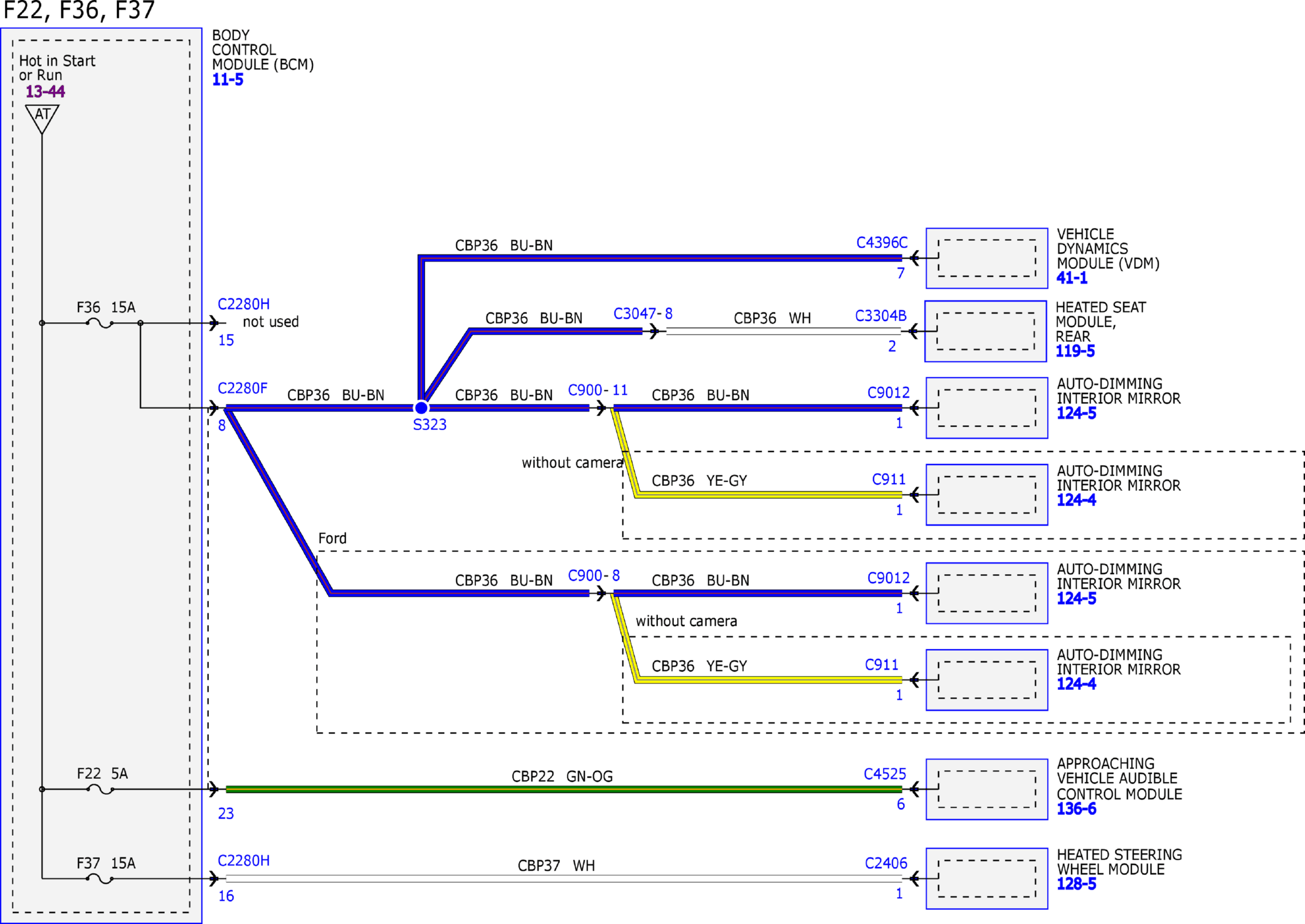

Fig 38: Power Distribution Wiring Diagram (40 Of 58)

GFDW79974

Courtesy of FORD MOTOR COMPANY

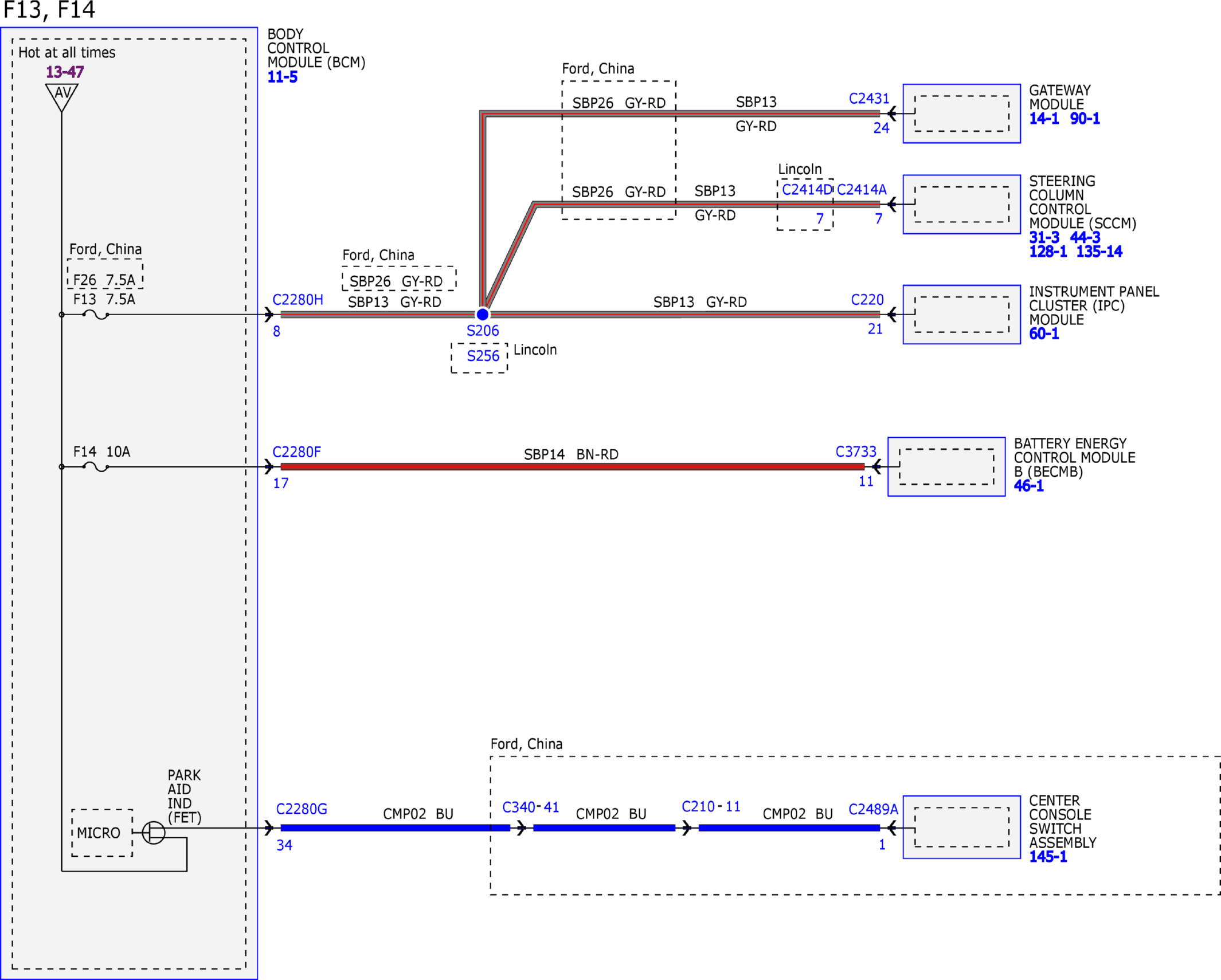

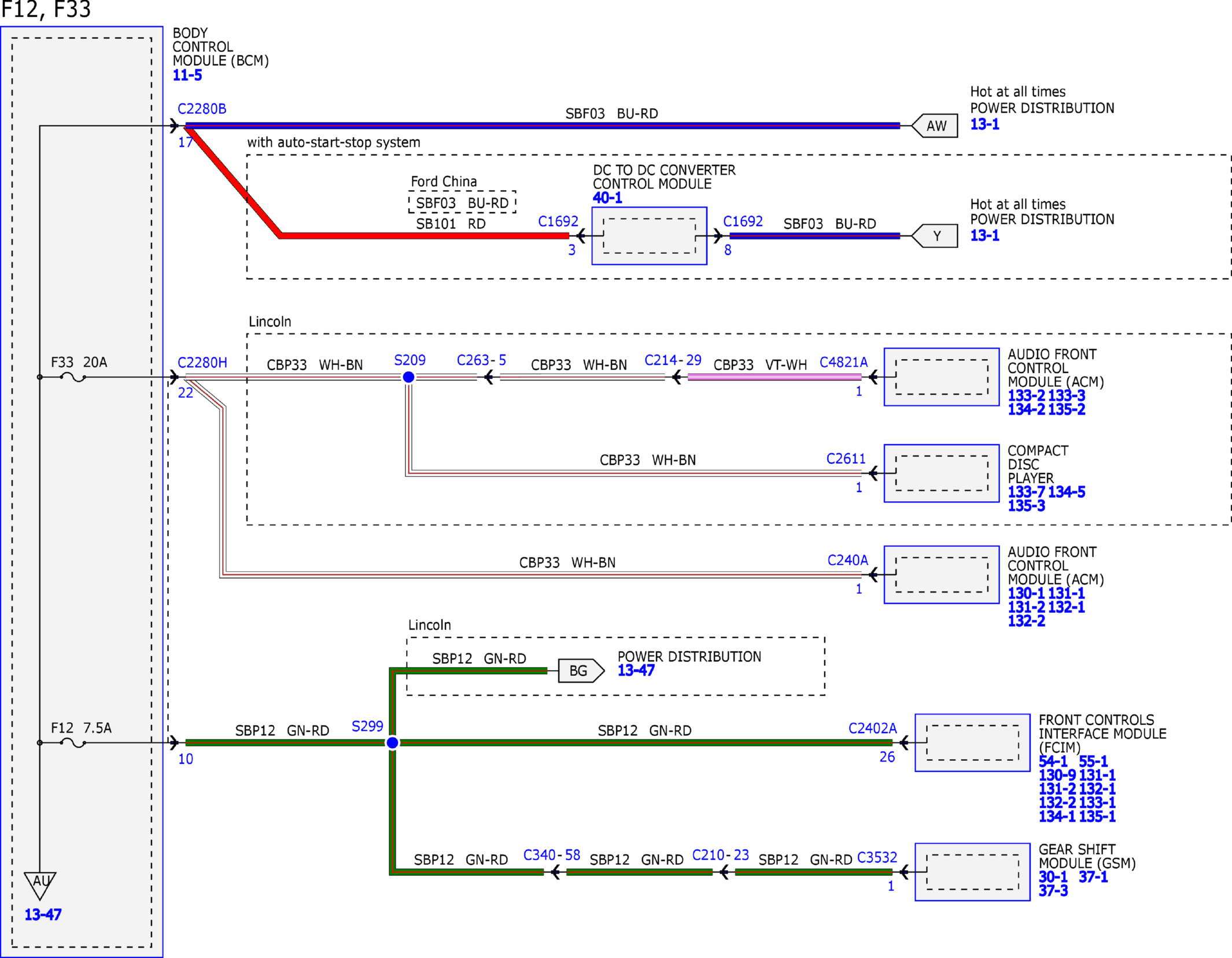

Fig 39: Power Distribution Wiring Diagram (41 Of 58)

GFDW79975

Courtesy of FORD MOTOR COMPANY

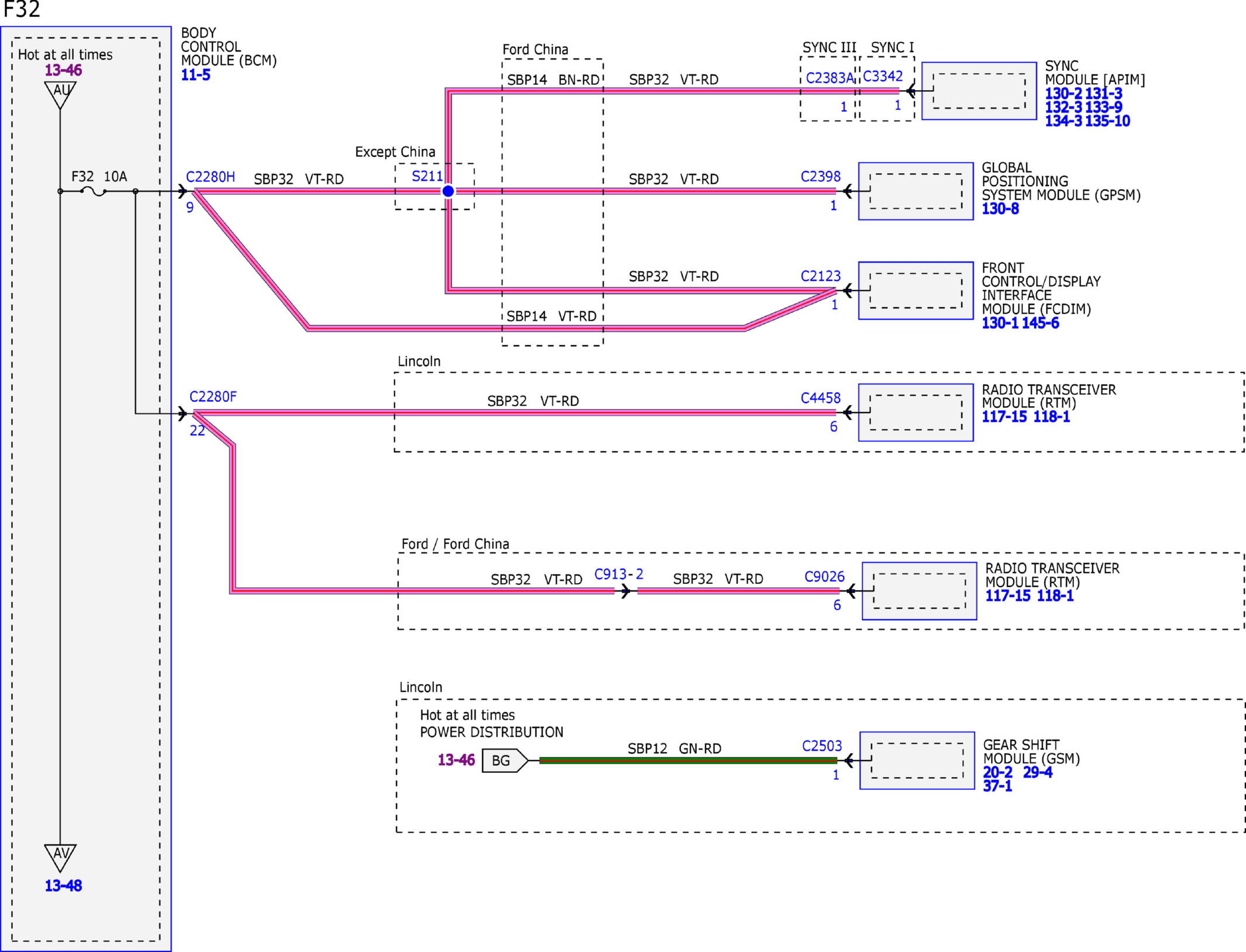

Fig 40: Power Distribution Wiring Diagram (42 Of 58)

GFDW79976

Courtesy of FORD MOTOR COMPANY

Fig 41: Power Distribution Wiring Diagram (43 Of 58)

GFDW79977

Courtesy of FORD MOTOR COMPANY

Fig 42: Power Distribution Wiring Diagram (44 Of 58)

GFDW79978

Courtesy of FORD MOTOR COMPANY

Fig 43: Power Distribution Wiring Diagram (45 Of 58)

GFDW79979

Courtesy of FORD MOTOR COMPANY

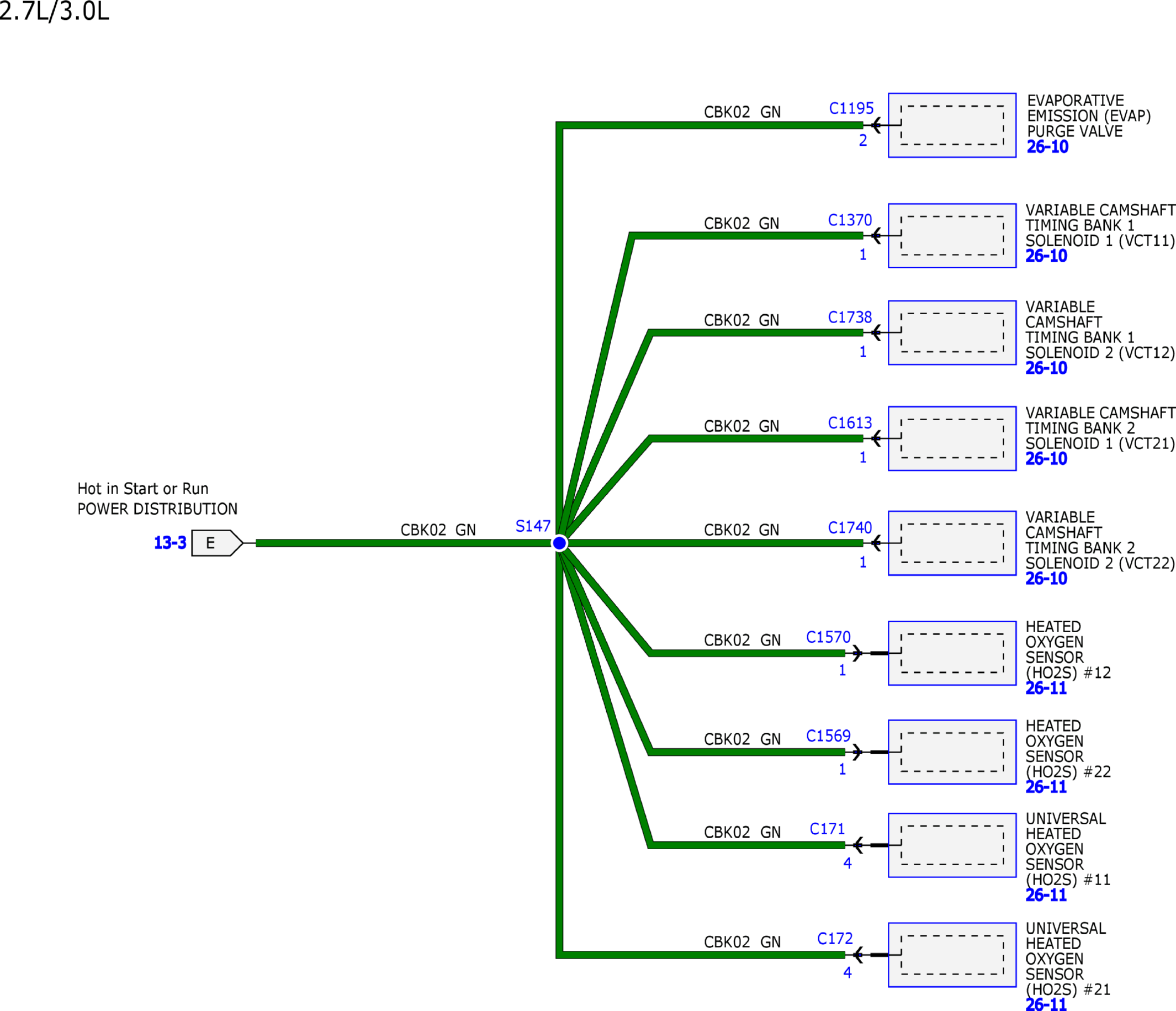

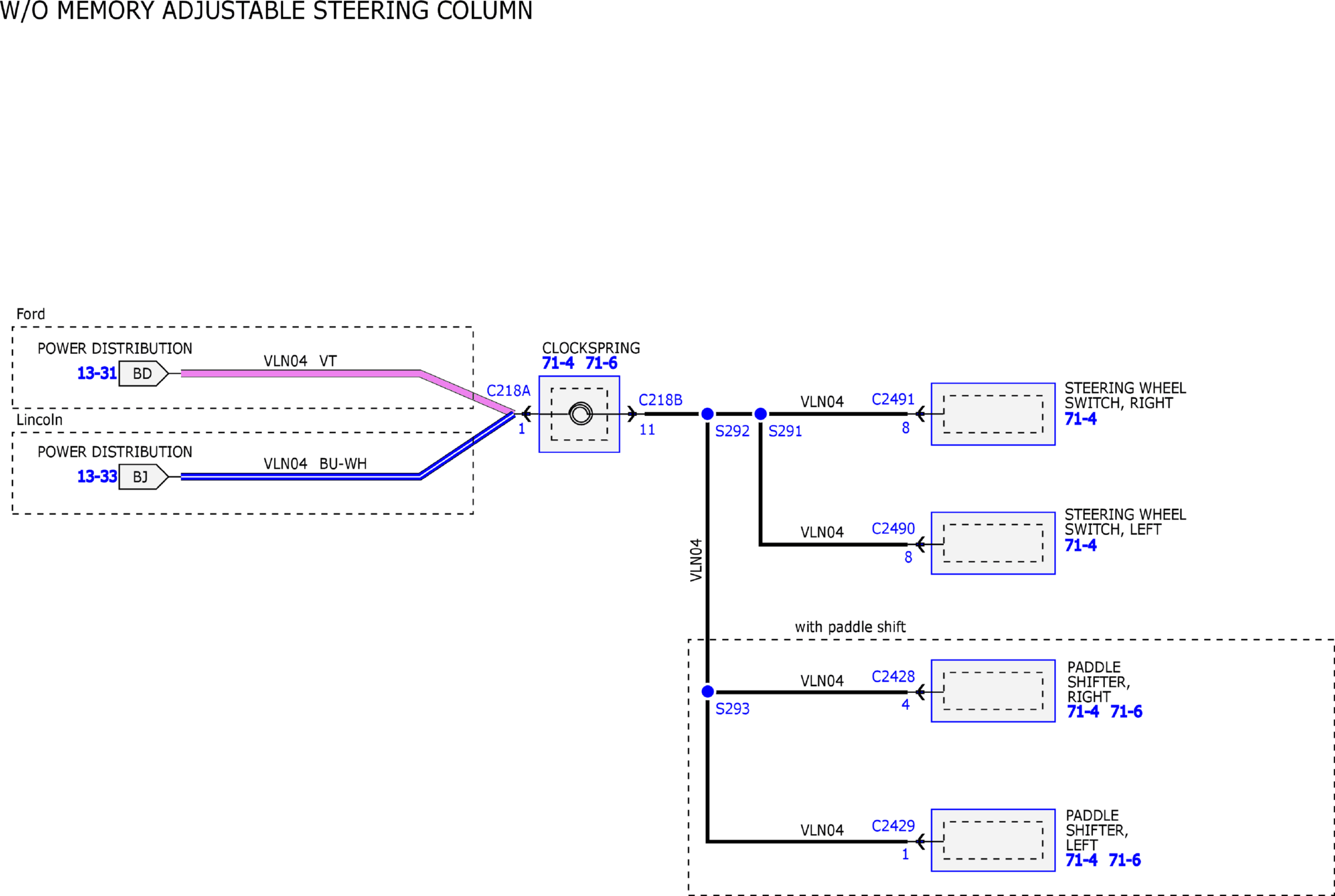

Fig 44: Power Distribution Wiring Diagram (46 Of 58)

GFDW79980

Courtesy of FORD MOTOR COMPANY

Fig 45: Power Distribution Wiring Diagram (47 Of 58)

GFDW79981

Courtesy of FORD MOTOR COMPANY

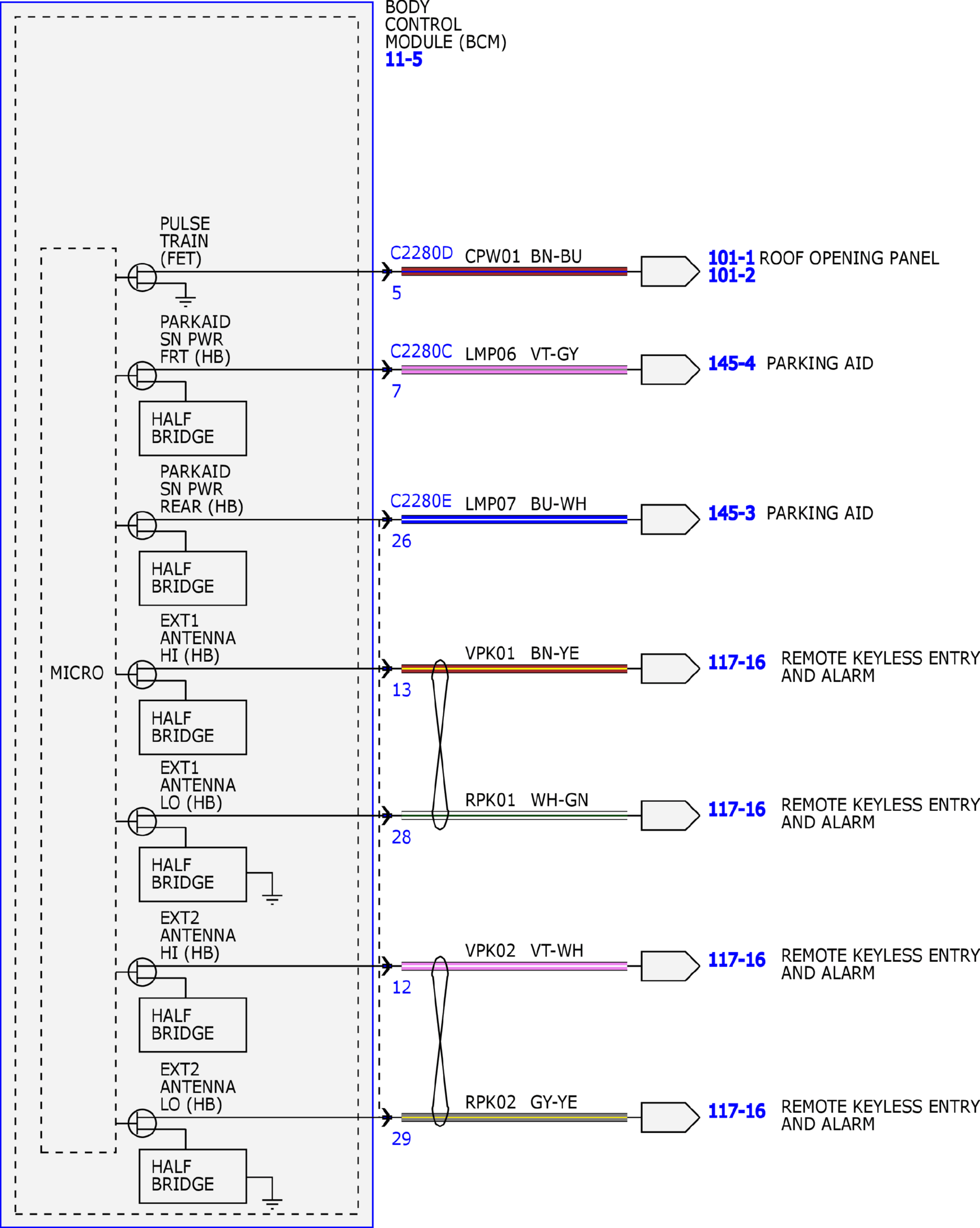

Fig 46: Power Distribution Wiring Diagram (48 Of 58)

GFDW79982

Courtesy of FORD MOTOR COMPANY

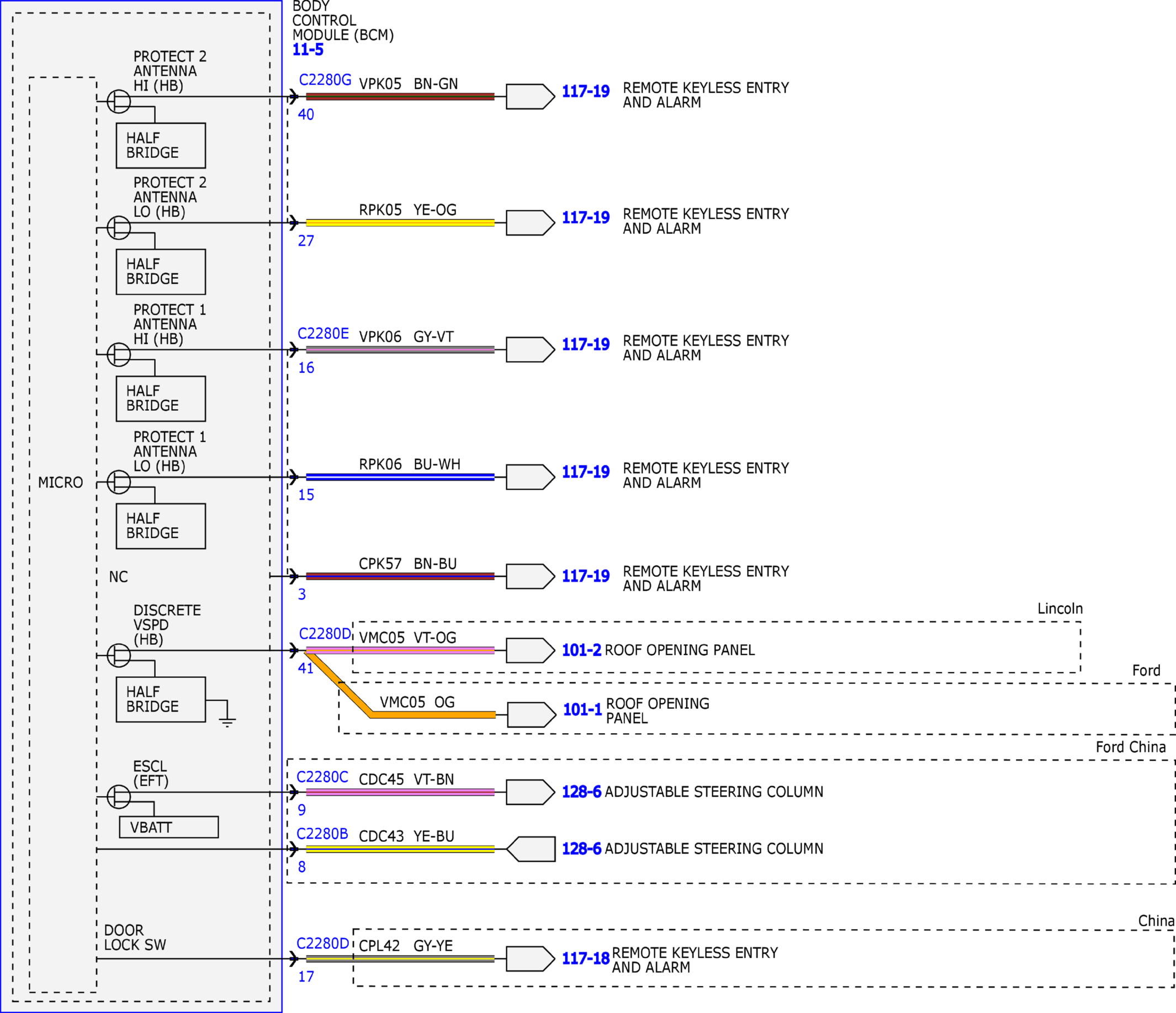

Fig 47: Power Distribution Wiring Diagram (49 Of 58)

GFDW79983

Courtesy of FORD MOTOR COMPANY

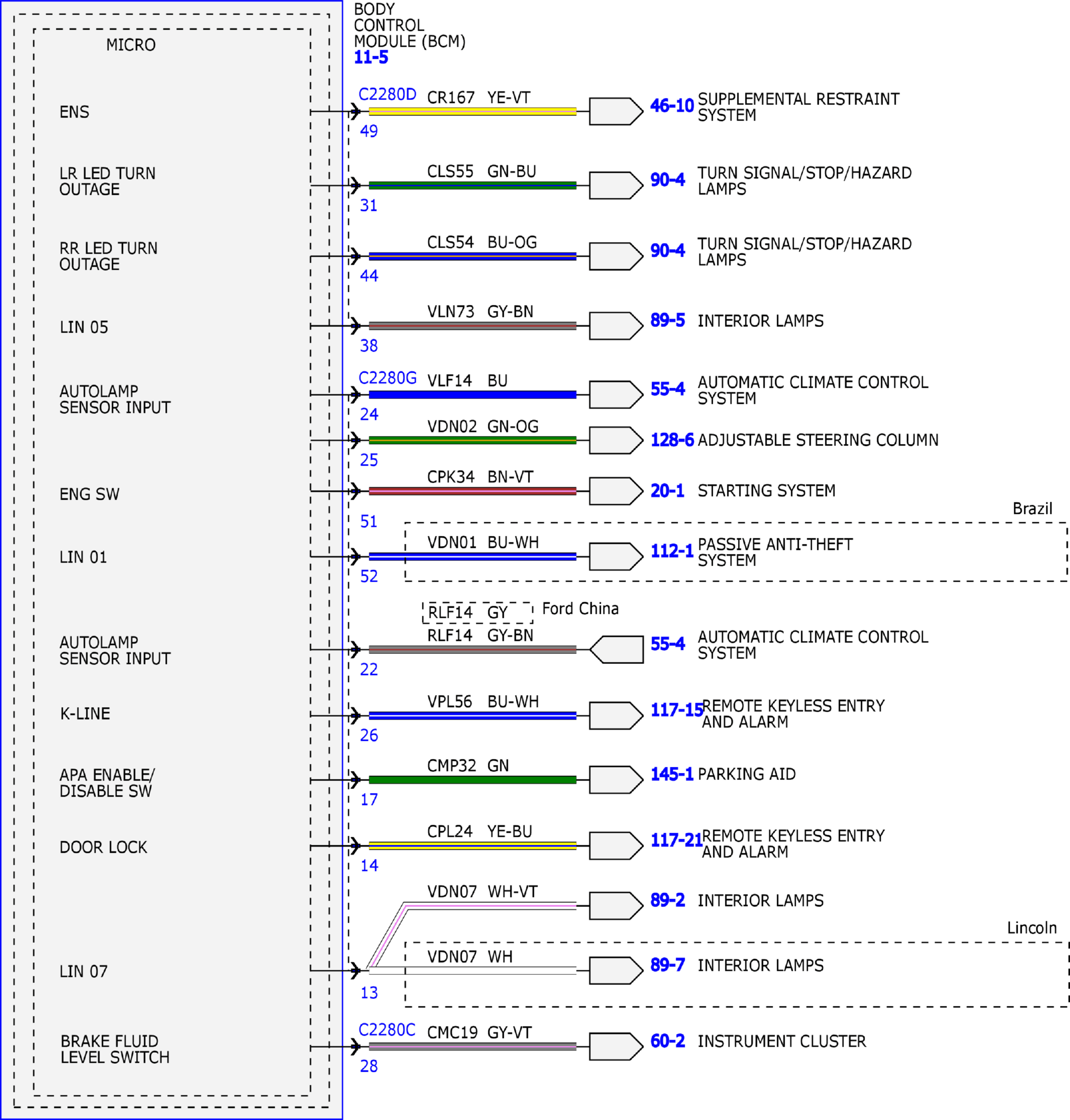

Fig 48: Power Distribution Wiring Diagram (50 Of 58)

GFDW79984

Courtesy of FORD MOTOR COMPANY

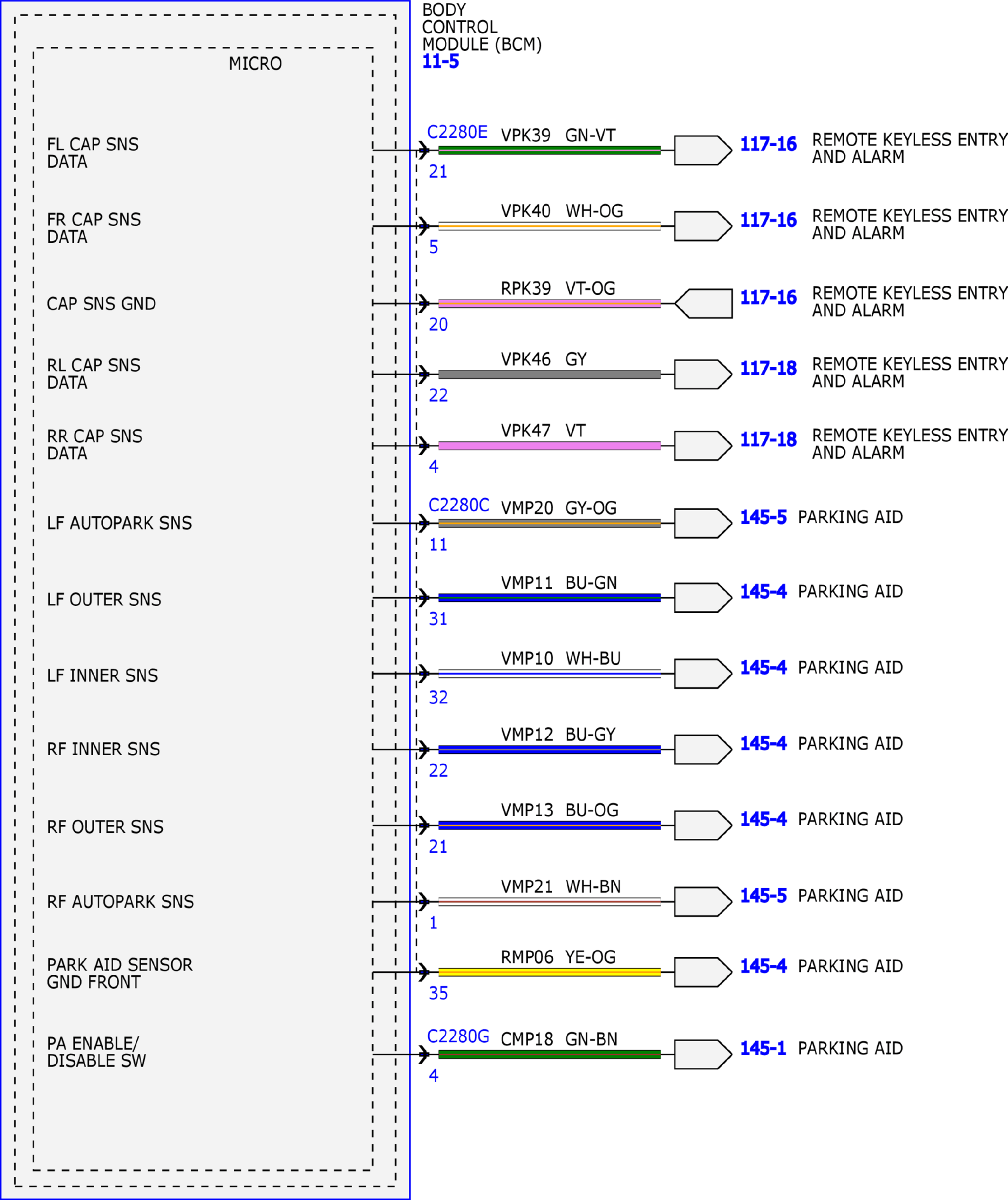

Fig 49: Power Distribution Wiring Diagram (51 Of 58)

GFDW79985

Courtesy of FORD MOTOR COMPANY

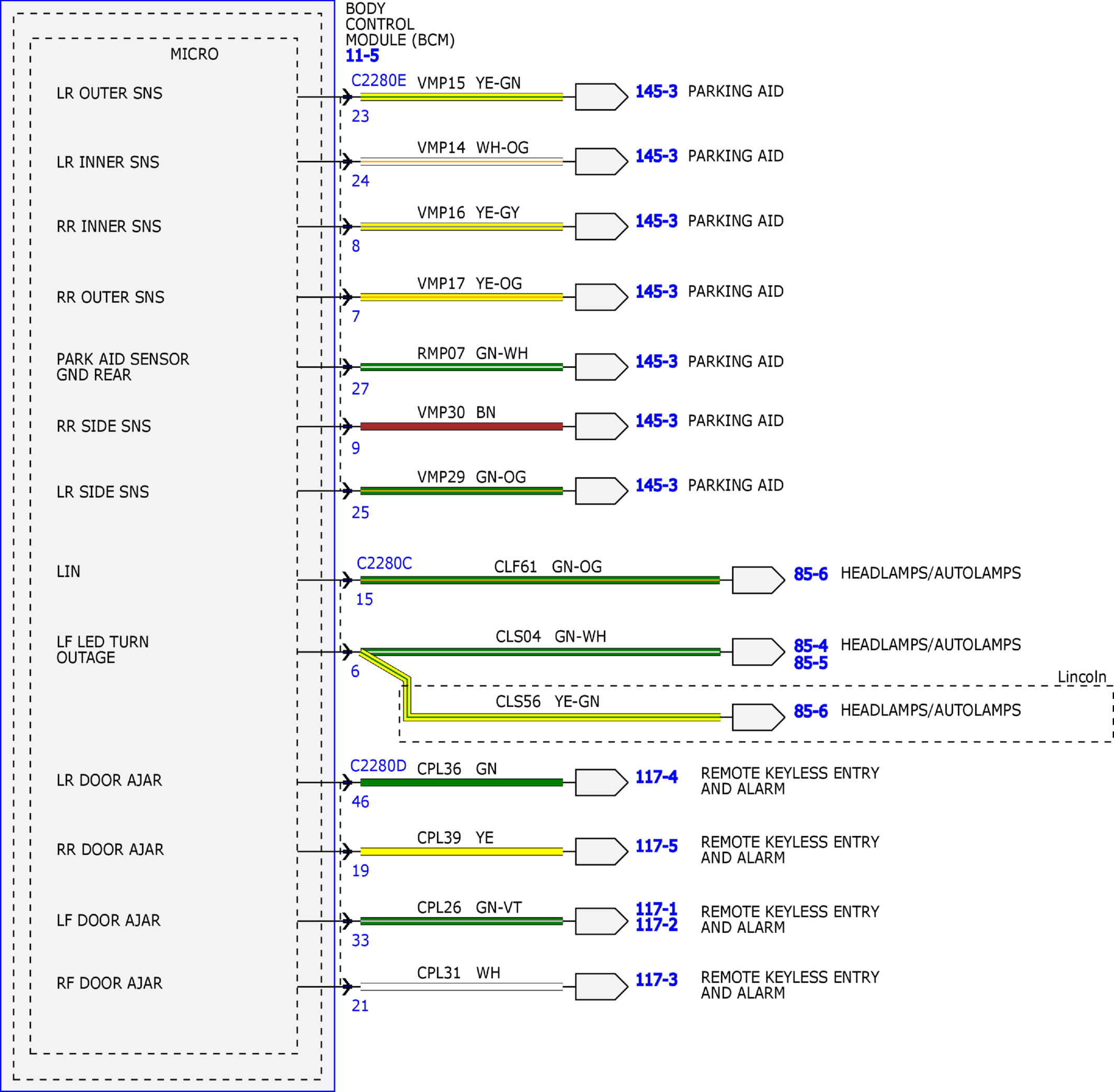

Fig 50: Power Distribution Wiring Diagram (53 Of 58)

GFDW79986

Courtesy of FORD MOTOR COMPANY

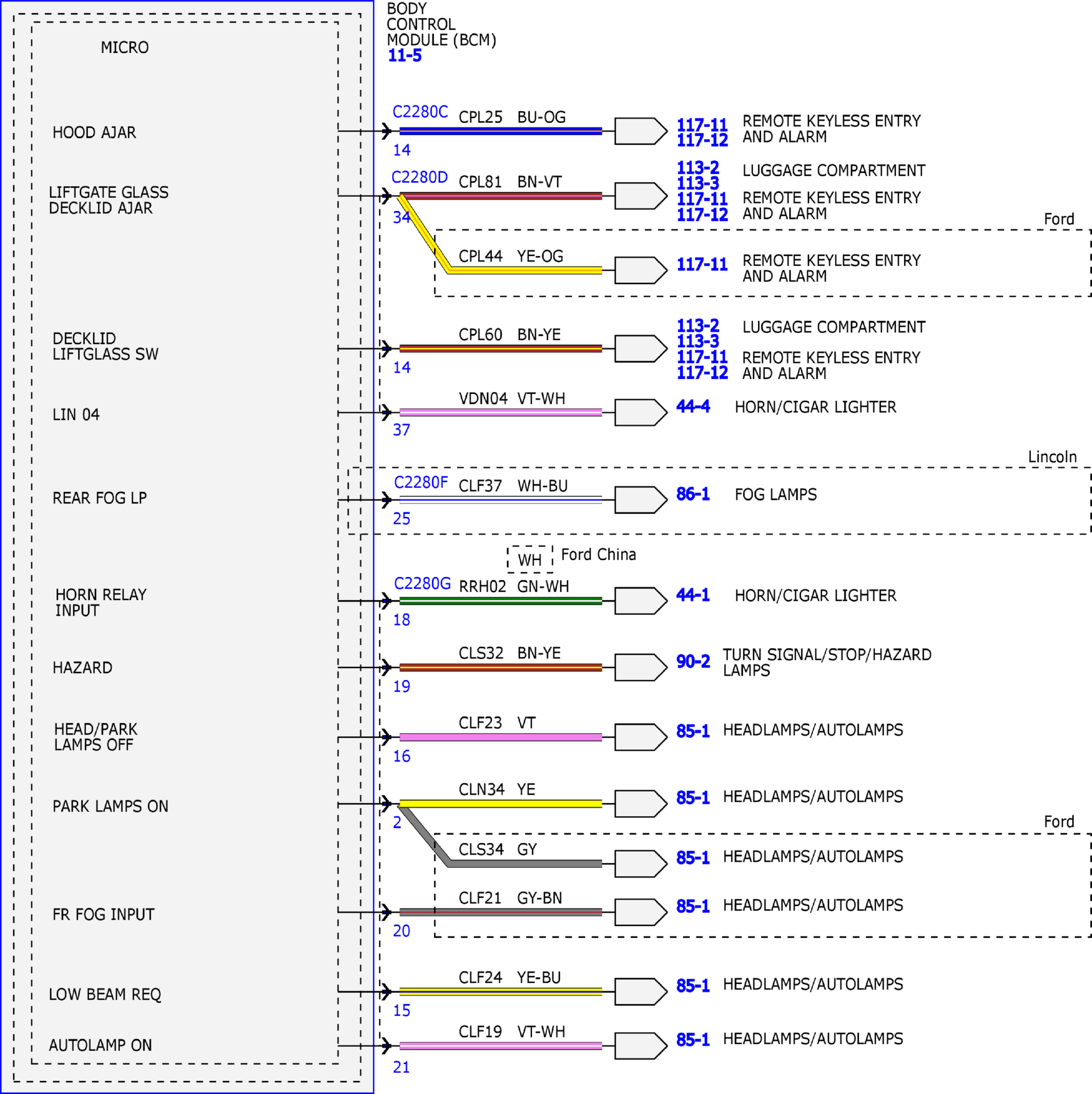

Fig 51: Power Distribution Wiring Diagram (53 Of 58)

GFDW79987

Courtesy of FORD MOTOR COMPANY

Fig 52: Power Distribution Wiring Diagram (54 Of 58)

GFDW79988

Courtesy of FORD MOTOR COMPANY

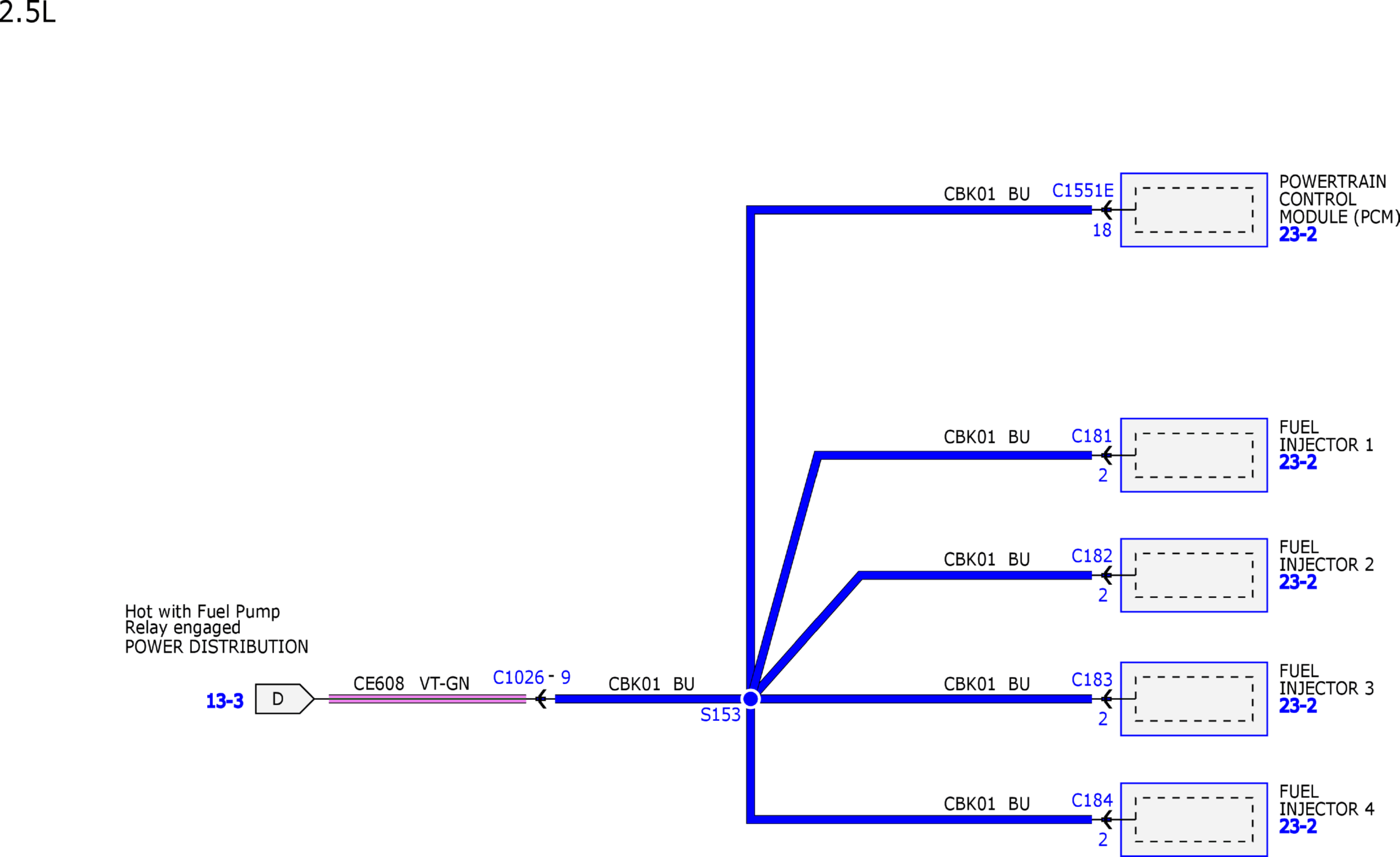

Fig 53: Power Distribution Wiring Diagram (55 Of 58)

GFDW79989

Courtesy of FORD MOTOR COMPANY

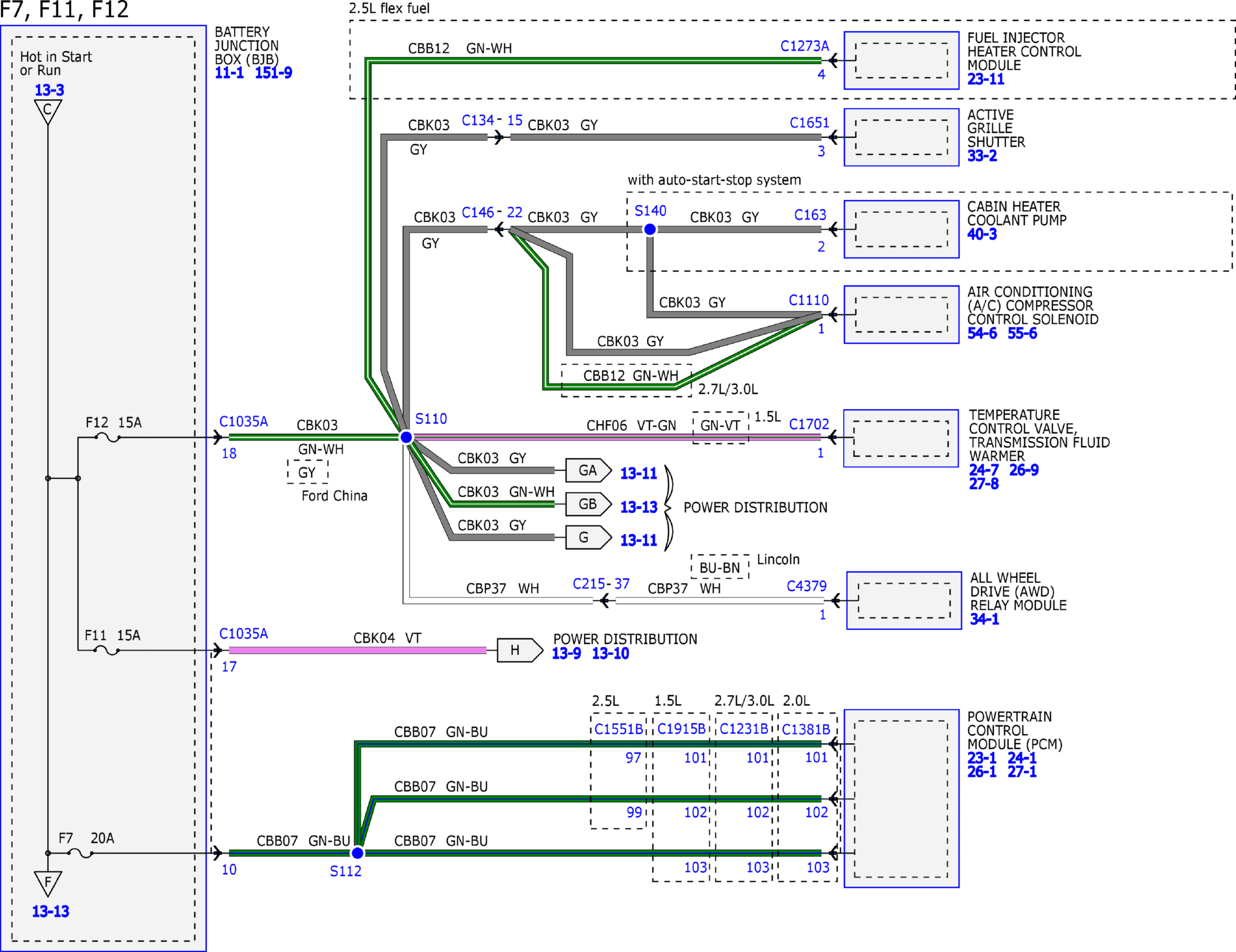

Fig 54: Power Distribution Wiring Diagram (56 Of 58)

GFDW79990

Courtesy of FORD MOTOR COMPANY

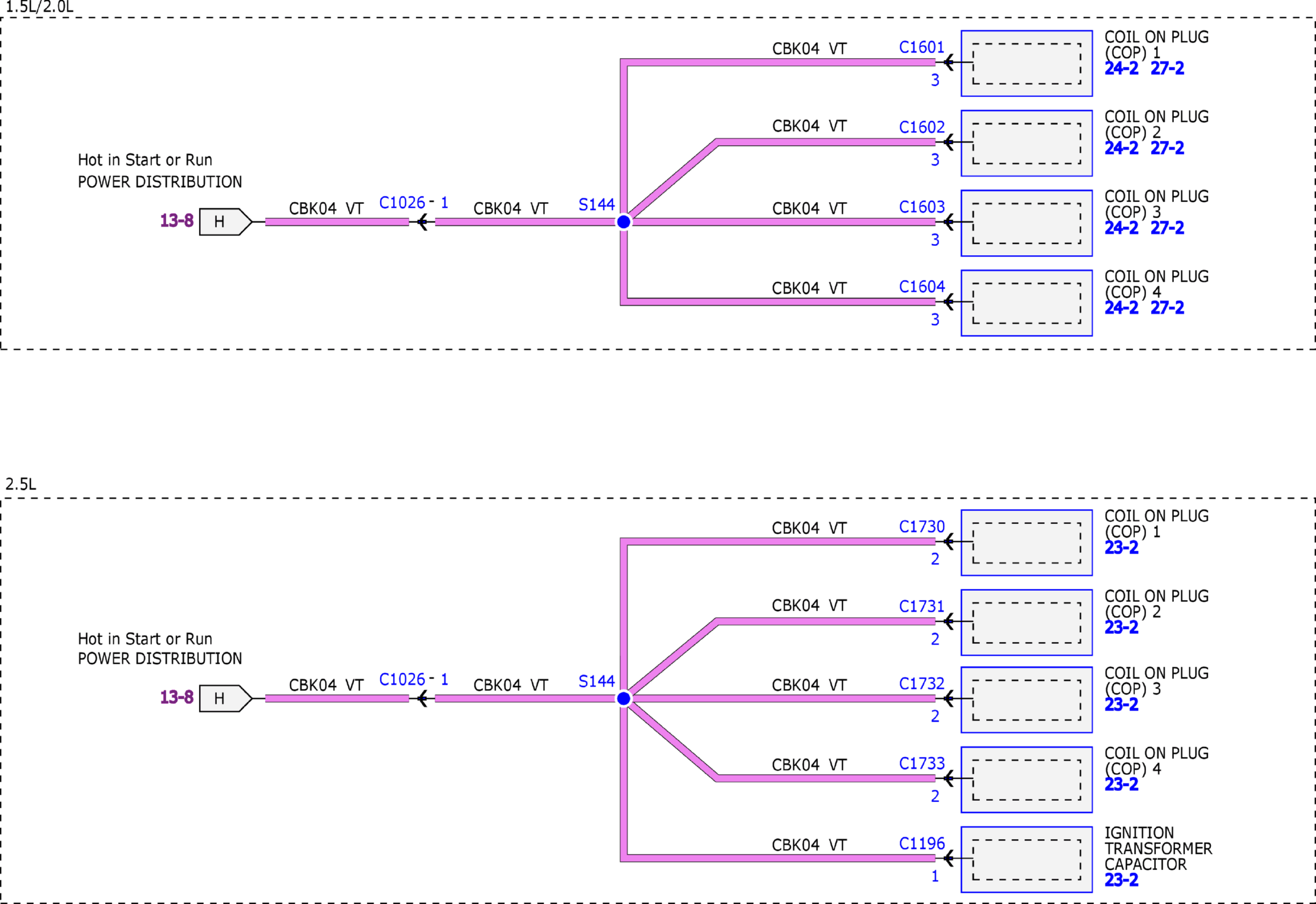

Fig 55: Power Distribution Wiring Diagram (57 Of 58)

GFDW79991

Courtesy of FORD MOTOR COMPANY

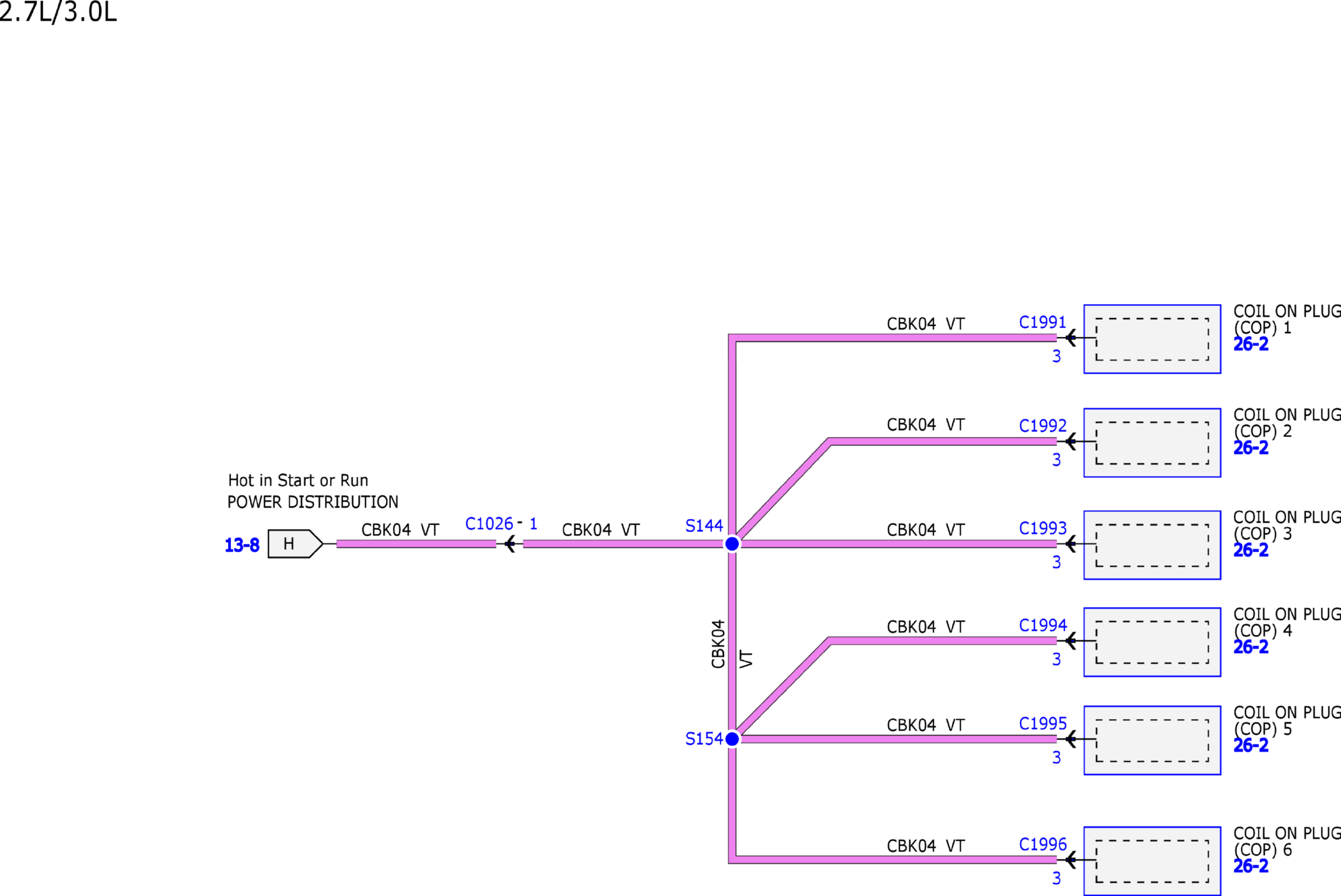

Fig 56: Power Distribution Wiring Diagram (58 Of 58)

GFDW79992

Courtesy of FORD MOTOR COMPANY
