OEM Wiring Diagrams - Fusion (Except Hybrid)
>>
Passive Anti-Theft System
Passive Anti-Theft System

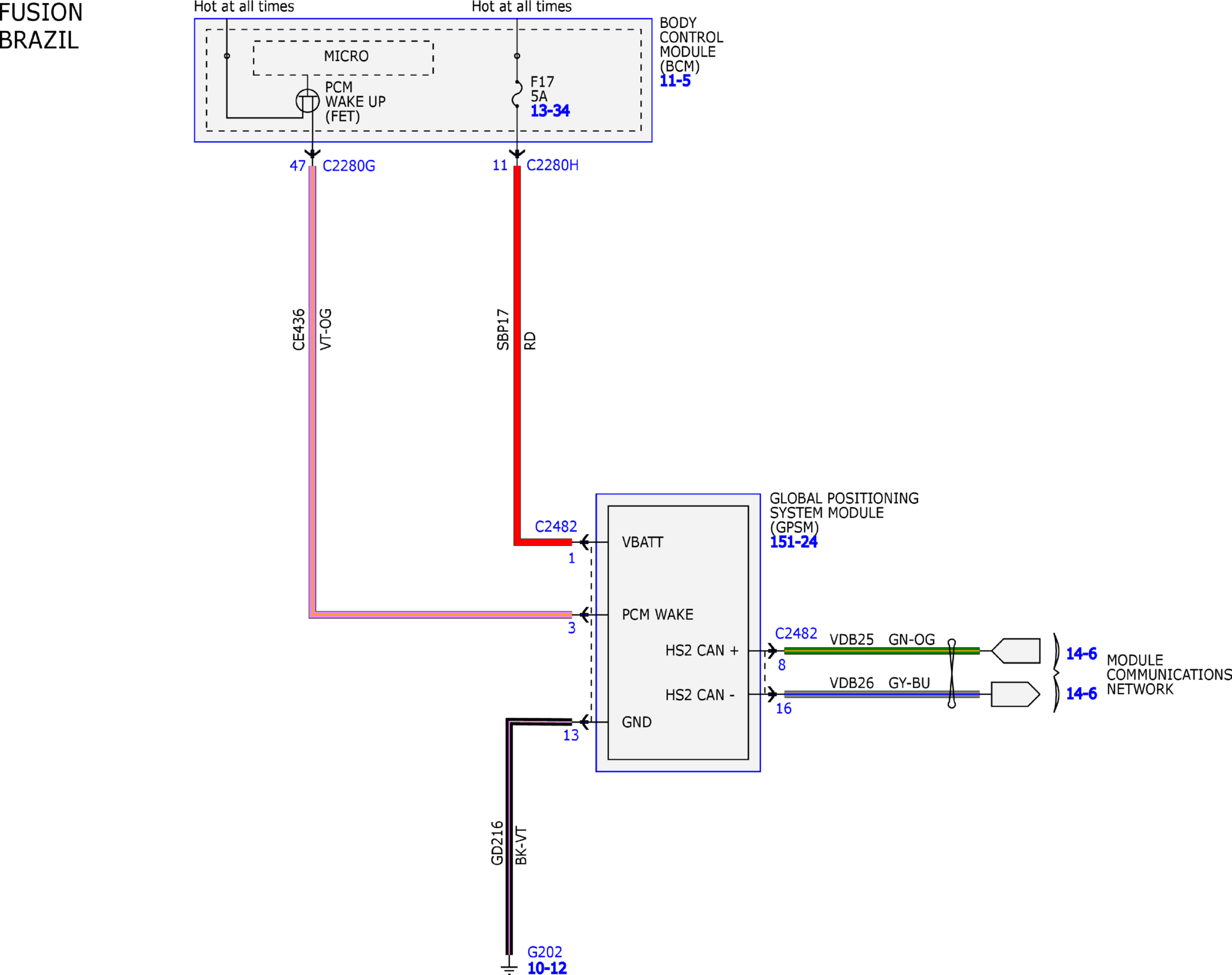

Fig 1: Passive Anti-Theft System Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR COMPANY

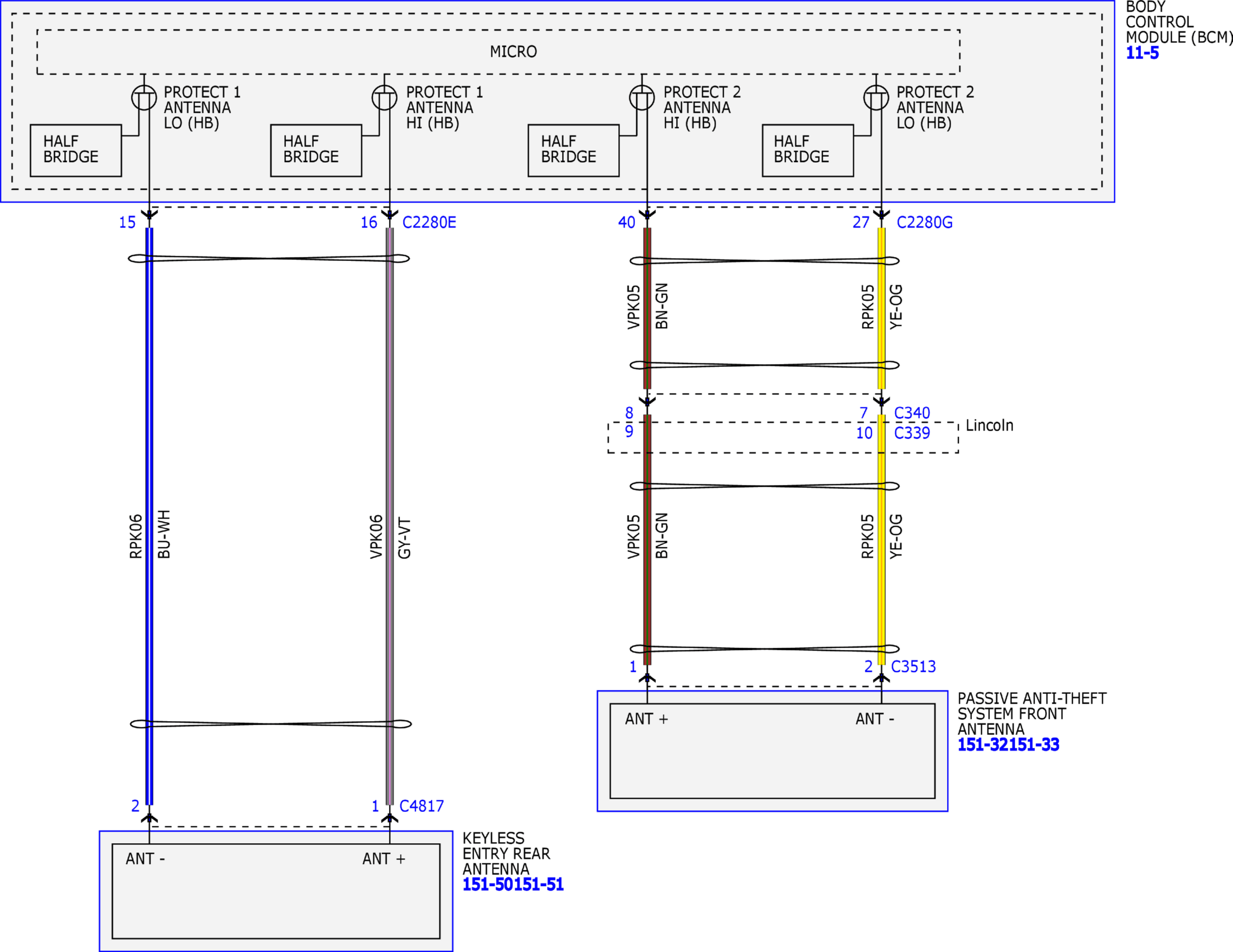

Fig 2: Passive Anti-Theft System Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
