Memory Seats

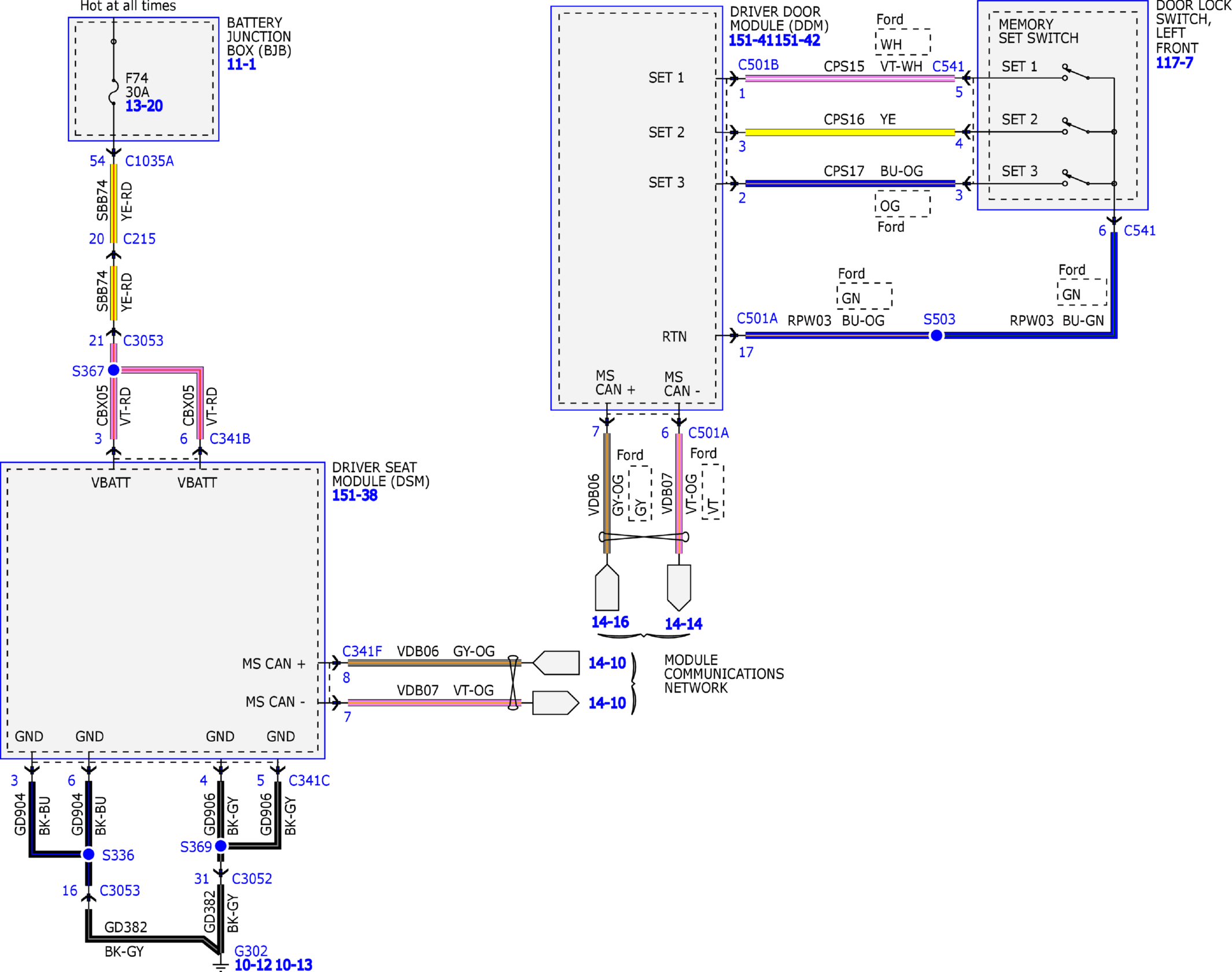

Fig 1: Memory Seats Wiring Diagram (1 Of 6)
GFDW79896Courtesy of FORD MOTOR COMPANY

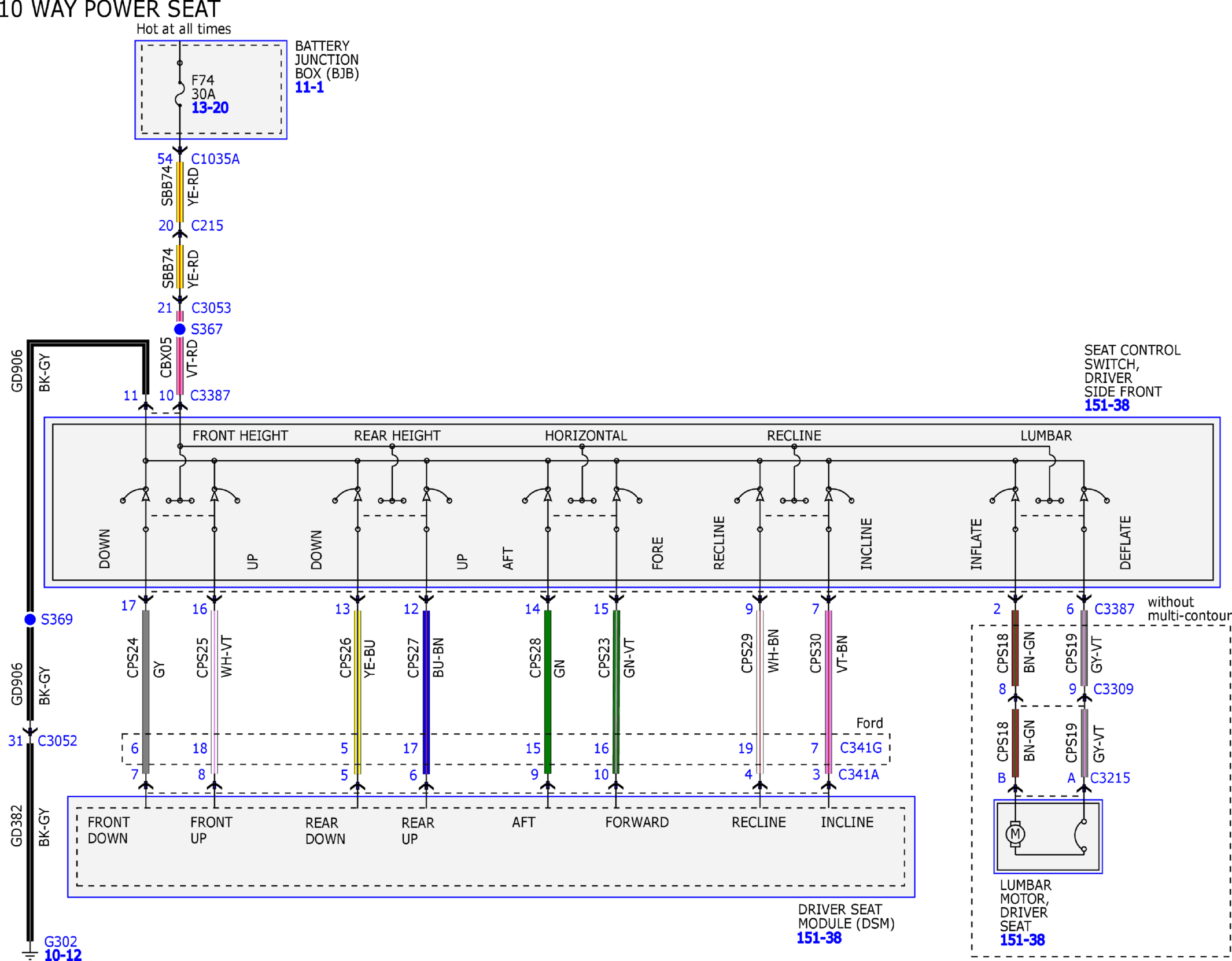

Fig 2: Memory Seats Wiring Diagram (2 Of 6)
GFDW79897Courtesy of FORD MOTOR COMPANY

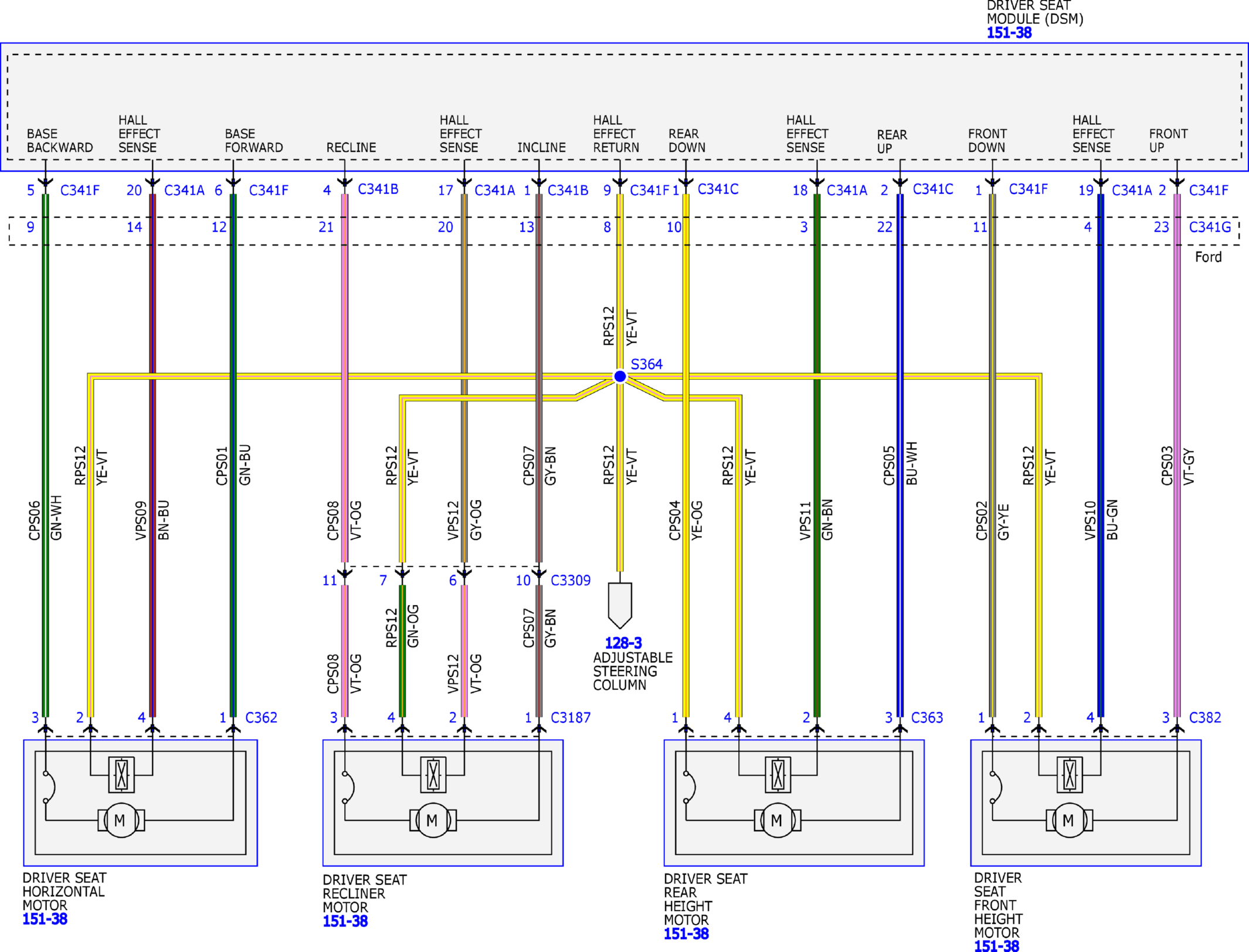

Fig 3: Memory Seats Wiring Diagram (3 Of 6)
GFDW79898Courtesy of FORD MOTOR COMPANY

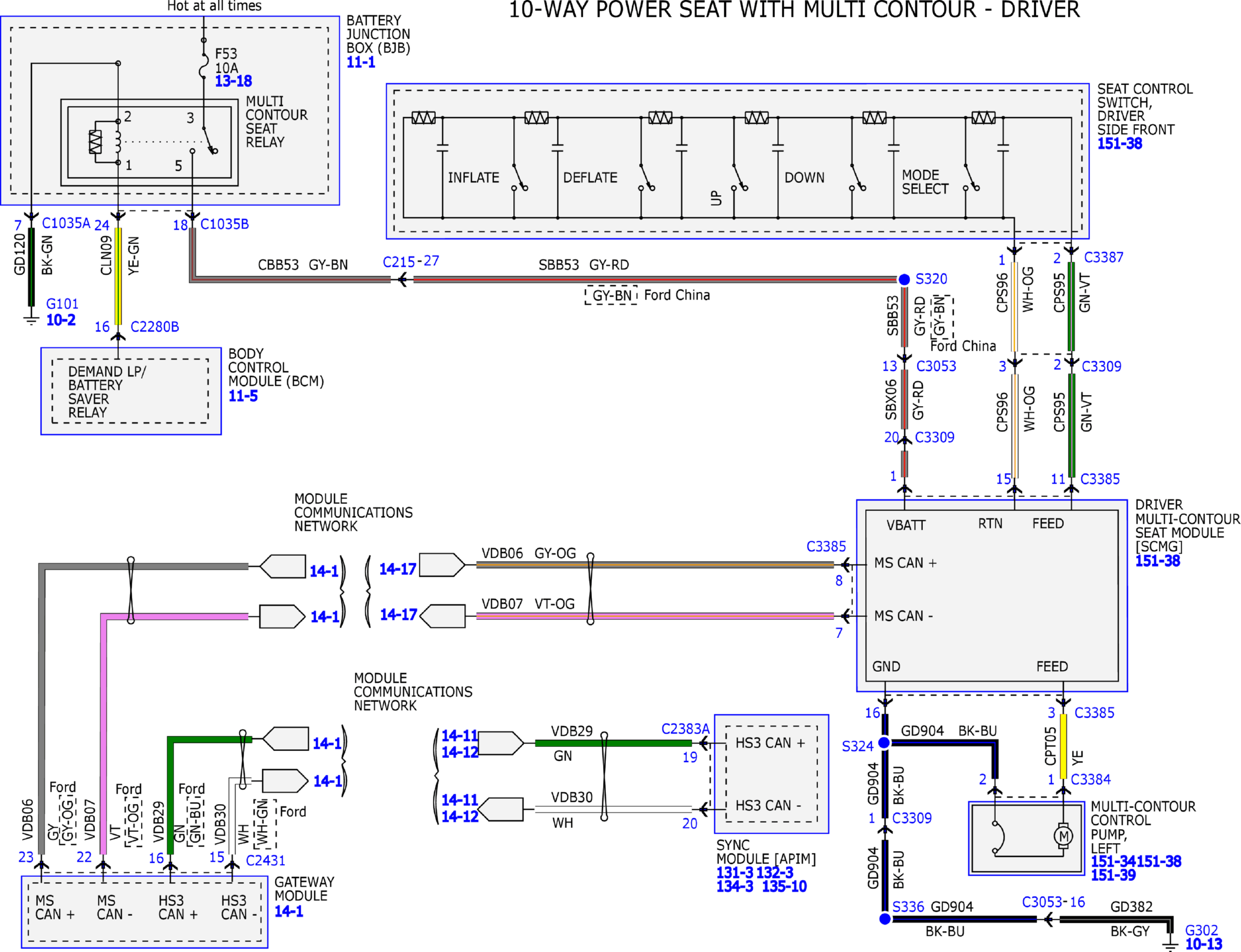

Fig 4: Memory Seats Wiring Diagram (4 Of 6)
GFDW79899Courtesy of FORD MOTOR COMPANY

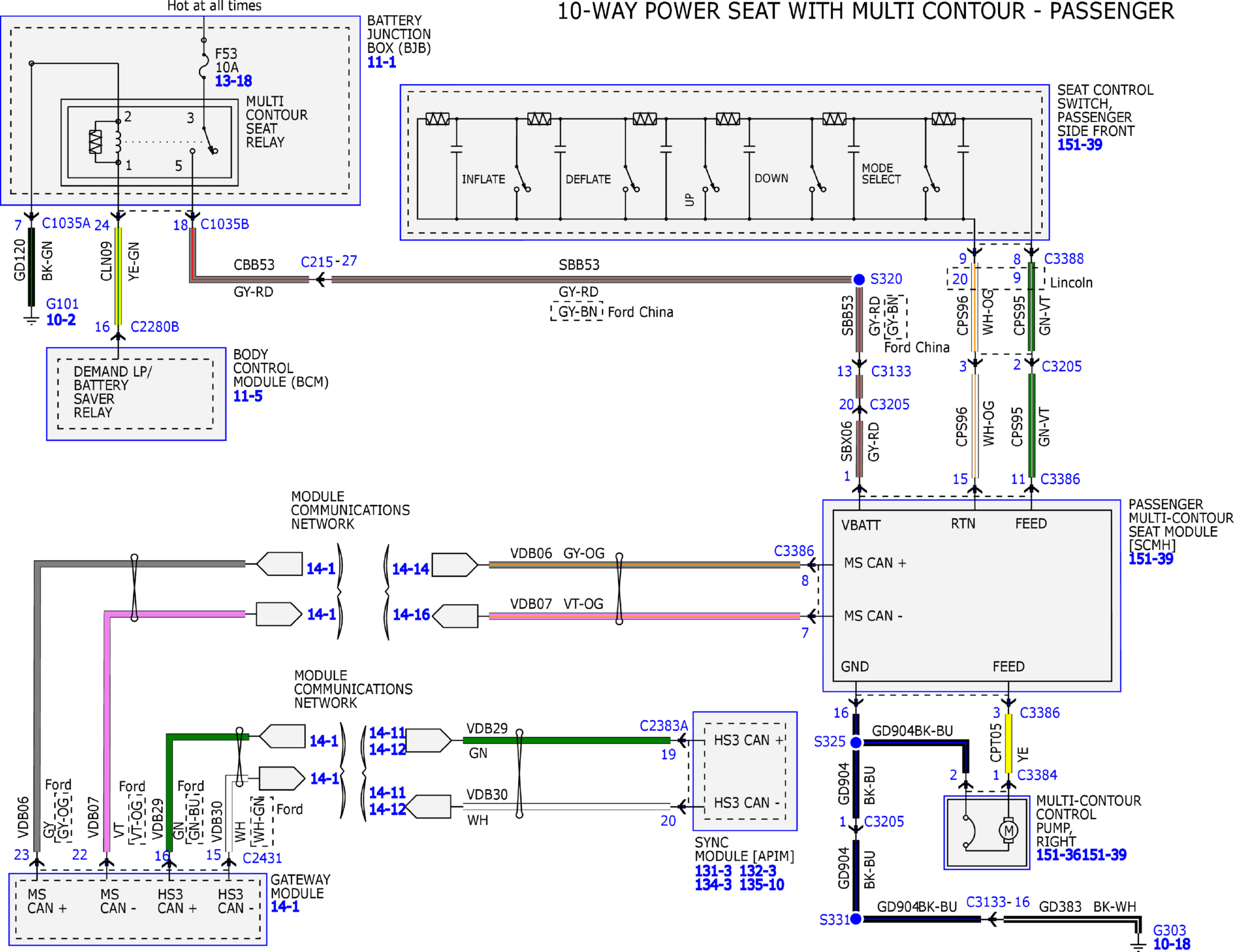

Fig 5: Memory Seats Wiring Diagram (5 Of 6)
GFDW79901Courtesy of FORD MOTOR COMPANY

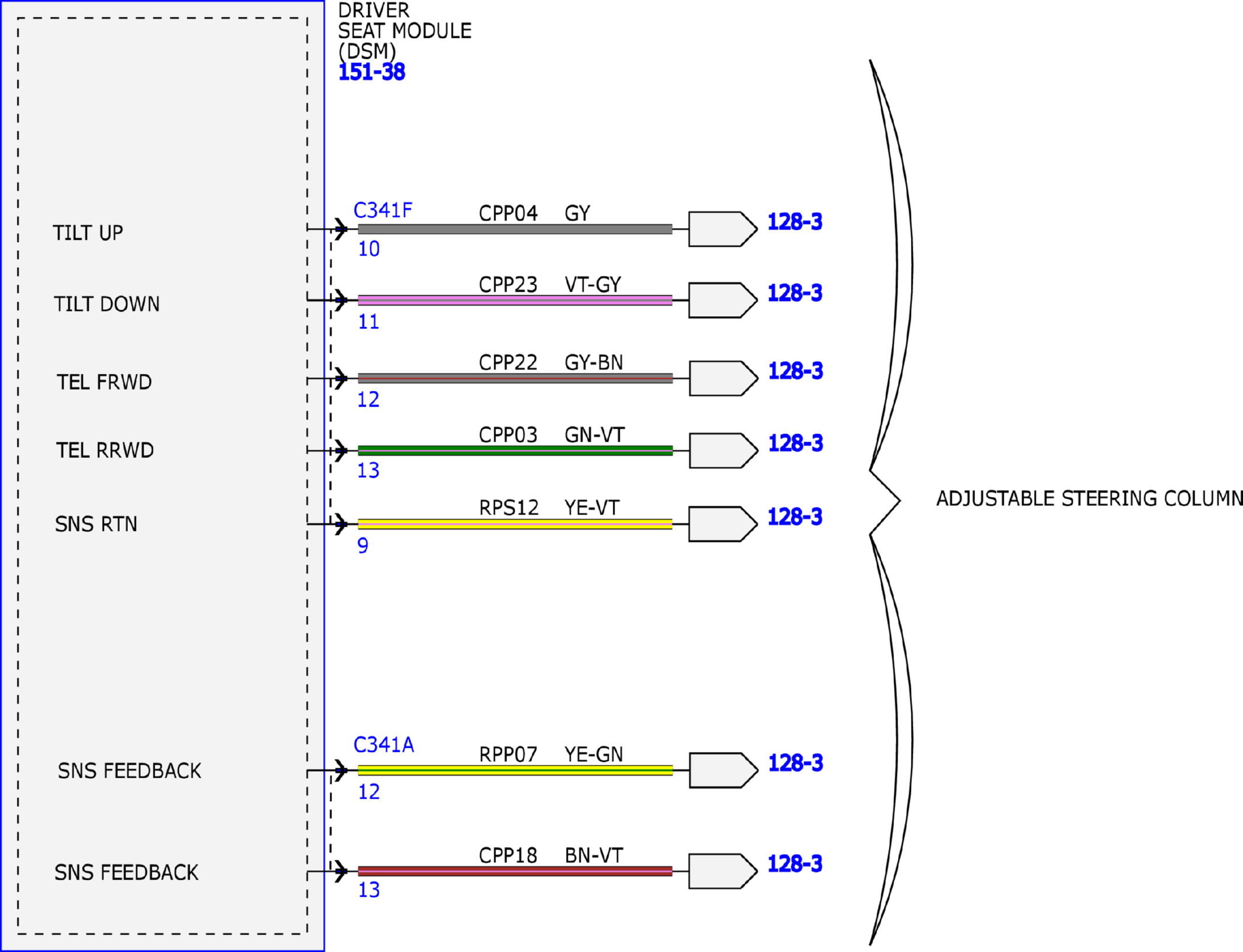

Fig 6: Memory Seats Wiring Diagram (6 Of 6)
GFDW79902Courtesy of FORD MOTOR COMPANY
