Manual Climate Control System
Manual Climate Control System

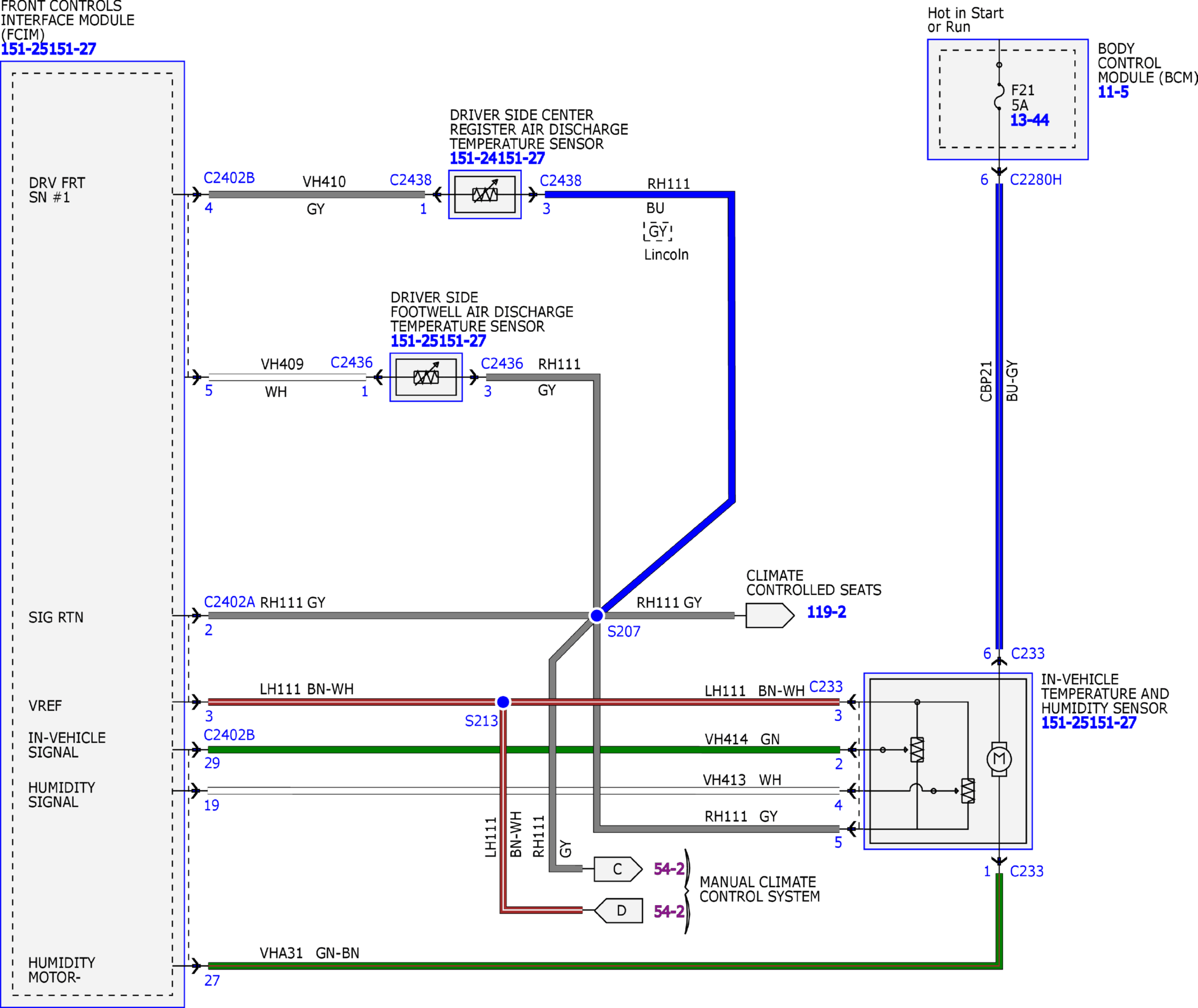

Fig 1: Manual Climate Control System Wiring Diagram (1 Of 7)
Courtesy of FORD MOTOR COMPANY

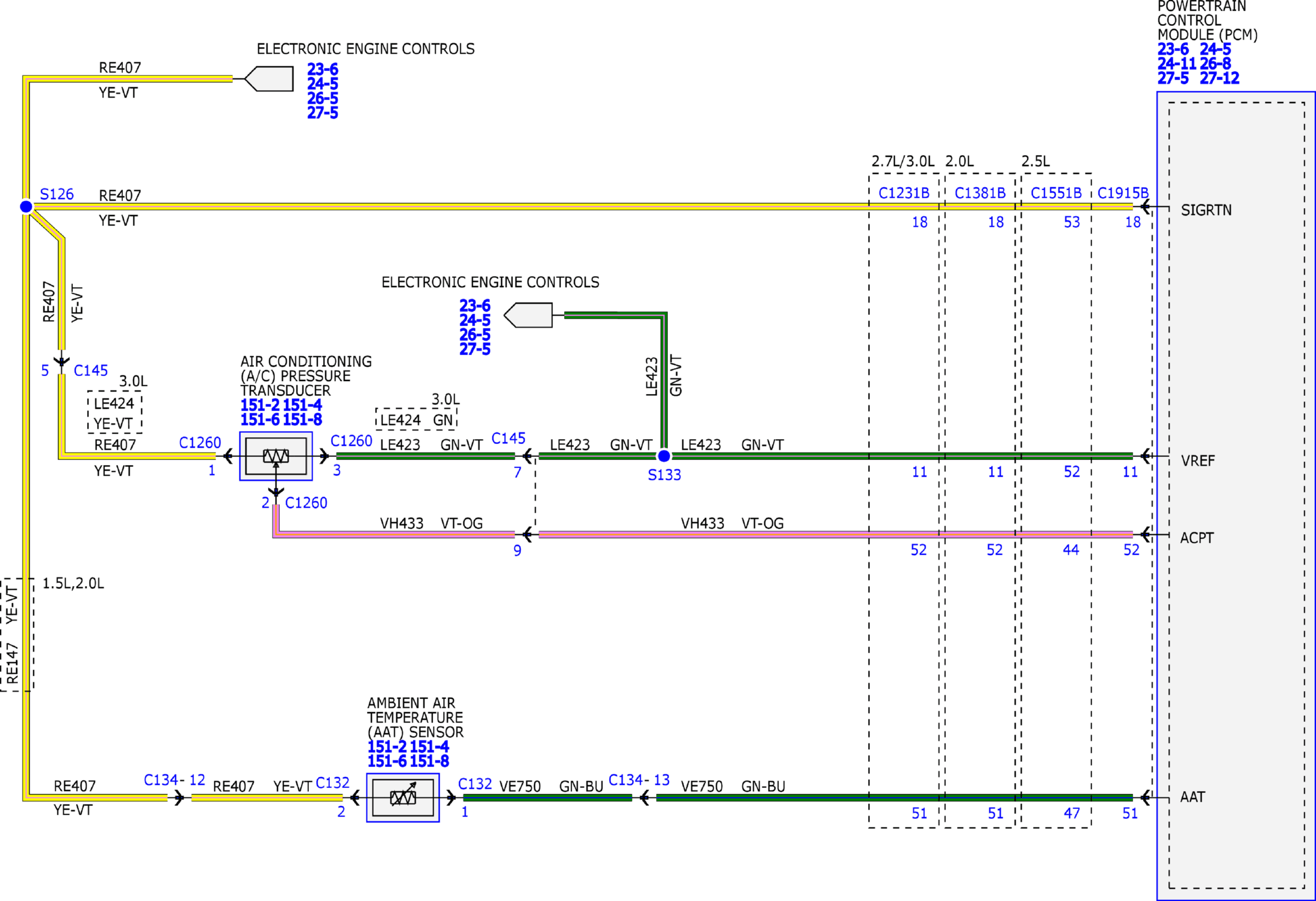

Fig 2: Manual Climate Control System Wiring Diagram (2 Of 7)
Courtesy of FORD MOTOR COMPANY

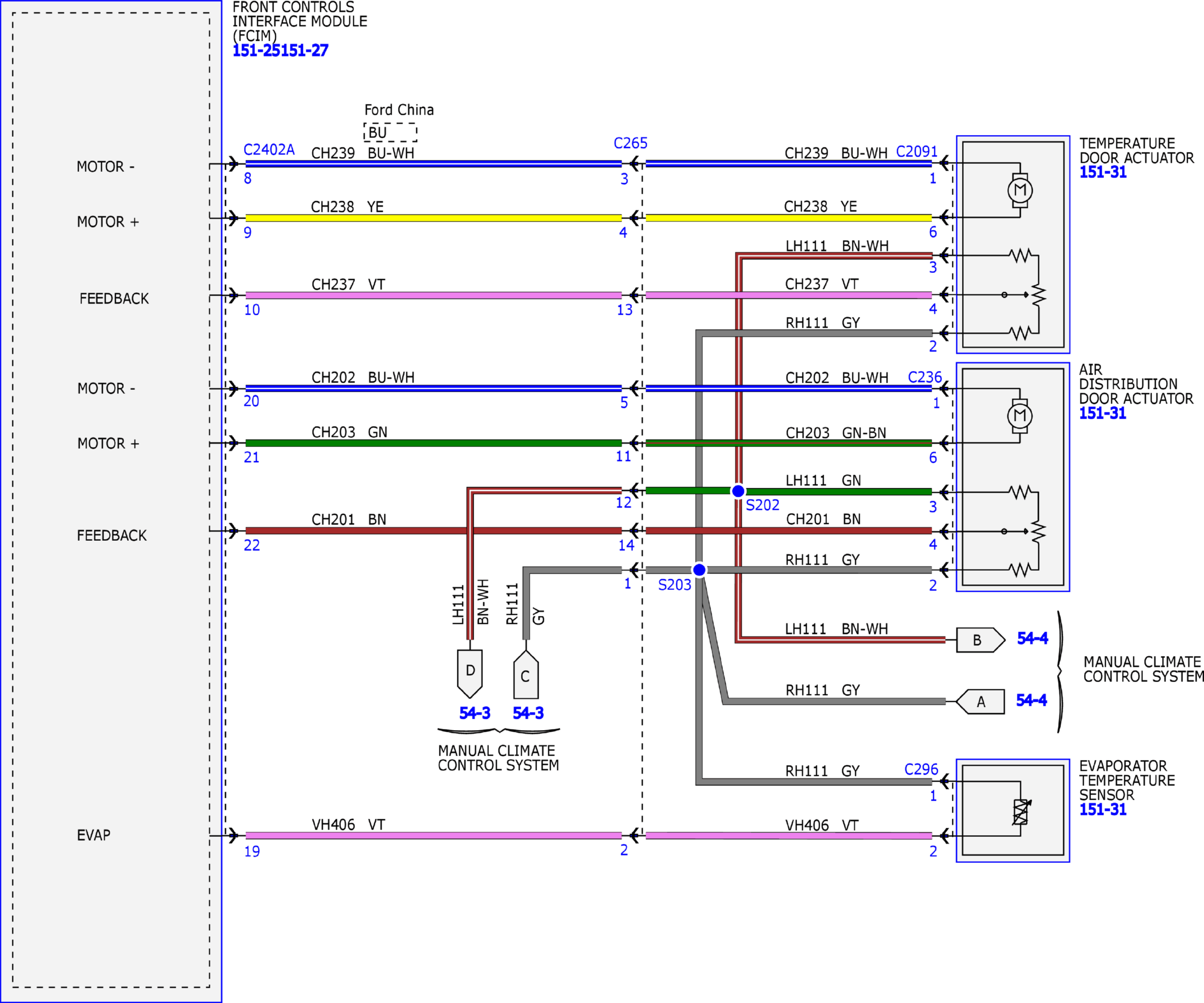

Fig 3: Manual Climate Control System Wiring Diagram (3 Of 7)
Courtesy of FORD MOTOR COMPANY

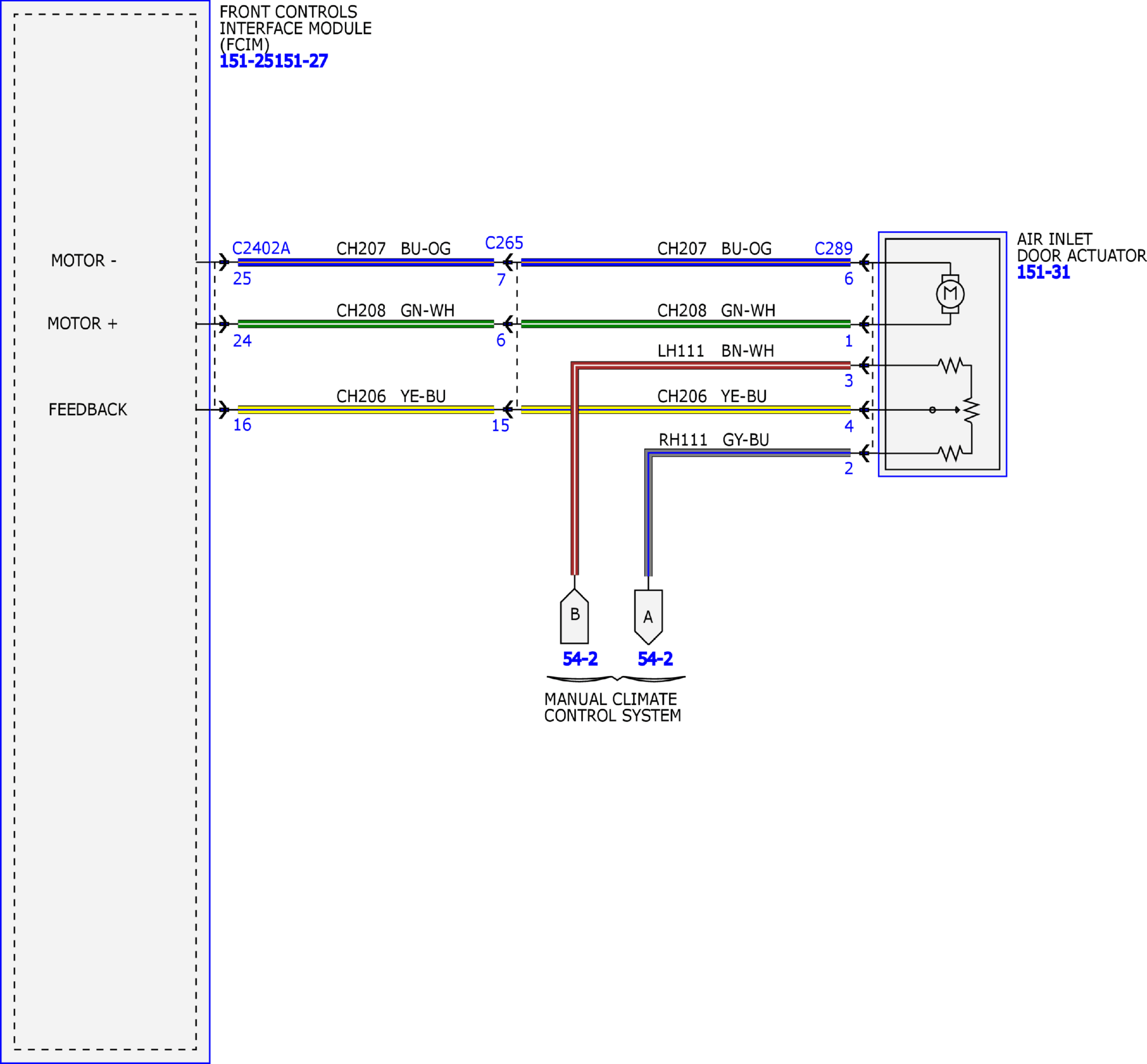

Fig 4: Manual Climate Control System Wiring Diagram (4 Of 7)
Courtesy of FORD MOTOR COMPANY

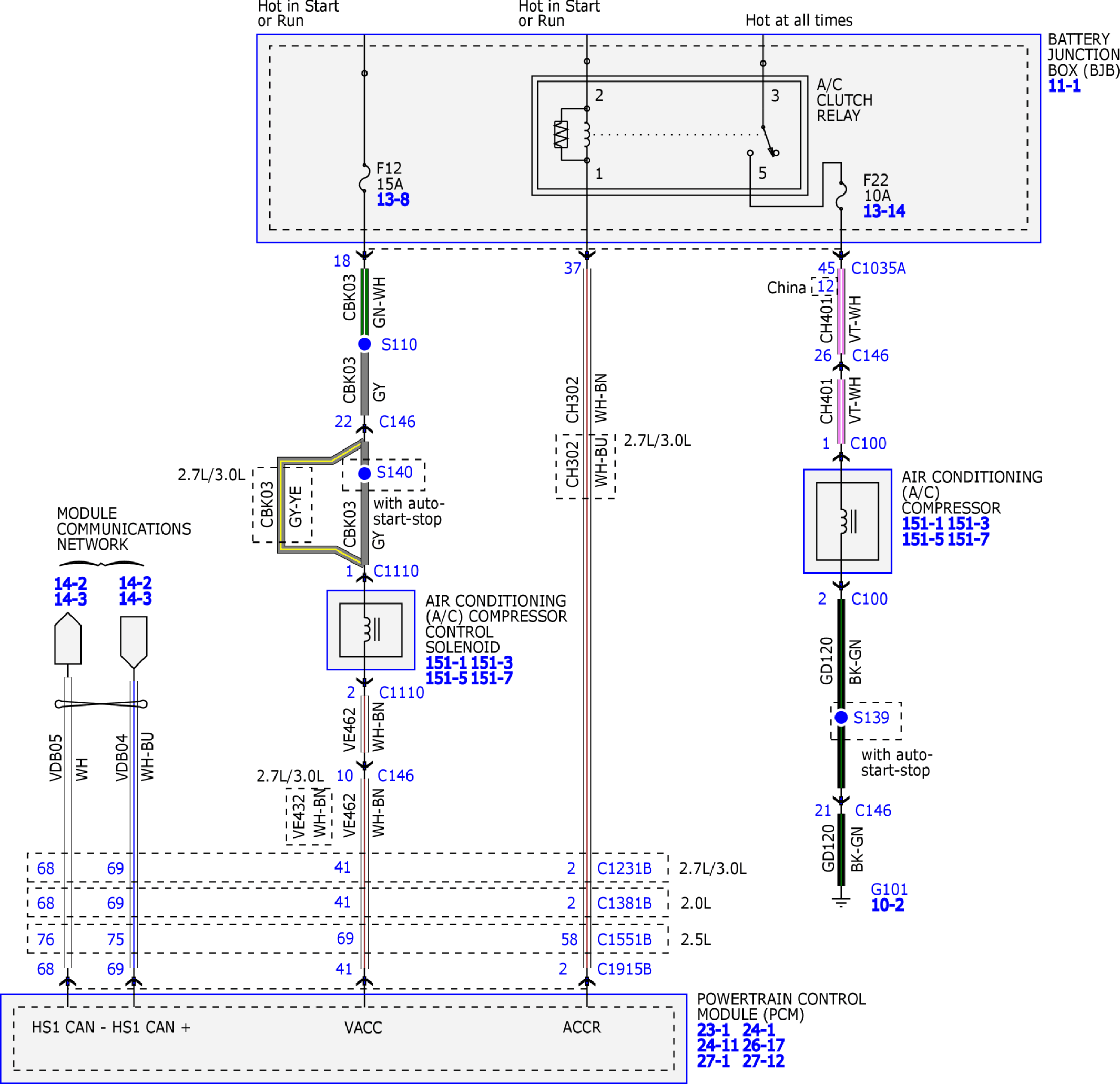

Fig 5: Manual Climate Control System Wiring Diagram (5 Of 7)
Courtesy of FORD MOTOR COMPANY

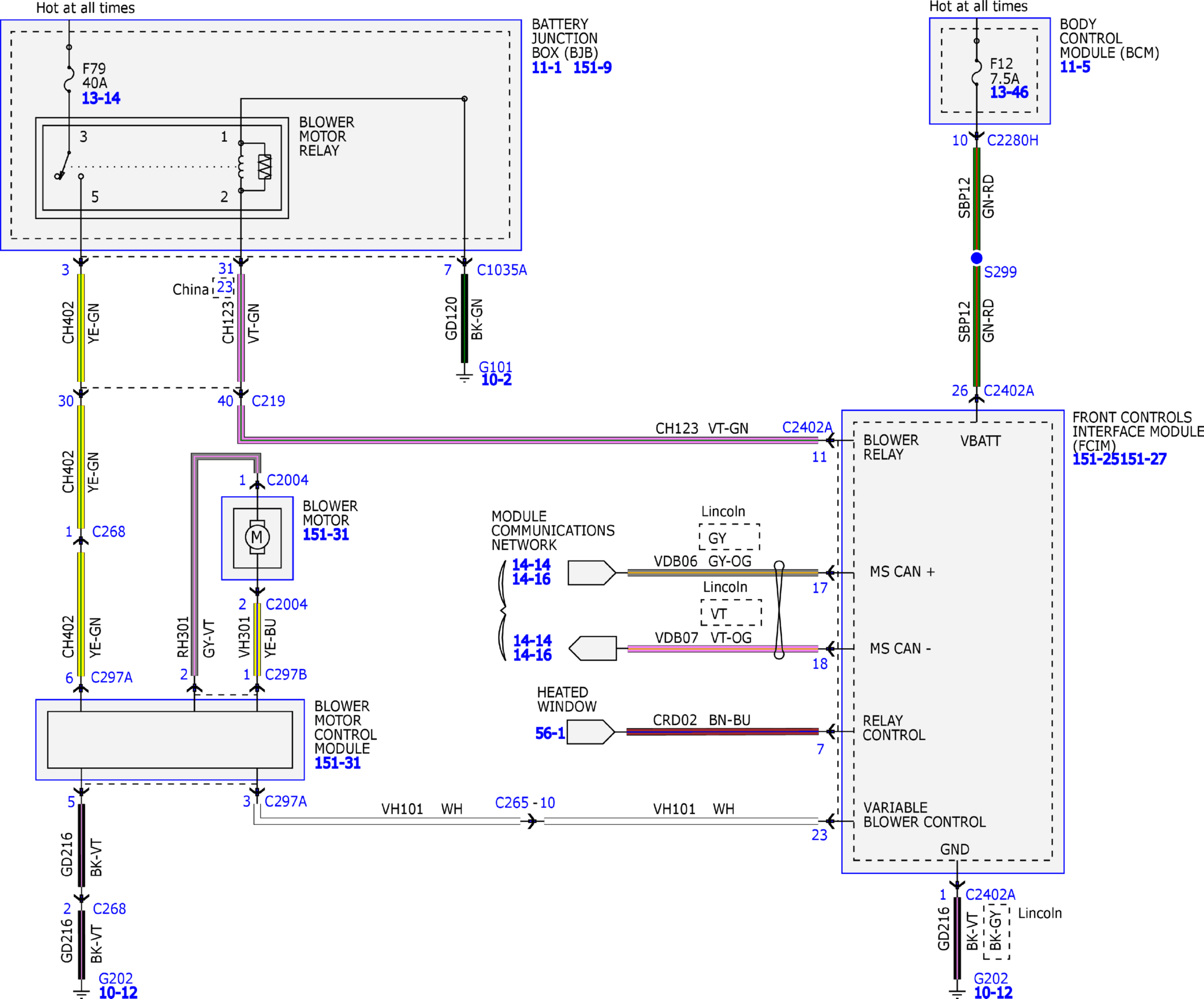

Fig 6: Manual Climate Control System Wiring Diagram (6 Of 7)
Courtesy of FORD MOTOR COMPANY

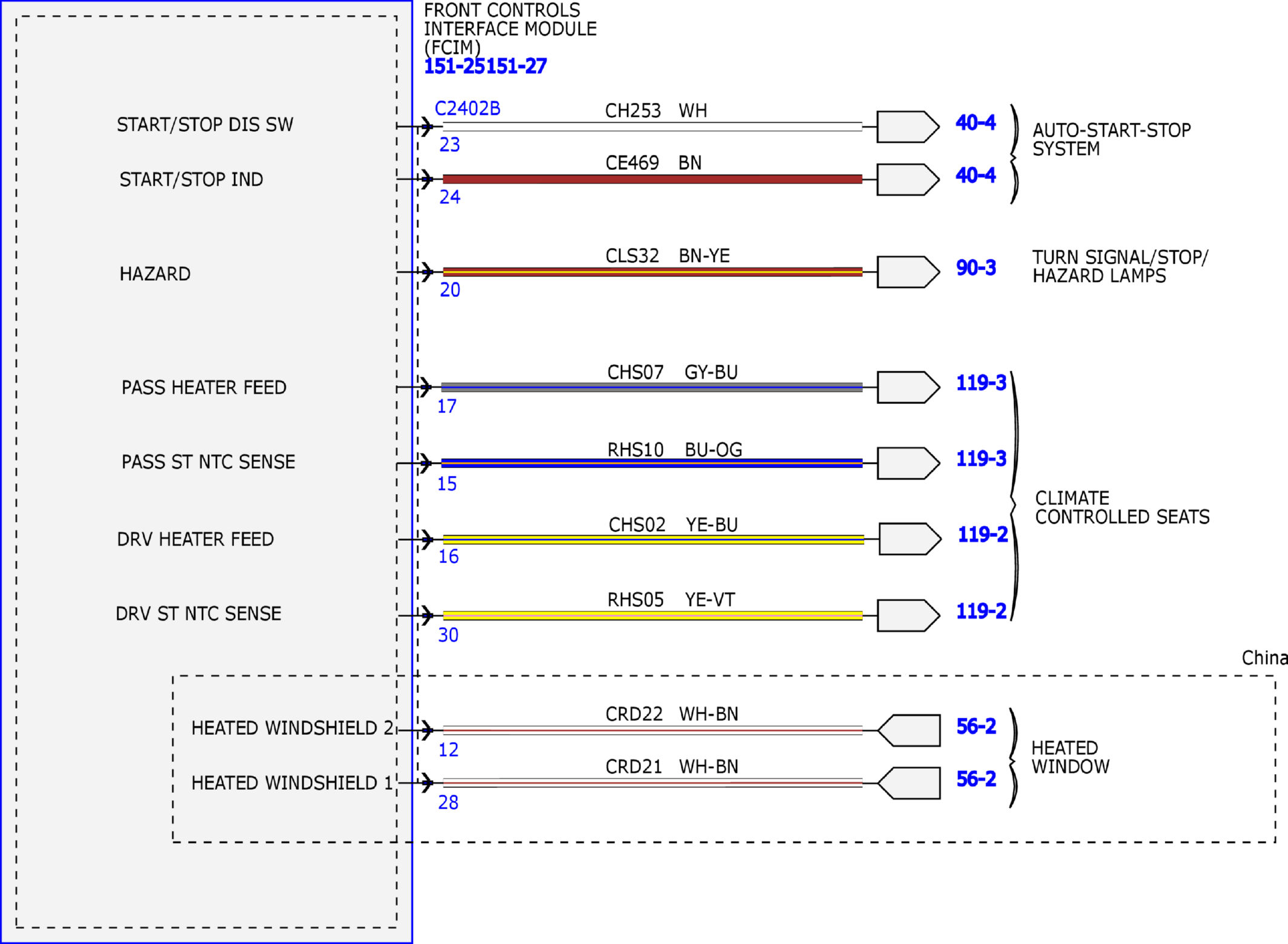

Fig 7: Manual Climate Control System Wiring Diagram (7 Of 7)
Courtesy of FORD MOTOR COMPANY
