Electronic Engine Controls - 1.5L

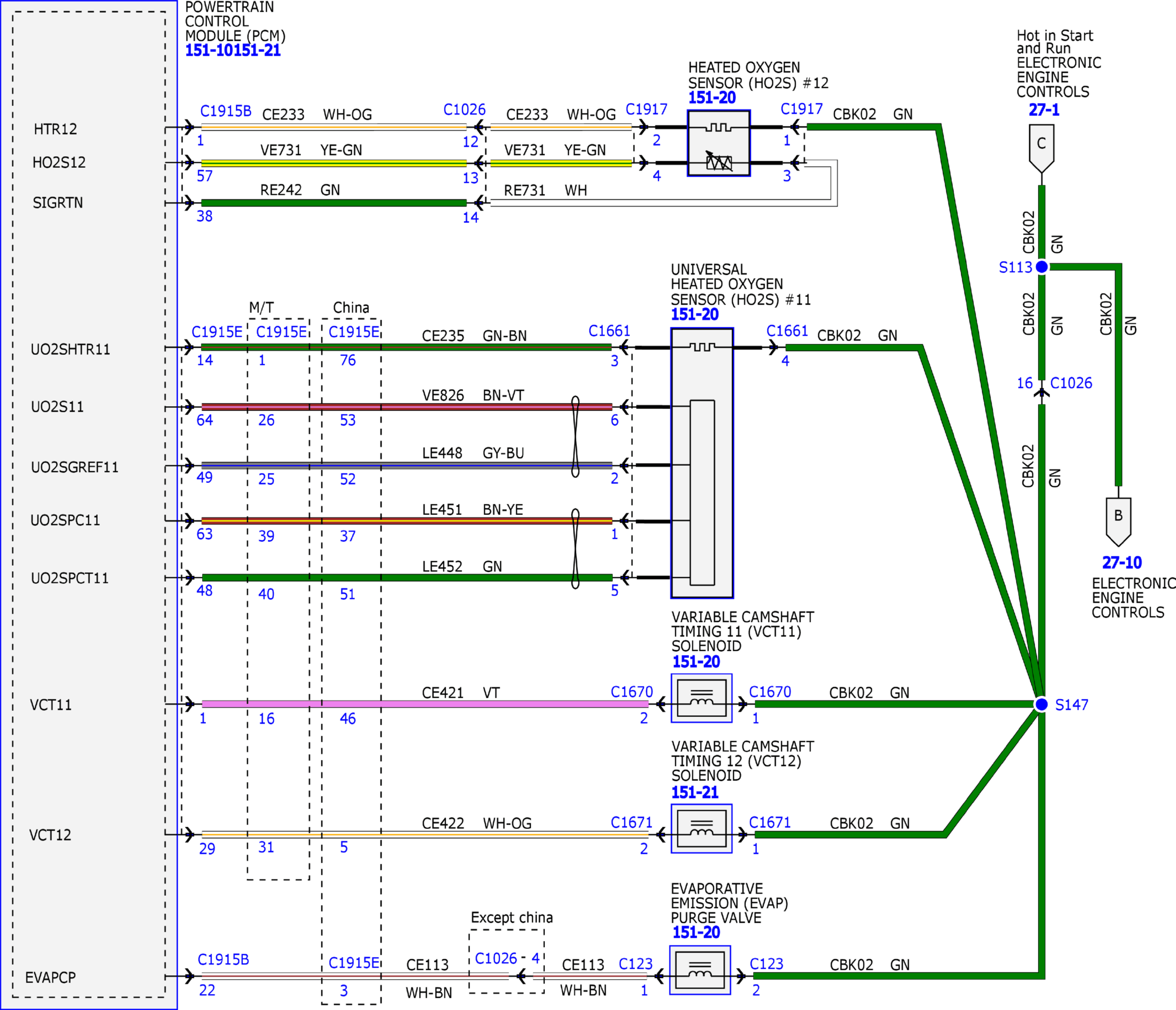

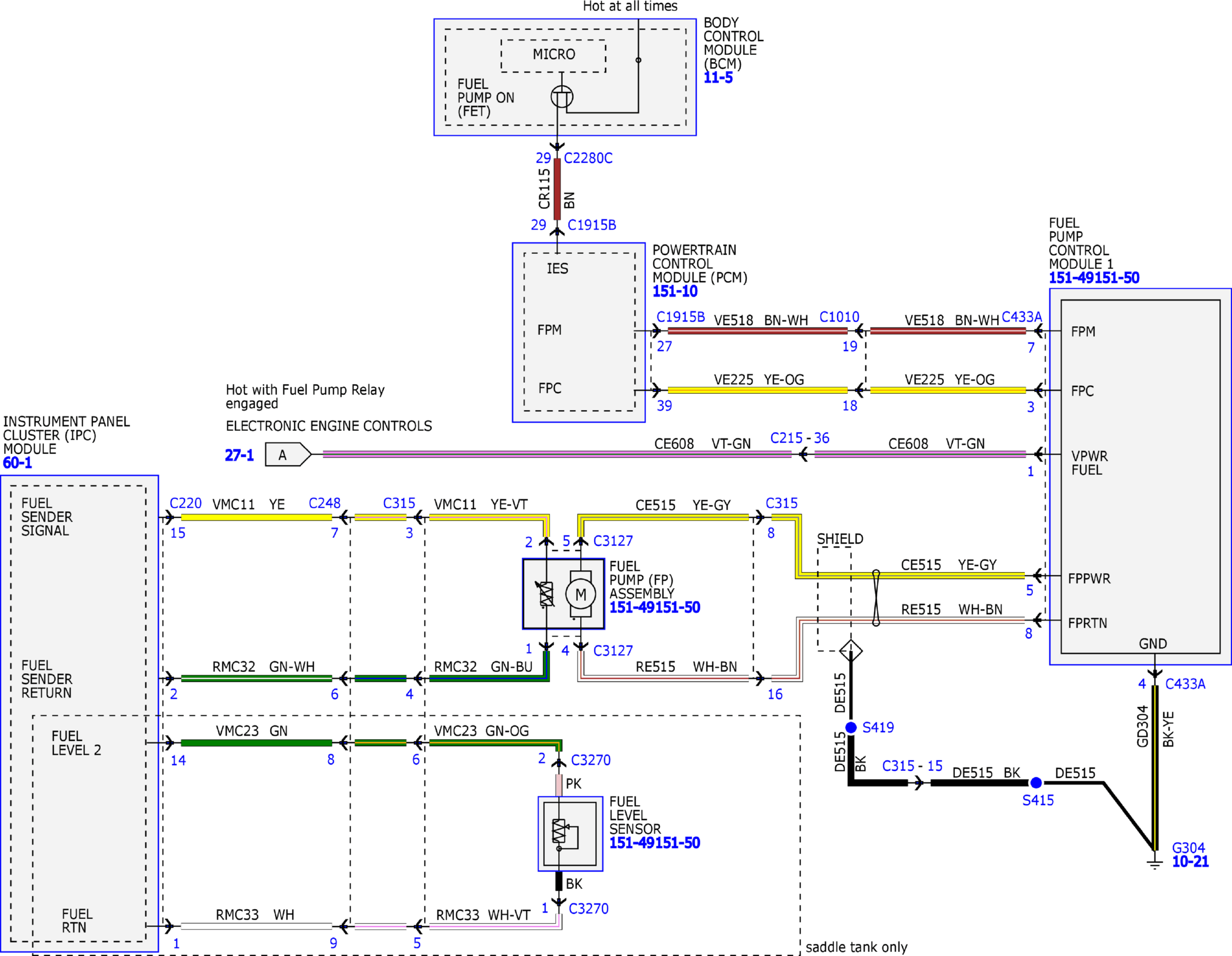

Fig 1: Electronic Engine Controls Wiring Diagram - 1.5L (1 Of 13)

Courtesy of FORD MOTOR COMPANY

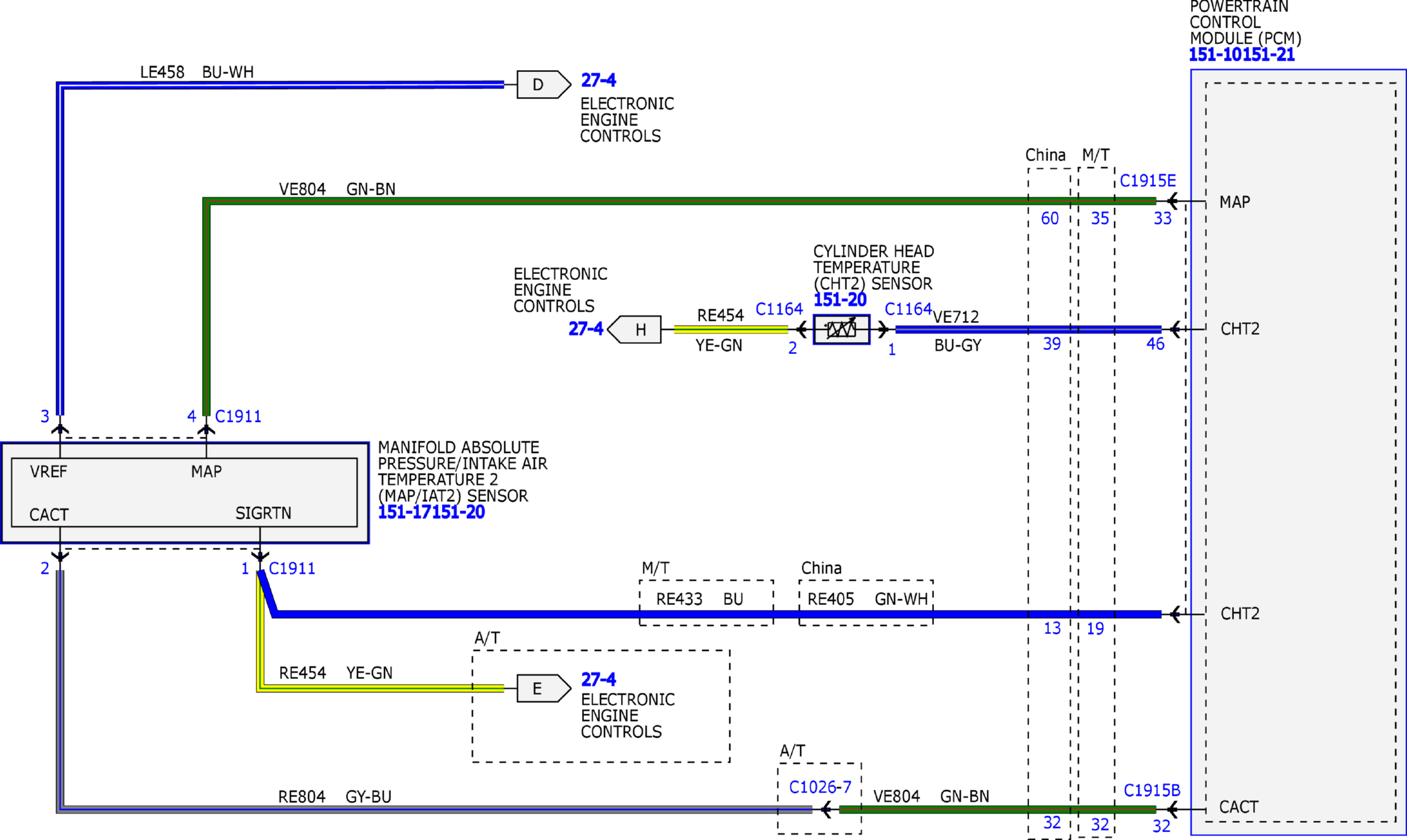

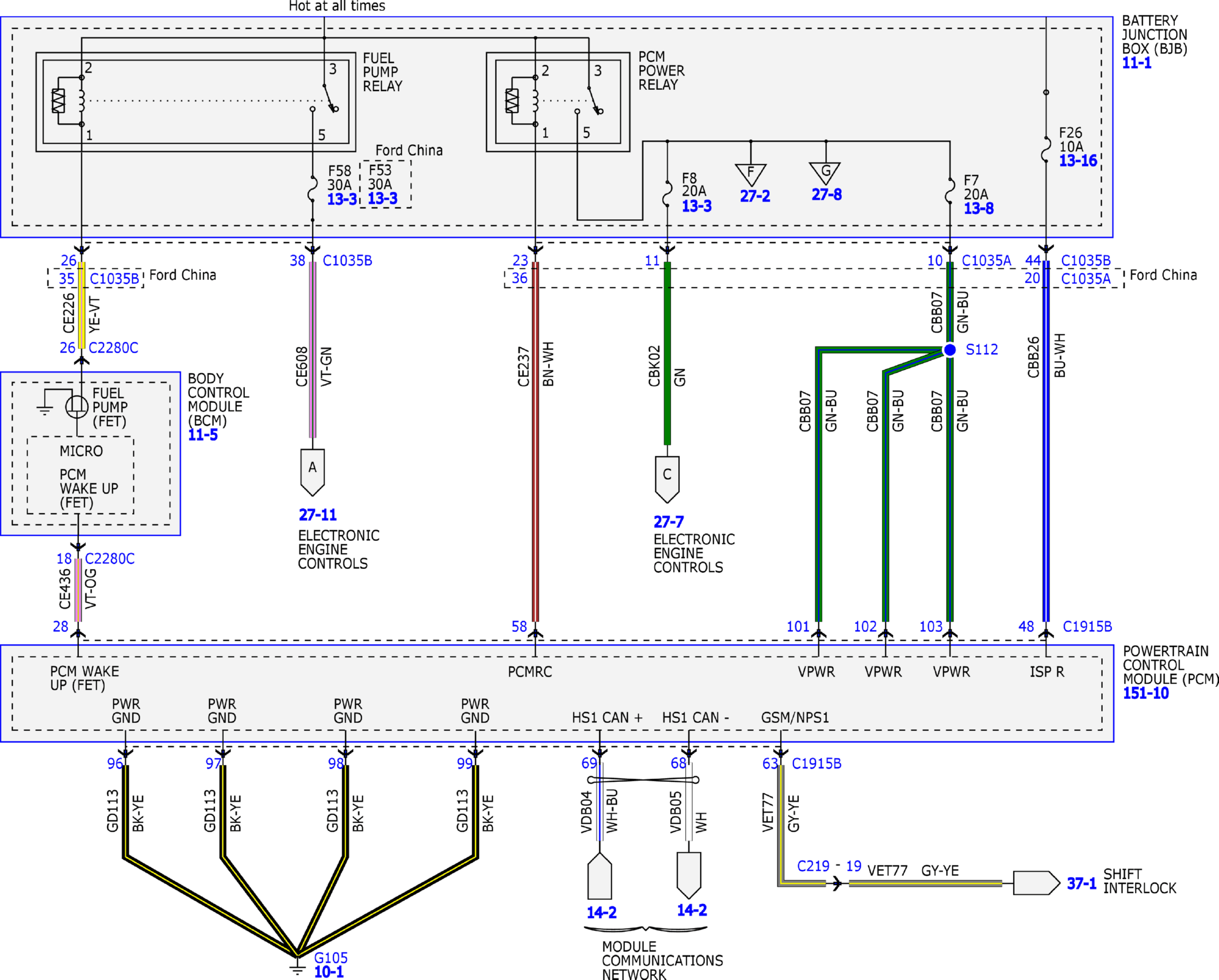

Fig 2: Electronic Engine Controls Wiring Diagram - 1.5L (2 Of 13)

Courtesy of FORD MOTOR COMPANY

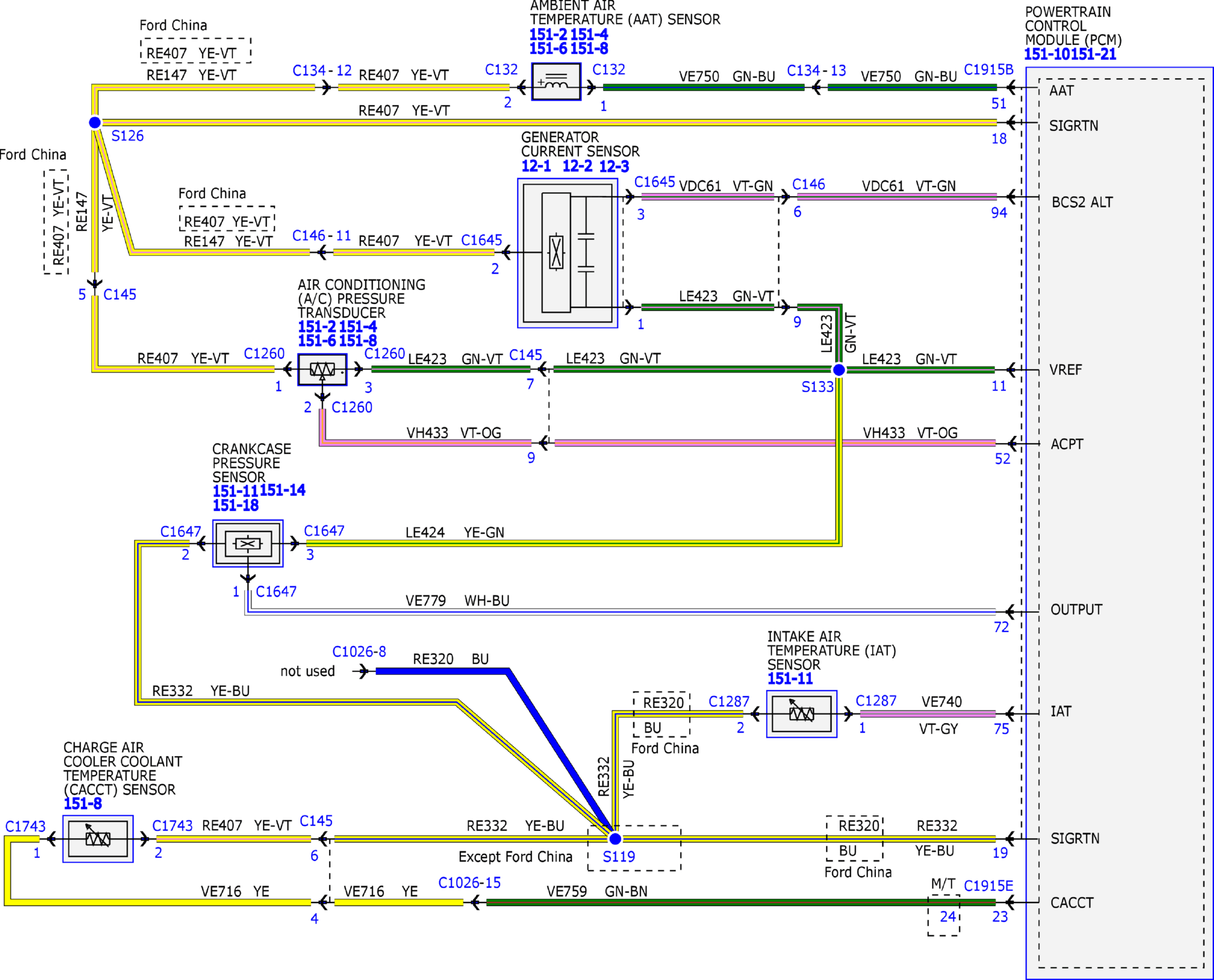

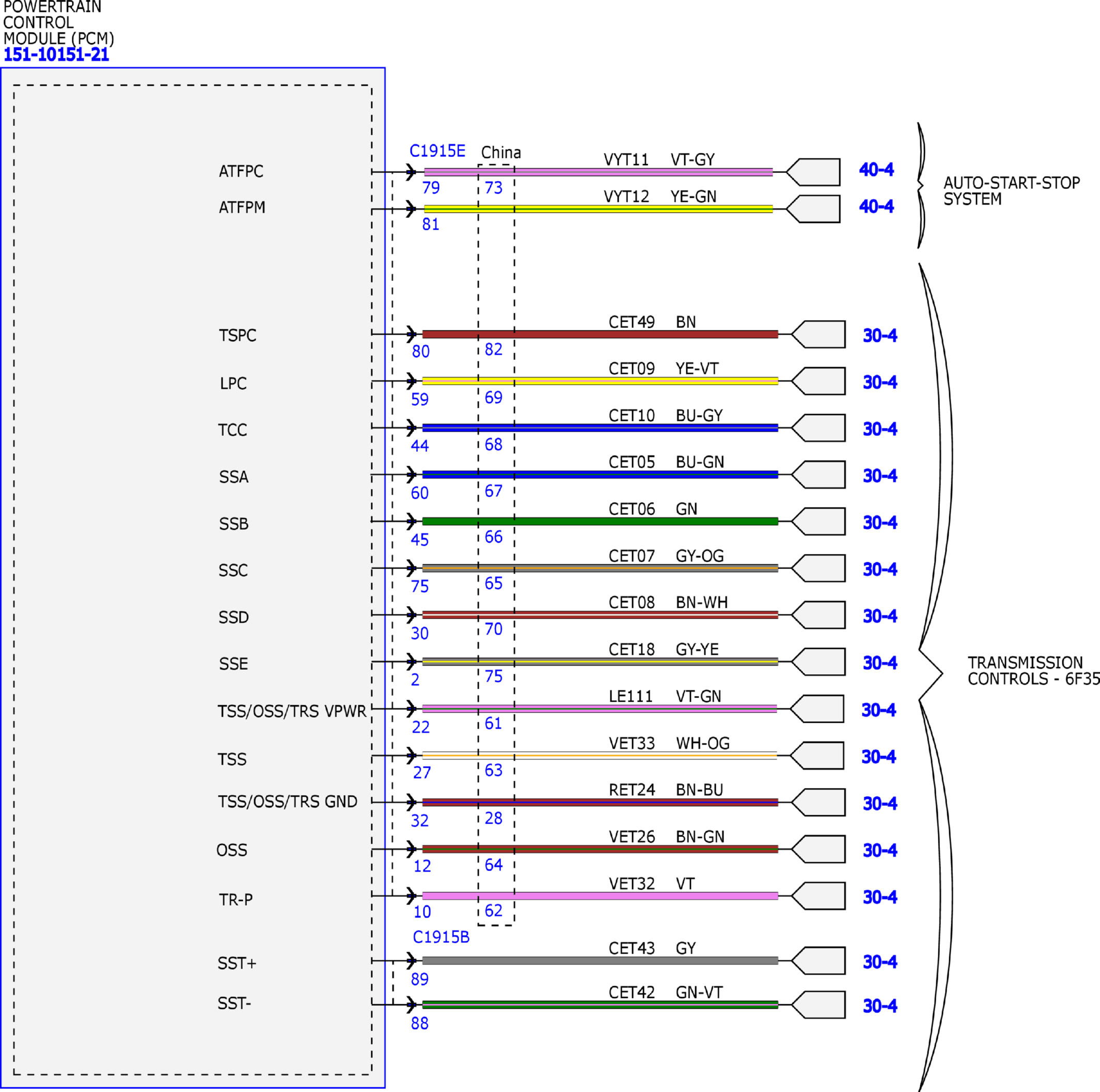

Fig 3: Electronic Engine Controls Wiring Diagram - 1.5L (3 Of 13)

Courtesy of FORD MOTOR COMPANY

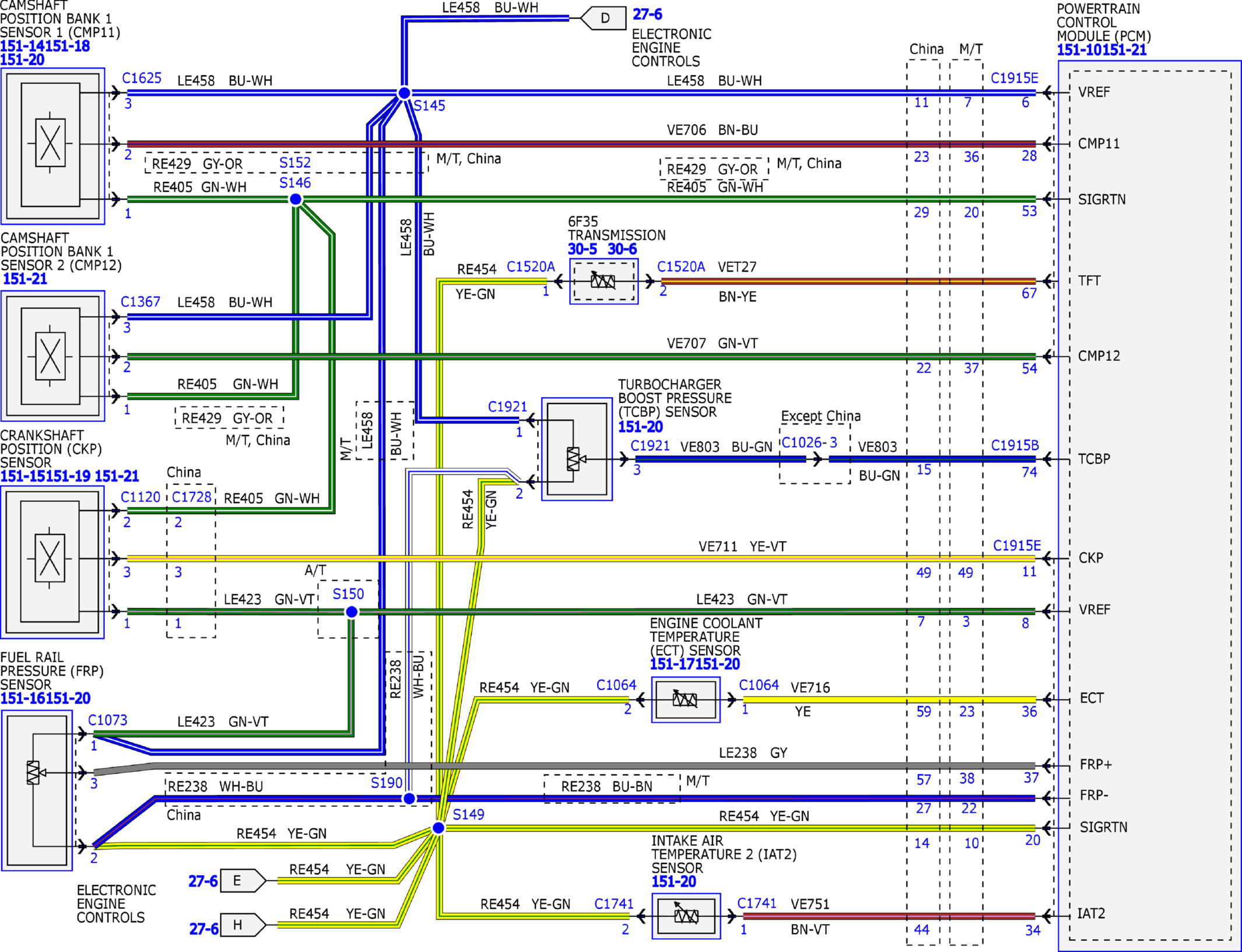

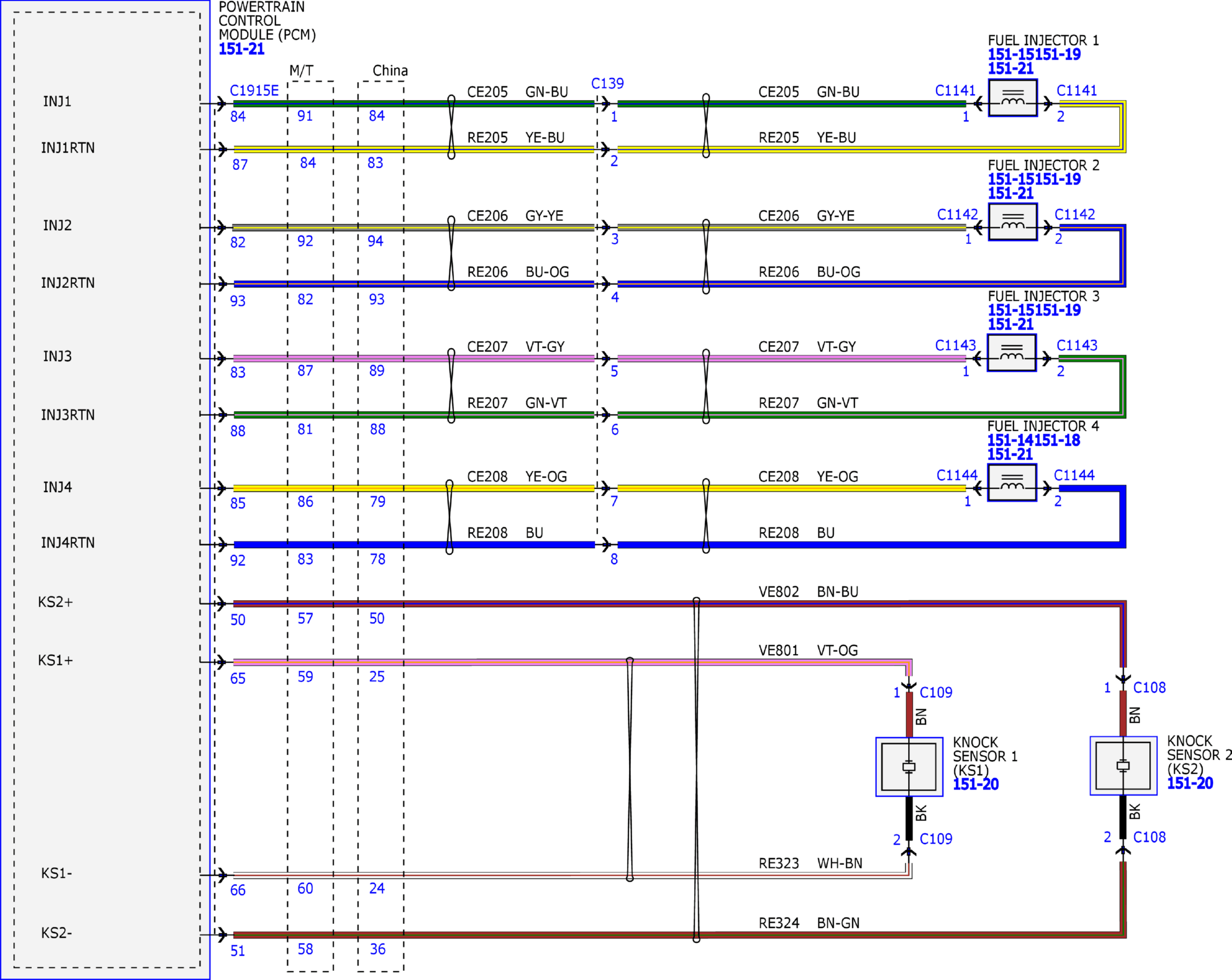

Fig 4: Electronic Engine Controls Wiring Diagram - 1.5L (4 Of 13)

Courtesy of FORD MOTOR COMPANY

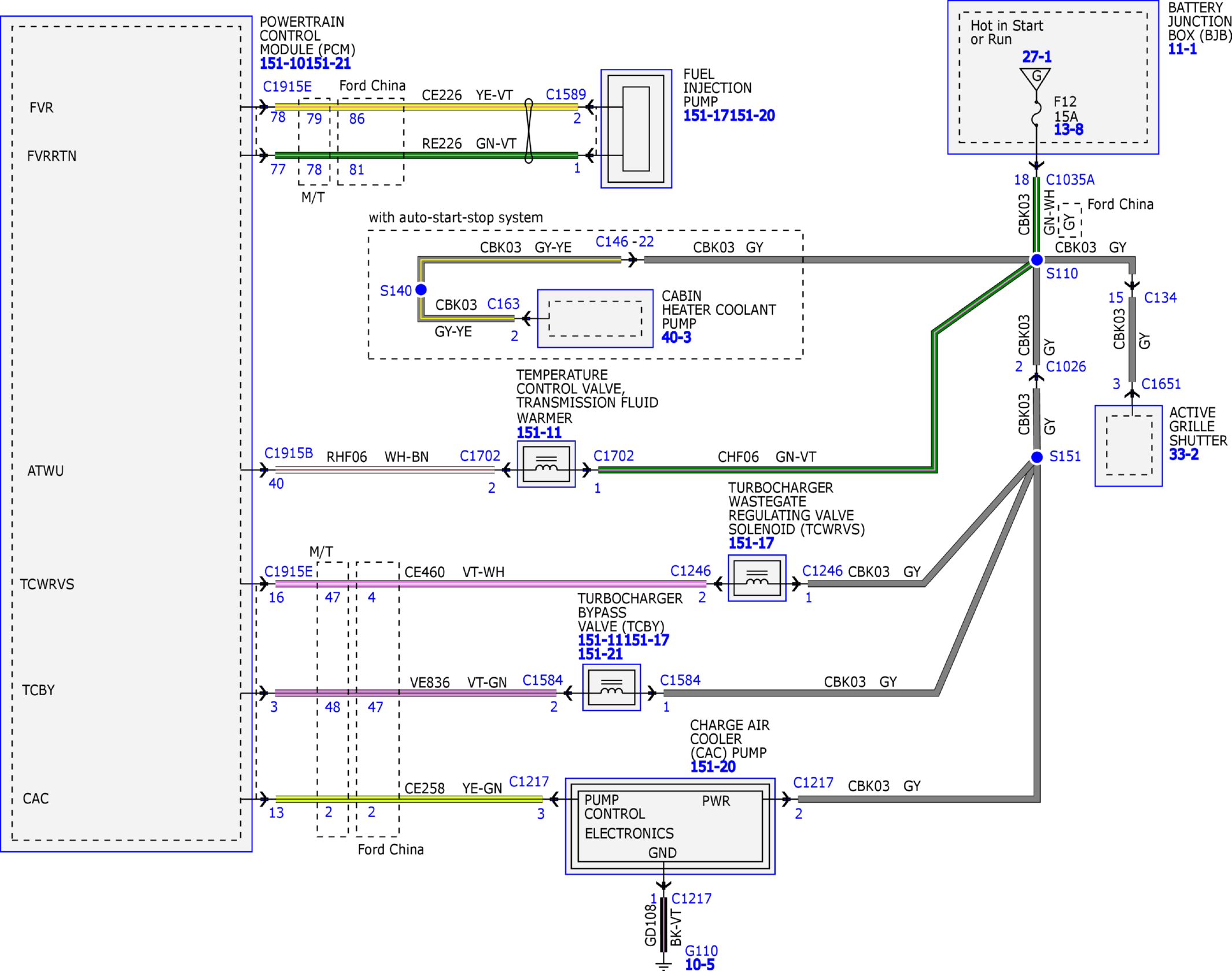

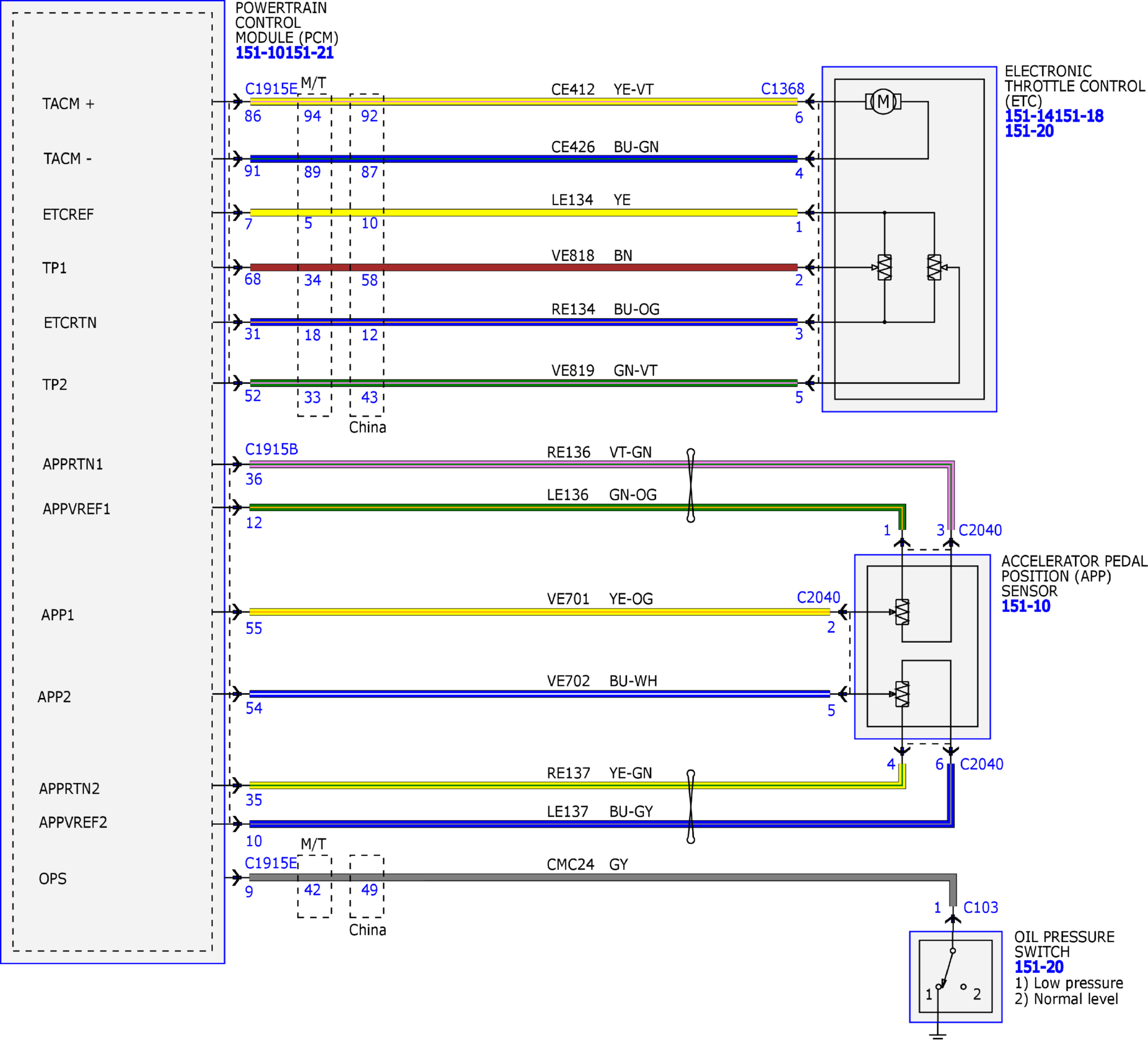

Fig 5: Electronic Engine Controls Wiring Diagram - 1.5L (5 Of 13)

Courtesy of FORD MOTOR COMPANY

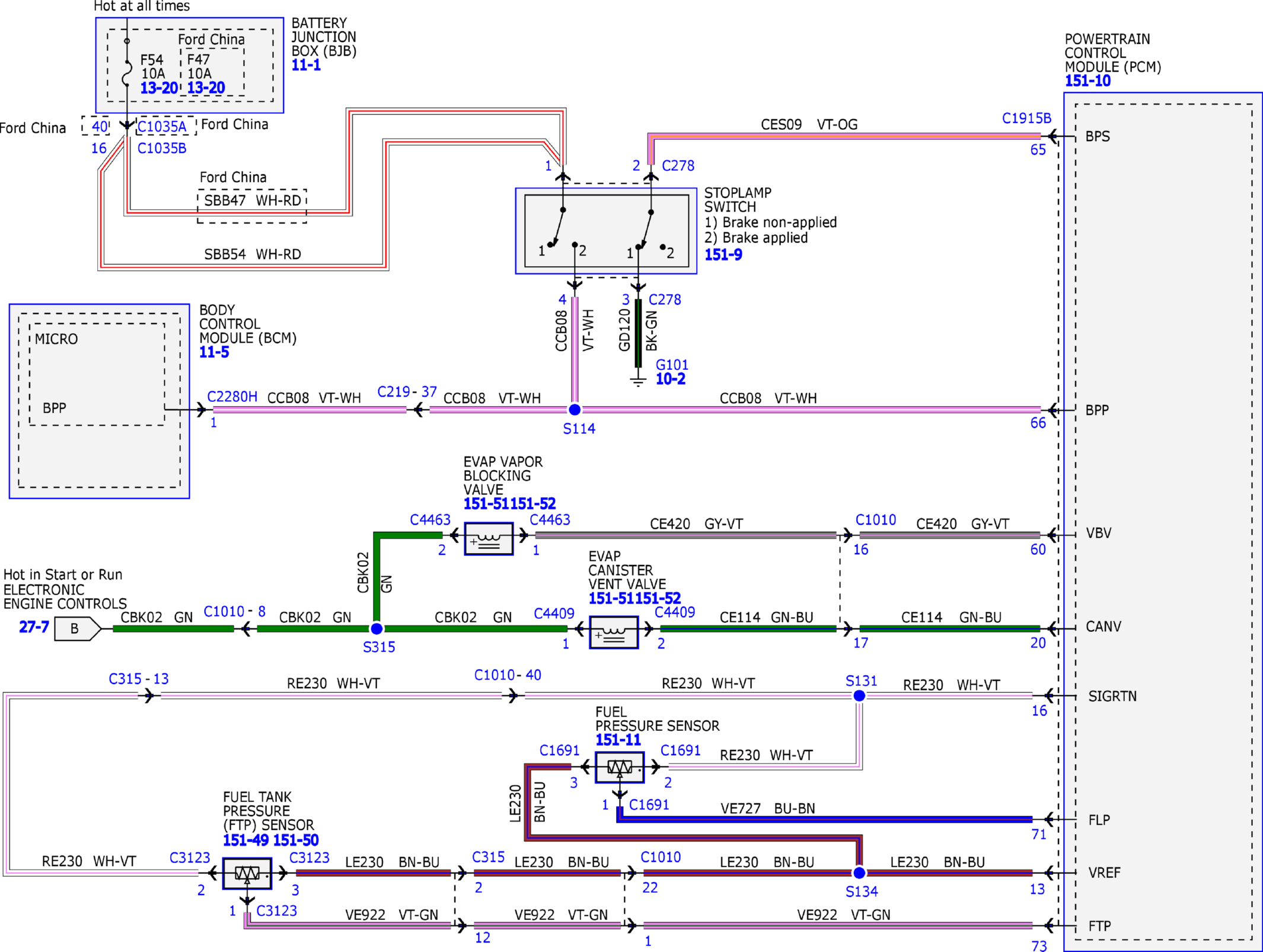

Fig 6: Electronic Engine Controls Wiring Diagram - 1.5L (6 Of 13)

Courtesy of FORD MOTOR COMPANY

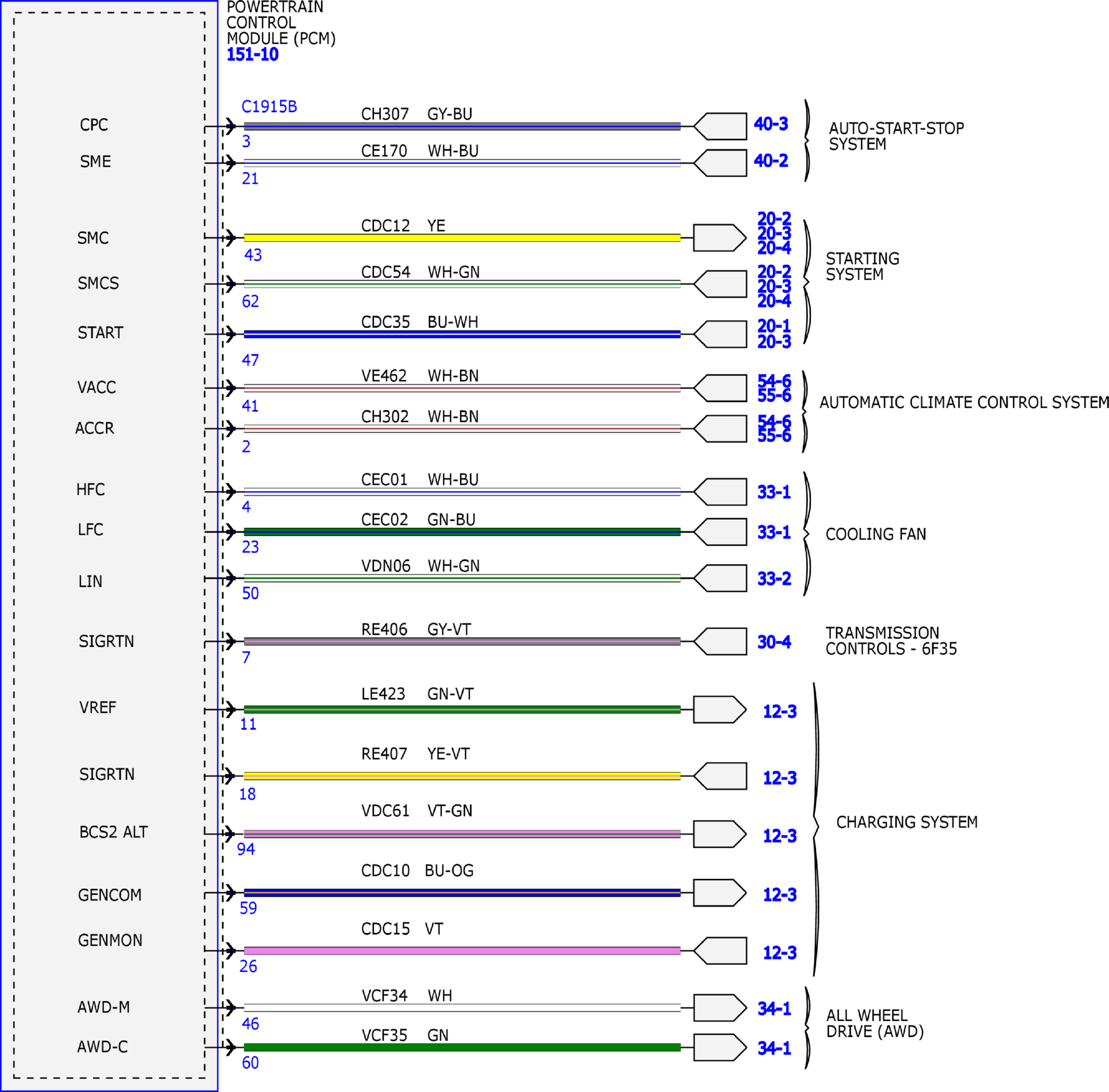

Fig 7: Electronic Engine Controls Wiring Diagram - 1.5L (7 Of 13)

Courtesy of FORD MOTOR COMPANY

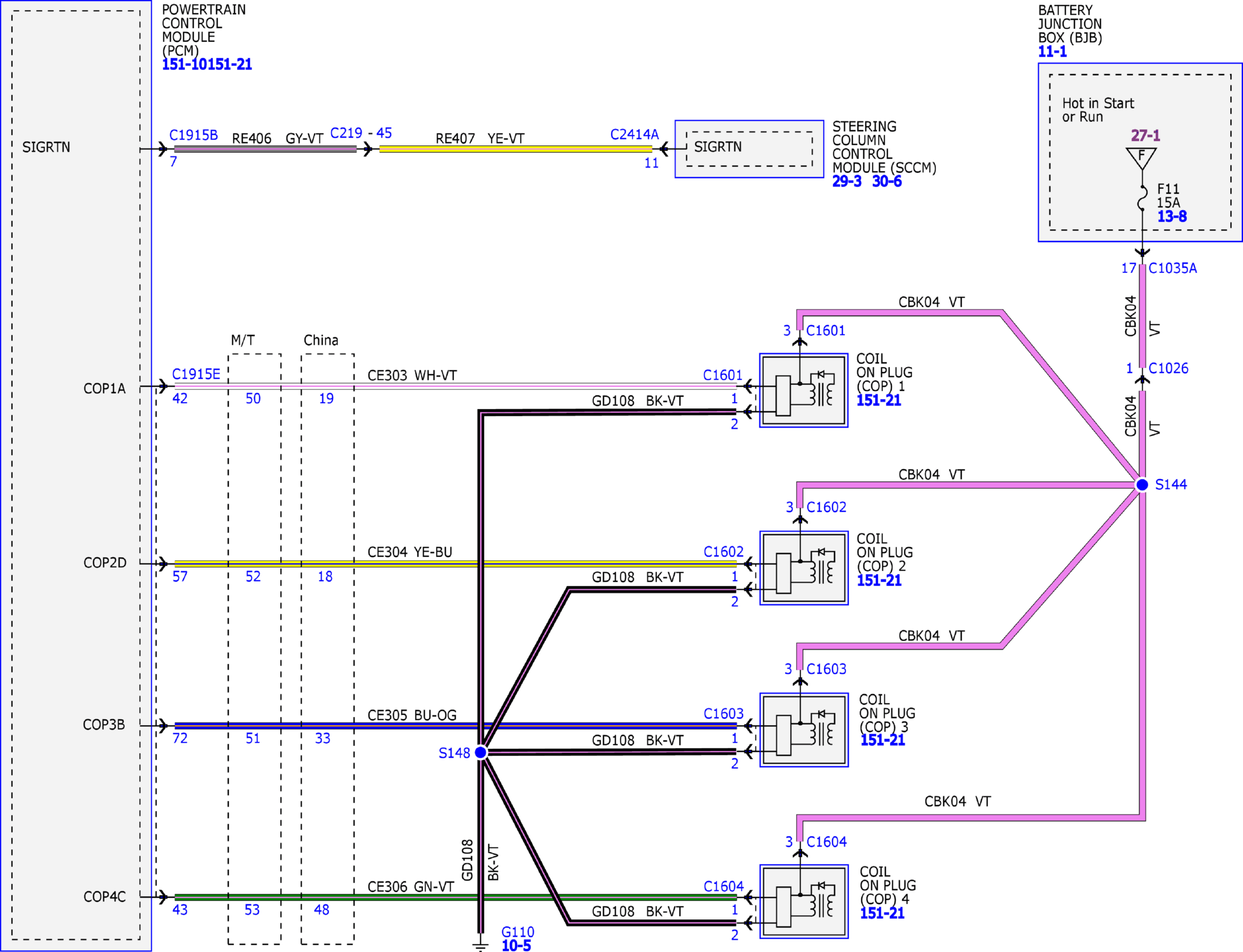

Fig 8: Electronic Engine Controls Wiring Diagram - 1.5L (8 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 9: Electronic Engine Controls Wiring Diagram - 1.5L (9 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 10: Electronic Engine Controls Wiring Diagram - 1.5L (10 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 11: Electronic Engine Controls Wiring Diagram - 1.5L (11 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 12: Electronic Engine Controls Wiring Diagram - 1.5L (12 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 13: Electronic Engine Controls Wiring Diagram - 1.5L (13 Of 13)

Courtesy of FORD MOTOR COMPANY
