Connector Repair Procedures

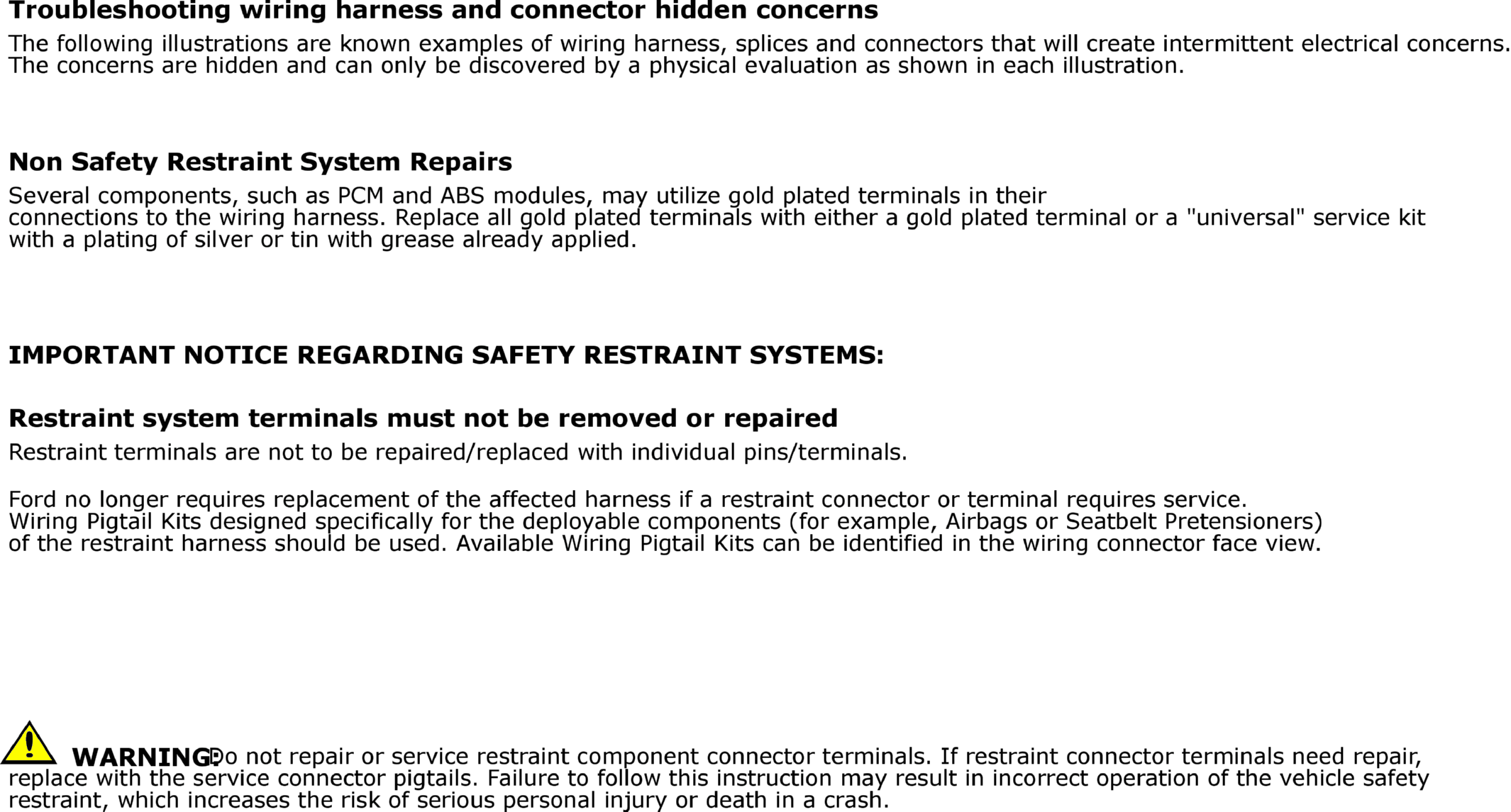

GFDW79615Courtesy of FORD MOTOR COMPANY

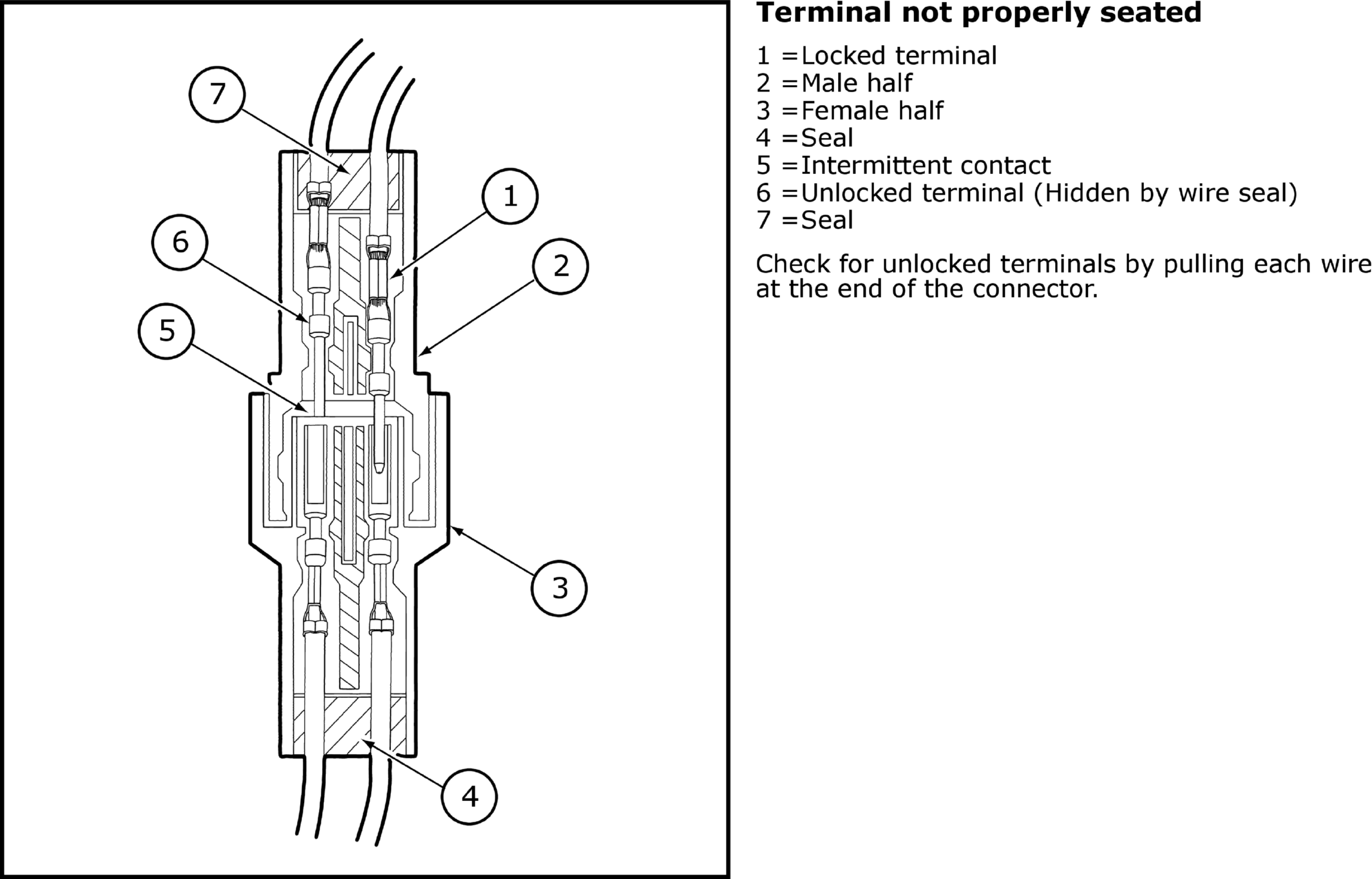

GFDW79616Courtesy of FORD MOTOR COMPANY

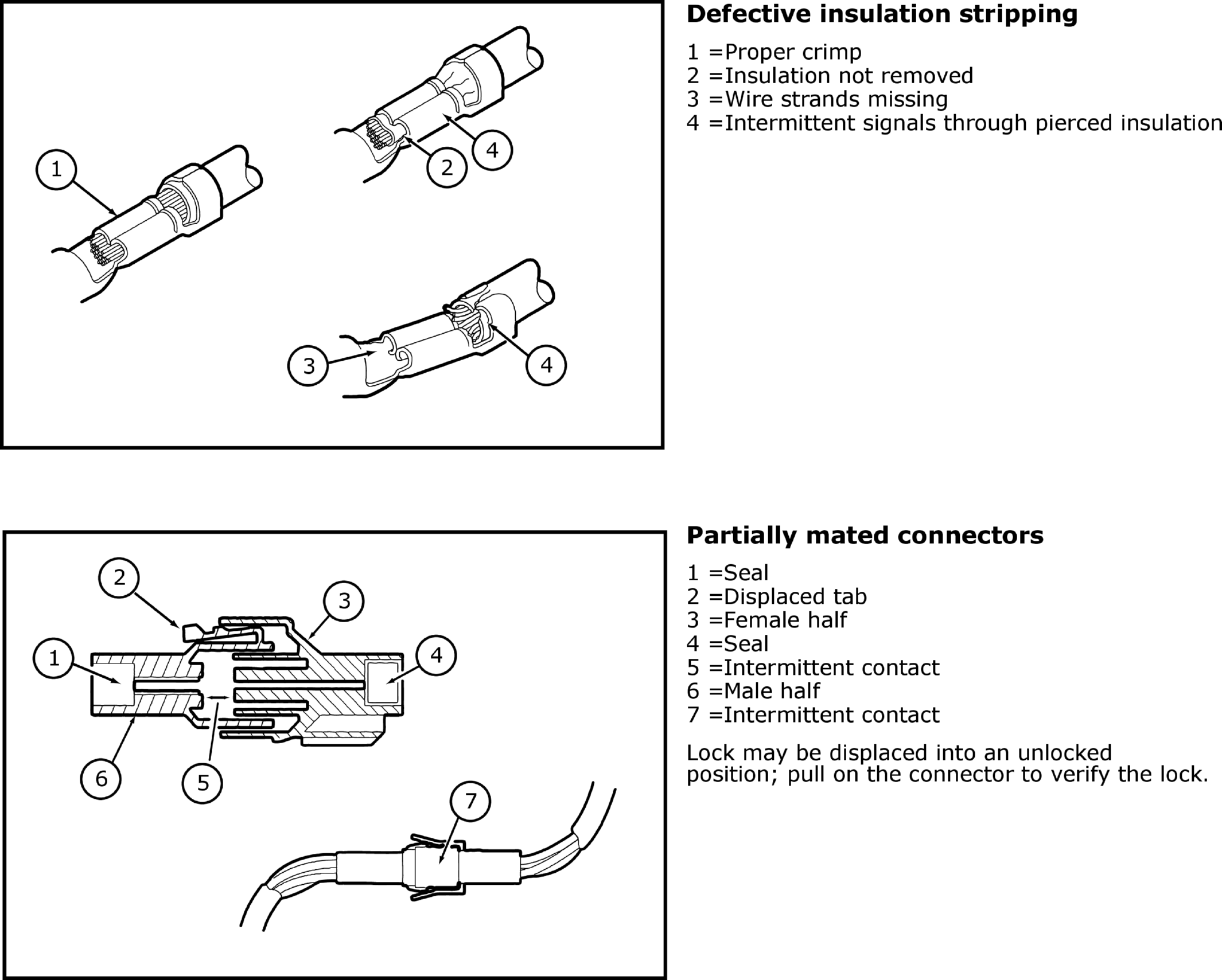

GFDW79617Courtesy of FORD MOTOR COMPANY

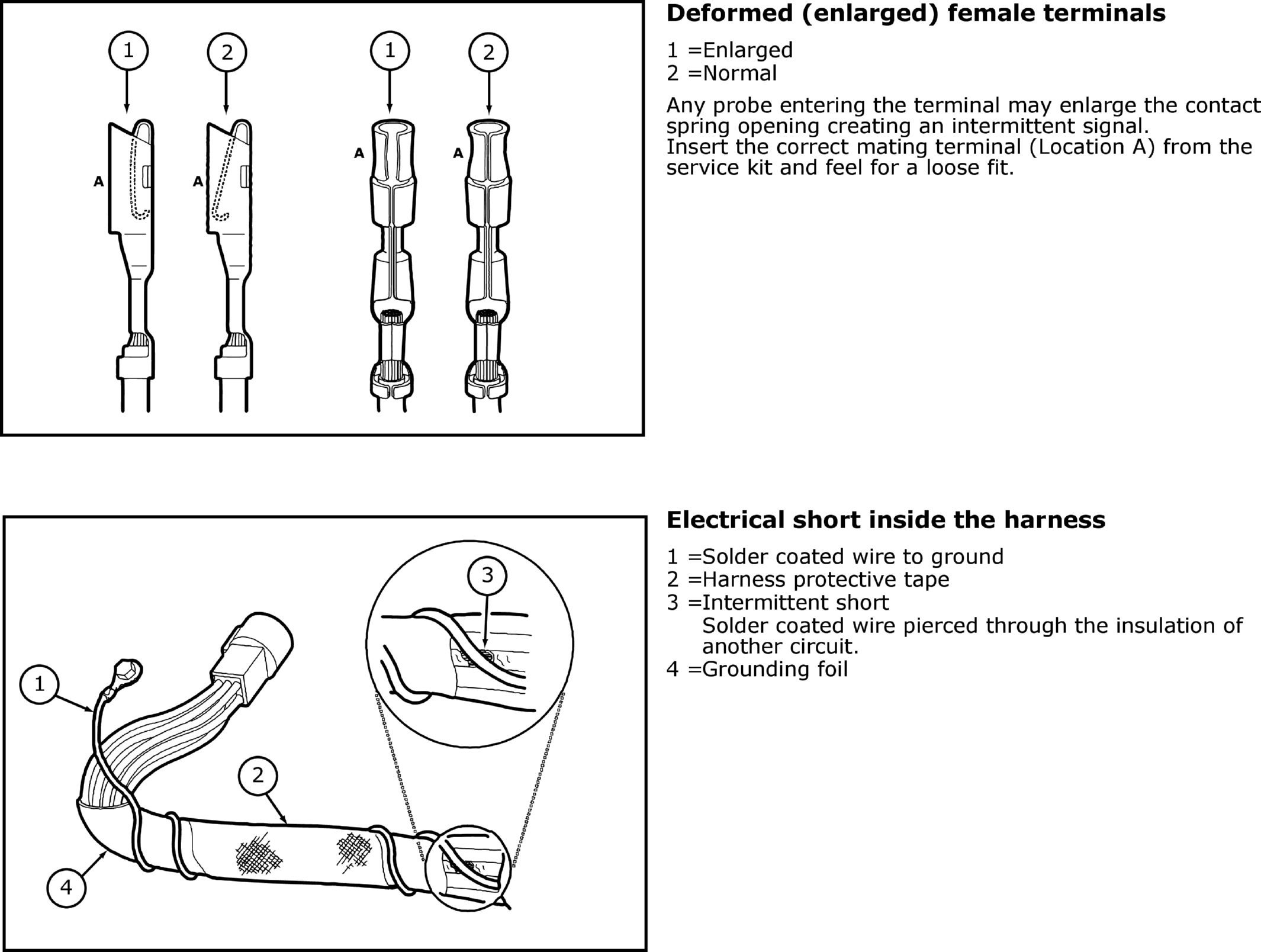

GFDW79618Courtesy of FORD MOTOR COMPANY

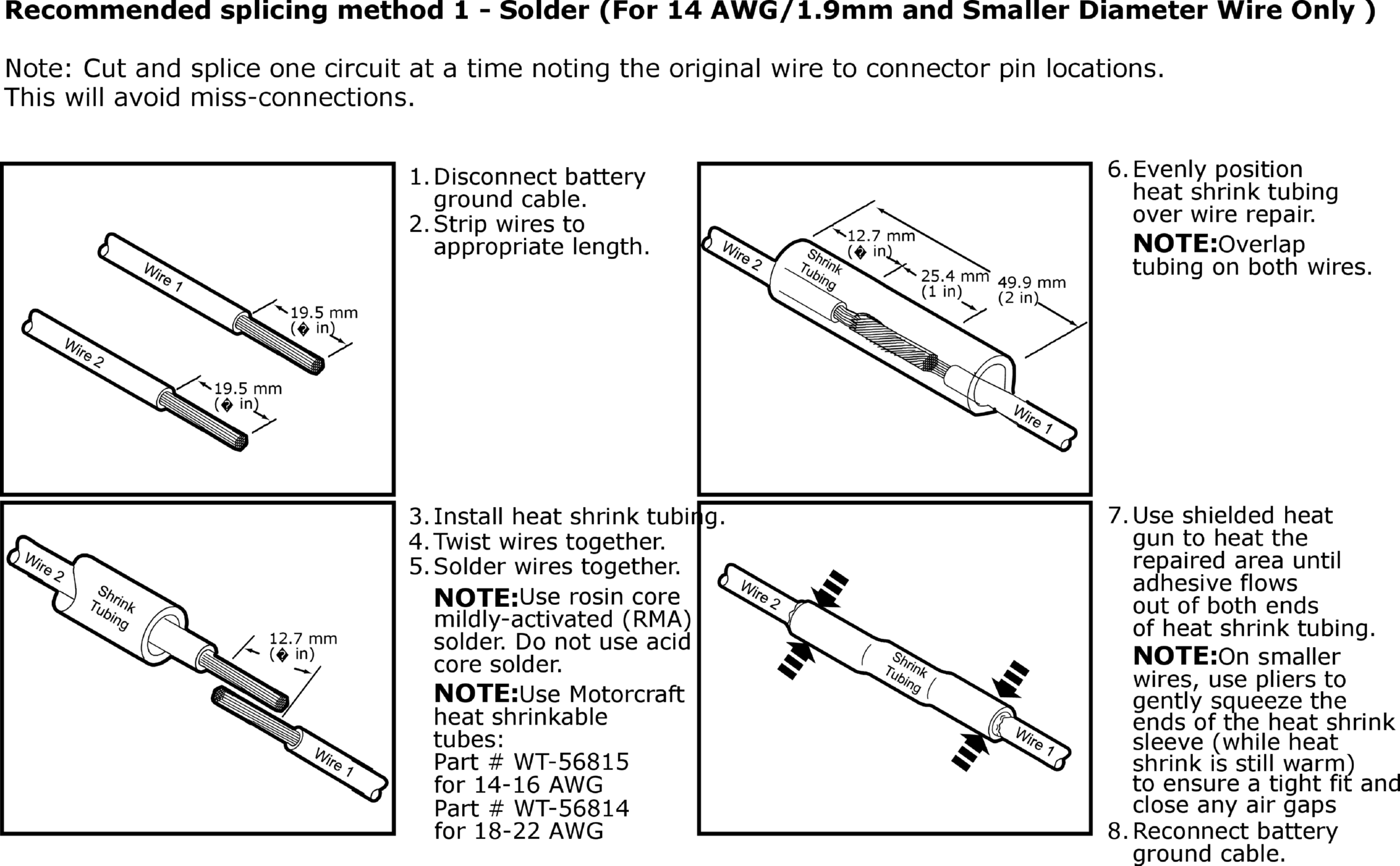

GFDW79619Courtesy of FORD MOTOR COMPANY

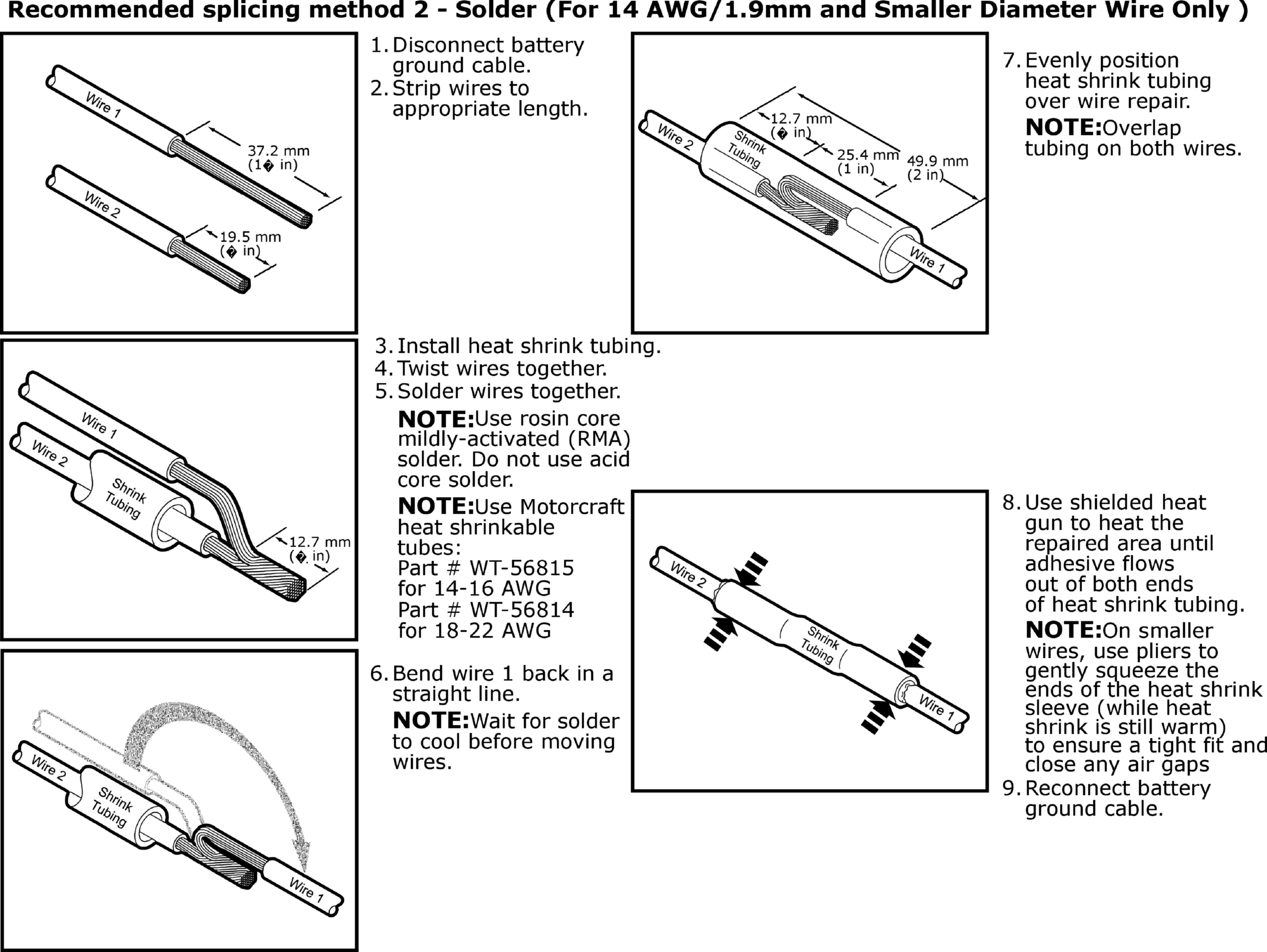

GFDW79620Courtesy of FORD MOTOR COMPANY

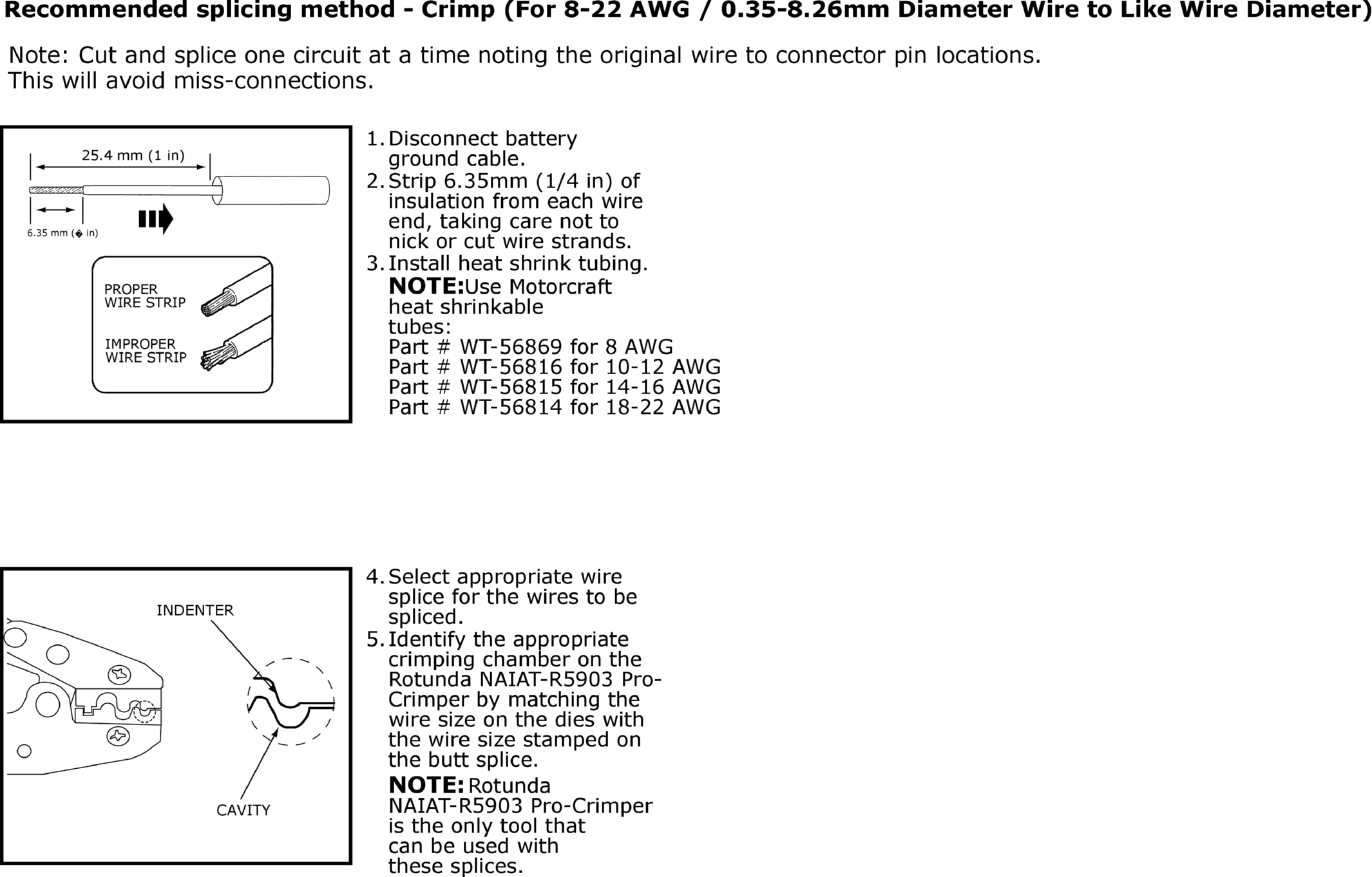

GFDW79621Courtesy of FORD MOTOR COMPANY

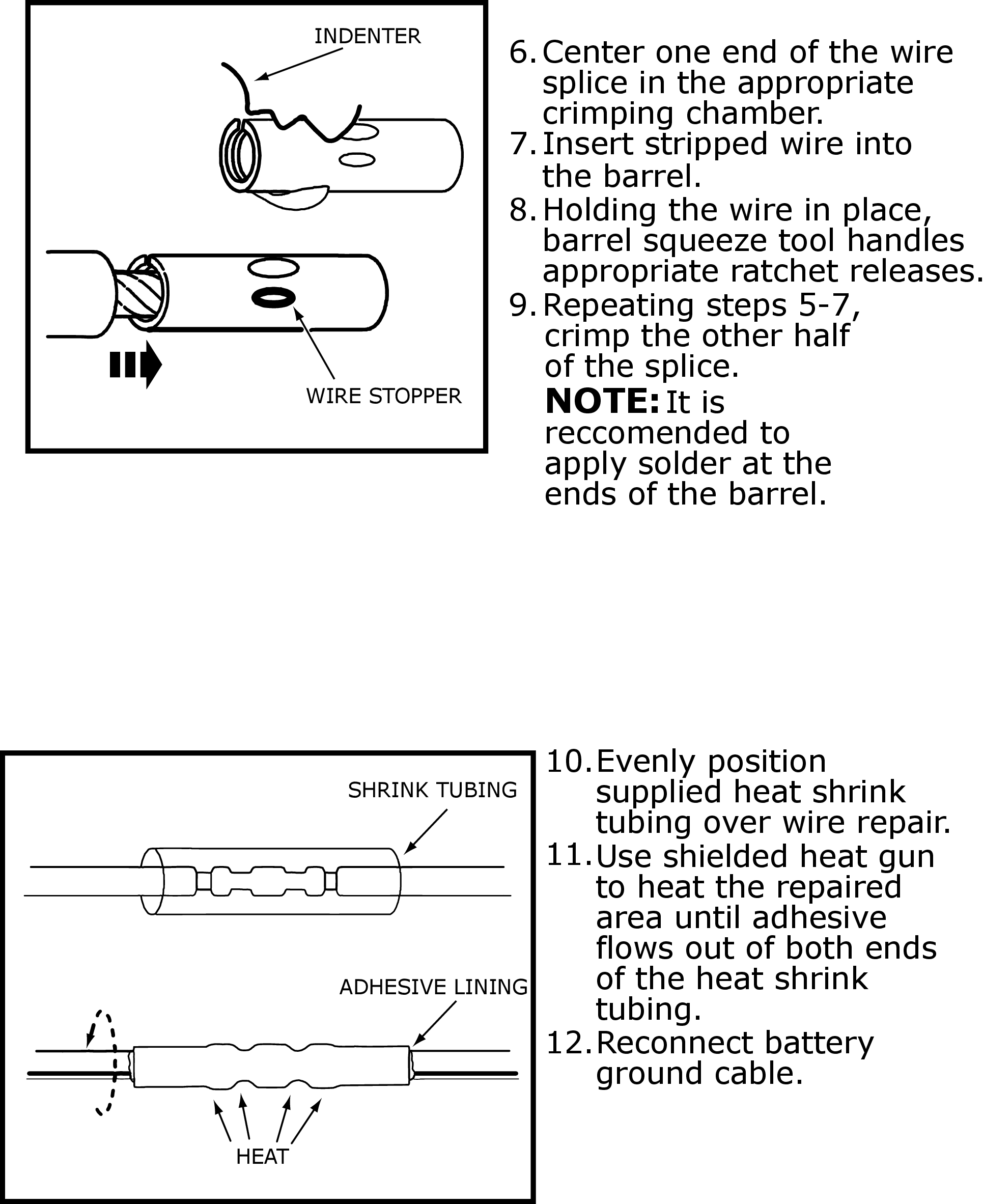

GFDW79622Courtesy of FORD MOTOR COMPANY

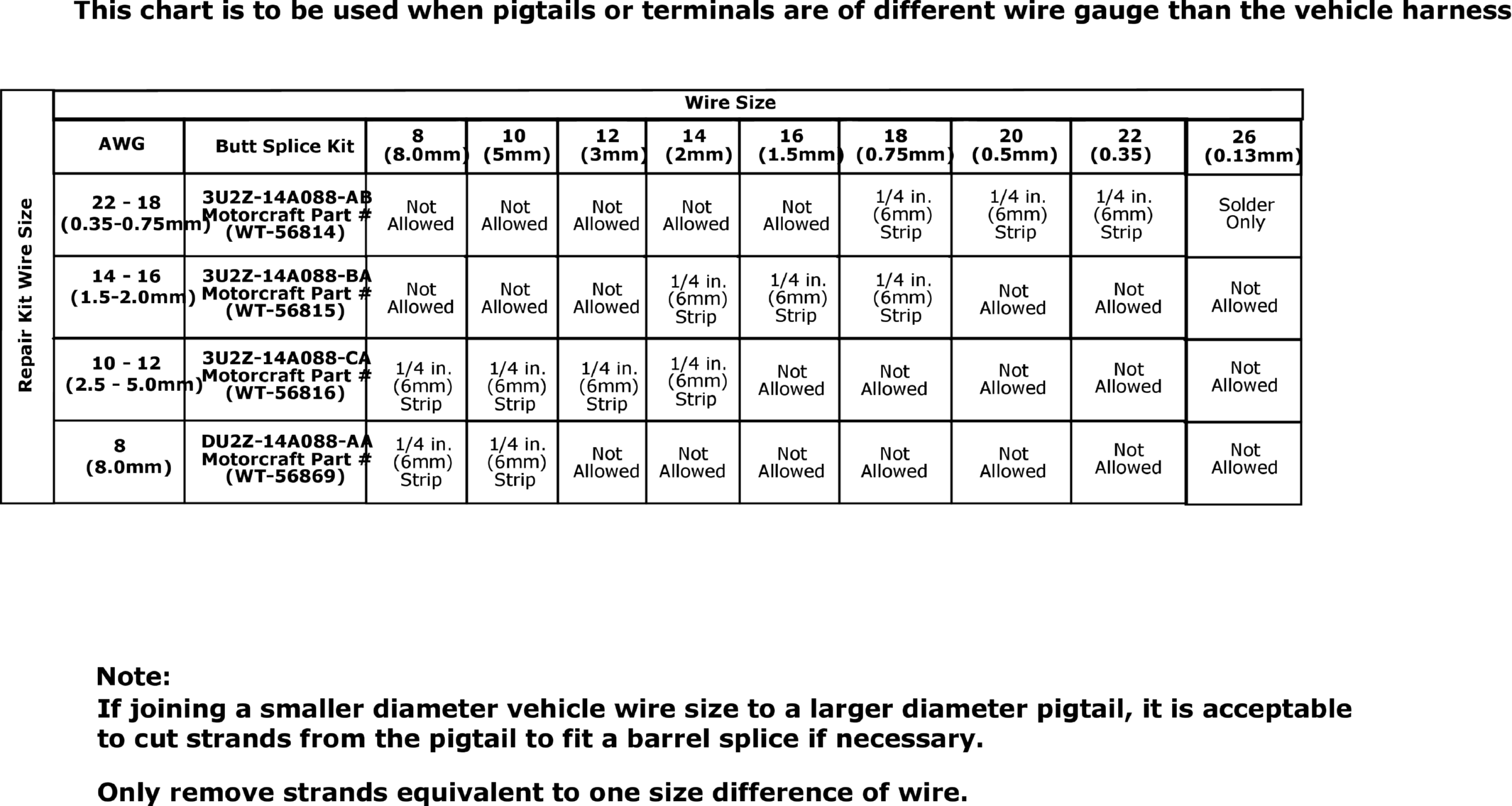

GFDW79623Courtesy of FORD MOTOR COMPANY
