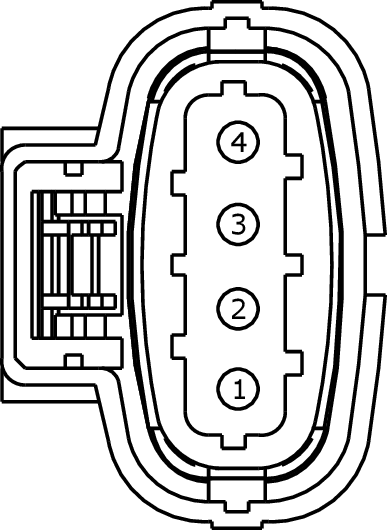

Connector End View (C1588) - TURBOCHARGER BOOST PRESSURE / CHARGE AIR COOLER TEMPERATURE (TCBP/CACT) SENSOR 2.0L
Connector: C1588
Description
TURBOCHARGER BOOST PRESSURE / CHARGE AIR COOLER TEMPERATURE (TCBP/CACT) SENSOR_2.0L
Color
Harness
8C290
Base Part #
#N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RE407 (YE-BU) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) | |
| 2 | LE424 (YE-GN) | 18 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF) | |
| 3 | LE423 (GN) | 18 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1) | |
| 4 | VE805 (GY-OG) | 18 | SENSOR - MANIFOLD TEMPERATURE + |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1232 |
Service Part Number: BU2Z-14S411-ATA Gauge: 14 Pin material: Tin (greased) Cavities: 4 Vehicle Uses Sensor - Manifold Pressure/Intake Temperature |
